Aztech HL117EW Easy Start Manual

A
Package Contents
- HL117EW
- Ethernet Cable
- Resource CD
B

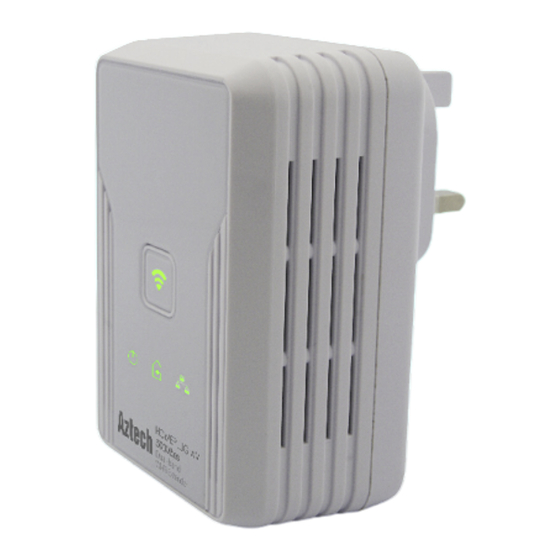

Device Overview
WPS Button /
Wireless LED
Power LED
Easy Start Guide
HL117EW | HomePlug AV 500 Mbps
Ethernet Ports
Dual Band (2.4Ghz/5Ghz) Wireless N Extender
Dual Band Switch
(2.4 Ghz/5hz)
C
Setup for New Network Connection
- Easy Start Guide
- Warranty Card
In Room A, plug in your HomePlug AV device into
1.
the power outlet and connect it to your router's
Ethernet LED
ethernet port using an ethernet cable.
Power Line Activity
LED
Make sure that your router's internet connection is
up to allow you to access the internet.
Simple Connect Button
D
Configuring Wireless Settings (Optional)
2. In Room B, plug in your HL117EW device into the
Ensure to follow the connection set up below.
power outlet. You may connect any device (e.g.
computer / notebook) to its ethernet port; you
may also connect any of your wireless devices
via WiFi (SSID and Password is printed at the
label sticker located at the top surface of your
HL117EW device)
1. Connect an ethernet cable from the PC to any of the
Confirm that the connection was established
3.
Ethernet Ports of the HL117EW.
on both Home Plug AVs. Successful connection
2. On your computer, turn off 'Wireless Adapter' (if
is indicated by Green light on both Power and
applicable).
Power Line Activity LEDs. Your HomePlug AV
3. Open and Launch a web browser. Type in 10.0.10.254
is now ready to use and may now access the
on the web browser's url link then hit enter key.
internet.
4. Enter 'admin' for Username and 'admin' for
Password.
5. Click the Network tab and select WLAN SETTINGS
from the submenu to modify the wireless settings.
6. After changing the preferred settings, click the
'Save' button to apply changes.
