Genelec 8320A Operating Manual page 3

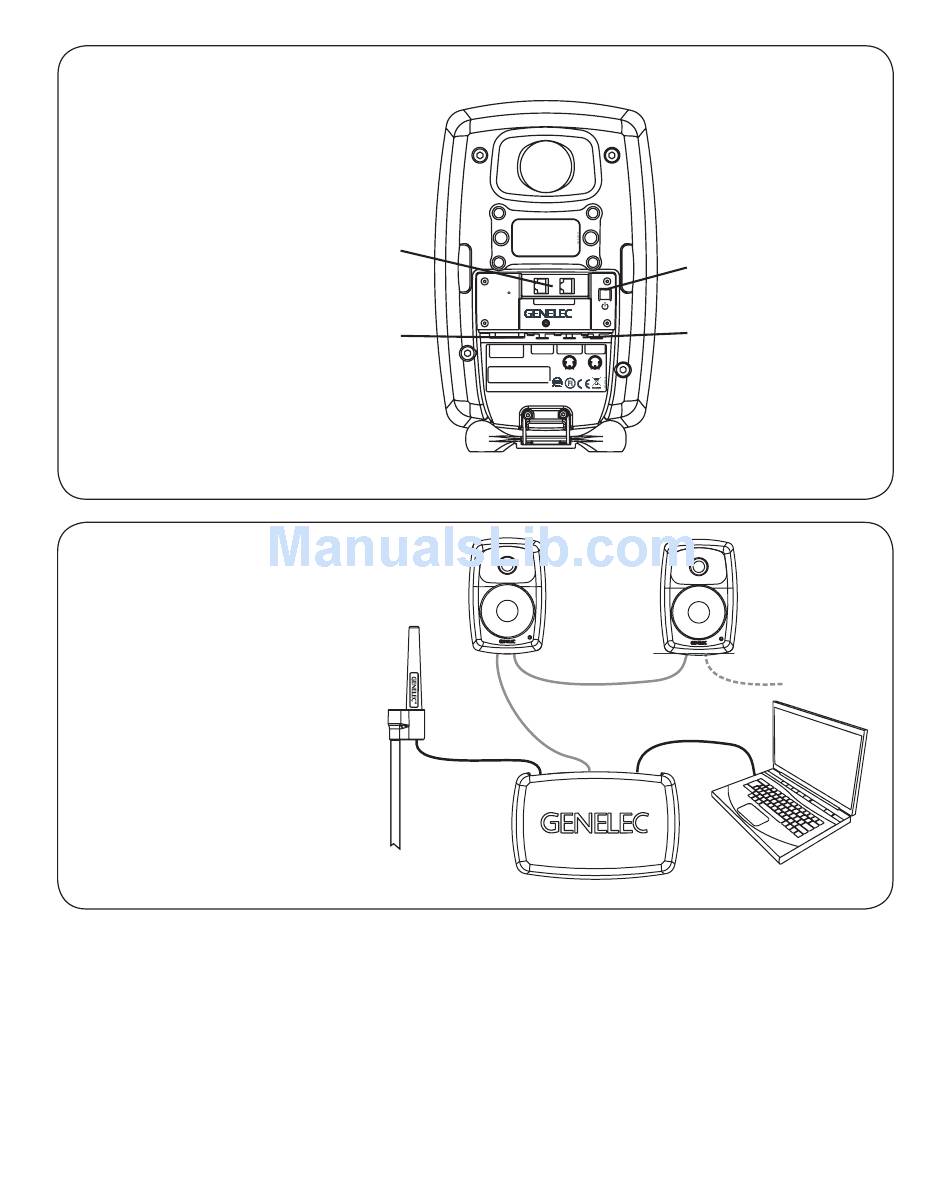

Figure 2: Control and connec-
tor layout on the rear panel of
an 8330A. The 8320A has an
analog input only, and the GLM
network connectors point down-
wards and are located next to
the audio input.
Figure 3: GLM Network Adapter
cabling. Audio cabling is not
shown.
Digital Audio Input
The 8330A digital audio input (DIGITAL IN) accepts
a male XLR connector carrying an AES/EBU format-
ted digital audio signal. The digital audio can be rout-
ed to the next monitor or subwoofer using an XLR
output (DIGITAL OUT). The AES/EBU digital audio
subframe A or B is selected using the GLM software.
GLM NETWORK
CONNECTORS
MAINS
INPUT
MICROPHONE
LISTENING
POSITION
WARNING: ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO
NOT SUBJECT TO WATER OR MOISTURE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
USE EARTHED MAINS CONNECTION ONLY.
AVERTISSEMENT: RISQUE DE CHOC ÉLECTRIQUE. NE PAS
OUVRIR. NE PAS EXPOSER À L'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANT À L'INTÉRIEUR REMPLAÇABLE PAR
L'UTILISATEUR. ADRESSER TOUTE RÉPARATION À UN
PERSONNEL QUALIFIÉ. CET APPAREIL DOIT ÊTRE
RACCORDÉ À LA TERRE.
LAITE ON LIITETTÄVÄ SUOJAMAADOITUSKOSKETTIMILLA VARUS-
TETTUUN PISTORASIAAN. APPARATET MÅ TILKOPLES JORDET
STIKKONTAKT. APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG.
RESET TO FACTORY
SETTINGS: PUSH
BUTTON FOR 10 SEC
GLM NETWORK
8330A SMART ACTIVE MONITOR
MAINS INPUT
DIGITAL DIGITAL ANALOG
50 / 60 Hz 60 W IN
IN OUT
100 - 240 V~
1 2 2 1
MAGNETICALLY SHIELDED
MADE IN FINLAND www.genelec.com 3 3
SERIAL NUMBER
GND - + + - GND
OUT IN
This device complies with FCC Part 15 and Canadian
ICES-003 radio frequency Class B emission requirements.
Refer to operating manual for full information.
GLM
NETWORK
GLM
NETWORK
Settings and Acoustic Calibration
The Smart Active Monitors are extremely flexible in
compensating the acoustic influences of the room
and support automated setup using the GLM User
Kit and software. The 8320A and 8330A are com-
patible with GLM 2.0 and later.
The GLM software can be downloaded from
POWER
SWITCH
SIGNAL CONNECTORS
- DIGITAL IN
- DIGITAL OUT
- ANALOG IN
GLM
NETWORK
USB
