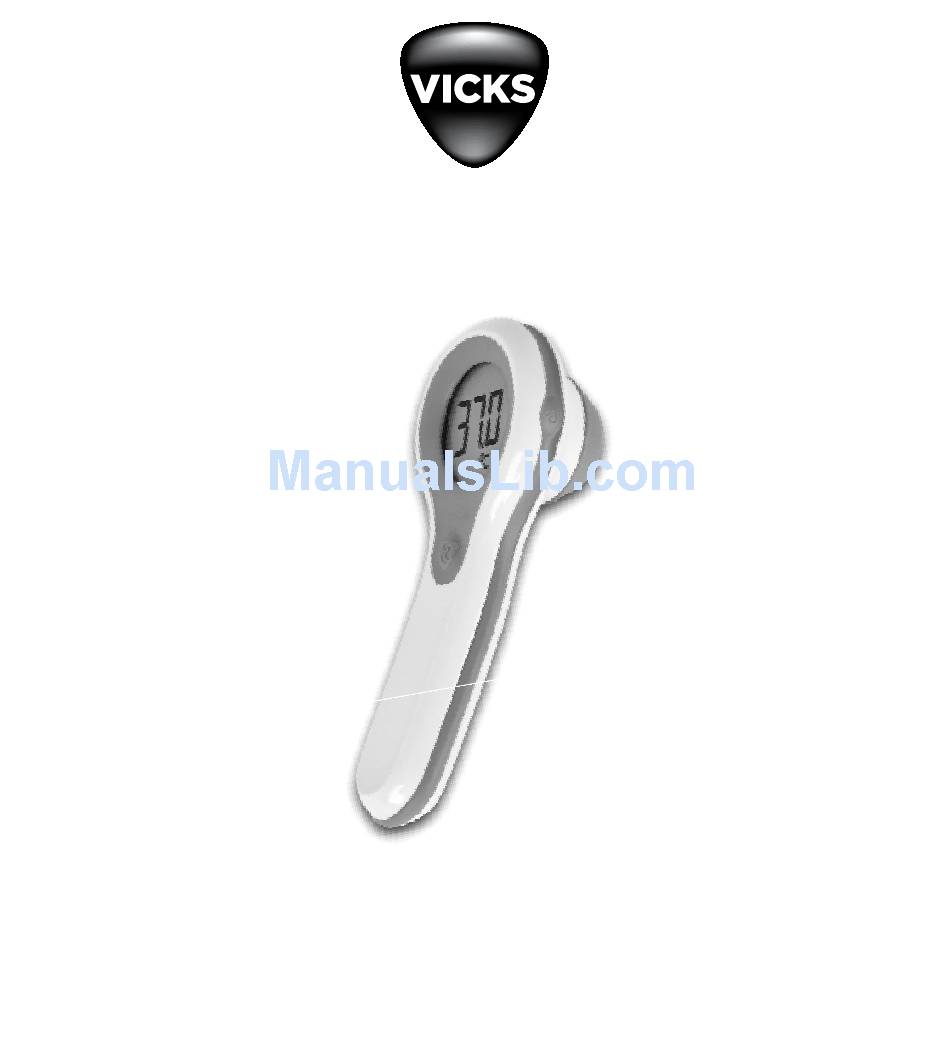

- Page 1 Forehead Thermometer Model V977C-AUS...
-
Page 2: Table Of Contents
QUICK START GUIDE Forehead Thermometer Instruction manual for Forehead Thermometer Model V977C-AUS Thank you for purchasing the Forehead Thermometer (V977C-AUS ). First time use: The Forehead Thermometer is a high quality product incorporating the latest technology and it has been tested in accordance with • Pull plastic strip from battery compartment and discard. international standards. With its unique technology, the Forehead Thermometer can provide a reliable reading with each measurement. • Remove 37.0°C label from the LCD display and discard. -
Page 3: Important Safety Instructions
Auto-Display memory 3. Product description The last reading is automatically displayed for 3 seconds when the unit is switched ON. Multiple reading recalls (1) Start button Users can recall the last 12 readings when entering the MemoryTracker™ recall mode, enabling efficient tracking of temperature history and variations. (2) Sensor Safe and hygienic (3) LCD display • No risk of broken glass or mercury ingestion. • Completely safe for use on children. (4) Memory button Fever InSight ® feature (5) Battery cover Fever InSight ®... -
Page 4: Control Displays And Symbols
5. Control displays and symbols 6. Directions for use 1. Press the button on front of unit. The LCD display is activated to show all segments for 2 seconds. 2. The last measurement reading will be shown on the display automatically for 3 seconds with the «M» icon. LCD display Display meaning Description... -
Page 5: Error Messages
7. Error Messages This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive). This device conforms to the following Standards: Display/Problem Display meaning Possible cause and remedy • EN 60601-1 Medical electrical equipment - Part 1: General requirements for safety Measured temperature too high Displays «H» when measured temperature higher • EN 60601-1-2 Medical electrical equipment - Part 1-2: General requirements for safety - CAUTION: Collateral standard: Electromagnetic compatibility - Requirements and tests than 42.2 °C. -
Page 6: Cleaning And Storage
9. Cleaning and storage 11 . T echnical specifications Use an alcohol swab or cotton swab moistened with alcohol (70% Isopropyl) to clean the thermometer Type: IR Forehead Thermometer casing and the measuring probe. Ensure that no liquid enters the interior of the thermometer. Never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the instrument in water or other cleaning liquids. After cleaning the unit should not be used until the cleaning agent Measuring range: Forehead measuring range: 34.0°C to 42.2°C. - Page 7 12. Warranty This product has been produced with the greatest care for normal, household use. Following directions carefully will ensure dependable operation. If for any reason (other than misuse or normal battery operation) you are dissatisfied with your Vicks Forehead Thermometer, we will repair or replace it, at our option, at no charge during the 3 year warranty period. Modification to the product by the consumer is not authorised and voids the warranty. If the thermometer does not function properly, first check the battery. Replace if necessary. Batteries and packaging are excluded from the warranty. If you experience unsatisfactory operation, please contact Felton Grimwade & Bosisto’s. If repair is required under the warranty period, the product should be returned with proof of purchase to Felton Grimwade & Bosisto’s service centre. The purchaser assumes responsibility for the proper care and use of the product in accordance with the printed operating manual. The purchaser or user must make his or her judgment as to when to use the product and the length of use. Keep the operation manual available as it is your guide to safe, efficient operation. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
