Related Manuals for ATTI Shadow Tracker Premier
Summary of Contents for ATTI Shadow Tracker Premier

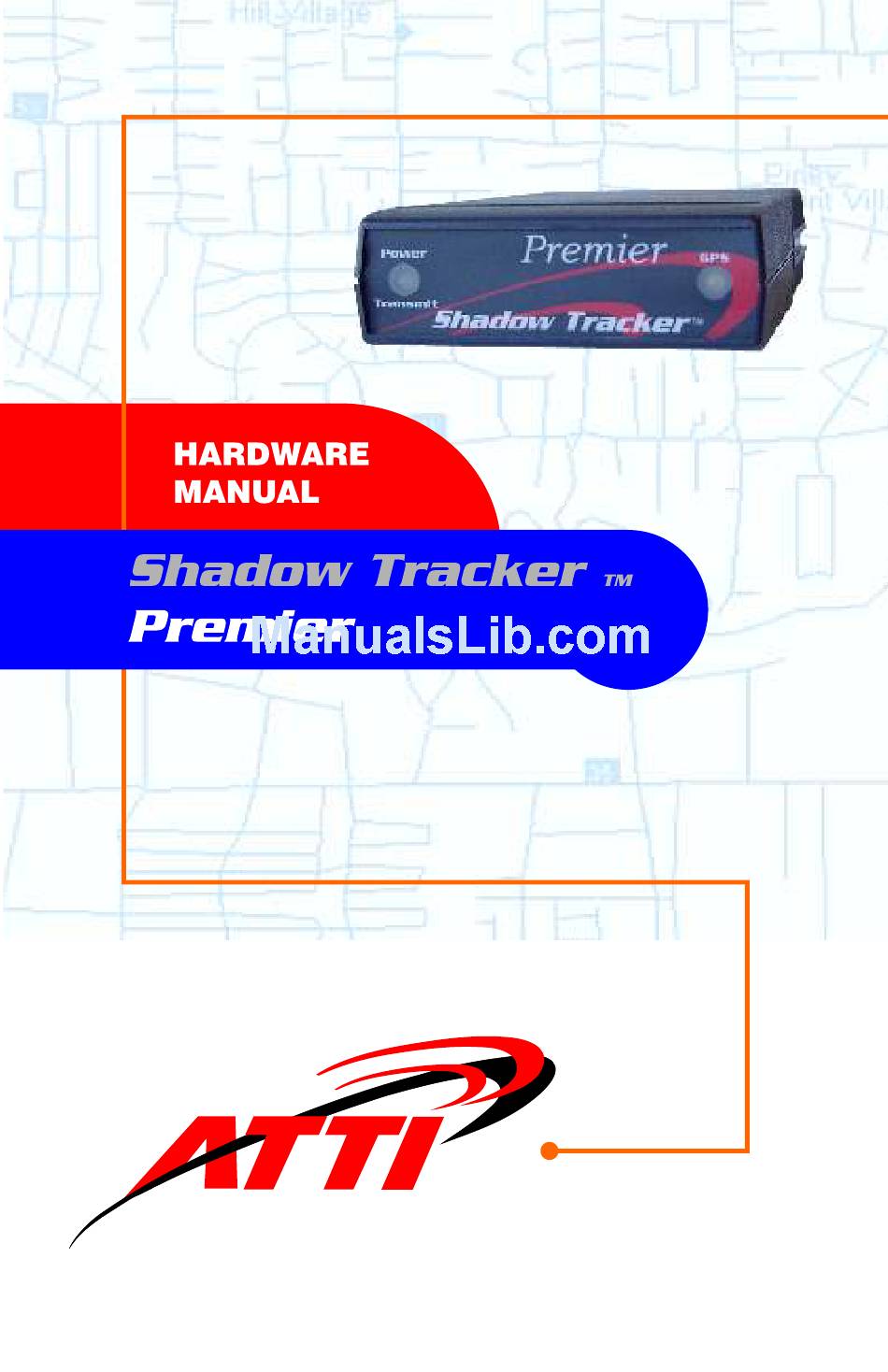

- Page 1 Advanced Tracking Technologies, Inc. © 2003 ATTI All rights reserved...
- Page 2 Advanced Tracking Technologies, Inc. ATTI, Advanced Tracking Technologies, Shadow Tracker, MobilEyes and Time Traveler are trademarks of Advanced Tracking Technologies, Inc., Microsoft, Windows and the Windows logo are registered trademarks of the Microsoft Corporation.
- Page 3 CAUTION: The Shadow Tracker Premier has maximum transmitted output power of 200mW. It is required that the transmit antenna (located inside the Shadow Tracker™ Premier)
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction to MobilEyes™ ......... 1 Connecting the Unit Mounting and Placement ..........Connecting Power ............. 3 Wiring Instructions ............. Status Indicator Lights ............. 4 GPS Antenna ..............Downloading GPS Data ..........5... - Page 6 NTRODUCTION...
-
Page 7: Introduction To Mobileyes
Introduction to Mobile Eyes™ Thank you for purchasing Shadow Tracker™, the cornerstone of the MobilEyes™ vehicle tracking system from Advanced Tracking Technologies, Incorporated. MobilEyes™ is a unique hardware and software combination, used for the tracking needs of today’s mobile workforce. The Shadow Tracker™... -
Page 8: Connecting The Unit
Connecting the Unit Mounting and Placement The Premier mobile unit may be mounted in any desired location as long as the following conditions are met: The Shadow Tracker™ Premier mobile unit is not weather proof and therefore must be installed into the vehicles passenger cabin or any other location that is protected from moisture and extreme temperatures. -
Page 9: Connecting Power
If this happens over a normal two-day weekend there are steps that can be taken to extend this vehicle idle time. Please contact ATTI Tech Support for help in solving this type of problem. If the vehicle is to be idle for an extended time period (i.e. -
Page 10: Status Indicator Lights
Status Indicator Lights Once power is properly connected the Power and GPS LED lights, located on the front panel of the Shadow Tracker™ Premier, will become illuminated. The Power LED will be red when the unit is receiving power. When the The GPS LED indicator will be green when satellite information is being acquired. -
Page 11: Gps Antenna
GPS Antenna An active GPS antenna is required, and must be connected to the Shadow Tracker™ Premier for GPS data collection to occur. Each Shadow Tracker™ Premier comes equipped with an active, external magnetic- mount GPS antenna. (An optional suction mount is also available.) The GPS antenna should be placed in a location that provides adequate reception of the GPS satellite signal. - Page 12 Safety and Care Safety Do not place where spills can occur on the unit. Do not place the unit near a heating device. Do not place the unit in direct sunlight. Do not subject the unit to electrical shock. Do not pour liquid onto the unit. Do not apply any physical pressure to the unit.
- Page 13 Specifications and Features Shadow Tracker™ Premier at a glance Height ..................1.23 in. Width: ..................3.50 in. Length: ..................6.18 in. Weight: Shadow Tracker™ Premier ............10.00 oz Magnetic mount antenna for transceiver ......... 12.40 oz GPS Antenna ................2.6 oz. Current draw transmitting: ..............
-
Page 14: Troubleshooting
TroubleShooting Problem Action Make sure the Unit LED does not connection is made turn Red or Green. to the back of the Unit LED will not Check antenna turn green. Unit is connection Make sure the not receiving GPS antenna cable is not signal. - Page 15 ™ Shadow Tracker Premier Hardware Manual Manual Number: M-21225 Revision: 7/01/2003...
- Page 16 Advanced Tracking Technologies Inc. P.O. Box 168 Sugar Land, Texas 77487 Tel: (713) 353-6065 Fax: (713) 353-6050 www.AdvanTrack.com...
