Summary of Contents for Optoma Nu Force DAC80

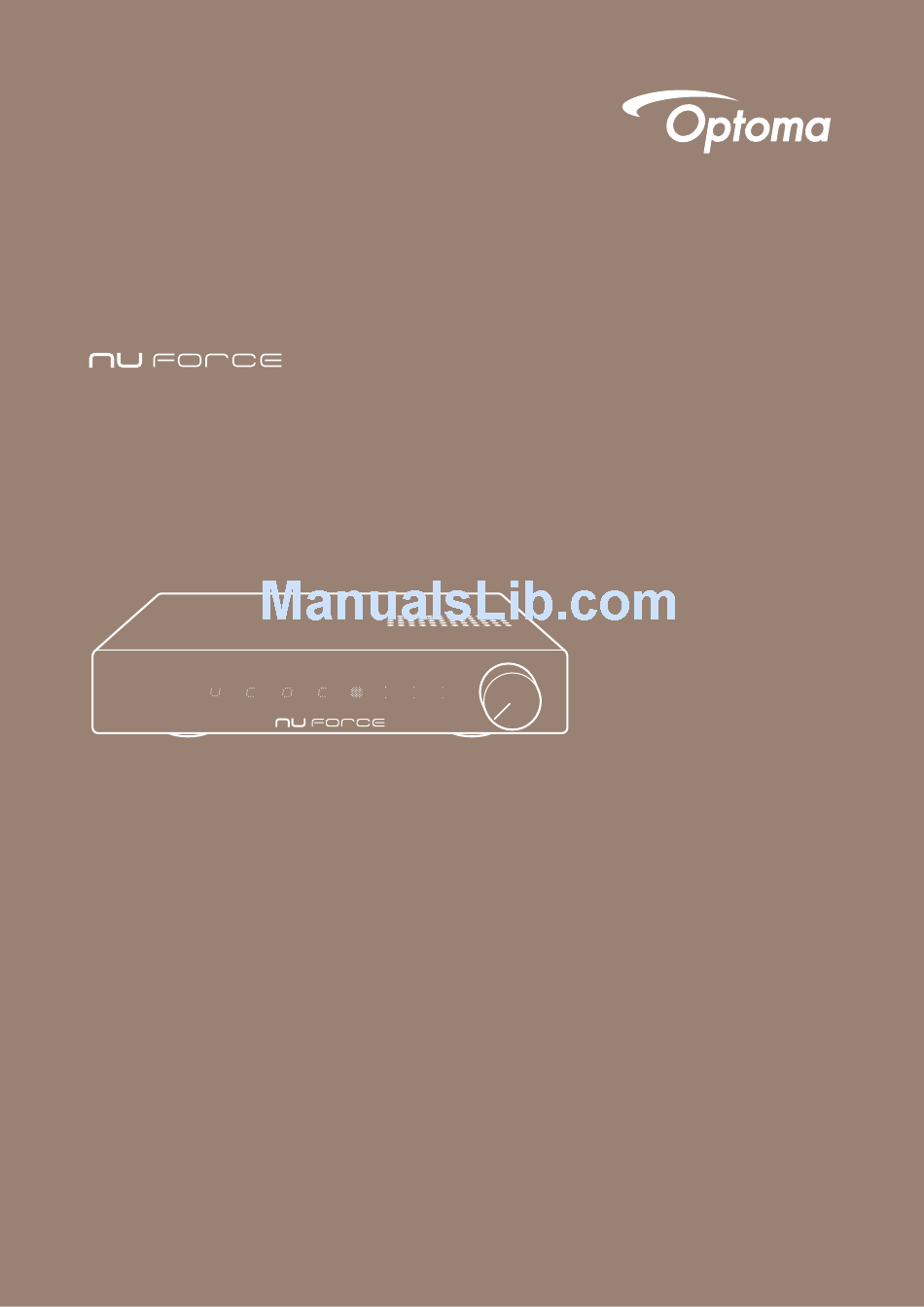

- Page 1 DAC80 A class leading DAC for your home system 44.1k 88.2k 176.4k 48.0k 96.0k 192.0k User manual ALDACBZ...
- Page 2 NuForce DAC-80 Digital to Analog Converter FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Product Overview
NuForce DAC-80 Digital to Analog Converter QUICK START GUIDE Product Overview Front Panel 44.1k 88.2k 176.4k 48.0k 96.0k 192.0k Back Panel AC 100(115)V / 230(240)V 100V 115V COAXIAL 240V 230V COAXIAL OPTICAL FUSE T2.5A 250V Make sure that the AC Voltage selector switch at the rear of the unit is switched to the appropriate voltage for your country. - Page 4 NuForce DAC-80 Digital to Analog Converter Connections Connect the appropriate digital source to any of the available digital inputs by using a high quality corresponding cable type (USB, coaxial or Toslink). The analog RCA output should be connected to your preamp using high quality interconnect cables. Please note: It is not recommended to directly drive a power amplifier from the RCA outputs.
-
Page 5: Specifications
NuForce DAC-80 Digital to Analog Converter SPECIFICATIONS Digital (4) Digital inputs USB, Toslink, RCA x 2, transformer or optical isolated, AC coupled. Maximum bit depth 24-bit Maximum sample rate 192kHz Asynchronous up to 192kHz/24-bit Sample rate indicator Volume control 32-bit digital attenuator Analog THD+N 0.005%, 0dB, 1kHz... -
Page 6: Windows Os Installation
Windows OS Installation Download Driver First, you will need to download the required driver from the following location: http://nuforce.optoma.com/download Install Driver & Software After downloading the driver, run the Installation program. After the installation, an icon linking to the NuForce Stereo Audio Control Panel program will appear on your desktop. - Page 7 NuForce DAC-80 Digital to Analog Converter Adjust Software (Windows 7 Setup) Direct Sound (DS) is the default Windows audio mode. It operates with the Windows Mixer enabled. This means that other sound prompts, such as email notifications, etc., will be mixed into the music output. A single sample rate must therefore be used as the common denominator.
- Page 8 NuForce DAC-80 Digital to Analog Converter When music is being played, the Audio Format cannot be changed on the fly. The music must be stopped before you can make the next change Note the message: Stop Player… The ASIO tab should be set to 24-bit and Auto Adjust:...
- Page 9 NuForce DAC-80 Digital to Analog Converter WASAPI Mode Some media players require a special WASAPI plug-in to enable support for WASAPI. Once installed and activated, WASAPI can be selected as the default audio driver. Below is a screenshot of Foobar2000 in Windows 7 (after WASAPI plug-in has been installed) showing different supported device driver options.
-
Page 10: Mac Os Installation
Mac OS Installation Download Driver First, you will need to download the required driver from the following location: http://nuforce.optoma.com/download Install Driver & Software After downloading the driver, the Installation program begins. Click Continue > Install > Install Software > Continue installation as each screen appears. In the last window, click Restart to reboot your computer in order to complete the installation process. - Page 11 NuForce DAC-80 Digital to Analog Converter Adjust USB-192 Software Installation of the USB-192 software on Apple Mac systems is straightforward and simple: 1. On the Desktop, select Launchpad. 2. Under Launchpad, select Utilities. 3. Under Utilities, select Audio/Midi Setup. 4. Under Audio/Midi Setup, select NuForce DAC-80 as the default audio device. 5.
- Page 12 www.optoma.com...
