TRIVIEW TLM-1901W Operating Instructions Manual

High performance tft lcd monitor with a 1440x900 wxga+ resolution.
Hide thumbs

Advertisement

Quick Links

Download this manual

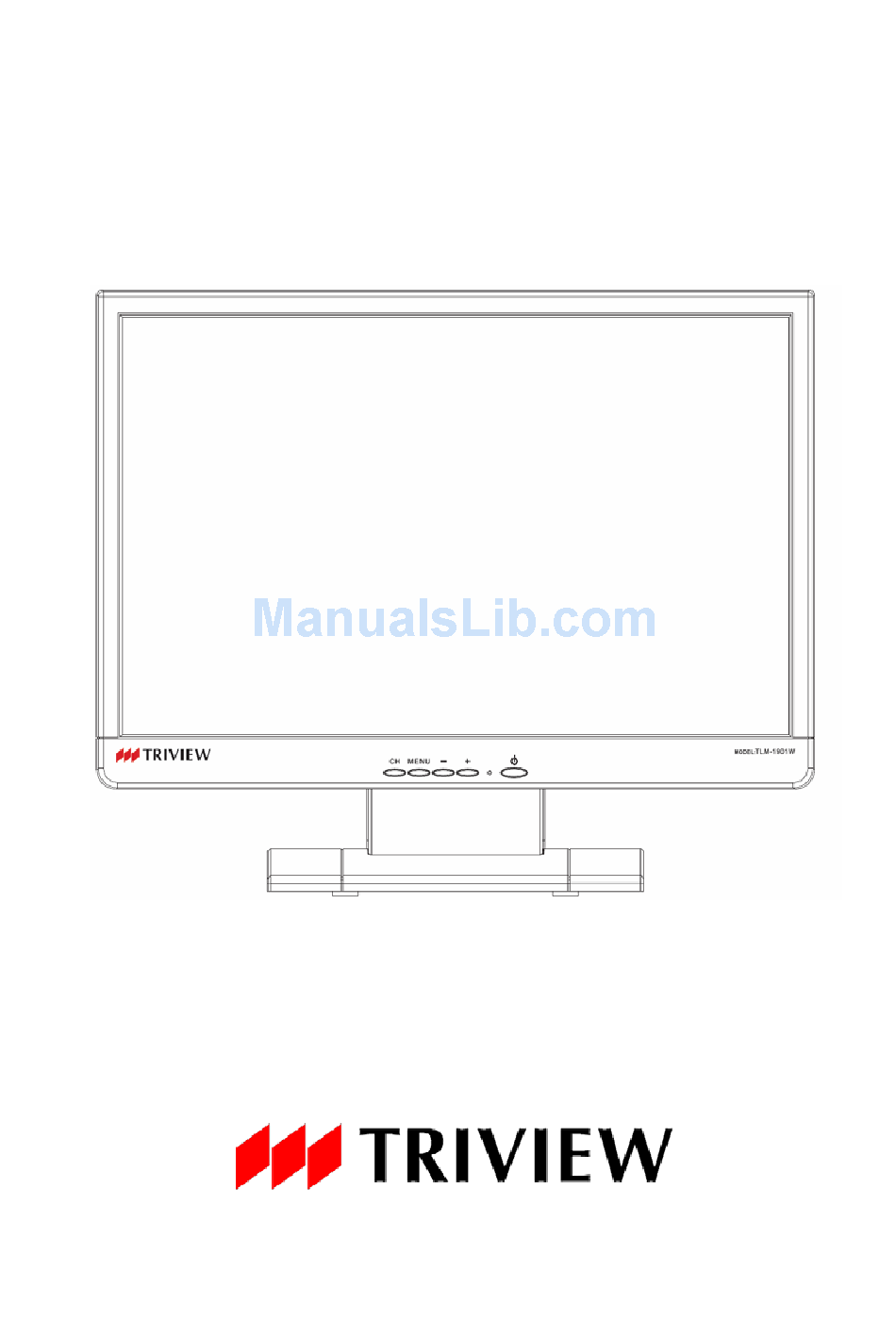

OPERATING INSTRUCTIONS
TLM-1901W

Advertisement

loading

Related Manuals for TRIVIEW TLM-1901W

Summary of Contents for TRIVIEW TLM-1901W

  • Page 1 OPERATING INSTRUCTIONS TLM-1901W...

  • Page 3: Table Of Contents

    Table of Contents ● FCC Information ● CE Information ● Safety Precautions 1. General features 2. Setting up 3. Controls and Indicators 4. On-screen display...

  • Page 4: Fcc Information

    FCC Information This equipment has been tested and found to be complied with the limits of Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 5: Safety Precautions

    Safety Precautions 1. Do not modify the three-prong grounding type monitor power plug in any way. 2. Operate this unit only from the type of power source indicated on the label. 3. Do not block or cover ventilation openings on the back or bottom of the monitor cabinet. 4.

  • Page 6: General Features

    1. General Features This is a high performance TFT LCD monitor with a 1440X900 WXGA+ resolution. The LCD monitor has been designed for both PC and Video application, complied with the power management regulation of VESA DPMS, in supporting Plug & Play and complying with DDC2B.

  • Page 7: Setting Up

    2. Setting up Read this chapter for important safety information and how to set up and connect the display to your computer or camera. ․Check the attachment of monitor. There are power cord, power adapter, operating instructions and PC signal cable. ․Make sure the surface for placing the LCD monitor is stable and level.

  • Page 8: Controls And Indicators

    3. Controls and indicators 3.1 FRONT PANEL A. INPUT SELECT / EXIT BUTTON ․Press the button to select input signal. ․Press the button to exit OSD menu. B. MENU BUTTON ․Press the button to pop-up the OSD main menu. ․As a ENTER key during the OSD operation. C.
  • Page 9 3.2 I/O CONNECTORS A. AUDIO input B. VIDEO 1 output C. VIDEO 1 input D. VIDEO 2 output E. VIDEO 2 input F. S-VIDEO input G. DVI / VGA input H. DC 12V input...

  • Page 10: On-Screen Display

    4. On-screen display (OSD) Hot Key： Volume：Press – button to pop up the volume function and then press – button to adjust the volume; Press MENU button to exit OSD menu. Lock Key：Press and hold & MENU buttons simultaneously then press and hold POWER button for 2.5sec to lock all keys.
  • Page 11 Prompt： No Available Signal：Under VGA or DVI mode, the “NO SIGNAL” prompt will show up in 0.5sec. as soon as the cable unplug or signal loss, such as PC get into standby mode; then “GOING TO SLEEP” will show up in 6sec. Input signal can't support：Under VGA or DVI mode, “NON SUPPORT TIMING”...
  • Page 12 MAIN MENU： Press – button for scrolling cursor up and down, then press MENU button to enter the desired function. BRIGHTNESS：Press – button to adjust the brightness value, then press MENU button to return to the MAIN MENU.
  • Page 13 CONTRAST：Press – button to adjust the contrast value, then press MENU button to return to the MAIN MENU. DISPLAY ADJUST： Press – button for scrolling cursor up and down，then press MENU button to enter the desired function.
  • Page 14 COLOR ： Press – button to adjust the color value, then press MENU button to return to the DISPLAY ADJUST menu. TINT：Press – button to adjust the tint value, then press MENU button to return to the DISPLAY ADJUST menu. Note：The TINT adjustment is not available for PAL video system.
  • Page 15 V. POSITION：Press – button to adjust the image vertical position value, then press MENU button to return to the DISPLAY ADJUST menu. Note : The V. POSITION adjustment only available for VGA input mode. PHASE：Press – button to adjust the phase value, then press MENU button to return to the DISPLAY ADJUST menu.
  • Page 16 RESET：Press MENU button to reset the color, tint and sharpness value, then press button to return to the MAIN MENU. EXIT：Press MENU button to return to the MAIN MENU. COLOR TEMPERATURE：Set the color temperature of the LCD monitor for the CIE coordinate 9300K or 6500K or USER PRESET.
  • Page 17 USER PRESET：Press MENU button to enter the “USER PRESET” sub menu. Press – button for scrolling cursor up and down, then press MENU button to enable value change. RED：Press MENU button to enable RED color adjustment (the cursor color will change from blue to cyan), then press –...
  • Page 18 Same procedure applies for GREEN and BLUE color adjustment. EXIT：Press MENU button to return to the COLOR TEMPERATURE menu. RESET：Press MENU button to reset the red, green and blue value of user preset and color temperature return to 6500K, then press button to return to the MAIN MENU.
  • Page 19 LANGUAGE： Press – button for scrolling cursor up and down and press MENU button to select the language, then press button to return to the MAIN MENU. EXIT：Press MENU button to return to the MAIN MENU. OSD ADJUST： Press – button for scrolling cursor up and down, then press MENU button to...
  • Page 20 enter the desired function. OSD H-POSITION：Press – button to adjust the OSD horizontal position value, then press MENU button to return to the OSD ADJUST menu. OSD V-POSITION： Press – button to adjust the OSD vertical position value, then press MENU button to return to the OSD ADJUST menu.
  • Page 21 EXIT：Press MENU button to return to the MAIN MENU. ASPECT RATIO： Press – button for scrolling cursor up and down then press MENU button to select the desired aspect ratio. Press button to return to the MAIN MENU. EXIT：Press MENU button to return to the MAIN MENU.
  • Page 22 AUDIO CONTROL： Press – button for scrolling cursor up and down, then press MENU button to enable value change. MUTE：Press MENU button to enable the MUTE function adjustment (the cursor color will change from blue to cyan), then press – to switching the MUTE status between ON and OFF.
  • Page 23 cursor color will change from cyan back to blue). VOLUME：Press MENU button to enable the VOLUME adjustment (the cursor color will change from blue to cyan), then press – to adjust the volume value. Then, press MENU button to disable the VOLUME adjustment (the cursor color will change from cyan back to blue).
  • Page 24 RESET：Press MENU button to reset the mute function and volume value, then press button to return to the MAIN MENU. EXIT：Press MENU button to return to the MAIN MENU. INPUT SELECT： Press – button for scrolling cursor up and down and then press MENU button to...
  • Page 25 select the input signal channel, then press button to return to the MAIN MENU. EXIT：Press MENU button to return to the MAIN MENU. RESET：Press MENU button to reset all of adjustment to default value except language and aspect ratio, press button to exit OSD menu.
  • Page 26 MODEL TLM-1901W DESCRIPTION Panel type 19” Wide TFT color LCD panel Viewable size 408.24mm (H) x 255.15mm (V) Dot pitch 0.2835mm x 0.2835mm Viewing angle (L/R/T/B) 80/80/80/80 Contrast ratio 800:1 Brightness 300 cd/m² Resolution 1440x900 Display color 16.7M colors Response time...
  • Page 27 TATUNG COMPANY OF AMERICA 2850 El Presidio Street Long Beach, CA 90810 (800) 827-2850 www.tatungusa.com P/N: 3121-0982G01 REV:0A...
