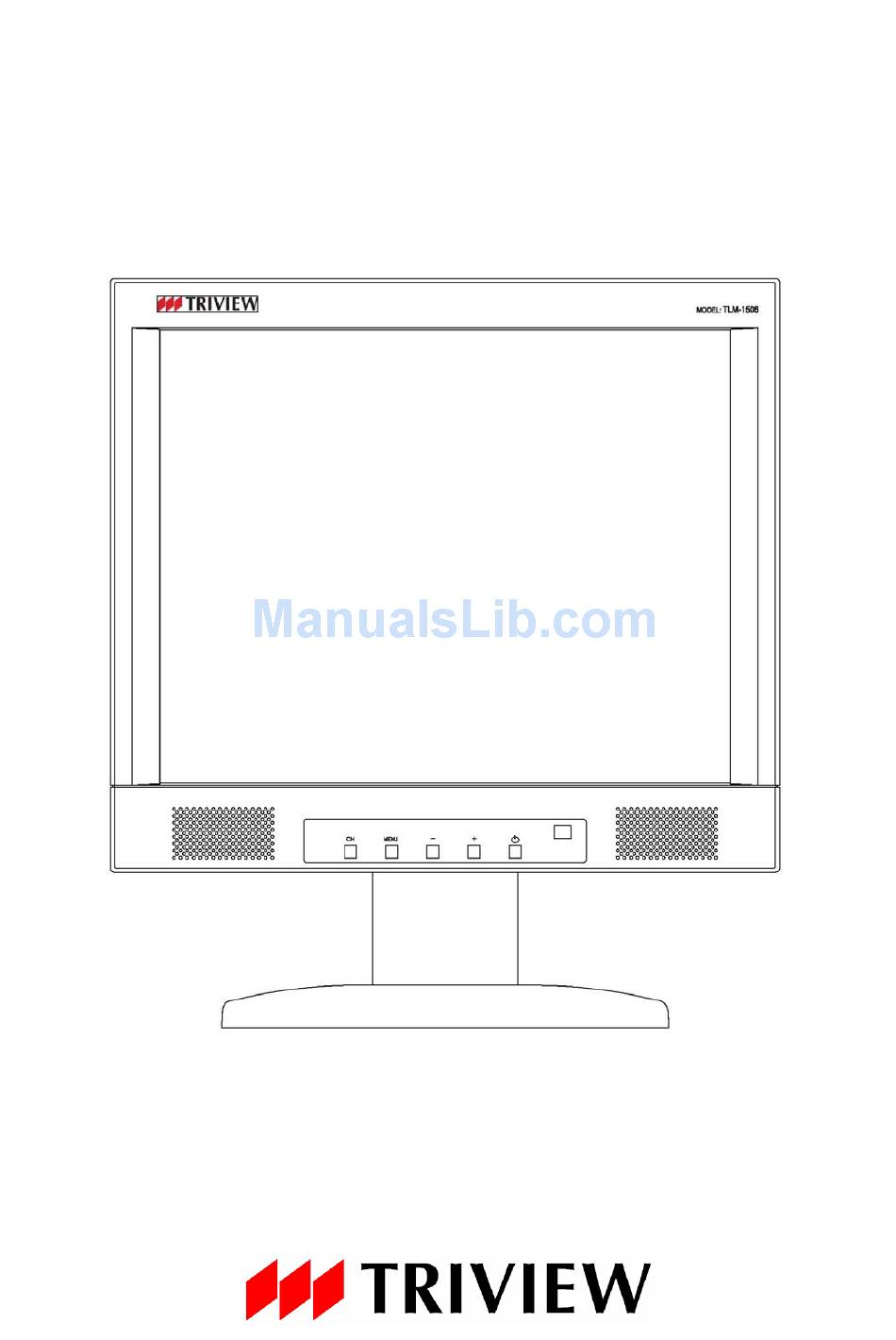

  • Page 1 OPERATING INSTRUCTIONS TLM-1506 / TLM-1706 / TLM-1906...

  • Page 2: Table Of Contents

    FCC information ---------------------------------------------------------------------- 3 CE information ------------------------------------------------------------------------ 3 Safety Precautions ------------------------------------------------------------------- 3 Scope -------------------------------------------------------------------------------------- 5 Unpacking -------------------------------------------------------------------------------- 5 Functional specification ------------------------------------------------------------- 5 Controls and indicators -------------------------------------------------------------- 8 OSD Menu -------------------------------------------------------------------------------- 9 Regulatory Agency ------------------------------------------------------------------- 11 Mechanical ------------------------------------------------------------------------------ 11 Reliability -------------------------------------------------------------------------------- 11 Appendix -------------------------------------------------------------------------------- 12 LCD Video Monitor Specification ---------------------------------------------- 13 TABLE OF CONTENTS...

  • Page 3: Fcc Information

    FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 4. Do not place this monitor near a radiator or heating vent. 5. Do not push objects of any kind through cabinet openings. This may result in fire or electrical shock. 6. Before adding attachments always ask a service technician to perform routine safety tests to determine that equipment is in safe operating condition.

  • Page 5: Scope

    1. Scope This specification is used to define the performance of TLM-1506 / TLM-1706 / TLM-1906 color TFT LCD monitor. This system supports both video input and PC VGA input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, TLM-1506 can support up to 1024x768 VESA standards.
  • Page 6 Optical Characteristics: TLM-1506 Luminance 450 cd/m Contrast Ratio 500:1 Viewing Angle Horizontal,125 Video Characteristics: Composite Video (CVBS): 1.0 Vp-p (0.5 – 1.5Vpp), Automatic switching from 75 Ω Y/C (S-video): 1.0 Vp-p (0.5 – 1.5Vpp), Automatic switching from 75 Ω unbalanced termination to Hi-Z with loop-through operation.
  • Page 7 Indicators: LED: Power-on (Green), Power Off (Red) Connectors: Power inlet: AC power socket. Video : Two (2) BNC, one in, one loop thru out. S-Video (Y/C) : One (1) Mini-DIN, 4-pin, one in VGA : One (1) 15-pin D-sub Audio : Two (2) RCA, one in; one out Environmental: Temperature: Operating: 0...

  • Page 8: Controls And Indicators

    4. Controls and Indicators Press this button to turn ON / OFF the monitor MENU 1. Press this button to enter OSD menu 2. Press this button to confirm and exit the selected parameter – 1. Press the buttons to adjust volume 2.

  • Page 9: Osd Menu

    5. OSD Menu 5.1 Video Mode Main Menu MAIN MENU BRIGHTNESS CONTRAST COLOR TINT SHARPNESS DISPLAY ADJUST COLOR TEMPERATURE LANGUAGE OSD ADJUST AUDIO CONTROL INPUT SELECT RESET EXIT VIDEO MODE : NTSC H.SYNC : 31.5KHz V.SYNC : 60.0Hz MODEL : TLM-1906 Press <+>...
  • Page 10 5.1.2 Display Adjust VIDEO IN DISPLAY ADJUST PHASE CLOCK H-POSITION V-POSITION H-SIZE V-SIZE ASPECT RATIO AUTO ADJUST RESET EXIT MODEL : TLM-1906 Press <+> or <–> key to move cursor to desired selection and push <MENU> key to select it. 5.1.2.1 H-Position/ V-Position/ H-Size/ V-Size After move the curser to desired parameter and hit <MENU>...
  • Page 11 5.1.2.3 Reset Reset allows user to recover the default setting of H-Position, V-Position, H-Size, and V-Size. But it won’t affect the Aspect Ratio. 5.1.3 Color Temperature COLOR TEMPERATURE 9300K 7500K 6500K USER PRESET RESET EXIT MODEL : TLM-1906 Color Temperature allows user change the color temperature of the monitor. Reset allows LCD monitor to return default setting.
  • Page 12 5.1.5 OSD Adjust OSD ADJUST H-POSITION V-POSITION TIME OUT TRANSPARENCY RESET EXIT MODEL : TLM-1906 5.1.5.1 H-Position/ V-Position/ Time Out/ Transparency After move the curser to desired parameter and hit <MENU> key, the curser bar will turn into Light Blue, and then press <+> or <–> key to adjust the value of H-Position (0~100), V-Position (0~100), Time Out (0~30) or Transparency (0~3).
  • Page 13 5.1.6.2 Volume After move the curser to Volume and hit <MENU> key, the curser bar will turn into Light Blue, and then press <+> or <–> key to adjust the value of Volume (0~100). After that, hit <MENU> key to confirm the value of Volume and return to menu.
  • Page 14 5.3 VGA Mode Main Menu MAIN MENU BRIGHTNESS CONTRAST COLOR TINT SHARPNESS DISPLAY ADJUST COLOR TEMPERATURE LANGUAGE OSD ADJUST AUDIO CONTROL INPUT SELECT RESET EXIT RESOLUTION : 1280 x 1024 H. SYNC : + 64.0 KHz V. SYNC : + 60.0 Hz MODEL : TLM-1906 5.3.1 Brightness/ Contrast The function is same as Video mode.
  • Page 15 Note: Phase allows user to adjust phase of the image. Clock allows user to adjust clock of the image. H-Position allows user to adjust horizontal position of the image. V-Position allows user to adjust vertical position of the image. 5.3.2.2 Auto Adjust AUTO ADJUST Move the curser to AUTO ADJUST and hit the <MENU>...

  • Page 16: Regulatory Agency

    Net weight 4.1 KG/ 9.0 lb Gross weight 5.8 KG/ 13.0 lb 7.2 Dimensions: Model TLM-1506 356(W) x 387(H) x 200(D)mm Physical dimension 14.0(W) x 15.2(H) x 7.9(D)inch 432(W) x 470(H) x 203(D)mm Packing dimension 17.0(W) x 18.5(H) x 8.0(D)inch 7.3 Wall mount:...

  • Page 17: Appendix

    9. Appendix REAR PANEL COMPONENTS AND CONTROL VIDEO : Video input / Looping output S-VHS : S-Video input AUDIO : Audio input / output VGA input AC IN : AC power input...

  • Page 18: Lcd Video Monitor Specification

    10. LCD Video Monitor Specification MODEL TLM-1506 DESCRIPTION Panel type 15” TFT color LCD Screen size 15” (381mm) diagonal Viewable size 304.1x228.1mm Dot pitch 0.297x0.297mm Viewing angle (H/V) Contrast ratio 500:1 Brightness 450 cd/m² Resolution 1024x768 Display color 16.2M Response time...
