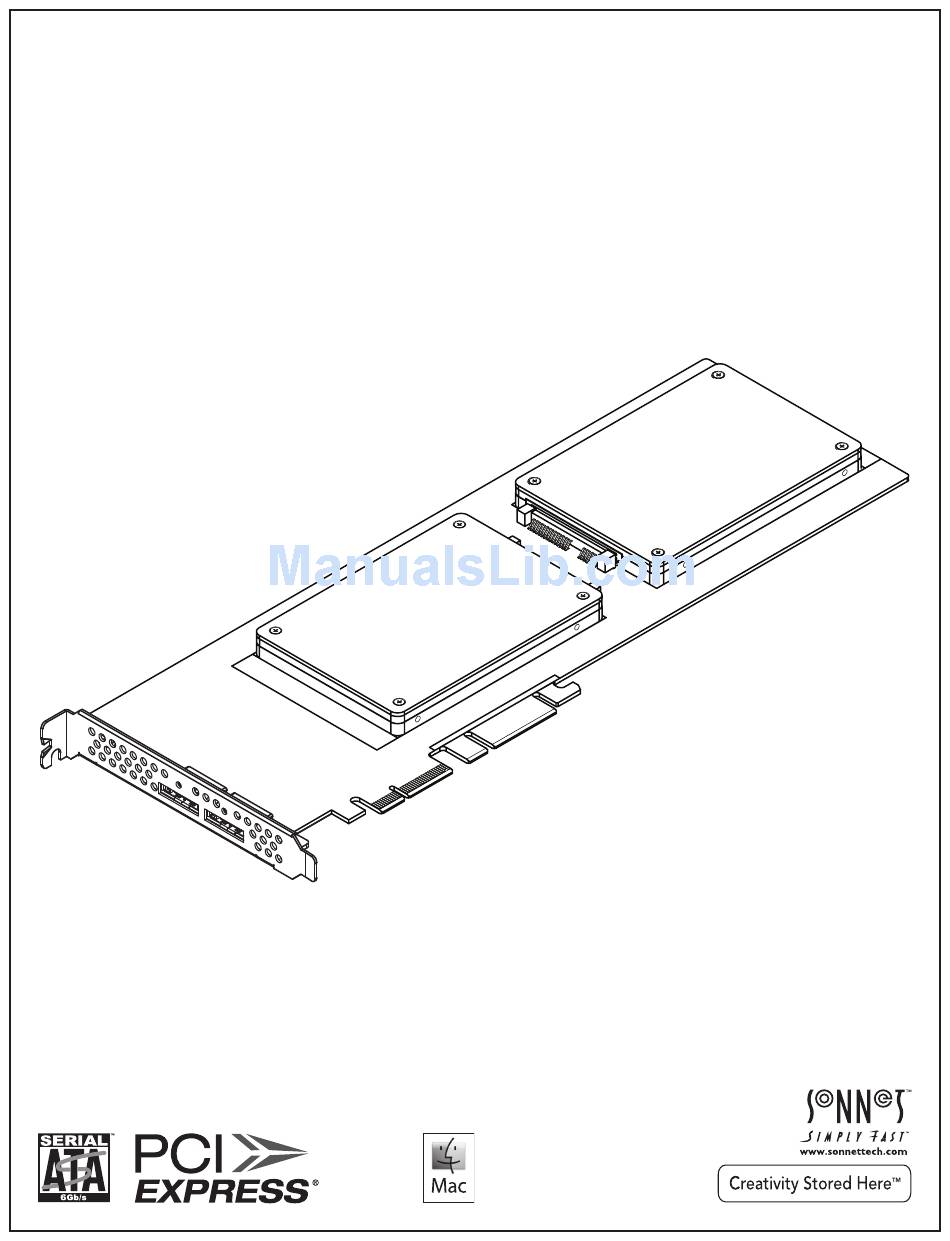

- Page 1 Quick Start Guide 6 Gb/s SATA Dual 2 . 5 " SSD for Tempo SSD Pro Plus ™ PCIe 2 . 0 Card With eSATA Ports Tempo SSD Pro Plus illustrated with SSDs attached; drives not included (sold separately) Windows...
- Page 2 This page left intentionally blank...
-
Page 3: Introduction And Package Contents
2 – Support Tabs In longer PCIe slots, these tabs provide additional support for the Tempo SSD Pro Plus card. In some installations, it may be necessary for you to snap off one or more of the tabs to allow the card to fit properly. - Page 4 Figure 1 1. Remove the SSDs from their packaging. 2. Place an SSD label side up on top of the Tempo SSD Pro Plus card with the SSD’s and card’s connectors aligned with each other (Figure 1). 3. Push the SSD’s connector into the Tempo card’s connector until the SSD is completely...
- Page 5 Figure 4 9. Using the remaining four screws, secure the SSD to the card; do not overtighten the screws (Figure 4). 10. The Tempo SSD Pro Plus is ready for installation; proceed to the next page. Figure 5 About eSATA...
-
Page 6: Formatting Drives
CoreServices folder). Select the configuration appropriate for your disk attached to the Tempo card. setup (Tempo SSD Pro Plus is an x4 card, and should be assigned at least an x4 slot), and then click Quit if the default configuration... -
Page 7: Specifications
RoHS Compliant 1. Support for up to eight drives requires the use of drive enclosures employing a hardware RAID controller. 2. Does not currently boot a Mac with Thunderbolt 2. Sonnet is working to identify the issue. - Page 8 ©2014 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Creativity Stored Here, Simply Fast, the Simply Fast logotype, Echo, Tempo, and xMac are trademarks of Sonnet Technologies, Inc. Mac, the Mac logo, Mac Pro, and OS X are trademarks of Apple Inc., registered in the United States and other countries. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S.
