Add Device - TP-Link TL-PA511 User Manual

TL-PA511 AV500 Mini Powerline Adapter
(2) Enter a new name for the selected adapter and enter its password (Take note of the password
format). The password can be found on the back of adapter.
(3) Click the Save button to make the settings effective.
Note:
Password is unnecessary to enter for renaming.

4.2.2 Add Device

You can add a remote Powerline Adapter to your network that is not in the displayed list. You are
suggested to locate the passwords for all Powerline Adapters you wish to manage and add them to the
local logical network by clicking the Add button.

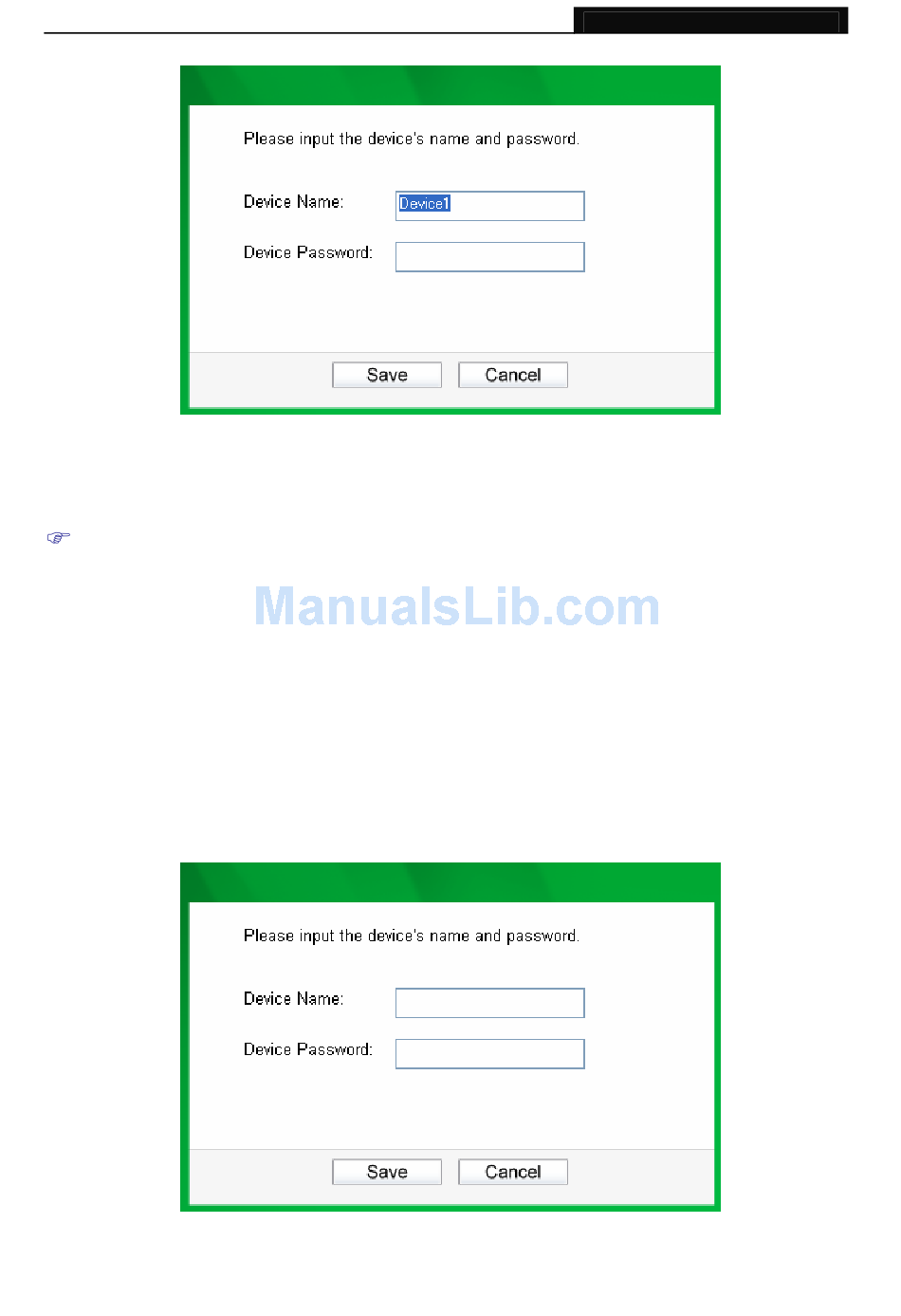

Click the Add button to display the following dialog box. This dialog box allows you to enter both the
selected device's name and password. Note that the Powerline Adapter must be present on the power
grid in order to activate the set password and be added to the local network.
Enter your Device Name and Password (Take note to the password format) and click the Save button
after setup.
16
