CD-SW200
CP-S200

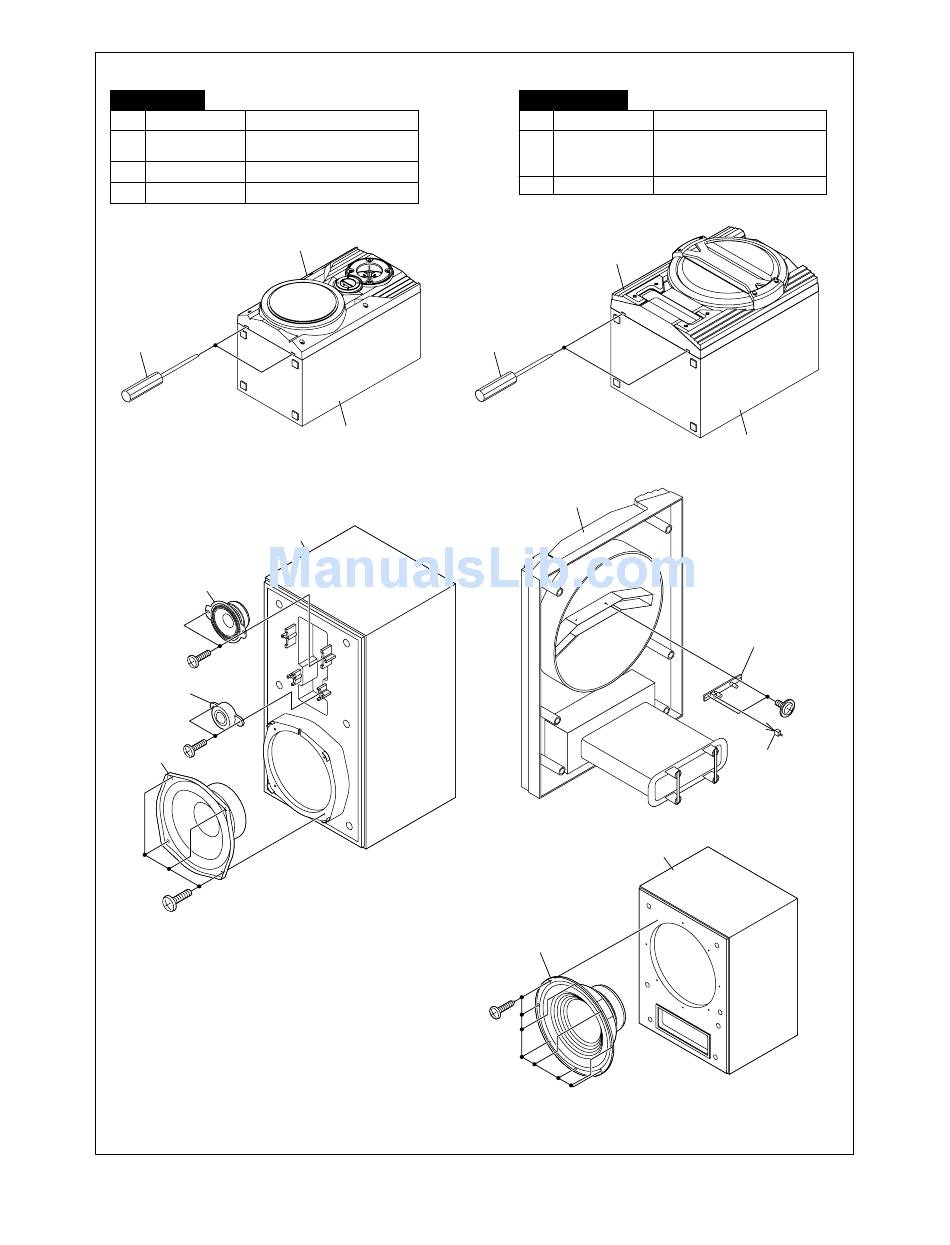

REMOVAL
STEP
1 Woofer
2 Tweeter
3 Super Tweeter
Screwdriver
Driver should
be pried away
from Speaker Box.
Tweeter
(B1)x2
M3x10mm
Super Tweeter
Woofer (C1)x2
M3x10mm
(A2)x4
M4x16mm
PROCEDURE
1. Front Panel .............
(A1) x1
......................
2. Screw (A2) x4
1. Screw ...................... (B1) x2
1. Screw ...................... (C1) x2
(A1)x1
Speaker Box
Speaker Box
CP-SW200
REMOVAL
STEP
1 LED PWB
2 Woofer
(A1)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
Front Panel
Speaker Box
Woofer
(B1)x8
M4x16mm
3 – 3
PROCEDURE
1. Front Panel .............
(A1) x1
....................
2. Socket (A2) x1
3. Screw ...................... (A3) x2
1. Screw ...................... (B1) x8
Speaker Box
LED PWB
(A3)x2
M2.6x10mm
(A2)x1
