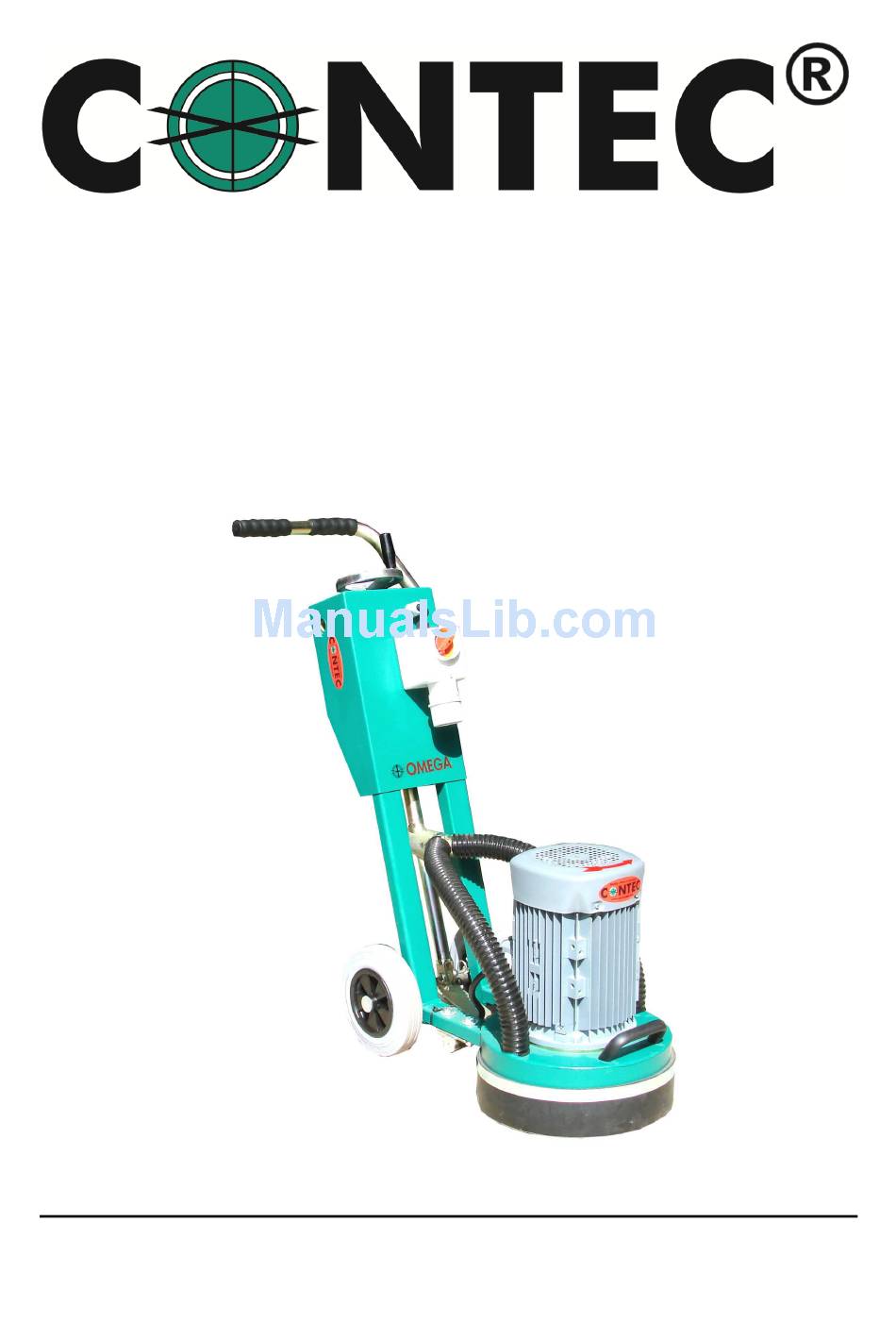

- Page 1 OMEGA Floor Grinder Instruction manual (USA)
-
Page 2: Table Of Contents
1. EU-Declaration of Conformity …3 2. Machine applications ...4 3. Technical data ...4 4. Tool applications ...4 5. Safety rules for the operation of the OMEGA floor grinder ...5 6. Operating ...6 7. Changing and replacing of the tools ...7 8. Appendix ...7 ®... -
Page 3: Eu-Declaration Of Conformity
Instruction manual OMEGA - 3 - Declaration of Conformity according to EN ISO/IEC 17050-1 EC-Declaration of Conformity Month.Year: For the machine described below Product denomination: Floor Grinder Model: Omega Serial number: Herewith we declare, that the machine is complying with all the essential requirements of the Machine Directive 2006/42/EC of the EUROPEAN PARLIAMENT of the 17th of Mai 2006 The person authorized to compile the relevant technical documentation (According to Appendix II Nr. -
Page 4: Machine Applications
Instruction manual OMEGA - 4 - Machine applications Grinding of horizontal, dry floors such as concrete and steel surfaces with or without a coating and asphalt using ® CONTEC grinding tools. The use of the machine outside is only possible in dry weather. -
Page 5: Safety Rules For The Operation Of The Omega Floor Grinder
Grinding of flat, horizontal, dry surfaces that are typically concrete, asphalt or steel and with or without a coating. For optimum performance and compatibility always use tools supplied by CONTEC. Operation of the grinder outdoors is only permitted if the weather is dry. Attention ! The OMEGA floor grinders are constructed according to existing safety rules and regulations. -
Page 6: Operating
Operating After mounting the appropriate tools, the operation of the OMEGA grinder can begin. Connect the hose of the dust collector to the hose port of the grinder. Adjust the grinder by turning the hand wheel of the height adjustment (see diagram No. -
Page 7: Changing And Replacing Of The Tools
Instruction manual OMEGA - 7 - Changing and replacing of the tools Attention ! Before working on the grinder allow the motor to come to a complete stand still and disconnect from the mains. Tilt the machine onto the back wheels and rest it on the handlebar. - Page 12 Motor 2 KW, 230 Volt, 50 HZ 0,61 50-20-10-30-K Switch-Socket-Combination Omega/CT200 for Motor 3 KW, 400 Volt, 50 HZ 0,63 55-03-01-22 Motor 2,2 KVA, 230 Volt AEG Omega new Version 03/2004 24,30 55-03-01-50 Motor 5 HP US Version Omega 24,30 55-03-02-22...
- Page 13 Resignbond Wet Grid 800 White 0,09 18-21-800-T Resignbond Dry Grid 800 White 0,09 18-10-29-02 Bracket for Sandpaper Disc with Rubber Omega 6,00 18-17-10-02-US Bearing Axis for 110 V Omega US Version 0,79 18-22-00-12 Sandpaper 300 mm Diameter Graining 12 0,29 Seite 2 von 5...
- Page 14 Bearing Housing for 110 V Omega US Version 1,27 23-16-01-08 Flails for Grinder Head Tipped Tungston Carbide Omega/Alpha 0,03 18-17-10-03-US Ring for Bearing Axis for 110 V Omega US Version 0,07 23-16-02-08 Flails for Grinder Head Full Tungston Carbide Omega/Alpha 0,04 90-24-01-80-2-US...
- Page 15 18-23-10-65 Karborundum Rings Graining 60 for Steel Omega 700,00 23-16-01-08-12 Flails for Grinder Head Tipped Tungston Carbide Omega/Delta 12 Pieces = 1 Set 360,00 23-16-01-08-24 Flails for Grinder Head Tipped Tungston Carbide Omega/Delta 24 Pieces = 1 Set 720,00 23-16-01-09...
- Page 16 OMEGA Stückliste / Parts List 51-20-30-04 Low Voltage Protective 230 Volt Omega 0,00 55-03-01-21 Ventilator Cover for Motor Omega 2 KVA, 230 Volt 400,00 55-14-00-31 Ventilator Cover for Motor 3 KVA, 400 V 400,00 56-GXV-99 Lever for Petrol Engine Delta/Omega...
