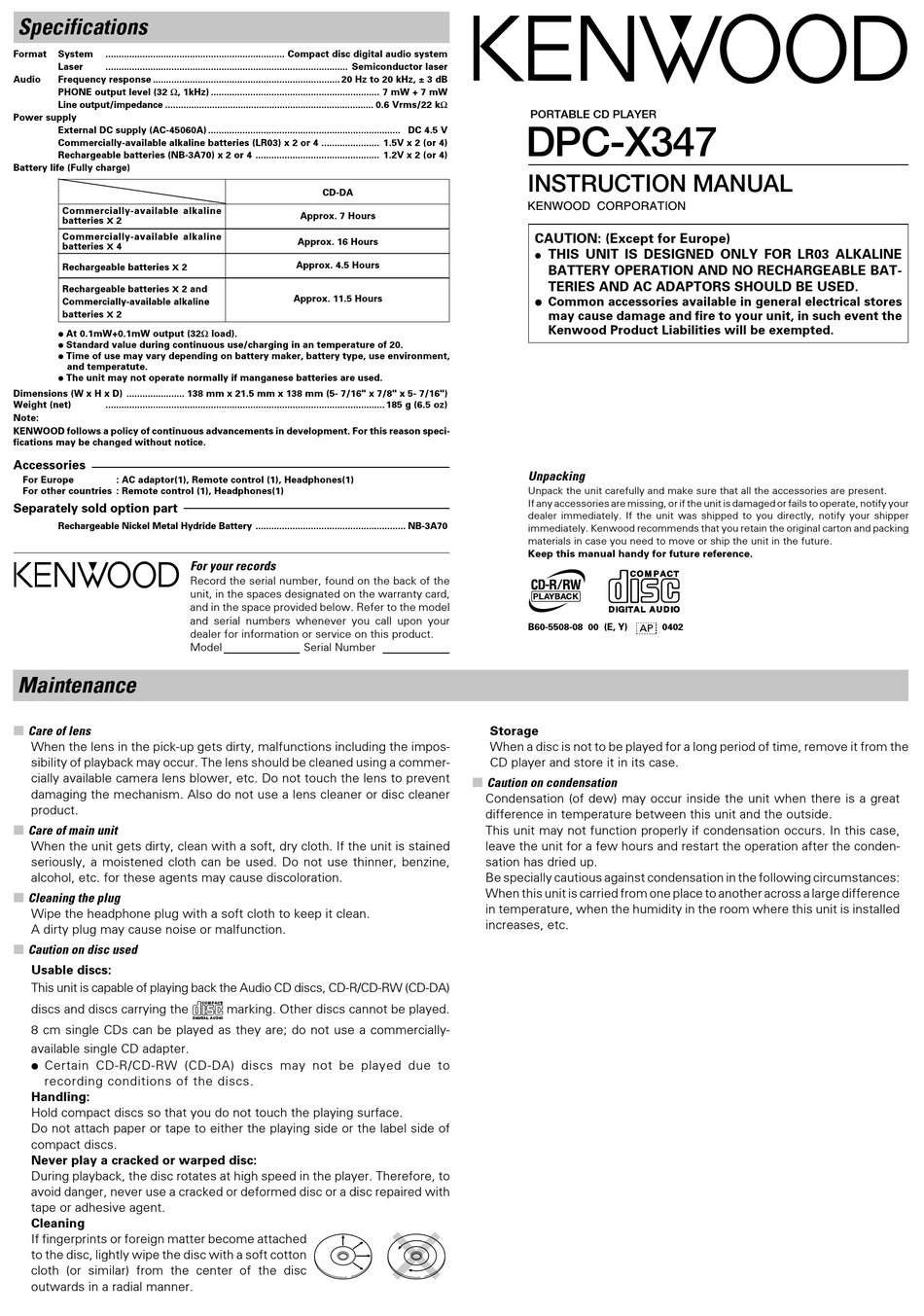

Kenwood DPC-X347 Instruction Manual

Specifications

Format System .................................................................... Compact disc digital audio system
Laser ............................................................................................ Semiconductor laser
Audio Frequency response ....................................................................... 20 Hz to 20 kHz, ± 3 dB
PHONE output level (32 Ω, 1kHz) ................................................................ 7 mW + 7 mW
Line output/impedance ................................................................................ 0.6 Vrms/22 kΩ
Power supply
External DC supply (AC-45060A) ......................................................................... DC 4.5 V
Commercially-available alkaline batteries (LR03) x 2 or 4 ...................... 1.5V x 2 (or 4)
Rechargeable batteries (NB-3A70) x 2 or 4 ............................................... 1.2V x 2 (or 4)
Battery life (Fully charge)
Commercially-available alkaline
batteries 2
X
Commercially-available alkaline
batteries 4
X
Rechargeable batteries 2
X
Rechargeable batteries 2 and
X
Commercially-available alkaline
batteries 2
X
÷ At 0.1mW+0.1mW output (32Ω load).
÷ Standard value during continuous use/charging in an temperature of 20.
÷ Time of use may vary depending on battery maker, battery type, use environment,
and temperatute.
÷ The unit may not operate normally if manganese batteries are used.
Dimensions (W x H x D) ...................... 138 mm x 21.5 mm x 138 mm (5- 7/16" x 7/8" x 5- 7/16")
Weight (net) .......................................................................................................... 185 g (6.5 oz)
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason speci-
fications may be changed without notice.
Accessories
For Europe : AC adaptor(1), Remote control (1), Headphones(1)
For other countries : Remote control (1), Headphones(1)
Separately sold option part
Rechargeable Nickel Metal Hydride Battery ......................................................... NB-3A70
Maintenance
7
Care of lens
When the lens in the pick-up gets dirty, malfunctions including the impos-
sibility of playback may occur. The lens should be cleaned using a commer-
cially available camera lens blower, etc. Do not touch the lens to prevent
damaging the mechanism. Also do not use a lens cleaner or disc cleaner
product.
7
Care of main unit
When the unit gets dirty, clean with a soft, dry cloth. If the unit is stained
seriously, a moistened cloth can be used. Do not use thinner, benzine,
alcohol, etc. for these agents may cause discoloration.
7
Cleaning the plug
Wipe the headphone plug with a soft cloth to keep it clean.
A dirty plug may cause noise or malfunction.
7
Caution on disc used
Usable discs:
This unit is capable of playing back the Audio CD discs, CD-R/CD-RW (CD-DA)
discs and discs carrying the
8 cm single CDs can be played as they are; do not use a commercially-
available single CD adapter.
÷ Certain CD-R/CD-RW (CD-DA) discs may not be played due to
recording conditions of the discs.
Handling:
Hold compact discs so that you do not touch the playing surface.
Do not attach paper or tape to either the playing side or the label side of
compact discs.
Never play a cracked or warped disc:
During playback, the disc rotates at high speed in the player. Therefore, to
avoid danger, never use a cracked or deformed disc or a disc repaired with
tape or adhesive agent.
Cleaning
If fingerprints or foreign matter become attached
to the disc, lightly wipe the disc with a soft cotton
cloth (or similar) from the center of the disc
outwards in a radial manner.
CD-DA
Approx. 7 Hours
Approx. 16 Hours
Approx. 4.5 Hours
Approx. 11.5 Hours
For your records
Record the serial number, found on the back of the
unit, in the spaces designated on the warranty card,
and in the space provided below. Refer to the model
and serial numbers whenever you call upon your
dealer for information or service on this product.
Model Serial Number
marking. Other discs cannot be played.

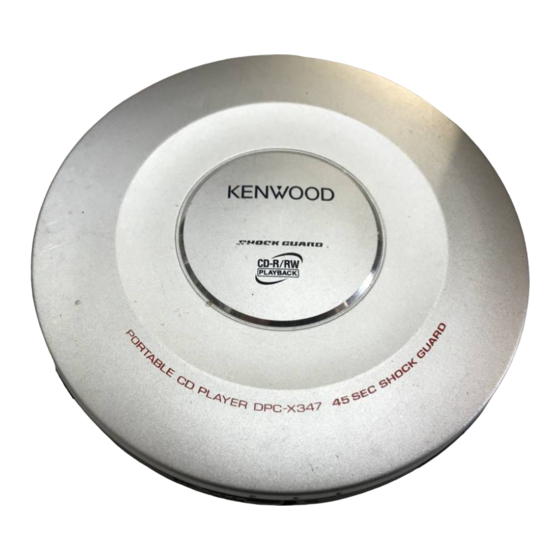

PORTABLE CD PLAYER
DPC-X347
INSTRUCTION MANUAL
CAUTION: (Except for Europe)
÷
THIS UNIT IS DESIGNED ONLY FOR LR03 ALKALINE
BATTERY OPERATION AND NO RECHARGEABLE BAT-
TERIES AND AC ADAPTORS SHOULD BE USED.
÷ Common accessories available in general electrical stores
may cause damage and fire to your unit, in such event the
Kenwood Product Liabilities will be exempted.
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
If any accessories are missing, or if the unit is damaged or fails to operate, notify your
dealer immediately. If the unit was shipped to you directly, notify your shipper
immediately. Kenwood recommends that you retain the original carton and packing
materials in case you need to move or ship the unit in the future.
Keep this manual handy for future reference.
B60-5508-08 00 (E, Y)
AP
Storage
When a disc is not to be played for a long period of time, remove it from the
CD player and store it in its case.
7
Caution on condensation
Condensation (of dew) may occur inside the unit when there is a great
difference in temperature between this unit and the outside.
This unit may not function properly if condensation occurs. In this case,
leave the unit for a few hours and restart the operation after the conden-
sation has dried up.
Be specially cautious against condensation in the following circumstances:
When this unit is carried from one place to another across a large difference
in temperature, when the humidity in the room where this unit is installed
increases, etc.
0402
