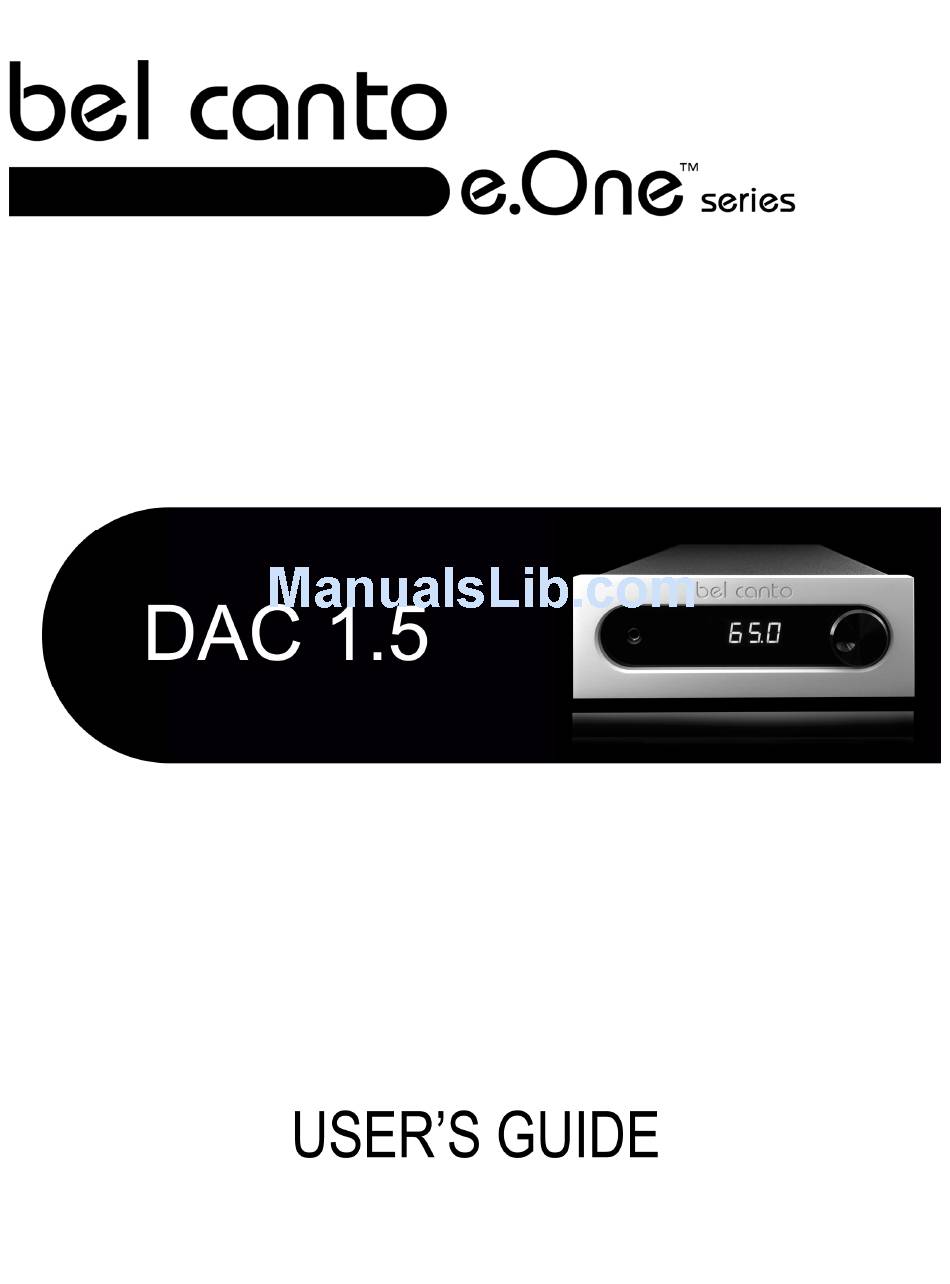

Bel Canto One Series DAC 1.5 User Manual

Upsampling audio dac with master reference ultra-clock
Hide thumbs Also See for One Series DAC 1.5:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the One Series DAC 1.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bel Canto One Series DAC 1.5

Summary of Contents for Bel Canto One Series DAC 1.5

  • Page 2 Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Trademarks used in this publication: Bel Canto and the Bel Canto logo are registered trademarks of Bel Canto Design Limited.
  • Page 3 Explanation of symbols used in this manual or on the TO COMPLETELY DISCONNECT THIS APPARATUS rear/underside of the apparatus: FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to THE MAINS PLUG OF THE POWER SUPPLY CORD alert the user to the presence of uninsulated SHALL REMAIN READILY ACCESSIBLE.
  • Page 4 Always ensure the fuse cover is fitted. If the fuse cover is This appliance is fitted with a non-rewireable 10 amp missing do not use the plug. Contact your Bel Canto mains plug. The plug contains a 10 amp fuse. If the fuse retailer to obtain a replacement fuse cover.
  • Page 5 Bel Canto products are automatically covered by a 90 day factory warranty that covers all internal parts and labor. Register online (http://www.belcantodesign.com/Belcanto_Warranty.html) within 30 days of purchase from an authorized dealer to automatically extend your warranty for 2 years starting from the date of purchase. If you do not have web access, please contact your dealer for assistance.
  • Page 6 The DAC1.5 provides a quality system solution with the addition of a Bel Canto e.One amplifier, eliminating the need for an analog preamplifier.
  • Page 7 Upon Power Up: Fixed Output Operating Mode: When switched on, the DAC1.5 will display its Pressing the rear panel Fixed/Variable Output switch software revision. The AES input will be selected to the in position will set the DAC1.5 in a fixed output and Soft Mute will be active.
  • Page 8 Hard mute is indicated by 3 decimals on the display. The Mute function will Punch Through to any Bel Canto unit set in Variable Output mode. VOL+: Increases the volume setting in Variable Output mode.
  • Page 9 24/96 data rate. The system will automatically recognize the DAC1.5 as an audio converter enumerated as Bel Canto USB 2496 when using Windows 98 or later and any version of Macintosh OSX When all connections to and from the unit have been made then double check everything before plugging the DAC1.5 into the power source.
  • Page 10 DAC1.5 there is a small residual DC offset on the outputs. This is typically less than 10mV (0.01 Volts) and will not be a problem for any Bel Canto amplifier or any vacuum tube or solid state amplifier with AC coupling or DC servo control.
  • Page 11 Digital Section: Maximum Input Data Rate: 24bit Data at 192Ks/s: TOSLINK, AES 110ohm XLR, SPDIF 75ohm 24bit Data at 96Ks/s: Master Clock jitter: 2picosecond RMS Analog 24/192 DAC Section: Maximum Output: 4Vrms balanced XLR, 2Vrms RCA Output Impedance: 200 ohms balanced XLR, 100 ohms RCA Frequency Response: 20 Hz-20KHz, +/- 0.5dB THD+N:...
  • Page 12 EN 55013:2001 + A1:2003 + A2:2006 EN 55020:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 + A1:2001 + A2:2005 EN 60065:2002/A12:2011 Manufacturer: Bel Canto Design, Ltd. 221 1 Street North Minneapolis, MN 55401 USA The equipment identified here conforms to the Directive(s) and Standard(s) specified above.
  • Page 13 version 4.0...
