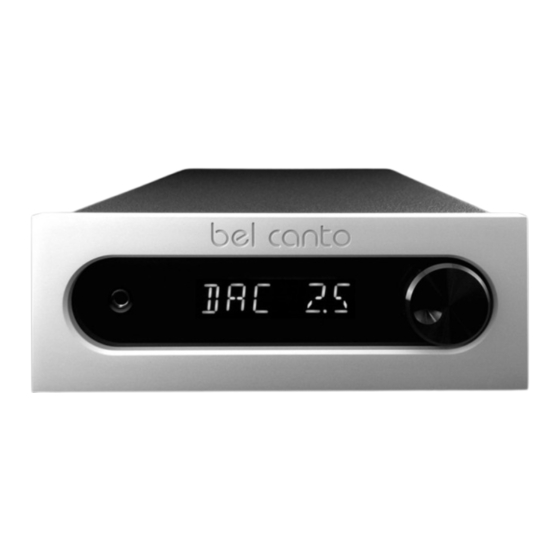

Summary of Contents for Bel Canto DAC 2.5
- Page 2 Design. The content of this manual is provided for information use only, is subject to change without notice, and should not be construed as a commitment by Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
- Page 3 Explanation of symbols used in this manual or on the TO COMPLETELY DISCONNECT THIS APPARATUS rear/underside of the apparatus: FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to THE MAINS PLUG OF THE POWER SUPPLY CORD alert the user to the presence of uninsulated SHALL REMAIN READILY ACCESSIBLE.
- Page 4 Fit a new 10 amp BS1362 approved fuse into the carrier GROUNDED. and push the carrier back into the plug. Bel Canto Design Ltd. declare that this product is in conformance The conformity of the designated product with the provisions of with the Low Voltage Directive 73/23/EEC and Electromagnetic...
- Page 5 If the packing becomes Bel Canto Design. lost or damaged, please contact your dealer, distributor or Bel Canto before attempting to transport your unit This product, like any electrical component, can be The power supply on the DAC2.5 is preset for the...
- Page 6 Because the DAC2.5 runs cool, it can be placed in many Single Ended RCA and Balanced XLR connectors are system locations without compromise. We do not available. XLR jacks allow balanced hookup using the recommend placing weights or other objects directly on standard North American pin configuration: the DAC2.5.
- Page 7 Front Panel Control Knob: Variable Output Mode: The control knob is a continuously rotating control The DAC2.5 Variable Output operating mode, with a push-switch function. Always push the button selected from the rear panel Fixed/Variable output with your finger in the direct center of the knob. switch, allows you to change volume level by Pushing the knob will switch between selectable rotating the knob or via the supplied remote control.
- Page 8 The DAC2.5 Remote Control has a comprehensive Before or after naming an input, you can turn an set of control features that are not available on the input ON or OFF by using the UP and DOWN front panel, including expanded programmability. buttons to select ON or OFF and then hitting ENTER.
- Page 9 Display: Toggles through several display options: Phase: Invert the phase. If enabled, you will see a dash to the left of the volume. 1. Standard: displays selected Input on the left and Volume on the right. 2. Sample Rate: displays selected sample rate. Regardless of the display mode you are in, this display will appear whenever your source changes sample rate:...
- Page 10 IMPORTANT: If using the DAC2.5 directly into a power amplifier, ensure that the Fixed/Variable Output button is in the OUT (variable) position. Operation in Fixed Mode directly into the amplifier could cause extreme output levels, clipping and damage to the loudspeakers, amplifiers or your ears! IEC power cord jack: Connect the supplied or a USB Input can be connected to a computer for •...
- Page 11 Using Headphones When headphones are inserted into the headphone jack, the volume can be adjusted via the control knob or remote regardless of whether the DAC2.5 is in Fixed or Variable mode. The input can be selected as normal from the front panel or remote.
- Page 12 Digital Section: Maximum Input Data Rate: 24bit Data at 192Ks/s: AES 110ohm XLR, SPDIF 75ohm, TOSLINK 24bit Data at 96Ks/s: Master Clock jitter: 2picosecond RMS Analog 24/192 DAC Section: Maximum Output: 4Vrms balanced XLR, 2Vrms RCA Output Impedance: 200 ohms balanced XLR, 100 ohms RCA Frequency Response: 20 Hz-20KHz, +/- 0.5dB THD+N:...
- Page 13 version 3.0...
