Instruction Manual
BEFORE USING THE POWER SUPPLY UNIT
Pay attention to all warnings and cautions before using the unit. Incorrect usage may lead to an electrical
shock, damage to the unit or a fire hazard.
WARNING and CAUTION
Do not modify.
Do not touch the internal components; it may have high voltage or high temperature. You may get electrical
shock or burn.
When the unit is operating, keep your hands and face away from it as you may be injured by flying debris in
the event of a fault.
This power supply is designed for use within an end product. Stick the WARNING label for users on the
system equipment and notify in the system instruction manual.
Never operate the unit under over current or short-circuit conditions for more than 30 seconds or outside its
specified Input Voltage Range, which could result in damage but there is no possibility of fire or burning.
Confirm connections to input/output terminals are correct as indicated in the instruction manual.
Hazardous voltage may appear at output terminals depending on the type of failure. The outputs of these
products must be earthed in the end equipment to maintain SELV.
If the outputs are not earthed, they must be considered hazardous and must not be made user accessible.
Note: CE MARKING
CE marking, when applied to the LS series products, indicates compliance with the Low Voltage Directive
(2006/95/EC) in that it complies with EN60950-1 2nd edition.

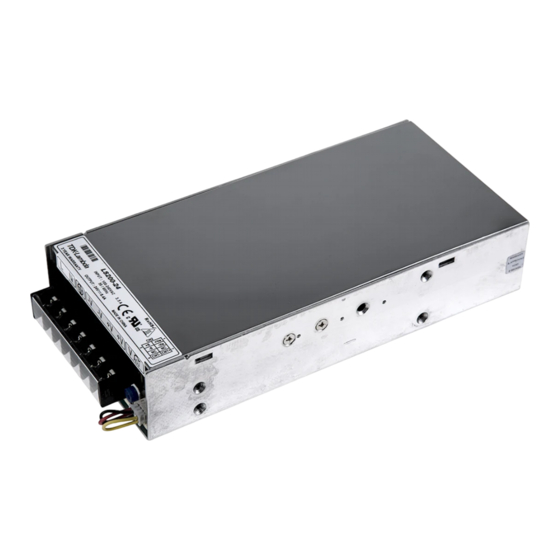

LS200 Series
TDK-Lambda
LS 200 Series
INSTRUCTION MANUAL
DWG NO. : PA607-04-01
APPD
CHK
DWG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS 200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TDK-Lambda LS 200 Series

Summary of Contents for TDK-Lambda LS 200 Series

  • Page 1 TDK-Lambda LS 200 Series INSTRUCTION MANUAL LS200 Series Instruction Manual BEFORE USING THE POWER SUPPLY UNIT Pay attention to all warnings and cautions before using the unit. Incorrect usage may lead to an electrical shock, damage to the unit or a fire hazard.

  • Page 2: Front Panel Explanation

    TDK-Lambda LS 200 Series INSTRUCTION MANUAL 1. Terminal Explanation Please pay extra attention to the wiring. Incorrect connection may cause damage the power supply. When connecting input and output wiring, input AC-Line should be OFF. Input wiring and output wiring shall be separated, otherwise noise susceptibility of power supply unit will be weak.
  • Page 3 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 2. Terminal Connecting Method 2-1. Terminal connecting method Input must be off when making connection. Connect FG terminal to ground terminal of the equipment. The output load line and input line shall be separated and twisted to improve noise immunity.
  • Page 4 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 2.3. Basic connection (Local sensing) Connect “+S” terminal to “+Vm” terminal with sensing wire Connect “-S” terminal to “-Vm” terminal with sensing wire Connect “CNT+” terminal to “CNT-” terminal with wire • Please use attached CN2 connector for each connection.
  • Page 5 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 3. Explanation of Functions and Precautions 3-1. Input Voltage Range Input voltage range is single phase 85 ~ 264VAC (47 ~ 63Hz) or 120 ~ 373VDC. Input voltage which is out of specification, may damage the unit. For cases where conformance to vari- ous safety specifications (UL, CSA, EN) are required, input voltage range shall be 100~240VAC (50/60Hz).

  • Page 6: Remote On/Off Control

    TDK-Lambda LS 200 Series INSTRUCTION MANUAL When not using the remote sensing function, +S & -S terminal shall be connected to +Vm & –Vm terminals of CN2 respectively. Please use the attached connector of CN2 for this purpose. This is to ensure stability and accuracy of the output.

  • Page 7: Output Ripple & Noise

    TDK-Lambda LS 200 Series INSTRUCTION MANUAL 3-9. Output Ripple & Noise Ripple & noise are measured at 20MHz using a 300mm twisted pair of load wires terminated with a 0.1uF film capacitor & 47uF electrolytic capacitor. When load lines are longer, ripple becomes larger.
  • Page 8 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 3-12. Output Peak Power Operating conditions for peak power/current models: Reduce peak current according to output derating curve for higher ambient temperature (see section 5.1) Output might shut down when the rated current or the continuous peak output time (τ) exceeded rated value specified.

  • Page 9: Withstand Voltage

    TDK-Lambda LS 200 Series INSTRUCTION MANUAL 4. Isolation / Withstand Voltage 4-1. Isolation Test Isolation resistance between output and FG (chassis) shall be more than 100MΩ at 500VDC. For safety, voltage setting of DC isolation tester must be done before the test. Ensure that the unit is fully discharged after the test.
  • Page 10 TDK-Lambda LS 200 Series INSTRUCTION MANUAL Recommended standard mounting is Method (A). Method (B) and (C) are also possible. Refer to the Output Derating below. Please do not use installation Method (D), (E) and (F). (b) Free air convection, without Fan & Cover Recommended standard mounting is Method (A).
  • Page 11 TDK-Lambda LS 200 Series INSTRUCTION MANUAL Refer to the Output Derating below. Please do not use installation Method (D).
  • Page 12 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 5-2. Output Derating according to the ambient temperature (A) LS200 series Output Derating versus Ambient Temperature. The cooling system is forced air (exhale). In the following derating curve, the maximum output current please refers to PA607-01-01.
  • Page 13 TDK-Lambda LS 200 Series INSTRUCTION MANUAL LS200/L – 12V, 15V, 24V, 36V & 48V (C) LS200/L series for Output Derating versus Input Voltage. The cooling system is convection cool or forced air (exhale) with airflow > 3m/s. In the following derating curve, the Y-axis for maximum output current please refers to PA607-01-01/L.

  • Page 14: Mounting Method

    TDK-Lambda LS 200 Series INSTRUCTION MANUAL 5-3. Mounting Method This power supply unit is a forced air-cooling system with a built-in fan. This power supply has ventilation holes in front and the back. In consideration of the heat radiation and safety, please keep a distance of more than 100mm from front side and more than 50mm from rear side.
  • Page 15 TDK-Lambda LS 200 Series INSTRUCTION MANUAL 8. Fan Life Expectancy. The fan life has limitation. Following figure shows the life expectancy of fan against temperature. Measurement point of fan exhaust temperature Temperature measurement point Air Flow P.S. 9. Before concluding that the unit is at fault…...

  • Page 16: Warranty Condition

    This product is under warranty for 3 years (based on 8 hours/day operation) from the date of shipment. During the warranty period, TDK-Lambda will, at its option, either repair or replace products prove to be defective. Warranty applies but not limited to the following.
