Summary of Contents for Kinetik KLIR-RM1KIT

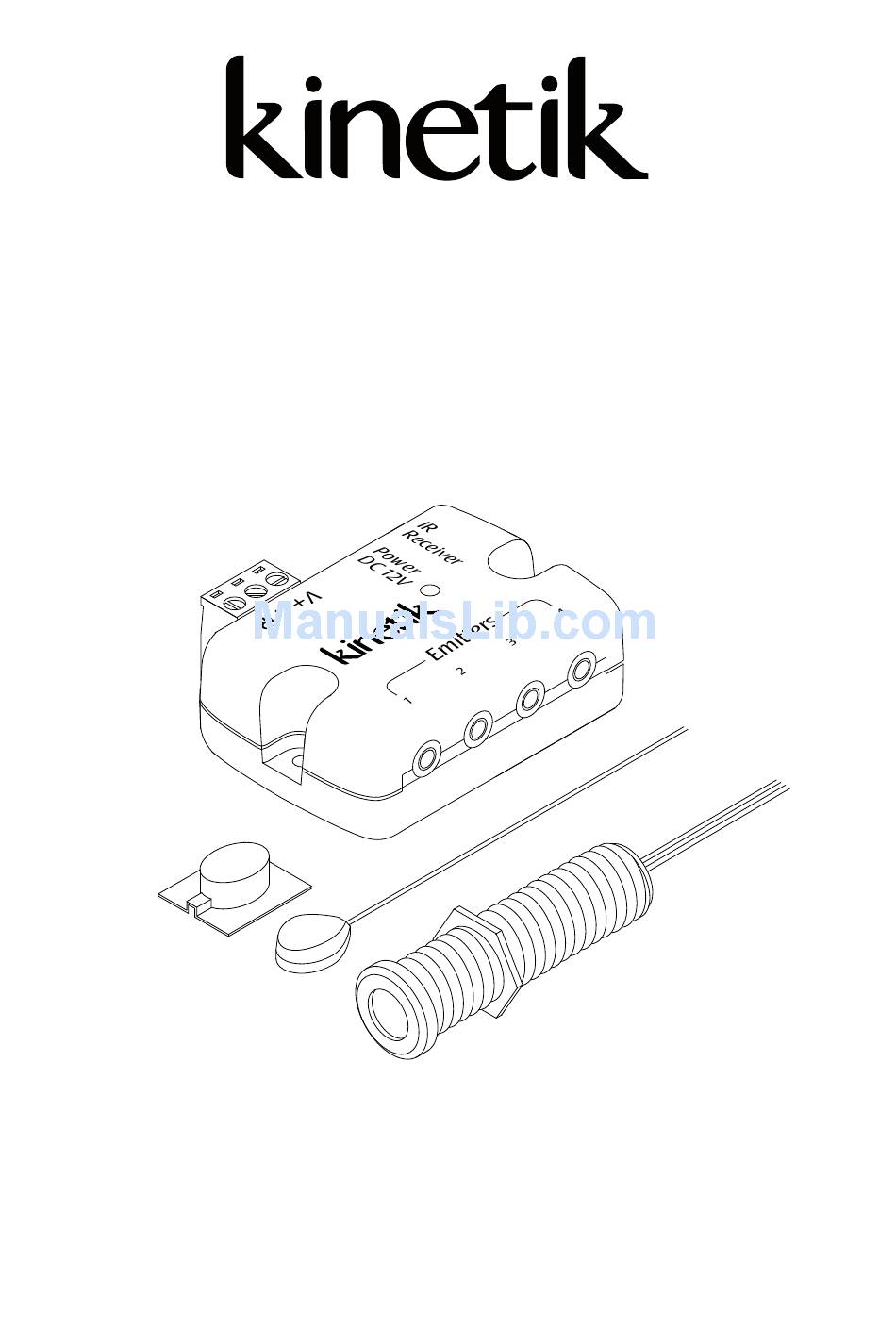

- Page 1 ™ Kinetik Labs KLIR-RM1KIT Recess Mount IR Kit Instruction Manual...
-
Page 2: Table Of Contents
™ Kinetik Labs Recess Mount IR Kit KLIR-RM1KIT Contents Section Page Introduction Safety Instructions Description Box Contents Installation Instructions Single Zone System Wiring Diagram Multi Zone System Wiring Diagram Advanced Installation Troubleshooting Component Dimensions Specifications Limited Warranty... -
Page 3: Introduction
Description The KLIR-RM1KIT is an Infra Red (IR) signal transport device. It is designed to extend the communication between an IR remote control and respective AV equipment e.g. Blu-ray player, set-top box, amplifier etc, which can be in a different room or hidden location. -
Page 4: Box Contents
IR connection block KLIR-PS1 UK/Europe power supply KLIR-IRE2 Dual visible IR emitter Mono jack to jack cable Emitter covers MONO JACK KLIR-EC Instruction manual for KLIR-RM1KIT Bezels for KLIR-RMR1 IR receiver Replacement emitter adhesive tabs Replacement pads for emitter covers... -
Page 5: Installation Instructions
Installation Instructions Please note: For full installation details please also read the ‘Advanced Installation’ and ‘Troubleshooting’ sections. Drill a hole 13mm wide where you wish to position the IR receiver. Remove the nut, push the receiver cable and thread through the hole with the lens facing into the room. -
Page 6: Single Zone System Wiring Diagram
Single Zone System Wiring Diagram AV equipment cupboard / room Receiver (IR jack in) Blu-ray Player Connection block Amplifier l nu IR Receiver Emitters l nu /Jacks Power supply Zone 1 (Lounge) Multi Zone System Wiring Diagram (requires additional receivers) AV equipment cupboard / room Receiver (IR jack in) Blu-ray Player... -
Page 7: Advanced Installation
Advanced Installation Cable extension The IR receiver and emitter cables can be extended to custom lengths if required. It is recommended that two strands of CAT5 are used per signal. To do this, firstly you need to determine the length of the run and cut that amount. -
Page 8: Troubleshooting
Troubleshooting Symptom Check Problem / Solution No operation. The connection block Connection block is not power LED is off. receiving power. Check mains supply is on. No operation. Connect all components System is receiving Connection block LED is and power system. Meter incorrect power. -
Page 9: Component Dimensions
Component Dimensions KLIR-RMR1 Recess Mount Receiver 47mm SIDE Cable length: 2000mm (2m) 12mm 14.8mm 3.5mm 14mm 51mm WIRING 14.8mm KLIR-CB1 Connection Block SIDE 55.5mm 46.5mm Emitters 23mm 70.5mm KLIR-IRE2 Dual Visible Emitters Full length: 3000mm (3m) 3.5mm 14mm Split length: 900mm (0.9m) 14mm 10mm KLIR-PS1 Power Supply... -
Page 10: Specifications
Specifications General Model Number: KLIR-RM1KIT Components: 1x KLIR-RMR1 recess mount IR receiver 1x KLIR-CB1 connection block 2x KLIR-IRE2 dual visible IR emitters 2x MONO JACK 3.5mm jack to jack cables 4x KLIR-EC emitter covers Additional accessories: 2x bezels for KLIR-RMR1 IR receiver... -
Page 11: Limited Warranty
Limited Warranty This Kinetik Labs product is warranted free of defects in workmanship and materials on purchase. If the goods are found to be defective within the warranty period, they will be repaired or replaced, at AWE Europe Ltd’s option, without charge, on a parts and labour only basis, upon satisfactory proof of purchase from the vendor and date of purchase. - Page 12 Europe Ltd. AWE Europe Ltd is not liable for omissions or for technical or editorial errors herein or for damages directly or indirectly resulting from the use of this Kinetik Labs product. ‘Kinetik Labs’ and the ‘Kinetik’ logo are trademarks of...
