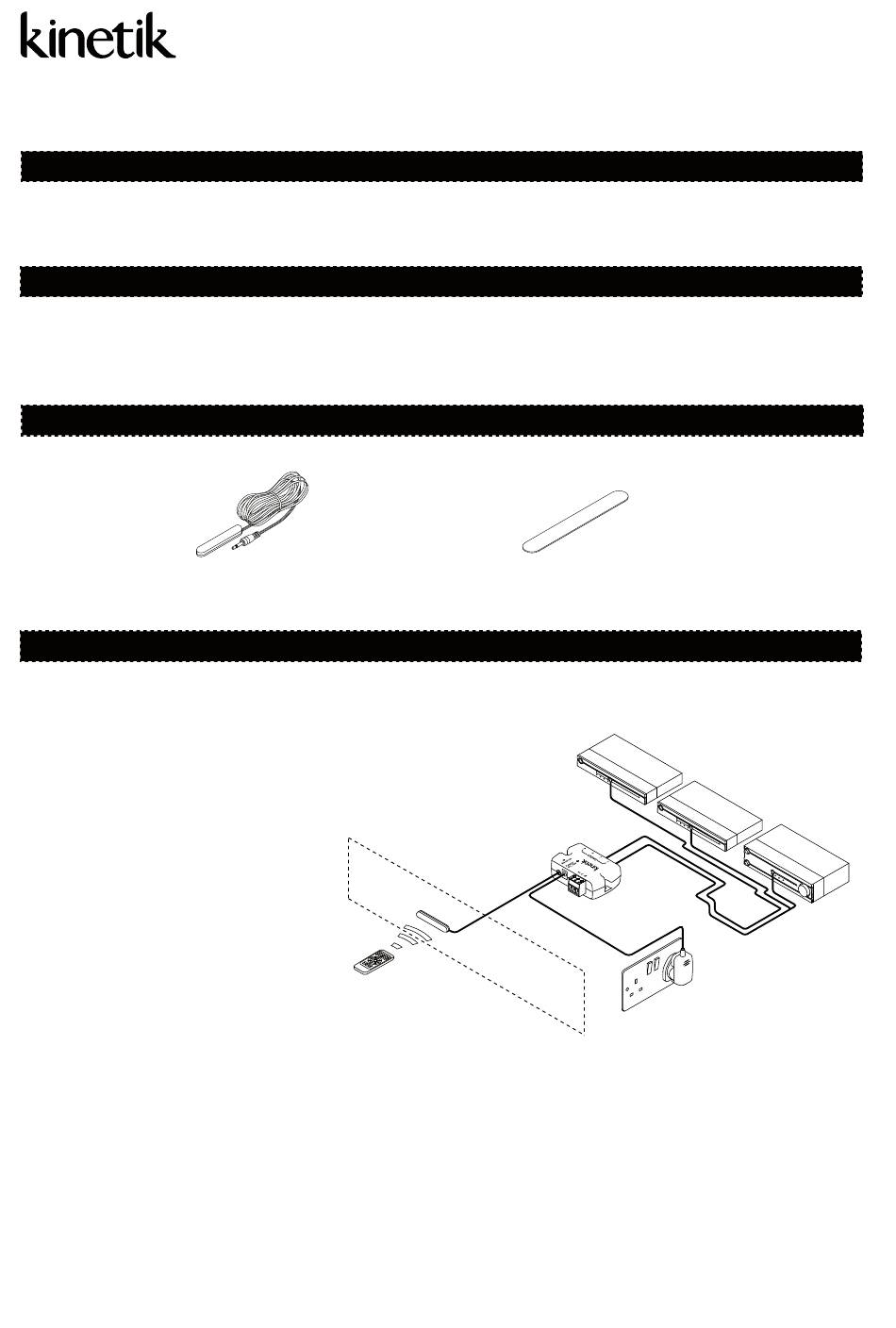

Kinetik KLIR-SMR1 Quick Start Manual

™
Kinetik Labs
KLIR-SMR1

Introduction

Thank you for purchasing this Kinetik Labs product. Please be careful when using electronic equipment and read any safety
information supplied with it.

Description

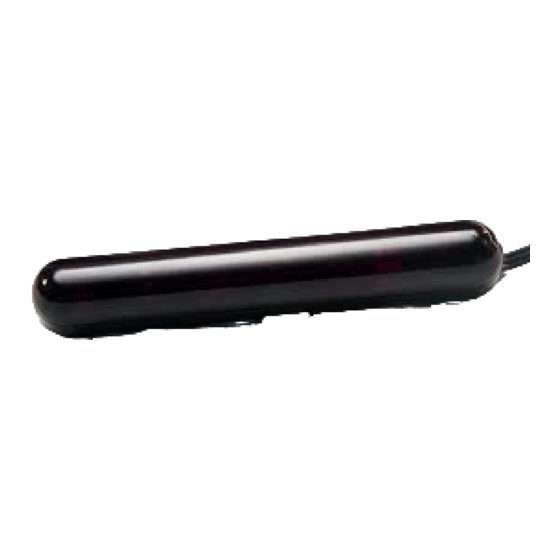

The KLIR-SMR1 is a surface mount Infra Red (IR) receiver. It is designed to pick up IR signals from remote controls as part
of an IR control system. The IR receiver can be surface mounted for optimal and versatile positioning (on a TV bezel for
example).
Contents
KLIR-SMR1 Surface mount receiver

Instructions / System Wiring Diagram

1. Apply the stick pad to the base of the
receiver and place it in the desired location
with the rounded surface pointing into the
room. Be sure to position it in clear line of
sight of where the remote controls will be
pointing.
2. Plug the IR receiver jack securely into
the Kinetik connection
indicated 'IR Receiver'.
Once powered the IR receiver will blink
when receiving IR signals.
Additional components
separately.

Cable extension

The IR receiver cable can be extended to custom lengths of up to 300m. It is recommended that two strands of CAT5 are
used per signal.
To do this, firstly you need to determine the length of the run and cut that amount. Now cut the receiver cable and use the
CAT5 to extend the cable length.
You must ensure you connect the identical cores as this may potentially damage the components and the system will not
work.
It is not necessary to use the receiver's jack termination when you have cut the cable. You can instead use the connection
block's black Phoenix connector (see 'Wired Connection').
x1
AV equipment
cupboard / room
block input
IR Receiver
are available
Receiver double-sided stick pad
Connection block
Zone 1 (Lounge)
Surface Mount IR Receiver
x1
CD Player
DVD Player
CD Pla
yer
Mod el
num ber
CD
Pla yer
Mod
el num
ber
Emitters
Power supply
Amplifier
Am
plifi er
Mod
num el
ber
