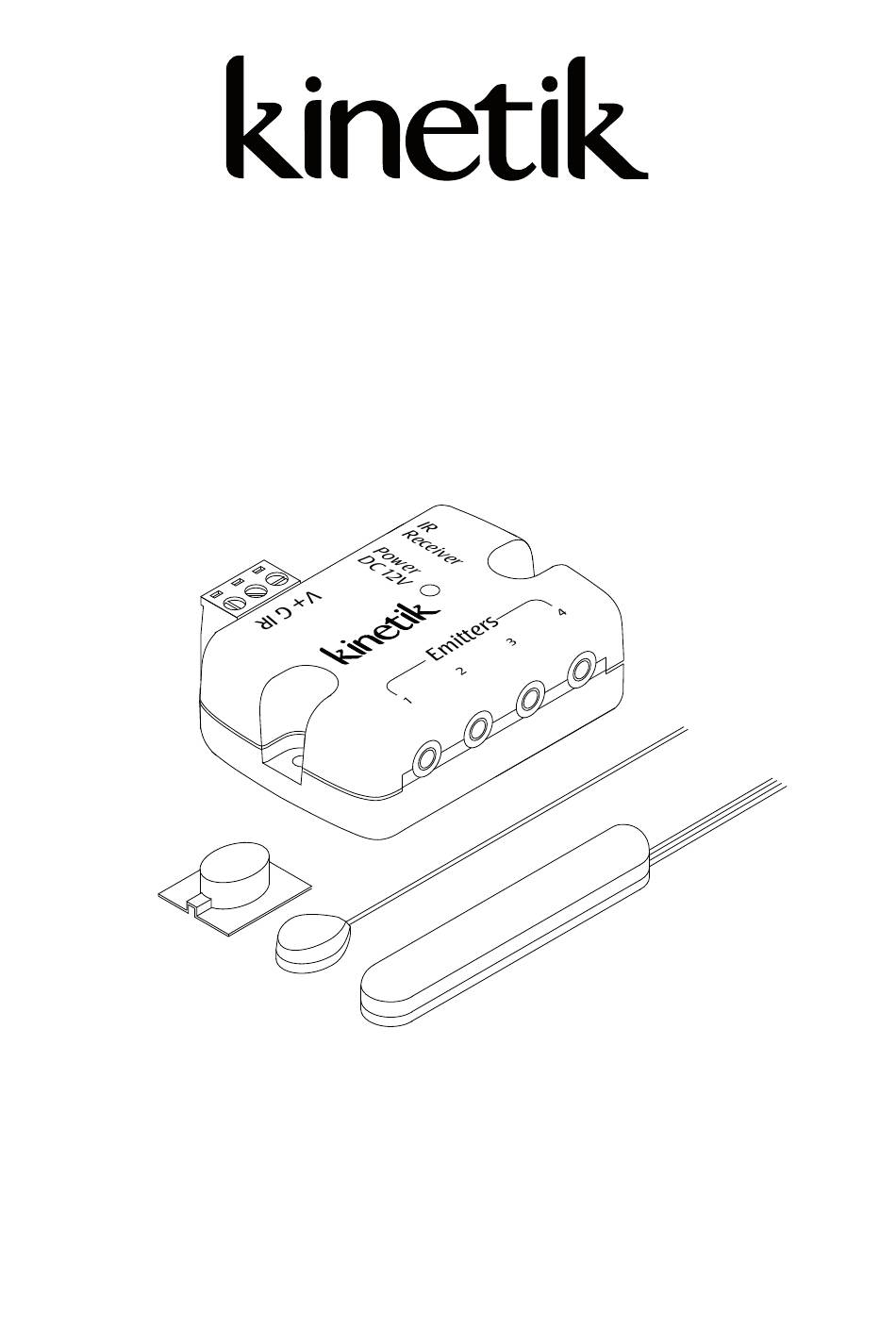

- Page 1 ™ Kinetik Labs KLIR-SM1KIT Surface Mount IR Kit Instruction Manual...
-
Page 2: Table Of Contents
™ Kinetik Labs Surface Mount IR Kit KLIR-SM1KIT Contents Section Page Introduction Safety Instructions Description Box Contents Installation Instructions Single Zone System Wiring Diagram Multi Zone System Wiring Diagram Advanced Installation Troubleshooting Component Dimensions Specifications Limited Warranty... -
Page 3: Introduction
Description The KLIR-SM1KIT is an Infra Red (IR) signal transport device. It is designed to extend the communication between an IR remote control and respective AV equipment e.g. Blu-ray player, set-top box, amplifier etc, which can be in a different room or hidden location. -
Page 4: Box Contents
KLIR-CB1 IR connection block KLIR-PS1 UK/Europe power supply KLIR-IRE2 Dual visible IR emitter Mono jack to jack cable Emitter covers MONO JACK KLIR-EC Instruction manual for KLIR-SM1KIT Receiver double-sided stick pad Replacement emitter adhesive tabs Replacement pads for emitter covers... -
Page 5: Installation Instructions
Installation Instructions Please note: For full installation details please also read the ‘Advanced Installation’ and ‘Troubleshooting’ sections. Apply the sticky tabs to the base of the receiver and place it in the desired location with the rounded surface pointing into the room. Be sure to position it in clear line of sight of where the remote controls will be pointing. -
Page 6: Single Zone System Wiring Diagram
Single Zone System Wiring Diagram AV equipment cupboard / room Receiver (IR jack in) Blu-ray Player Connection block Amplifier l nu IR Receiver Emitters l nu /Jacks Zone 1 (Lounge) Power supply Multi Zone System Wiring Diagram (requires additional receivers) AV equipment cupboard / room Receiver (IR jack in) Blu-ray Player... -
Page 7: Advanced Installation
Advanced Installation Cable extension The IR receiver and emitter cables can be extended to custom lengths if required. It is recommended that two strands of CAT5 are used per signal. To do this, firstly you need to determine the length of the run and cut that amount. -
Page 8: Troubleshooting
Troubleshooting Symptom Check Problem / Solution No operation. The connection block Connection block is not power LED is off. receiving power. Check mains supply is on. No operation. Connect all components System is receiving Connection block LED is and power system. Meter incorrect power. -
Page 9: Component Dimensions
Component Dimensions KLIR-SMR1 Surface Mount Receiver SIDE Cable length: 2000mm (2m) 3.5mm 65mm 14mm WIRING 10mm 10mm KLIR-CB1 Connection Block SIDE 55.5mm 46.5mm Emitters 23mm 70.5mm KLIR-IRE2 Dual Visible Emitters Full length: 3000mm (3m) 3.5mm 14mm Split length: 900mm (0.9m) 14mm 10mm KLIR-PS1 Power Supply... -
Page 10: Specifications
Specifications General Model Number: KLIR-SM1KIT Components: 1x KLIR-SMR1 IR receiver 1x KLIR-CB1 connection block 2x KLIR-IRE2 dual IR emitters 2x MONO JACK 3.5mm jack to jack cables 4x KLIR-EC emitter covers Additional accessories: 4x replacement emitter sticky tabs 4x replacement emitter cover adhesive tabs... -
Page 11: Limited Warranty
Limited Warranty This Kinetik Labs product is warranted free of defects in workmanship and materials on purchase. If the goods are found to be defective within the warranty period, they will be repaired or replaced, at AWE Europe Ltd’s option, without charge on return to the vendor upon satisfactory proof of purchase from the vendor and date of purchase. - Page 12 Europe Ltd. AWE Europe Ltd is not liable for omissions or for technical or editorial errors herein or for damages directly or indirectly resulting from the use of this Kinetik Labs product. ‘Kinetik Labs’ and the ‘Kinetik’ logo are trademarks of...
