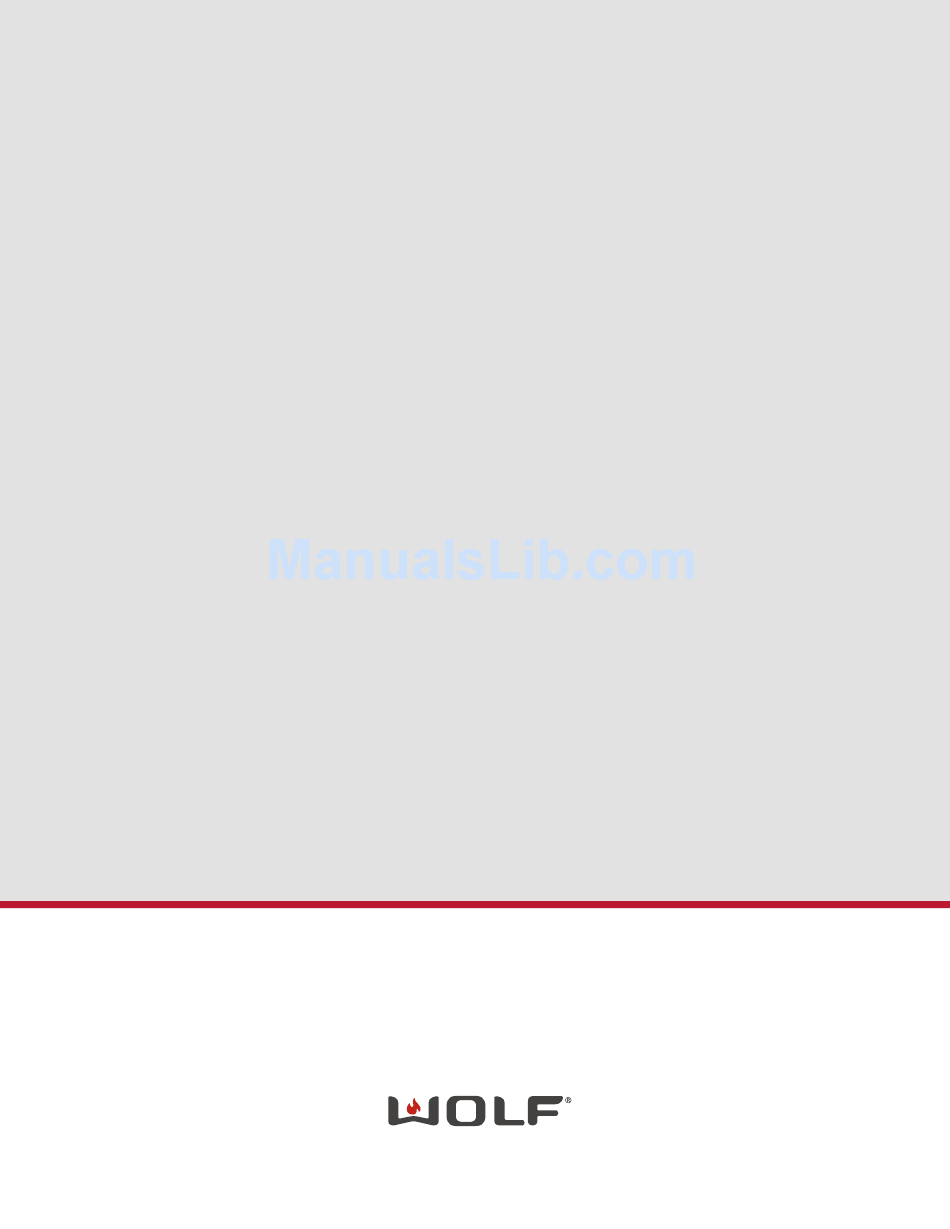

  • Page 1 INSTALLATION GUIDE Fryer Module...
  • Page 2: Table Of Contents

    Important Note Wolf Fryer Module ......3 To ensure the safe and efficient use of Wolf equipment, please take note of the following types of highlighted Fryer Module Specifications .
  • Page 3: Wolf Fryer Module

    Wolf Fryer Module wolfappliance.com/specs Fryer Module Installation IMPORTANT NOTE: Installation of the Wolf electric fryer Wolf Fryer Module module must be completed by a qualified installer. Model Number IF15/S Read this entire installation guide prior to installation and Serial Number save for the local inspector’s reference.
  • Page 4: Fryer Module Specifications

    6. 15" The Wolf fryer module is intended for indoor use. It is (381) designed to fit a standard 24" (610) deep base cabinet with 25" (635) deep countertop. Before making the coun- tertop cut-out, verify that the module will clear the side "...
  • Page 5 The Wolf electric fryer module requires a separate, fuse. The proper voltage, frequency, and amperage ratings grounded 3-wire electrical supply with its own circuit are listed on the product rating plate located on the under- breaker.
  • Page 6 Fryer Module Specifications Installation Specifications FRYER MODULE SIDE CABINET 30" (762) min 13" (330) COUNTERTOP TO COMBUSTIBLE 18" (457) min MATERIALS 7" 7" (178) TO (178) TO SEE COUNTERTOP CUT-OUT BELOW COMBUSTIBLE COMBUSTIBLE " " " (314) (343) (314) " 6"...
  • Page 7 The fryer module must be installed at least 15" (381) additional cooktops or modules with a filler strip, refer to from any open-flame cooking device or a Wolf steamer module. The open flame may cause ignition of oil, and the chart below for the countertop cut-out width. The contact between water and hot oil may cause burns.
  • Page 8: Fryer Module Installation

    Fryer Module Installation Install the Module Remove the fryer module from its shipping carton and To attach the brackets to the sides of the module, insert discard packing materials. the clip into the rectangular punchout in the pan, and push down.
  • Page 9 Fryer Module Installation wolfappliance.com/specs Before Operating Module Removal Read the entire Wolf fryer module use & care guide included with the unit. It contains important safety, opera- The fryer module must be disconnected from the tion, service and warranty information.
  • Page 10: Service Information

    Wolf authorized service center. • Verify that electrical power is being supplied to the To obtain the name and number of a Wolf authorized module. service center, check the contact & support section of our website, wolfappliance.com or call Wolf customer service...
  • Page 11 Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved. Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
  • Page 12 WOLF APPLIANCE, INC. P. O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.332.9513 816177 REV-A 8/ 2010...
