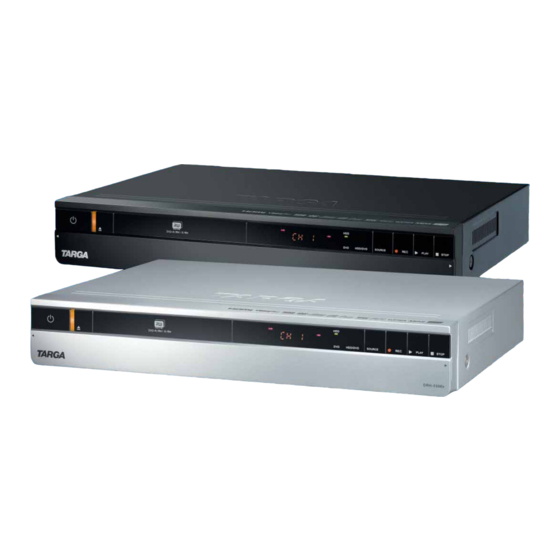

Targa DRH-5500x User's Manual And Service Information

Hide thumbs
Table of Contents

Advertisement

Quick Links

TARGA GmbH
Lange Wende 41
D-59494 Soest
Germany
www.targa-online.com
Targa DRH-5500x
User's guide and service information
Front View
1.
Power On/Standby button
8. SOURCE button
Switches on the DVD recorder or switches the
Selects equipment connected via line inputs
unit to standby mode
9.
RECORD button
2.
OPEN/CLOSE button
Starts recording on current device
Opens or closes the disc tray
10.
PLAY button
3. Disc tray
Starts playback on current device
Holds discs securely during recording or
11.
STOP button
playback
Stops playback or recording
4. DISPLAY window
12. DV-LINK (IEEE 1394) jack*
Shows operation information
Connects digital camcorder
5. HDD indicator
13. LINE IN (S-Video/Composite VIDEO &
Lights when HDD (hard disk drive) is selected
AUDIO L/R) jacks*
as the target device
Connects the outputs of external equipment
6. DVD indicator
via S-Video or composite video/audio cables
Lights when DVD drive is selected as the
target device
* Connector is located behind front cover.
7. HDD/DVD button
Changes DVD recorder's current mode from
HDD (hard disk drive) to DVD and vice versa
Rear View
1. VHF/UHF IN/OUT jacks
6. HDMI DIGITAL OUT jack
Connects antenna cables
Connects a TV or an AV amplifier (receiver)
with HDMI input jack (via HDMI cable)
2. AV OUTPUT (VIDEO/AUDIO L/R) jacks
Connects the inputs of external equipment via
7. Power Switch
composite video/audio cables
Toggles the mains supply on/off
3. COMP OUT (COMPONENT) jacks
8. DIGITAL AUDIO OUT (OPTICAL) jack
Connects the inputs of external equipment via
Connects an amplifier or a receiver having an
component video cables
optical digital input jack
4. SCART INPUT jack
9. DIGITAL AUDIO OUT (COAXIAL) jack
Connects the output of external equipment via
Connects an amplifier or a receiver having a
SCART cable
coaxial digital input jack
5. SCART OUTPUT jack
10. Fan
Connects the input of external equipment via
Provides appropriate cooling to the device
SCART cable
11. AC IN terminal
Connects the power cord
