Lenz XPA XpressNET User Manual

Phone adaptor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

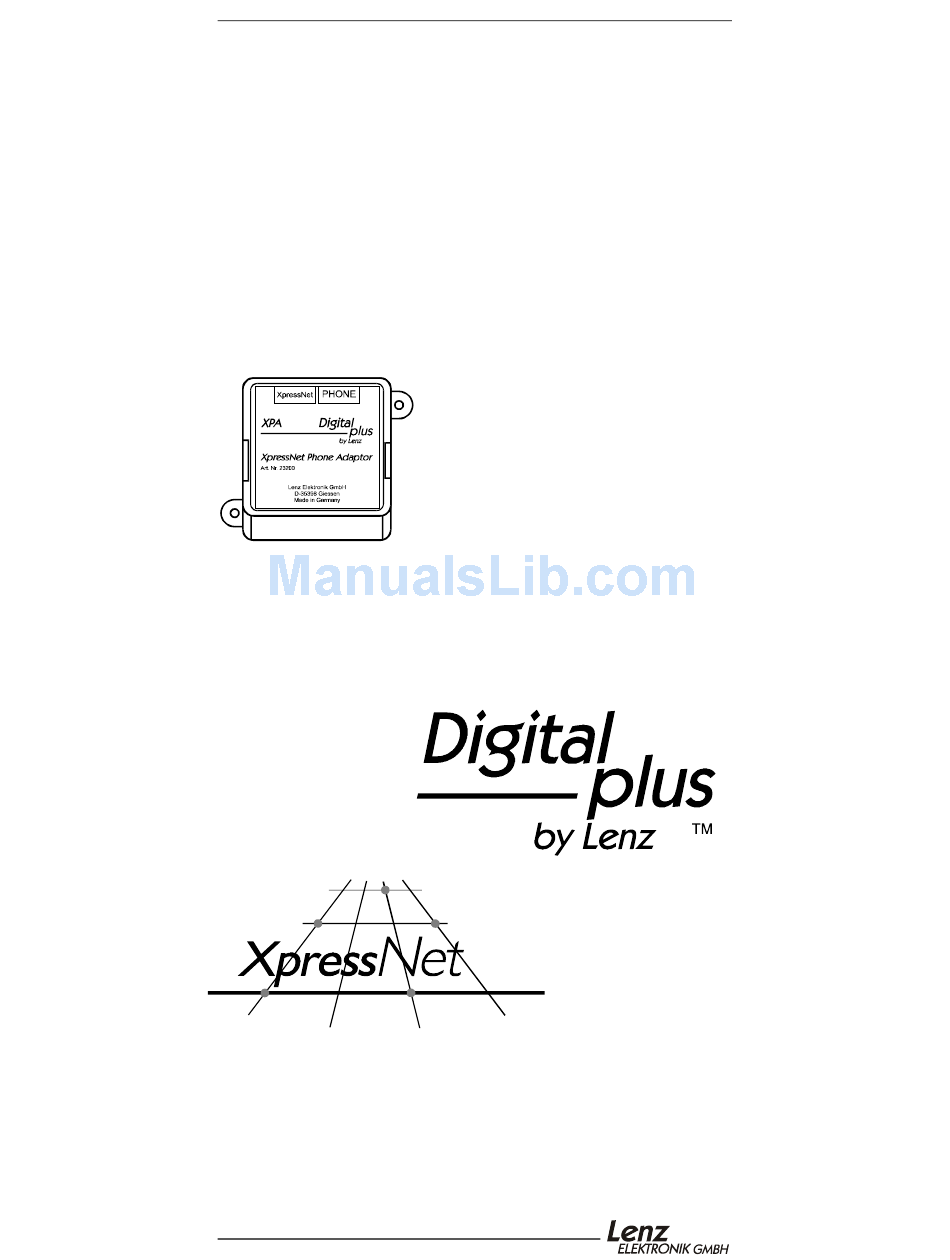

XpressNet Phone Adapter
XPA
XpressNET Phone Adaptor
Art. No. 23200
Revised June 2002
The
XPA
provides
an
between any device that can generate
DMTF tones (such as a cordless
phone) and an XpressNet.
operating
manual
describes
operation and use of the XPA. Please
read it carefully before connecting and
using the XPA.
1
interface
This
the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPA XpressNET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lenz XPA XpressNET

Summary of Contents for Lenz XPA XpressNET

  • Page 1 XpressNet Phone Adapter provides interface between any device that can generate DMTF tones (such as a cordless phone) and an XpressNet. This operating manual describes operation and use of the XPA. Please read it carefully before connecting and using the XPA. XpressNET Phone Adaptor Art.
  • Page 2 If an item is missing, please contact your retailer to have the missing item replaced. Important information, please read first! ® Your XPA is a component of your Digital plus by Lenz system and was submitted to intensive testing before delivery. Lenz Elektronik GmbH guarantees fault-free operation if you follow the...
  • Page 3 Macros is supported by the selected phone. The XPA can be connected to the following components of the ® Digital plus by Lenz system: LZ100; SET02; SET03; compact Note: The XPA requires a Digital plus command station software version of 3.0 or greater.
  • Page 4 Plug one end into the socket labeled "XpressNet" on the XPA and connect the other end to one of the RJ11 ports on a Lenz LA152 XpressNet Adapter, an Atlas Connector Panel #322, an XpressNet Tee connector or directly into the XpressNet port on the pack of an Atlas Commander.
  • Page 5 XpressNet Phone Adapter Selecting a locomotive address To set a locomotive address, follow these simple steps: Press "Talk or “Phone On” key (turn on phone). Press the "Pound" key. Enter the locomotive address using the number keys on your phone. Press the "Star"...
  • Page 6 Xpressnet Phone Adaptor Controlling locomotive functions While operating the locomotive, you can control the locomotive functions by pressing the following keys: press the "Star" key to tell the XPA you wish to control a function. enter the number of the desired function to turn the function on or off.
  • Page 7 XpressNet Phone Adapter Device settings Device settings can only be carried out immediately after answering the phone. Use the following procedure: Press the "Talk/Phone On" key Press the "Star" key. Enter the number for the desired setting (see below). Press the "Star" key. Press "Talk/Phone Off"...
  • Page 8 Xpressnet Phone Adaptor 10 North American Warranty Lenz GmbH does everything it can do to ensure that its products are free from defects and will operate for the life of your model railroad equipment. From time to time even the best engineered products fail either due to a faulty part or from accidental mistakes in installation.
