LA152 XpressNET Adapter

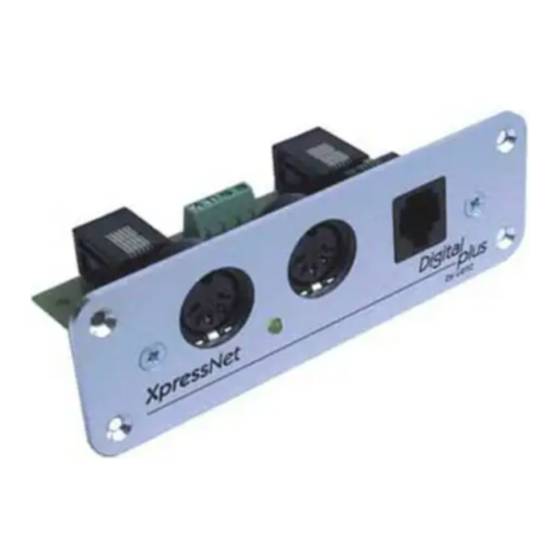

The LA152 provides an easy method to install XpressNET ports
in convenient locations anywhere on your model railroad. The
LA152 uses the same wiring and thus is also compatible with
NCE and Wangrow Cab Busses. For a professional looking
installation the LA153 faceplate can be easily attached to the
front 0f the LA152.
The LA152 has 6 ports:
•
Port A contains two RJ12 six wire phone connectors. All six wires are
connected between the two A ports
•
Port B is a four wire RJ14 connector, the outer two wires in Port A are
not connected to Port B.
•
Port C contains two 5 pin DIN connectors.
•
Port LMAB contains screw terminals for the four wires needed to
connect XpressNET
LA152 Universal
XpressNET Adapter
Art. No. 21152
Revised 9/00
DIGITAL plus
1
