Summary of Contents for AT&T CL82214

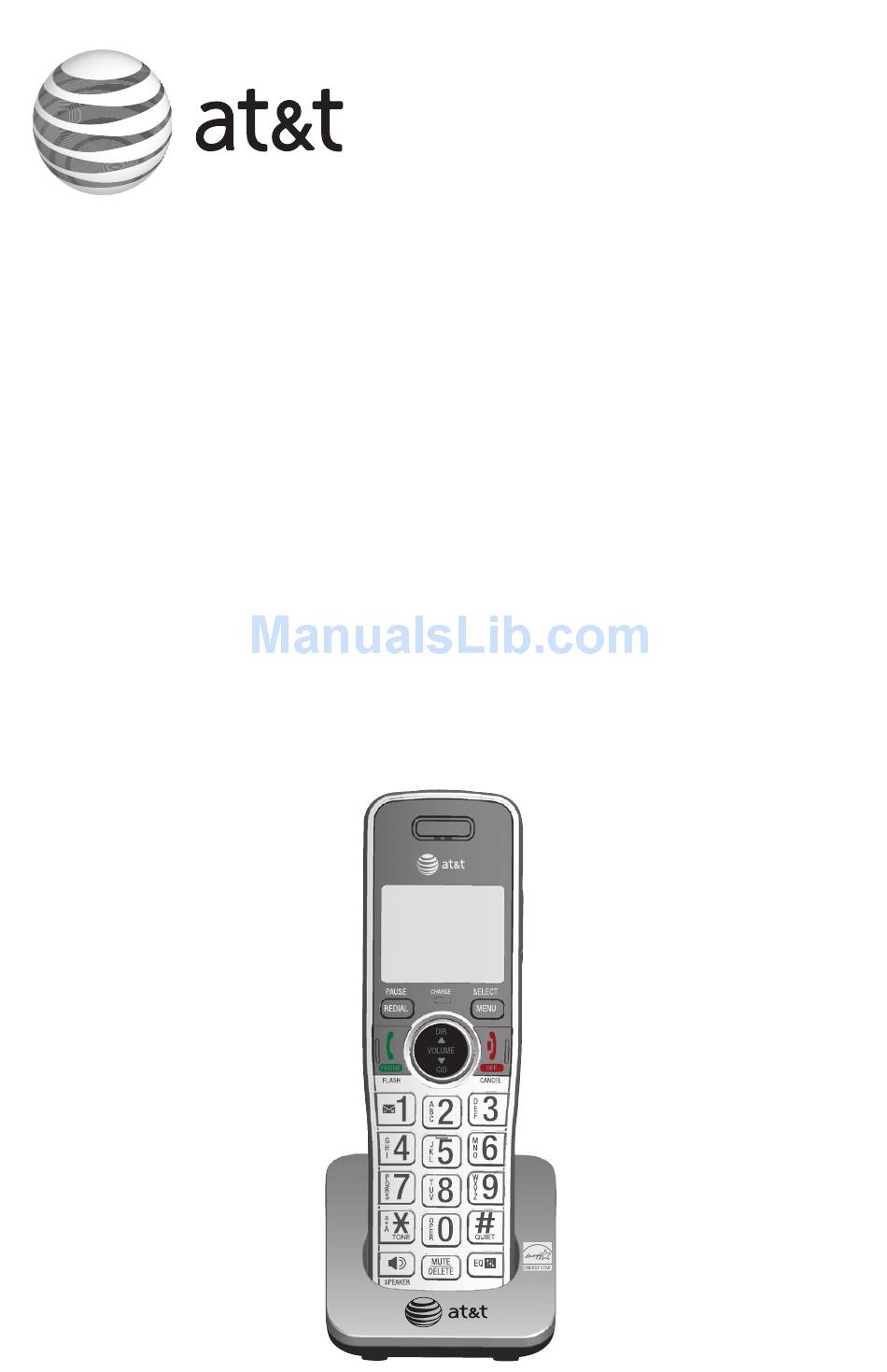

- Page 1 User’s manual CL80114 DECT 6.0 expansion handset for use with AT&T models CL82114/CL82214/CL82314/ CL82364/CL82414/CL82464/ CL82514/CL83114/CL83214/ CL83314/CL83364/CL83414/ CL83464...
- Page 2 AT&T product. Before using this AT&T product, please read the Important safety information section on pages 20-22 of this manual. For complete instructions, please refer to the manual provided with your CL82114/CL82214/CL82314/ CL82364/CL82414/CL82464/CL82514/CL83114/CL83214/ CL83314/CL83364/CL83414/CL83464 telephone. You can also visit www.telephones.att.com...
-
Page 3: Battery Compartment
Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User’s manual CL80114 DECT 6.0 expansion handset for use with AT&T models CL82114/CL82214/CL82314/ CL82364/CL82414/CL82464/ CL82514/CL83114/CL83214/ CL83314/CL83364/CL83414/ CL83464 User’s manual Charger for cordless... -
Page 4: Table Of Contents
User’s manual CL80114 DECT 6.0 expansion handset for use with AT&T models CL82114/CL82214/CL82314/CL82364/ CL82414/CL82464/CL82514/CL83114/ CL83214/CL83314/CL83364/CL83414/ CL83464 Table of contents Getting started Installation ........................1 Quick reference guide - handset ..............2 Charger installation ....................5 Battery installation and charging ..............6 Registration and deregistration Adding and registering handsets ..............8... -
Page 5: Getting Started
Getting started Installation You must install and See pages 6-7 STOP! charge the battery before for easy instructions. using the telephone. Your product may be shipped with a protective sticker covering the handset display - remove it before use. For customer service or product information, visit our website at www.telephones.att.com 1 (800) 222-3111 or call... -
Page 6: Quick Reference Guide - Handset
Getting started Quick reference guide - handset CHARGE light On when the handset is charging in the telephone base or charger. qCID/VOLUME • Press qCID to show caller ID log when the handset is not in use. • Press to scroll down while in menus. •... - Page 7 Getting started Quick reference guide - handset pDIR/VOLUME • Press pDIR to show directory entries when the handset is not in use. • Press to scroll up while in menus. • While entering names or numbers, press to move the cursor to the right. •...
-
Page 8: Main Menu
/CANCEL to cancel an operation, back up to the previous menu, or exit the menu display. For complete instructions, refer to the manual provided with your CL82114/CL82214/CL82314/CL82364/CL82414/CL82464/ CL82514/CL83114/CL83214/CL83314/CL83364/CL83414/ CL83464 telephone system. If you are unable to find your manual, www.telephones.att.com/manuals... -
Page 9: Charger Installation
Getting started Charger installation Install the charger, as shown below. Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. To order a replacement www.telephones.att.com power adapter, visit our website at or call... -
Page 10: Battery Installation And Charging
Getting started Battery installation and charging Install the battery as shown on page 7. Once you have installed the battery, the screen indicates the battery status (see the following table). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. - Page 11 After you install your telephone or power returns following a power outage, the handset will prompt you to set the date and time. After that, it will prompt if you want to set up the answering system via voice guide (only for CL82114/CL82214/CL82314/CL82364/ CL82414/CL82464/CL82514 telephone system). Press /SELECT MENU to start.
-
Page 12: Registration And Deregistration
Registration and deregistration Adding and registering handsets Before using a new CL80114 handset, you must register it with the AT&T CL82114/CL82214/CL82314/CL82364/CL82414/CL82464/ CL82514/CL83114/CL83214/CL83314/CL83364/CL83414/ CL83464 telephone system (purchased separately). The telephone system can support up to 12 handsets. The handsets provided with your telephone system are already registered as HANDSET 1, and so forth. - Page 13 Registration and deregistration Adding and registering handsets If registration fails, follow the instructions, as mentioned below, to register a handset to the telephone base. NOTES: • Make sure the handset is out of the telephone base or charger and shows To register HS, see manual.
-
Page 14: Deregistering Handsets
Registration and deregistration Deregistering handsets You may need to deregister your handsets if: • You have 12 registered handsets and need to replace a handset. -OR- • You wish to change the designated handset number of your registered handsets. You must first deregister ALL the handsets, and then register each handset you wish to use again, one at a time. -
Page 15: Appendix
Appendix Troubleshooting If you have difficulty with your phone, please try the suggestions, as mentioned below. For Customer Service, visit our website at www.telephones.att.com 1 (800) 222-3111 or call 1 (866) 288-4268 In Canada, dial The handset registration is unsuccessful. •... - Page 16 If changing the telephone line cord does not help, the wall jack (or the wiring to this wall jack) may be defective. Try using a different wall jack in your home to connect your CL82114/CL82214/CL82314/CL82364/CL82414/CL82464/ CL82514/CL83114/CL83214/CL83314/CL83364/CL83414/ CL83464 telephone, or , or contact your telephone service provider (charges may apply).
- Page 17 Appendix Troubleshooting Out of range OR No pwr at base appears on my cordless handset. • Ensure you plug the telephone base in properly and the power is on. • Place the cordless handset in the telephone base for one minute to allow the cordless handset and base to synchronize.
- Page 18 Appendix Troubleshooting I get noise, static, or weak signals even when I’m near the telephone base. • If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack.
- Page 19 Troubleshooting My cordless handset does not ring when I receive a call. • Make sure that the ringer is not off. Refer to Ringer volume in the user’s manual provided with your CL82114/CL82214/ CL82314/CL82364/CL82414/CL82464/CL82514/CL83114/ CL83214/CL83314/CL83364/CL83414/CL83464 telephone. • Make sure you plug the telephone line cord securely into the telephone base and telephone jack.
- Page 20 Appendix Troubleshooting My calls cut in and out while I’m using my cordless handset. • Other electronic products such as HAM radios and other DECT phones, can cause interference with your cordless phone. Try installing your phone as far away as possible from these types of electronic devices.
- Page 21 Appendix Troubleshooting System does not receive caller ID when on a call. • Make sure you subscribe to caller ID with call waiting features from your telephone service provider. Caller ID features work only if both you and the caller are in areas offering caller ID service, and if both telephone service providers use compatible equipment.
- Page 22 Appendix Troubleshooting The charge light is off. • Make sure you plug the power and line cords in correctly and securely. • Unplug the electrical power. Wait for 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and telephone base to reset.
-
Page 23: Maintenance
Appendix Maintenance Taking care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. -
Page 24: Important Safety Information
Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. -
Page 25: Especially About Cordless Telephones
Appendix Important safety information CAUTIONS: • Use only the power adapter provided with this product. To obtain a replacement, www.telephones.att.com visit our website at or call 1 (800) 222-3111 1 (866) 288-4268 . In Canada, dial • Use only the supplied rechargeable battery or replacement battery (model BT183342/BT283342). -
Page 26: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Important safety information The RBRC™ Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel- metal hydride rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center. -
Page 27: For C-Ul Compliance
Appendix For C-UL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. - Page 28 Appendix For C-UL compliance • Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (pages 6-7). N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques. • L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur le plancher.
- Page 29 Appendix For C-UL compliance • Piles rechargeables à l’hydrure métallique de nickel : Jetez ces piles de manière sécuritaire. N’incinérez pas et ne peercez pas les piles. Comme pour les autres piles du même type, si elles sont brûlées ou percées, des matières corrosives peuvent s’en échapper, ce qui risque de causer des brûlures ou autres blessures corporelles.
-
Page 30: Fcc Part 68 And Acta
Appendix FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. - Page 31 Appendix FCC Part 68 and ACTA Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 32: Fcc Part 15
Appendix FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. -
Page 33: California Energy Commission Battery Charging Testing Instructions
7), put the handset in the handset charger to charge. The CEC battery charging testing mode is activated while charging. If you have registered the handset to the CL82114/CL82214/CL82314/CL82364/ CL82414/CL82464/CL82514/CL83114/CL83214/CL83314/CL83364/CL83414/ CL83464 base, below are the testing instructions. -
Page 34: Limited Warranty
Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to our website at www.telephones.att.com 1 (800) 222-3111 or call . In Canada, 1 (866) 288-4268 dial What does this limited warranty cover? The manufacturer of this AT&T branded product warrants to the holder of a valid... - Page 35 Appendix Limited warranty • PRODUCT to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or • PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or •...
- Page 36 Appendix Limited warranty 7. Other limitations This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT. It supersedes all other written or oral communications related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT.
-
Page 37: Technical Specifications
Appendix Technical specifications RF frequency band 1921.536MHz - 1928.448MHz Channels Operating temperature 32°F - 122°F 0°C - 50°C Handset battery 2.4V 400mAh, 2xAAA Ni-MH Charger voltage 6VAC @ 300mA (AC adapter output) Operation Operating time* Talk time (cordless handset) Up to seven hours Talk time (cordless handset speakerphone) Up to five hours Standby Up to seven days... -
Page 38: Simulated Full-Duplex Handset Speakerphone
Appendix Technical specifications Simulated full-duplex handset speakerphone The simulated full-duplex speakerphone on your handset allows both ends of a call to speak and be heard at the same time. Optimal performance is subject to external factors and individual usage. - Page 39 www.telephones.att.com © 2014 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 2.1 AT&T 05/14.
