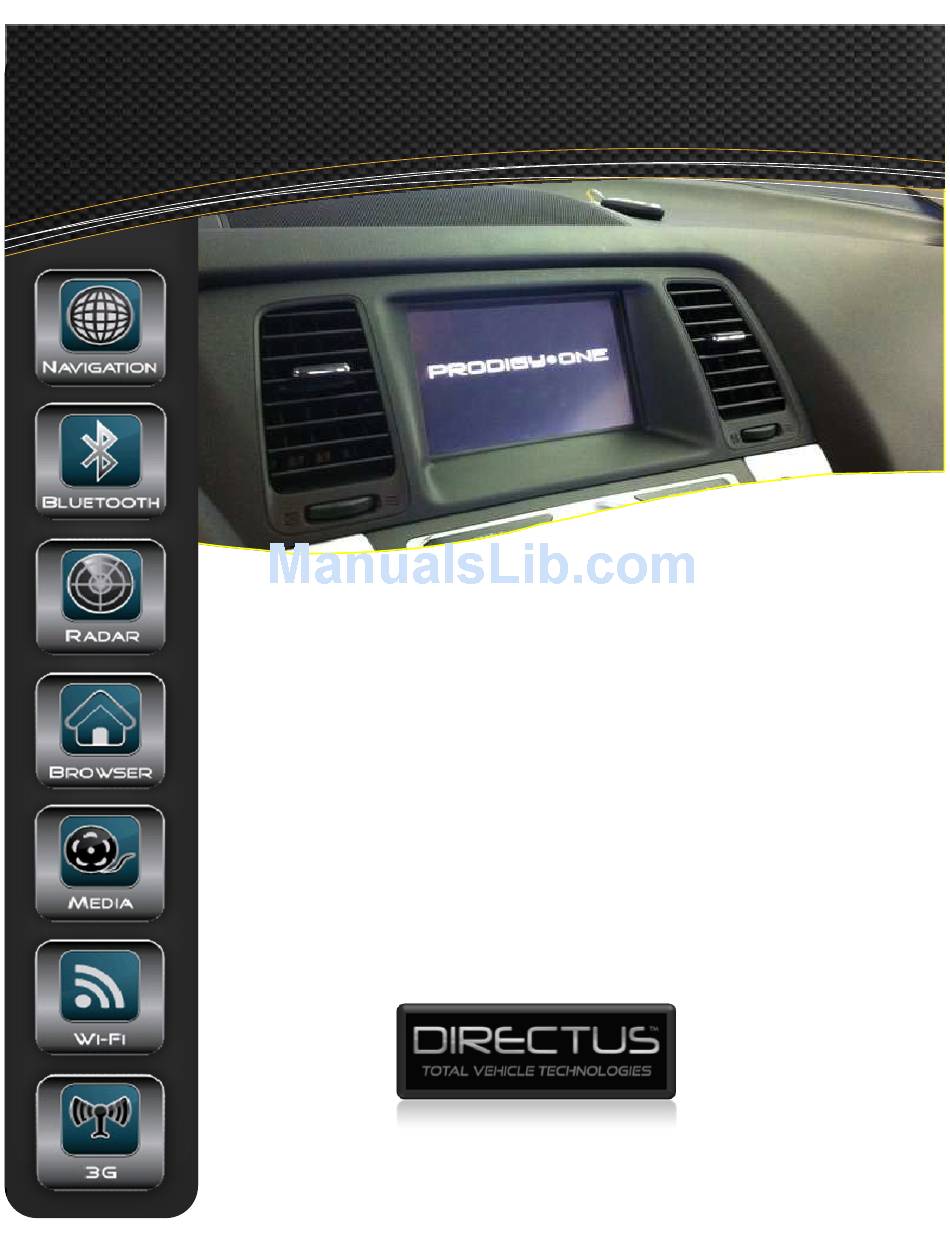

- Page 1 Prodigy One Prodigy One Prodigy One NN-SC-1001 Nissan/Infiniti Installation Manual...
- Page 2 Contacts www.directusnav.com support@directusnav.com Support: 810.355.2266 Fax: 810-735-0175...
- Page 3 Contents...
- Page 5 Infinity g35 panel shown. Different models may have slight variations. Remove dash bezel and LCD panel assembly from vehicle. *Note* Remove bracket from LCD assembly. Place on a clean, non-abrasive surface. Locate and remove 4 LCD assembly-fastening screws located on the top and bottom of assembly. Unplug harness from factory unit as shown Note: Use a mid sized screw driver for proper removal.
-
Page 6: Mounting Screws
Mounting Screws Make sure to keep ribbon cable clear and exposed... - Page 7 Locate and pull back 4 mounting tabs for front faceplate. These will be identified by small pull tabs with de-tents in them to keep the faceplate clipped on. Note: A small pick tool can be used to free the tabs. Once faceplate has been removed, place LCD assembly aside and locate two pieces shown in One is LCD plastic mount (black) and the other is the touch panel glass.
- Page 8 New fasteners in place...
- Page 9 (Some models may require more spacing to mount Directus PCB. Use provided washers to space as needed.) Locate DIRECTUS provided circuit board and align as shown in pic to newly installed mounting screws installed in previous step. Use provided screws to mount Circuit board.
- Page 10 New cable connections to be made Final 3 cable connections...
- Page 11 Locate provided system harness and make all necessary connections shown in pic. Make sure that all connections are seated properly before re-assembly. Before re-attaching back plate, you may want to notch out the side as shown below to make assembly easier. (This is not necessary, but will help with re-assembly) Unplug harness from factory unit as shown Back plate should go on with minimal effort.
- Page 13 Make all connections to Prodigy One “BRAIN” including: Power, Data, RGB, GPS antenna, and Speaker. Find suitable location for provided speaker. Example below in picture. Reinstall LCD assembly in to vehicle making necessary connections. Replace any OEM plugs removed to their original location. **BE SU R E T O R E PL AC E PLU GS I N T O C OR R E C T L OC AT I ON S OT H ER WI SE , YOU MAY L OC K U P C .A .N SY ST E M OF C A R .
- Page 14 Prodigy One Module Connection and Installation 1. Plug cable added to OEM LCD display in earlier steps, and connect to Prodigy One module, DO NOT FORCE.) 2. Connect 4 pin DC in cable making sure that they locking tab is fully seated and secured. 3.
- Page 15 6. ONCE INSTALLATION IS COMPLETE, TEST ALL FUNCTIONS OF OEM RADIO AND NAVI- GATION TO ENSURE THAT THEY ARE OPERATIONAL. (NOTE: NAVIGATION SYSTEM WILL BE THE ONLYFEATURE THAT IS TOUCH SCREEN OPERATIONAL.) TO SWITCH BETWEEN RADIO NAVIGATION FUNCTIONS PRESS THE LOWER LEFT CORNER OF THE NEWLY INSTALLED TOUCHSCREEN FOR 3 SECONDS.
