Rear view camera & Navigation solution for Dodge, Chrysler & Fiat UConnect Touch
Overview:
Adds touch screen controlled navigation to vehicles without factory navigation
Provides a rear view camera solution for both the 4.3" and 8.4" UConnect Touch radios (camera not included)
Allows DVD video to be viewed while the vehicle is in drive (only on 8.4" DVD equipped systems)
1
UCI-11C interface module
2
3
4.3" & 8.4" systems
1
.
2

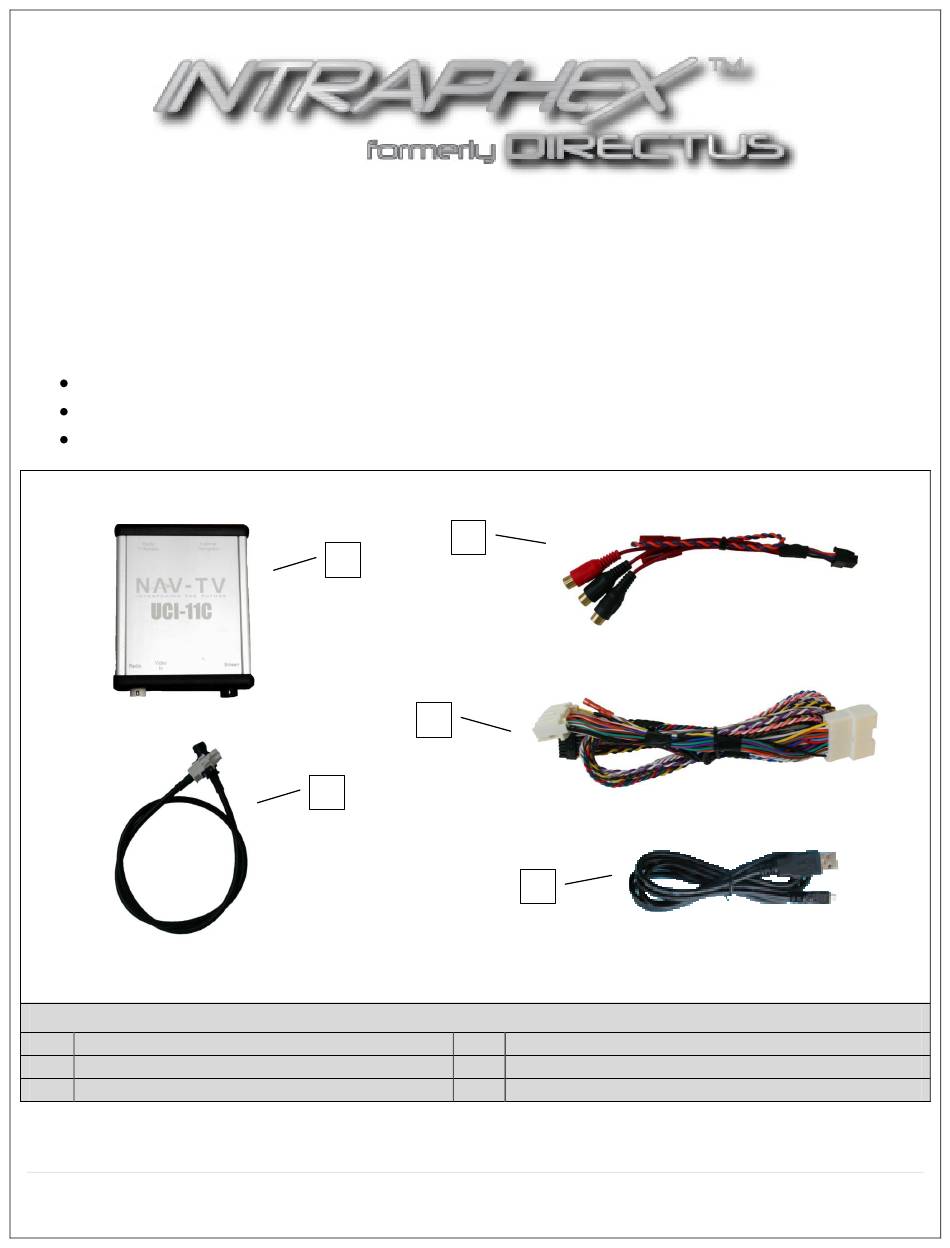

Product Description
LVDS cable
Video IN cable
UCI-11C
3
4
5
4
5
Radio T-harness
USB update cable
1 |
P a g e
Advertisement
Related Manuals for Directus Intraphex UCI-11C
Summary of Contents for Directus Intraphex UCI-11C
- Page 1 UCI-11C Rear view camera & Navigation solution for Dodge, Chrysler & Fiat UConnect Touch 4.3” & 8.4” systems Overview: Adds touch screen controlled navigation to vehicles without factory navigation Provides a rear view camera solution for both the 4.3” and 8.4” UConnect Touch radios (camera not included) Allows DVD video to be viewed while the vehicle is in drive (only on 8.4”...
-
Page 2: Connector Pinout
Connector pin out Navigation/AV Radio T- USB (update port) (reserved) Harness Video IN LVDS OUT LVDS IN (to screen (from radio Black) White) Activity * The connectors are viewed from the wire insertion side 8 Pin Video IN Connector Shield RCA 3 Shield 5 Video Signal... - Page 3 18 pin Radio T-Harness connector +12v Power Ground Audio Ground OUT Radio Audio Ground IN Audio Right OUT Radio Audio Right IN Audio Left OUT Radio Audio Left IN 1A 12v OUTPUT OUT 1 1A 12v OUTPUT OUT 2 Infotainment CAN HI Radio 15 Infotainment CAN LO Radio...
- Page 4 16. Using the plastic pry tool, gently pry around the dash panel to release the locking tabs. Take extra care when releasing these tabs, they may fall from the dash panel and into the dash. If Installing Directus Navigation Once you complete step 12 of the UCI installation, continue from this point.
- Page 5 7. The GPS antenna needs to be installed, right side up, in a location that has a clear line of sight of the sky. The antenna can be mounted on the dash, or located in the dash below the dash pad without any metal obstructions.
- Page 6 Adjusting Contrast: Touch the “Contrast” soft key. Press the “-“or “+” soft key to adjust the image in 10% increments. Press the “Exit” soft key. Adjusting the Saturation: Touch the “Saturation” soft key. Press the “-“or “+” soft key to adjust the image in 10% increments.
- Page 7 On the touch screen, select “Camera Input Settings”. Adjusting the input: Touch the “Input” soft key Every press of the icon will change the input: OFF, Head Unit (factory camera), Video 1, Video 2, Video 3. The input image will be displayed in the back ground. (If the radio is set for Head Unit, the camera adjustments are accessed in the factory menu).
-
Page 8: Operation
To view the current hardware/software revision Press the “About” soft key to show current software revision. Press the “Exit” soft key to return to the main menu. To return to the system, press the “Exit” soft key. * Note: Changes in the settings menu will not be saved until “Exit” is pressed. Changes will not be saved if the ignition is cycled before the “Exit”... - Page 9 A. On the Kenwood navigations, verify the Blue/Black wire in position 12, is cut for a 4.3” screen or intact for an 8.4” screen. The Directus units are preconfigured for a specific screen size. Verify that the correct navigation unit is being installed for the particular screen in the vehicle. These units cannot be user configured.
