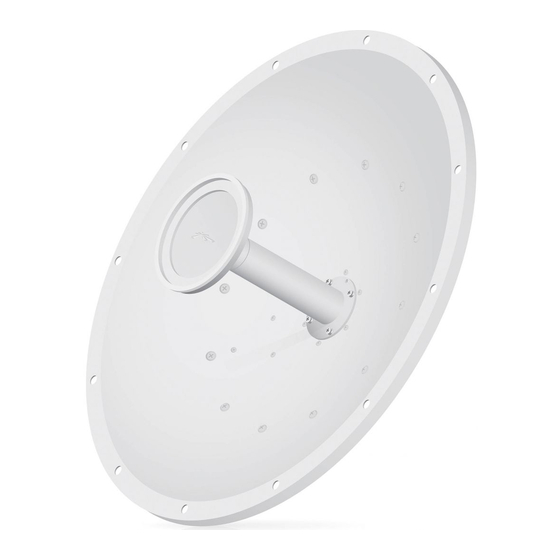

RD-5G30 Quick Start Guide

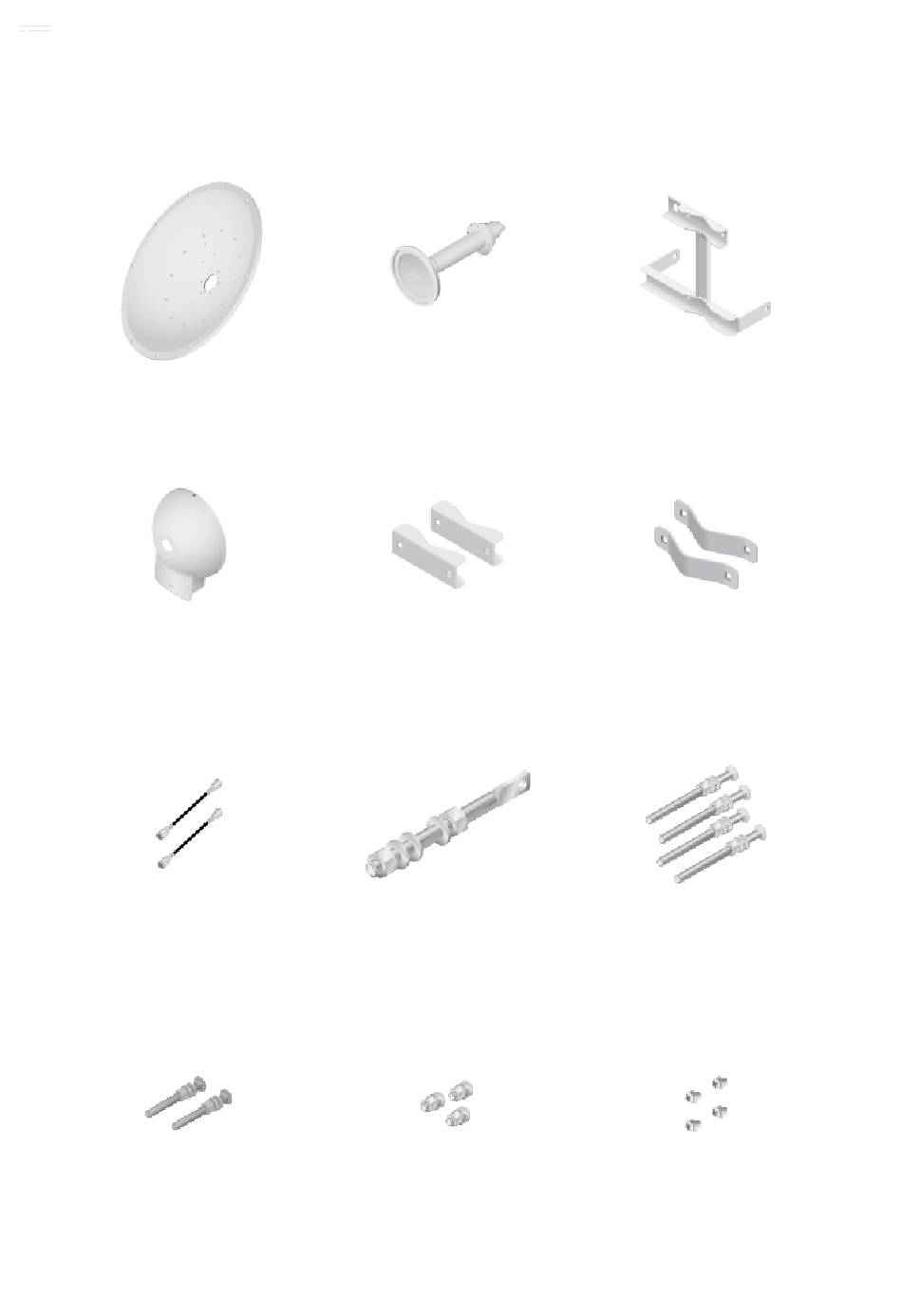

Package Contents
Dish Reflector
Antenna Feed
Mount Bracket
Protective Shroud
Pole Clamps (Qty. 2)
Stabilizer Brackets (Qty. 2)
RF Cables (Qty. 2)
Elevation Rod
M10x150 Carriage Bolts (Qty.
4)
M10x100 Bolts (Qty. 2)
M10x25 Carriage Bolts (Qty.
M4 Screws (Qty. 4)
3)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD-5G30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti RD-5G30

Summary of Contents for Ubiquiti RD-5G30

  • Page 1 RD-5G30 Quick Start Guide Package Contents Dish Reflector Antenna Feed Mount Bracket Protective Shroud Pole Clamps (Qty. 2) Stabilizer Brackets (Qty. 2) RF Cables (Qty. 2) Elevation Rod M10x150 Carriage Bolts (Qty. M10x100 Bolts (Qty. 2) M10x25 Carriage Bolts (Qty.

  • Page 2: Installation Requirements

    We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet ui.com/toughcable cable from Ubiquiti. For more details, visit Hardware Installation IMPORTANT: Handle the Dish Reflector with care. Deformations in its shape may reduce the antenna’s effectiveness.
  • Page 3 RD-5G30 Quick Start Guide...
  • Page 4 RD-5G30 Quick Start Guide...
  • Page 5 RD-5G30 Quick Start Guide...
  • Page 6 RD-5G30 Quick Start Guide...
  • Page 7 RD-5G30 Quick Start Guide...
  • Page 8 RD-5G30 Quick Start Guide...
  • Page 9 RD-5G30 Quick Start Guide...

  • Page 10: Specifications

    RD-5G30 Quick Start Guide Specifications RocketDish RD-5G30 Dimensions 650 x 650 x 304 mm (25.59 x 25.59 x 11.97") Weight 9.8 kg (21.61 lb) Frequency 5.1 - 5.9 GHz Gain 30 dBi HPOL Beamwidth 5° (3 dB) VPOL Beamwidth 5° (3 dB)

  • Page 11: Safety Notices

    RocketDish RD-5G30 RD-5G30 Quick Start Guide Cross-Pol Isolation 35 dB Min. Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer.

  • Page 12: Declaration Of Conformity

    Declaration of Conformity RD-5G30 Quick Start Guide Online Resources © 2022 Ubiquiti Inc. All rights reserved.
