TOSHIBA
Media Application Server Hardware

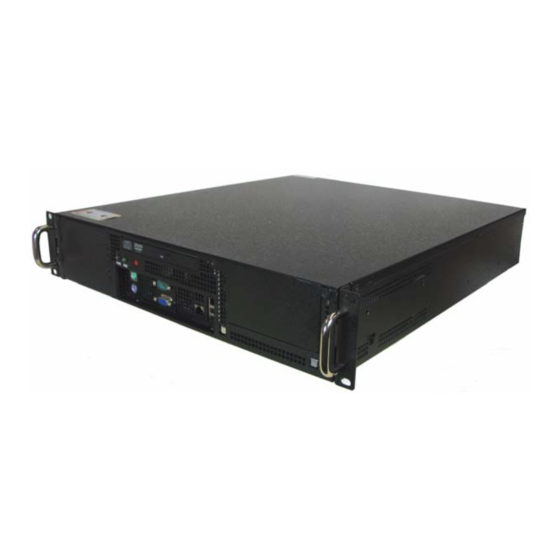

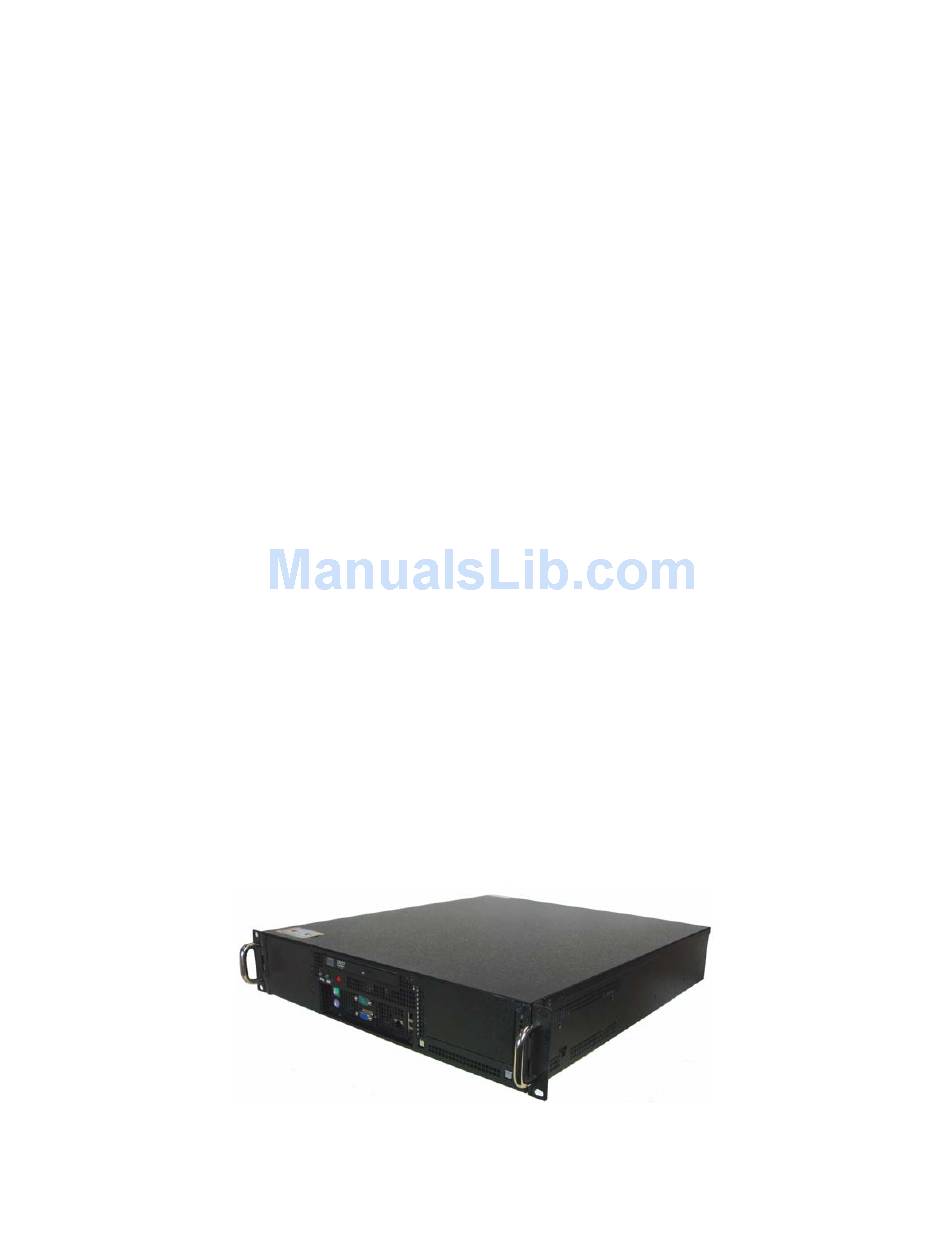

Toshiba is excited to announce the third generation of our popular Media Application Server (MAS).
This new 2U rack mountable chassis incorporates the latest server motherboard and Dual Core
Central Processing Unit (CPU) technology from Intel®, thereby improving the overall performance of
Toshiba's full suite of MAS applications. Also available are new platform options, specifically a
Windows Server 2003 model, an optional dual redundant power supply, and RAID1 or RAID5 hard
drive redundancy.
Description
This new MAS platform includes the following features and options;
Intel Pentium® Dual Core 1.8 gigahertz CPU
Dual core technology provides optimal performance with less power.
Intel Server Motherboard (Snow Hill) – Intel 3210 chip set
Windows® XP Professional (standard) – Windows Server 2003 (Optional)
Front panel - Hard drive activity LED
Front panel - Reset button – CPU reset
Internal PCI slots – Two full PCI slots for installation of fax modem boards.
Optional SATA RAID 1 or SAS RAID 5 hard drive redundancy.
Optional Dual Redundant Power Supplies
RoHS Compliant (Restricted use of Hazardous Substances Directive)
Supports Toshiba's mandate of environmental responsibility.
Note
Systems configured with RAID 5 redundant hard disk drives can support only one PCI fax
modem card (maximum eight fax ports).
Introducing Next Generation
© Copyright 2009
Toshiba America Information Systems, Inc.
Telecommunication Systems Division
9740 Irvine Blvd., Irvine, CA 92618-1697 (949) 583-3700
www.telecom.toshiba.com
Strata
Product Bulletin
CIX
®
PBCIX-0096
March 24, 2009

Advertisement

   Related Manuals for Toshiba Strata CIX

   Summary of Contents for Toshiba Strata CIX

  • Page 1

    Introducing Next Generation Media Application Server Hardware Toshiba is excited to announce the third generation of our popular Media Application Server (MAS). This new 2U rack mountable chassis incorporates the latest server motherboard and Dual Core Central Processing Unit (CPU) technology from Intel®, thereby improving the overall performance of Toshiba’s full suite of MAS applications.

  • Page 2: Hardware Specifications

    Power Supply 350 Watts Important! The Toshiba Video Communication Solution (VCS®) software is not supported on MAS systems equipped with Windows Server 2003 operating system. VCS can be installed only on MAS systems equipped with the Windows XP operating system.

  • Page 3: Part Numbers

    Please allow up to four business weeks to ship. Discontinued Part Numbers With the release of this new model MAS and Build-a-Bundle packaging, Toshiba is announcing the immediate discontinuance of the following part numbers. MAS-4VM-PKG...

  • Page 4

    Pricing All pricing information will be available at the time of the general availability in Toshiba’s online Price Book. These new Build-a-Bundle packages have been added to CIX Quote version M01, which is available for immediate download from our FYI web site.

  • Page 5: Installation Instructions

    Note This document only covers the basic installation of the new 2U MAS. Installation instructions for the optional dual redundant power supply is provided in the Strata CIX Installation and Maintenance manual, available on the Toshiba FYI web site. PCI Board Installation Instructions To install PCI boards into the 2 MAS system please follow these instructions;...

  • Page 6: Front Panel Detail

    USB Connectors Monitor 1 GB LAN connector - End of bulletin - Toshiba, Strata, CIX are trademarks of Toshiba Corporation or Toshiba America Information Systems, Inc. Windows ia a registered trademark of Microsoft Intel, Pentium are trademarks of Intel Corporation Trademarks, registered trademarks, and service marks are the property of their respective owners.
