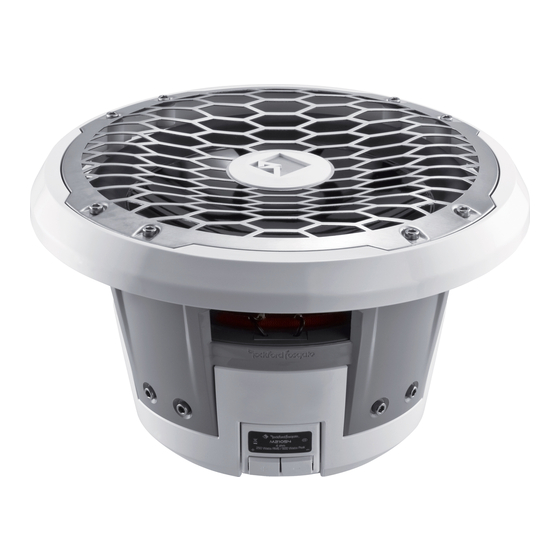

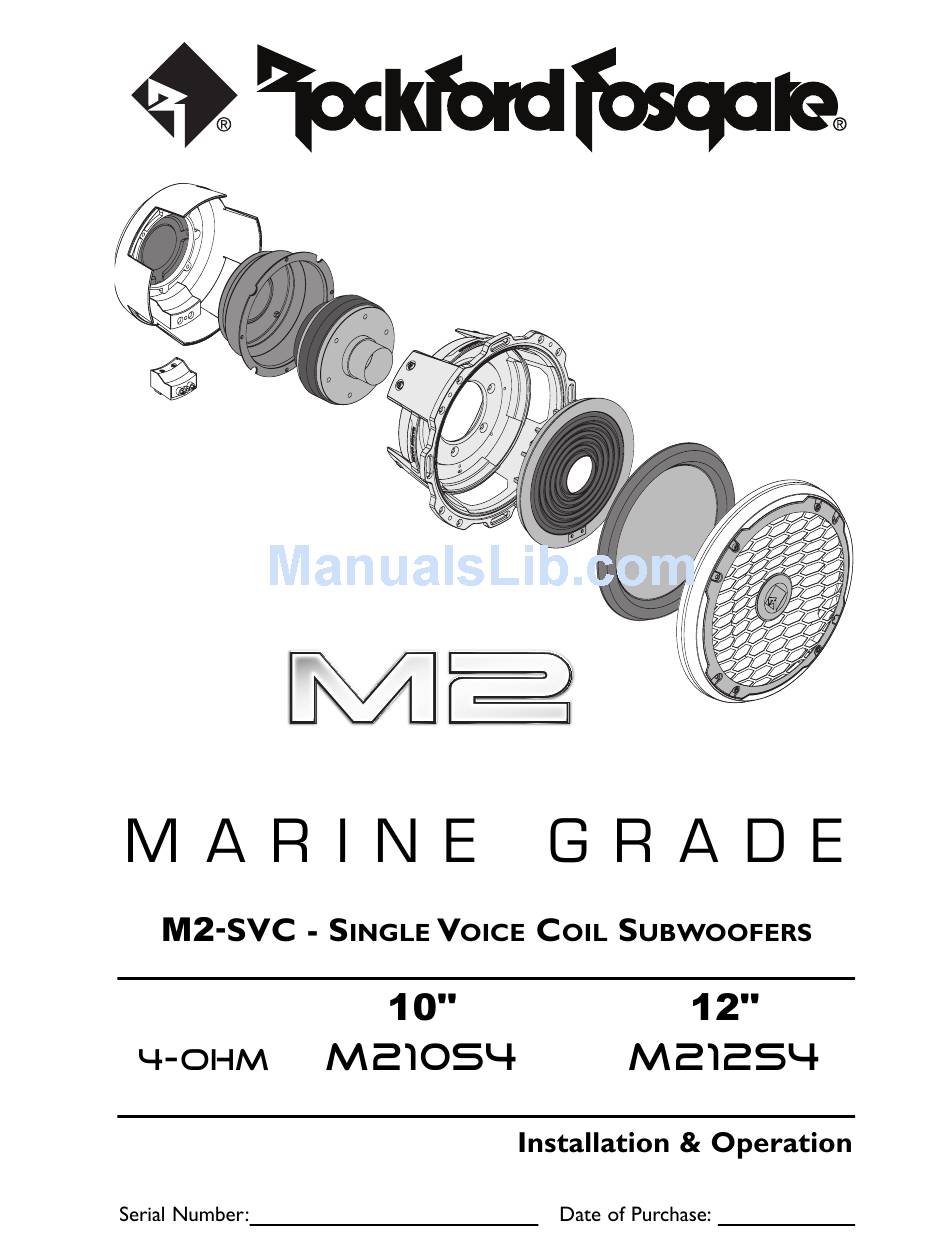

Rockford Fosgate MARINE GRADE M2-SVC M210S4 Installation & Operation Manual
Single voice coil subwoofers
Hide thumbs
Also See for MARINE GRADE M2-SVC M210S4:
- Installation & operation manual (8 pages) ,
- Installation & operation manual (9 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Rockford Fosgate MARINE GRADE M2-SVC M210S4
Summary of Contents for Rockford Fosgate MARINE GRADE M2-SVC M210S4
-
Page 2: Practice Safe Sound
PRACTICE SAFE SOUND™ AFETY Continuous exposure to sound pressure levels over 100dB may CAUTION: Before installation, disconnect the battery cause permanent hearing loss. High powered auto sound systems negative (-) terminal to prevent damage may produce sound pressure levels well over 130dB. Use common to the unit, fire and/or possible injury. - Page 3 EALED NCLOSURES NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4" (1.90cm) materials. NOTE: When using enclosures other than recommended, call Technical Support for correct application. Optimum Sealed Enclosure Recommendation SEALED ENCLOSURES 10"...
-
Page 4: Physical Dimensions
HYSICAL IMENSIONS PECIFICATIONS MARINE GRADE M2-SVC 10" 12" MARINE GRADE M2-SVC 10" 12" M210S4 M212S4 M210S4 M212S4 Nominal Impedance (ohms) A - Trim Ring Diameter-inch 11.54 13.58 (cm) (29.30) (34.50) Frequency Response (Hz) 40-250 30-250 B - Trim Ring Height-inch 1.31 1.65 Voice Coil Diameter - inch... -
Page 5: Wiring Configurations
Parallel Wiring IRING ONFIGURATIONS By varying the wiring configuration of your speakers you can create an impedance load to match your system. Altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads. - Page 6 EATURES • True Marine Grade Compliance. • UV stable Centrex ® injection molded plastic parts. • Proprietary corrosion resistant gold plated bare-wire input push-type terminals. • Injection molded mineral filled parabolic polypropylene cone body with UV inhibitors. • UV & Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround. •...
