Summary of Contents for Rockford Fosgate ELEMENT READY M2D4-12S

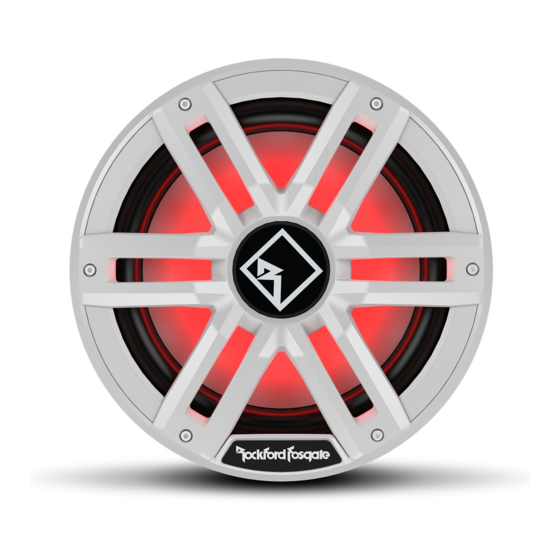

- Page 1 Installation assistance available at ELEMENT READY™ SUBWOOFERS M2D4-12S M2D4-12SB M2D2-12S M2D2-12SB 600 South Rockford Drive • Tempe, Arizona 85281 United States Direct: (480) 967-3565 • Toll Free: (800) 669-9899 rockfordfosgate.com Installation & Operation...
-
Page 2: Table Of Contents
130 dB. Faites preuve de bon sens et pratiquez une écoute sans risques To add the finishing touch to your new Rockford Fosgate image, order your Rockford accessories, which include everything from T-shirts to PRACTIQUE EL SONIDO SEGURO hats. -
Page 3: Specifications
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test. Rockford Fosgate has made the investment in Klippel to deliver the best possible speakers and subwoofers to their customers. -
Page 4: Diagrams
Diagrams illus.-1.1 illus.-2.1 Model M2D2-12S/SB M2D4-12S/SB Overall Diameter 13.87” (352.2mm) Screw Mounting 12.2” Diameter (B) (310mm) Mounting Screw 6X60° Angle (C) Overall Height 7.53” (191.4mm) Mounting Depth 5.24” (133.1mm) Cut-out Diameter 10.9” (277.2mm) Grill Height 2.29” (58.2mm) - Page 5 Diagrams Sport Grill Stainless Steel Grill...
- Page 6 Installation Contents If two facing sides are of uneven length, add them together and divide by two to take the average. Using this number will give you • (1)Element Ready™ • (6) Socket Head Stainless the volume without the necessity of calculating the box in sections Subwoofer with Sport/ Screws and adding the sections together.
-
Page 7: Installation Considerations
Installation Installation Considerations Before beginning any installation, follow these simple rules: 1. Be sure to carefully read and understand the instructions before attempting to install these speakers. 2. For easier assembly, we suggest you run all wires prior to mounting your speakers in place. 3. -
Page 8: Wiring
Wiring illus.-4.1 SPEAKER TERMINAL SWITCH SPEAKER & COLOR OPTIX™ TERMINALS... - Page 9 Wiring D4 Impedance Options D2 Impedance Options 2Ω 1Ω 8Ω 4Ω Woofer Series Wiring Options D4 with Switch on 2Ω D2 with Switch on 1 Ω 4Ω 2Ω Woofer Parallel Wiring Options D4 with Switch on 8 Ω D2 with Switch on 4 Ω 4Ω...
- Page 10 Wiring SPEAKER Wiring There are (2) different options for wiring your speakers. You can also utilize the DEUTSCH™/Amphenol style connector (not included) input next to the COLOR OPTIX™ connector. illus.-4.3 Speaker Pin Out (wire side) 1 - RED - Positive Speaker Input 2 - BLACK - Negative Speaker Input NOT included with speakers ™...
- Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
