Rockford Fosgate P1-SVC Installation & Operation Manual

Rockford Fosgate P1-SVC Installation & Operation Manual

P1-svc single voice coil subwoofers

Advertisement

Quick Links

LJ
N

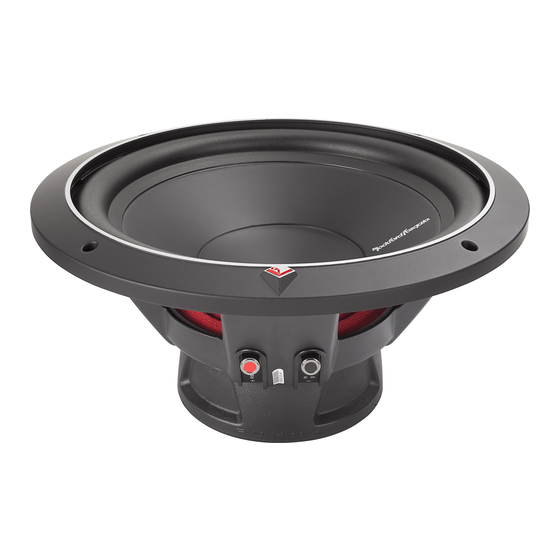

P1-SVC - SINGLE VOICE COIL SUBWOOFERS
4-0hm
8-0hm
8"
P1S48
P1S88
10
1
'
P1S410
P1S810
12"
P1S412
P1S812
15"
P1S415
P1S815
Installation
&
Operation
Serial Number:
_
Date of Purchase:
- - - -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1-SVC and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockford Fosgate P1-SVC

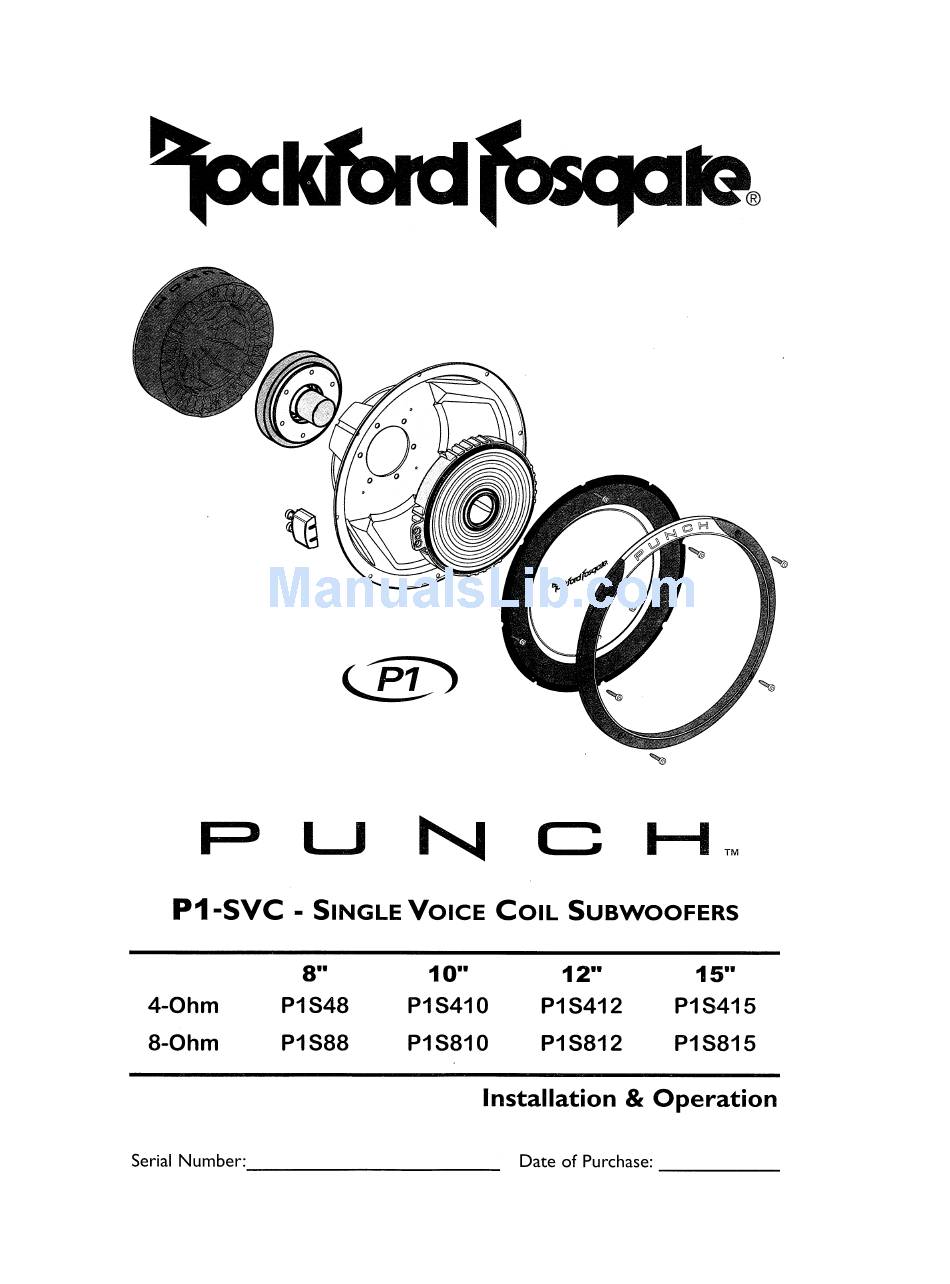

  • Page 1 P1-SVC - SINGLE VOICE COIL SUBWOOFERS 8" 12" 15" P1S48 P1S410 P1S412 P1S415 4-0hm P1S88 P1S810 P1S812 P1S815 8-0hm & Installation Operation Serial Number: Date of Purchase: - - - -...
  • Page 2 CARTON CONTENTS SAFETY CAUTION: Before installation, disconnect the battery ( I) Punch P I Series Subwoofer negative (-) terminal to prevent damage ( I) Painted PVC decorative trim ring to the unit, fire and/or possible injury. (8) Socket head wood screws (8) "Speed Clips"...
  • Page 3 SEALED ENCLOSURES NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4" (1.90cm) materials. NOTE: When using enclosures other than recommended, call Technical Support for correct application. Optimum Sealed Enclosure Recommendation 8 11 12 11...
  • Page 4 PHYSICAL DIMENSIONS 8 11 12 11 15 11 1011 PUNCH P1-SVC S481 Pl S41 0 P1S810 P1S415 P1S815 Pl S88 P1S412 P1S812 A - Trim Ring Diameter-inch 8.75 10.875 12.75 15.50 (cm) (27.62) (39.37) (22.23) (32.39) B - Trim Ring Heigth-inch 0.625...
  • Page 5 SPECIFICATIONS 8 11 12 11 15 11 1011 PUNCH Pl-SVG 5481 P1 S88 P1S410 P1 S81 0 P1S412 P1S812 P1S415 P1S815 Nominal Impedance (ohms) Frequency Response (Hz) 40-250 30-250 26-250 24-250 Voice Coil Diameter - inch 1.50 (4-Layer) 1.50 (6-Layer) 1.50 (6-Layer) 1.50 (6-Layer) (3.81)
  • Page 6 FEATURES Protective PVC textured magnet cover. Vented spider cavity. Tear and fatigue resistant Optimized motor magnetics poly-cotton spider. with extended pole piece and bumped backplate. High density compressed half-roll sealed poly-foam surround Sturdy 16 gauge compound bend frame. Custom insulated IO-AWG nickel plated push terminals. High Modulus Polypropylene Cone/Acrylic dustcap assembly.
  • Page 7 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
