Dome Sx User Manual

Tft lcd panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dome
Sx Display
®
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sx and is the answer not in the manual?

Questions and answers

Related Manuals for Dome Sx

Summary of Contents for Dome Sx

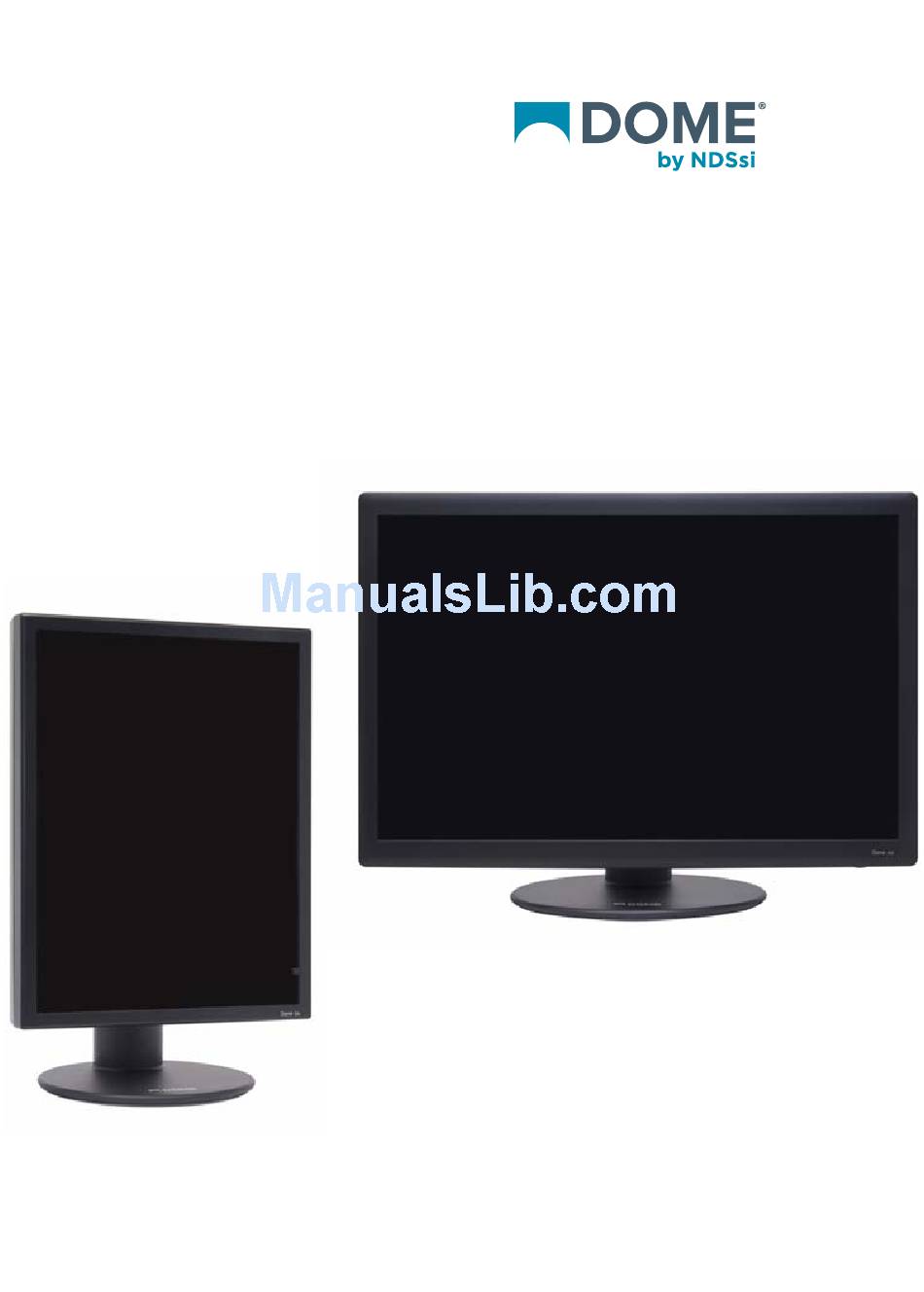

  • Page 1 Dome Sx Display ® User’s Guide...
  • Page 2 NDSsi. NDS Surgical Imaging, NDSsi, the NDSsi logo, Dome, the Dome by NDSsi logo, Dome S3, Dome S3c, Dome S10, Dome CXtra, RightLight are either registered or unregistered trademarks of NDS Surgical Imaging.

  • Page 3: About The Display

    About the Display The Dome® Sx displays are available in 3 and 10 megapixels and contain a TFT LCD panel. The display’s thin film transistors, in a transmissive-type display, use an integrated cold cathode fluorescent tube (CCFT) backlight system. The display is designed for medical imaging in diagnostic settings and comes fully tuned with gamma correction that complies with the DICOM Part 14 Standard.
  • Page 4 DisplayPort cable DVI cable Mini USB cable Quick reference NOTE: DVI-to-DVI and DisplayPort cables ship in the Dome S3 and Dome S3c display packages. DVI and mini USB cables ship in the Dome S10 display package. 2 | Dome Sx Display...

  • Page 5: Display Components

    Front sensor on Dome S3/Dome S3c MQSA button on Dome S10 The sensor on the front of the Dome S3 and Dome S3c displays allows you to run an auto-conformance test without using a photometer. The MQSA (Mammography Quality Standards Act) button (lower...
  • Page 6 – On Dome S3, drives power to the display via an 8-pin DIN connector. The power input is 12V ±5% (130 W). – On Dome S3c and Dome S10, drives power to the display via a 6-pin DIN connector. The power input is 24V ±5% (150 W).

  • Page 7: Installing The Display

    Use the Dome Sx display with the power adapter and video cable shipped. Warning In locations where 240V outlets are used, connect the Dome Sx display only to a center-tapped, 240V, single-phase supply (for Canada and the United States only).
  • Page 8 Video Cable Installation on the Dome S10 Display Note the location of the primary input on the Dome S10 display, shown below, for proper video cable installation. Improper connection may cause VGA boot messages not to appear on the display screen.

  • Page 9: Technical Information

    Technical Information The design of the Dome® Sx digital display takes into account every known measure to ensure your personal safety. Improper use of the display can result in electric shock, fire, or damage to the display. Read all instructions before setting up the display.

  • Page 10: Symbol Explanations

    Intended use The Dome S series offers AMLCD units designed for viewing medical X-ray images. A Dome Sx display should not be used near patients and should be kept outside of 1.83 m perimeter and 2.29 m vertical. Dome S3 and Dome S3c are intended for use in displaying and viewing medical images for review and analysis by trained medical practitioners.

  • Page 11: Safety Precautions

    • Keep the display dry if it is part of a surgical system. The display lacks protection against liquids or spills. • In locations where 240V outlets are used, connect the Dome Sx display only to a center-tapped, 240V, single-phase supply (for Canada and the United States).

  • Page 12: Unpacking And Handling Tips

    Unpacking and handling tips The Dome Sx display is a precision instrument that requires proper care to maintain product operation and adherence to specification. Unpack the display and components carefully, then set up and handle the unit properly to avoid damage to the LCD panel.

  • Page 13: Cleaning The Display

    Cleaning the display Observe the following guidelines to maintain the display and the LCD screen. • Use a clean, lint-free, absorbent cotton cloth to clear off any residual glue from removal of the protective film or to remove surface dust. Apply light pressure to remove the dust.
  • Page 14 Dome S3 Specification In locations where 240V outlets are used, connect the Dome S3 display to a center-tapped, 240V, single-phase supply only (for Canada and the United States). Category Characteristic Item Specification Screen Type AMLCD (active-matrix liquid crystal display) Screen size diagonal 540 mm (21.3 in.)

  • Page 15: Power Supply

    Power Supply CAUTION: Use only the power adapter supplied with the Dome S3 display unit; the BridgePower BPM130S12F02 (130W) model. Category Characteristic Item Specification Power input Voltage selection Universal auto switching with medical requirements approvals and PFC Voltage 100–240V AC Current 3.0 A...
  • Page 16 Dome S3c Specification In locations where 240V outlets are used, connect the Dome S3c display to a center- tapped, 240V, single-phase supply only (for Canada and the United States). Category Characteristic Item Specification Screen Type AMLCD (active-matrix liquid crystal display) Screen size diagonal 540 mm (21.3 in.)
  • Page 17 Power Supply CAUTION: Use only the power adapter supplied with the Dome S3c display unit; the BridgePower BPM150S24F05 (150W) model. Category Characteristic Item Specification Power input Voltage selection Universal auto switching with medical requirements approvals and PFC Voltage 100–240V AC Current 2.5 A...
  • Page 18 Dome S10 Specification In locations where 240V outlets are used, connect the Dome S10 display to a center- tapped, 240V, single-phase supply only (for Canada and the United States). Category Characteristic Item Specification Screen Screen size diagonal 762 mm (30.0 in.)
  • Page 19 Power Supply CAUTION: Use only the power adapter supplied with the Dome S10 display unit; BridgePower BPM150S24F05 (150W). Category Characteristic Item Specification Power input Voltage selection Universal auto switching with medical requirements approvals and PFC Voltage 100–240V AC Current 2.5 A Frequency 50–60 Hz...

  • Page 20: Video Modes

    Landscape 32-bit 8 (Windows 7); (horizontal span mode) 10 (Windows XP) Connector Plate All Dome Sx displays have a DVI connector. The Dome S3 and Dome S3c displays also have a DisplayPort connector. Display Video Port DIN Connector Power Input...
  • Page 21 LED Status Lights The two LEDs on the back panel of the Dome Sx displays provide information about the display. • LED A describes the digital-link status between the display controller and the interface. • LED B describes the display-panel status. it shows any faults currently in the panel.

  • Page 22: Troubleshooting

    (unchecked). Windows Display Properties dialog. A single-link commodity When using commodity graphics graphics board is in use. boards with the Dome Sx displays, be sure to install a DualLink DVI graphics board. 20 | Dome Sx Display...

  • Page 23: Regulatory Compliance

    (EMC) laws. Warning to Users of Dome Sx Displays The Dome S3, Dome S3c, and Dome S10 displays are Class A products. In a domestic environment, either of these products may cause radio interference, in which case the user may be required to take adequate measures.
  • Page 24 The intended use of these displays is “to display alphanumeric, graphic, and image data as inputted from any type of medical device.” Specifically, the Dome S3 and Dome S3c displays are intended for use in displaying and viewing medical images for review and analysis by trained medical practitioners.
  • Page 25 In summary, NDS Surgical Imaging is CE-marking these displays under the Medical Device Directive, which establishes compliance to the basic medical safety standards. However, EMC compliance can only be accomplished in the configured medical device or system and is the responsibility of the device or system manufacturer.
  • Page 26 Declaration of Conformity document, contact NDS Surgical Imaging. The Dome Sx digital flat-panel display meets the essential health and safety requirements, is in conformity with, and the CE marking has been applied according to the relevant EU Directives listed below, using the relevant section of the following EU standards and other normative documents;...
  • Page 27 U.S. FCC Compliance Statement Class A Digital Device: Dome S3, Dome S3c, or Dome S10 Display This device complies with Part 15 of the FCC Rules. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 28 Each Dome Sx display has one or more of the following certifications. China China Compulsory Certification regulating safety and EMC. GB4943-2001 GB9254-2008 CB17625.1-2003 Class A Dome S3, Dome S3c, and Dome S10 Germany TÜV Rheinland GM Mark for medical products.
  • Page 29 Dome® GX Display Standard 3-year “repair and return” warranty * If, within 10 years of initial purchase, the maximum output of the Dome Ex/Sx grayscale display is determined by NDSsi to be less than 300 cd/m², NDSsi will repair or replace the display at its sole discretion.
  • Page 30 Contact NDSsi Customer Care to determine if the product that you purchased is covered by this Standard Limited Warranty or whether you need to contact the Intermediary through which you purchased the product for warranty service. 28 | Dome Sx Display...
  • Page 31 NDSSI’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. NDSSI SHALL NOT BE LIABLE FOR THE FOLLOWING: 1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 32 (c) If the unit is within the warranty period but the customer does not provide a problem description and the service technician cannot determine the failure (no problem found – “NPF”) NDSsi’s then current evaluation fee will apply in addition to return shipment. 30 | Dome Sx Display...
  • Page 33 PAYMENT FOR NONWARRANTY EVALUATIONS AND REPAIRS AND OTHER EVALUATION CHARGES: Nonwarranty repairs requested by customer will be performed at NDSsi’s then current rates for any nonwarranty repairs and will include applicable evaluation fees and the cost of return shipping (if customer requests that NDSsi ship the repaired product).
  • Page 34 NDS Surgical Imaging, LLC 5750 Hellyer Avenue San Jose CA 95138-1000 USA www.ndssi.com...
