Dome CXtra User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Dome
CXtra
®
™
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CXtra and is the answer not in the manual?

Questions and answers

Related Manuals for Dome CXtra

Summary of Contents for Dome CXtra

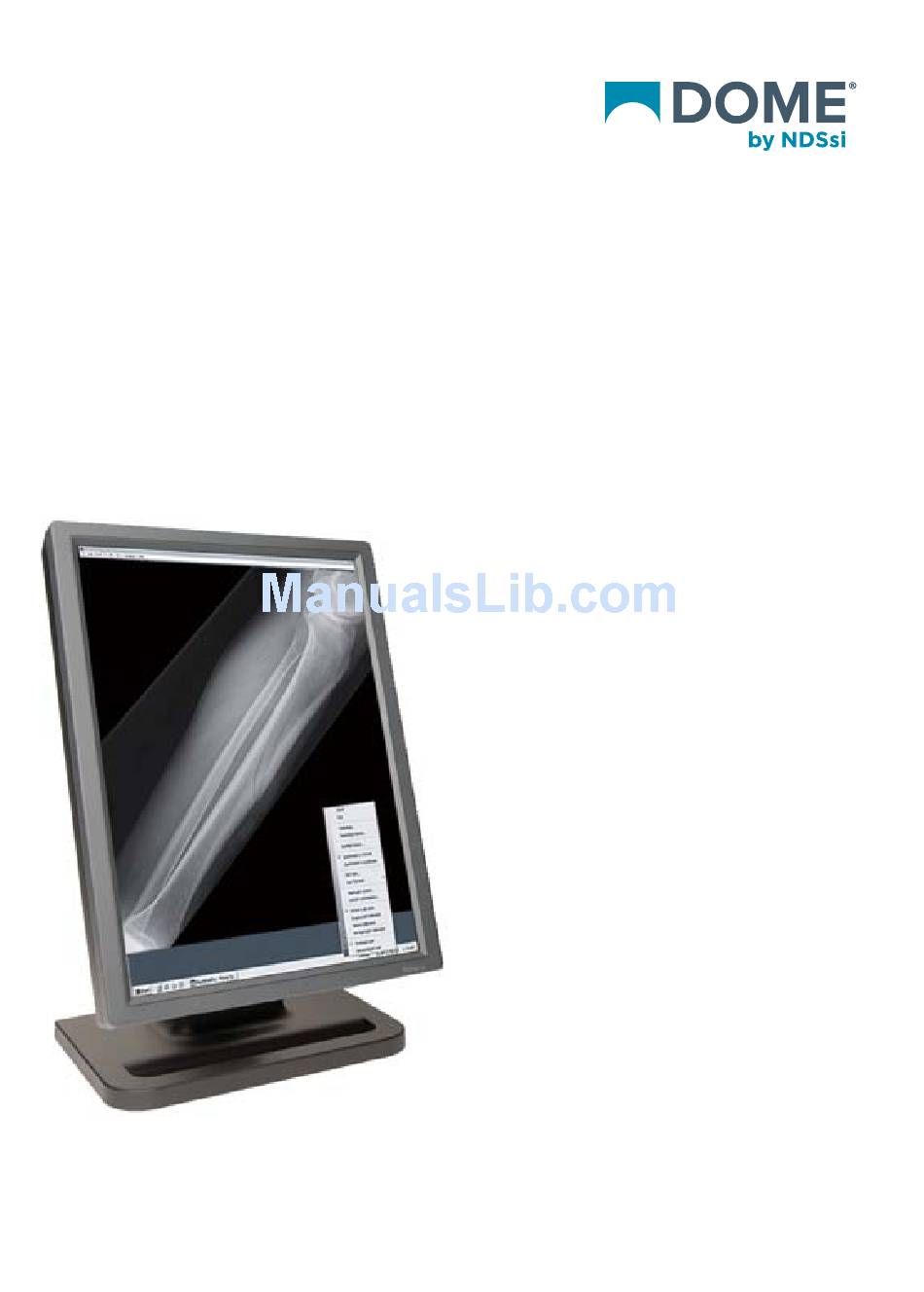

  • Page 1 Dome CXtra ® ™ User’s Guide...
  • Page 2 020-0911 Rev03A NDS Surgical Imaging, NDS Surgical Imaging logo, Dome, Dome by NDSsi logo, Dome CXtra, DICal, RightLight, Dome Dashboard, and all Dome display names are either registered trademarks or trademarks of NDS Surgical Imaging.

  • Page 3: Table Of Contents

    Contents What’s New in Version 6.x Series Getting Started Display Compatibility CXtra Services System Requirements Installing the Dome CXtra Software Installing or Removing Services Installing the Photometer Starting Dome CXtra Opening the CXtra Services Menu CXtra Utilities Exiting Dome CXtra...
  • Page 4 AAPM TG18 Test Patterns Miscellaneous Test Patterns Displaying Test Patterns Adding a Custom Test Pattern Modifying or Deleting Custom Test Patterns Dome Visual and Interactive Evaluations Backlight Saver Service DIN Test Service Setting Up for Testing Running a DIN Acceptance Test...

  • Page 5: What's New In Version 6.X Series

    What’s New in Version 6.x Series Menu Update Reporting Control has been changed to CXtra Preference. This command change appears on the Cxtra Services menu and on the related dialog. Use this dialog to disable the beeping sound that occurs with some software functionality.
  • Page 6 Expansion of Manual Conformance Testing With the addition of the front sensor on some models of Dome displays, the Manual Conformance functionality has been bifurcated into the External Sensor Conformance testing (using the photometer device) and the Front Sensor Conformance testing.
  • Page 7 ™ 6.x series in an earlier version. CXtra Utilities Users can start, restart, and stop all CXtra services and application, and run CXtradiag with utilities. Access the tools via the Windows Start menu. NOTE: Windows administrator privilege is required to run the utilities.
  • Page 8 • When using Dome Dashboard 2.x, make sure that Dome CXtra 6.x or later is installed on each CXtra workstation. • On the CXtra workstation, limit the retention of history to 365 days (one year). Single Dome CXtra Package The separate packaging of the Enterprise Management Service has been discarded.

  • Page 9: Getting Started

    The Dome CXtra software adds essential functionality to Dome medical imaging display systems in diagnostic and referral settings. By using the Dome CXtra suite of value-added services, you can calibrate and maintain displays, run acceptance tests, and monitor displays remotely. While the services operate as independent plug- ins, they each use the Reporting service for listing properties, logging events, and saving history.

  • Page 10: Cxtra Services

    Dome color displays. (Manual external sensor conformance testing requires the LCD or the LCD II photo- meter. Use only the LCD II photometer with Dome color displays.) White Level Calibration – For displays using the RightLight service, calibrates the display photometer that stabilizes the white level.
  • Page 11 Enterprise Management – Manages displays from a central location. Requires SNMP console (not provided) for remote viewing. The use of CXtra services is display-dependent. Check the following table for display compatibility by service: Dome Cx, Dome Ex, Dome GX4MP &...

  • Page 12: System Requirements

    • Windows XP Professional (x86 or x64), Service Pack 3 Installing the Dome CXtra Software NOTE: Install the Dome CXtra software to a local disk drive only. The software may not work properly if any components are installed on a network drive.

  • Page 13: Installing Or Removing Services

    Services that have been modified since the previous release are upgraded. The application starts when the installation is finished. The Dome CXtra icon appears on the Windows taskbar. The check mark indicates that the application is running successfully. Installing or Removing Services You can add a service individually if you do not install it during the initial installation.

  • Page 14: Installing The Photometer

    LCD or LCD II photometer. (Only the LCD II photometer is RoHS compliant.) NOTE: The LCD II photometer is required for use with Dome color displays. Use the following instructions to install the photometer correctly per your operating system.
  • Page 15 To install the photometer on Windows XP 1 Log onto Windows with administrator privileges. 2 If necessary, install the Dome CXtra software. (See page 8.) 3 Connect the photometer to a USB port on the computer. The operating system detects the new hardware and opens the Found New Hardware Wizard.

  • Page 16: Starting Dome Cxtra

    Windows Start > All Programs > NDSsi > CXtra. A Dome CXtra status icon appears on the Windows taskbar to indicate application status. The Success icon shows that the display is operating normally. The Wait icon appears the application is starting up or restarting from a stop.

  • Page 17: Opening The Cxtra Services Menu

    This graphic shows the default menu entries for standard services. To open the menu, click the Dome CXtra icon on the Windows taskbar. If the Dome CXtra icon is not visible on the Windows taskbar, open the menu by Windows Start > All Programs > NDSsi > CXtra.

  • Page 18: Cxtra Utilities

    CXtra Stop Terminate the application and all CXtra services To access a utility, click Windows Start > All Programs > NDSsi > CXtra Utilities, then select one of the four options. NOTE: Windows administrator privilege is required to run the utilities.

  • Page 19: Rightlight Service

    Dome Cx, Dome Ex, Dome GX4MP, and Dome Sx displays. Manual conformance testing via the display front sensor is available for Dome Sx units. With RightLight, you can set a target white level, equalize the black level across the displays, set a desired response function, and specify ambient light in the viewing area.
  • Page 20 Calibrating the white level requires an external photometer. For Dome Ex, Dome GX4MP, and Dome Sx color displays, you can set color coordinates for panel appearance in one of two ways: • Select an option for panel appearance with blue, clear, or default.

  • Page 21: Configuring The Rightlight Service

    If the Privilege service has been installed, you must log on as a privileged user to change the RightLight configuration. (See page 138.) To configure the RightLight service 1 Open the CXtra Services menu and select RightLight Panel Configuration. The RightLight Panel Configuration dialog appears with these tabs: • Backlight •...
  • Page 22 RightLight stabilizes the backlights of selected displays to attain the target white level. Your system may require several moments for the white level to stabilize after adjustment. Below are the default target white level at native color coordinates of Dome display models. Display Default Target White Level...
  • Page 23 To correct this problem, reduce the white level setting on the Backlight tab until the warnings stop appearing or use the CXtra Preference dialog to disable the warning popups. If you have a require- ment to exceed the maximum limit, you can do so but you void your display warranty.
  • Page 24 • No RightLight Calibration – Turns off auto-calibration. Choose this response function if you are using an external calibration product such as the Dome Calibration TQA™ system. Dome CXtra retains GCTs currently set or created by an external calibration. RightLight stabilizes the backlights only.
  • Page 25 The RightLight service allows you to enter luminance in cd/m resulting from the diffuse reflection of ambient illuminance. Since typical Dome panels have a reflectance of 1.25%, given illuminance E in lux, you can calculate the luminance in cd/m using this equation: π...
  • Page 26 Color tab Specify the panel appearance of Dome Ex, Dome GX4MP, and Dome Sx color displays, with or without calibration. Appearance. Use options in the Appearance field to specify blue, clear, or default when you do not color-calibrate the display panel.
  • Page 27 RightLight alerts you of a failure in these three ways: by message, by entries in the History log, and by status change of the Dome CXtra icon in the system tray. If the CXtra-enabled workstation is connected to Dome Dashboard, an alert is also sent to the Dashboard app or SNMP console.
  • Page 28 DICOM LUM test and the White level test, you are logging the data from a completed conformance test without applying the criteria of the DICOM LUM and White Level tests for Pass/Fail determination. 24 | Dome CXtra...
  • Page 29 RightLight alerts you of a failure in these three ways: by message, by entries in the History log, and by status change of the Dome CXtra icon in the system tray. If the CXtra- enabled workstation is connected to Dome Dashboard, an alert is also sent to the Dashboard app or SNMP console.
  • Page 30 13:30. This interval specifies how often the system logs the results of the selected test(s). When a selected test fails, a message appears and the CXtra icon changes to indicate a warning state. View the test results in the Reporting History log.
  • Page 31 Specify the external sensor tests that you want to complete manually. For each manual test that you select, you can specify a threshold value that defines a test failure. When a failure occurs, the CXtra icon is set to a warning state. In addition, if the CXtra-enabled workstation is connected to Dome Dashboard, an alert is also sent to the Dashboard app or SNMP console.

  • Page 32: Running Conformance Tests

    Front Rear External ALERT Sensor Sensor Sensor Auto > White Level > DICOM LUM Auto-scheduled > RightCheck White Level > DICOM LUM Manual > White Level > DICOM LUM 28 | Dome CXtra...
  • Page 33 The next dialog indicates test results. View the report or click Finish. Anytime later you can view results by opening CXtra Services menu > Reporting > History tab or CXtra Services menu > RightLight Conformance > Conformance History.
  • Page 34 See “Installing the Photometer” on page 10 for how to install the photometer. Before starting a manual conformance test, select Dome RightLight DICOM Calibration on the services menu. NOTE: If you run a conformance test with another response function...
  • Page 35 To run an external sensor conformance test 1 Open the CXtra Services menu. Select RightLight Conformance > External Sensor Conformance Wizard. 2 Click Next to continue. 3 Click Initialize RightLight Panels. Upon completion of the process, click Next to proceed.
  • Page 36 You can choose to perform White Level calibration to the target, ignore the warning and continue the measurement of conformance data, or direct the Conformance Wizard to skip the display panel, redo the initialization, or close. 32 | Dome CXtra...
  • Page 37 5 Upon successful completion of the conformance measuring, as indicated by the Success icon, click Next. You have the option to view the report via this dialog. 6 Click Finish to close the wizard. RightLight Service | 33...
  • Page 38 Calibration Service” on page 44.) NOTE: White Level calibration during conformance testing is available only for Dome Ex, Dome GX4MP, and Dome Sx displays. You must be an administrator or a privileged user to perform a manual conformance test and to calibrate the white level during the manual conformance test.

  • Page 39: Checking Current Conformance Status

    Checking Current Conformance Status To view the results of the latest manual (external sensor or front sensor) conformance test, open the CXtra Services menu. Select RightLight Conformance > Current Conformance Status. In the same dialog, you can also view the results of the latest automatic (rear sensor) conformance test.

  • Page 40: Reviewing Conformance Events

    Reviewing Conformance Events Dome CXtra polls RightLight automatically for its status every 5 minutes, which causes the user-selected tests to run. The system makes an entry in the Reporting History log by the specified logging interval on the Auto Alerts tab and whenever it detects a status change.

  • Page 41: Reviewing Manual Conformance Data

    Not the following: • You must be using a Dome Sx display to view test results from both front and external sensors; select one or both check boxes on the dialog. With a Dome Ex display, all data result from conformance testing with the external (or manual) sensor.
  • Page 42 The better the data points align with the curve, the better the DICOM conformance. Default 15 measurements of luminance taken on an 8-bit display All 1024 measurements of luminance taken on a 10-bit display 38 | Dome CXtra...
  • Page 43 • Conformance graph. Plots Just Noticeable Differences (JNDs) per luminance interval. The graph shows the mean value for JND/ luminance interval, the DICOM Luminance Uniformity Metric (LUM), and the line of best fit (FIT). These values are useful in quantifying the quality of conformance with the DICOM Grayscale Standard Display Function.
  • Page 44 • Conformance table. Lists the following data values for a test. – Number of measurements – Mean value of JND/Luminance Interval – Best fit (FIT) line expression – LUM 40 | Dome CXtra...
  • Page 45 • Color table. Lists the following data values by Kelvin scale or CIE xy coordinates. RightLight Service | 41...

  • Page 46: Disabling Rightlight Popup Warnings

    2 Check the box in the Disable RightLight Popups field. 3 Click OK. NOTE: The CXtra icon on the Windows taskbar continues to show warning conditions from the RightLight service and RightLight warnings continue to be recorded in the CXtra history log.
  • Page 47 For example, a popup may warn the operator that the display is out of DICOM conformance to ensure an accurate display image. The Dome CXtra software includes a feature that allows the PACS or system administrator to disable the...

  • Page 48: White Level Calibration Service

    IMPORTANT: Only administrators can calibrate the white level via the White Level Calibration service and restore factory calibration. White level calibration is available for use on all Dome Cx, Dome Ex, Dome GX4MP, and Dome Sx displays. Restoration of the factory white level calibration is available for Dome Ex, Dome GX4MP, and Dome Sx displays.
  • Page 49 For more information, see “To run an external sensor conformance test” on page 31. When you log on as administrator, the CXtra Service menu expands to include two functions, White Level Calibration Wizard and Restore Factory White Level Calibration. (See “Logging On as Privileged User/ Administrator”...
  • Page 50 Running the White Level Calibration Wizard IMPORTANT: White level calibration via the White Level Calibration service is available for use on all Dome Cx, Dome Ex, Dome GX4MP, and Dome Sx displays. Restoration of the factory white level calibration is available only for Dome Ex, Dome GX4MP, and Dome Sx displays.
  • Page 51 Dome Ex, Dome GX4MP, and Dome Sx displays. To restore factory calibration Open the CXtra Services menu and select Restore Factory White Level Calibration. Click Yes to restore factory calibration. After the factory calibration is restored, the Restore Factory White Level Calibration function is grayed out on the CXtra Services menu.

  • Page 52: Mqsa Quality Control Tests

    CXtra Services menu or the Windows Start menu. With the Dome S10 display, you can access the wizard via the MQSA button as well as by the CXtra Services menu or Windows Start menu. A mini-USB cable connecting the display to the computer system is required for button functionality.
  • Page 53 • Calibrated external photometer • Calibrated luxmeter with a minimum resolution of 1 lux • Mini-USB cable (Dome S10 display installations only) You can conduct three categories of tests—daily, monthly, and quality control for medical physicists (quarterly, biannually, annually options included)—to maintain the display. First, configure the software for test reminders.

  • Page 54: Configuring Mqsa Test Reminders

    Test Configuration dialog for setting up and later modifying test reminders. NOTE: For Dome S10 display only. If the MQSA light is flashing, it stops when you open the MQSA Test Configuration dialog. Use the MQSA Test Configuration dialog to enable and...
  • Page 55 5 Set the daily test reminder. Use the pull-down arrow to select a time for any or all weekdays. Click the corresponding selection box(es) to enable the daily test for the day(s). On the Dome S10 display, configure the warning light indicator. See “To configure the warning lights for test reminders”...

  • Page 56: Configuring The Warning Light Indicators

    Configuring the Warning Light Indicators NOTE: The Dome S10 display has LED warning light indicators to notify you of the need to run MQSA quality control. Each indicator glows in one of two colors—yellow or blue—by one of four patterns—slow blink, double blink, fast blink, or solid.
  • Page 57 To configure the warning lights for test reminders 1 Open the CXtra Services menu and select MQSA Test Configuration. 2 To set the indicator for a test reminder, click the warning light button in that field. (NOTE: The default or previously selected pattern appears on the button face.

  • Page 58: Mqsa Test Wizard

    Windows Start menu. NOTE: On the Dome E5 display, access this same test wizard via the taskbar or Windows Start menu. There is no button on the unit. 54 | Dome CXtra...
  • Page 59 MQSA Test Wizard that appears via the MQSA button (Dome S10 display only) and via the Windows Start menu (Dome E5 and Dome S10 displays) The Ignore Tests/Reset Ignore Tests toggle button is visible only when one or more tests are due After you run a test, that test button is grayed out on the wizard accessible via the MQSA button and the Windows Start menu.

  • Page 60: Running The Daily Quality Control Test

    Skin oils are hard to remove from the screen. To clean the display unit 1 Unplug the power supply before cleaning the display. 2 Gently clean all display screens using a dampened cloth or cleaning tissue to remove dust, fingerprints, and other marks. 56 | Dome CXtra...
  • Page 61 If these results are not obtained, the source of the problem must be identified and corrective action taken before any further mammographic images are reviewed or interpreted using the Dome display. To complete the daily control test record 1 Open the Test Wizard and click Daily Quality Control Test.
  • Page 62 5 Click Submit to finish. 6 Click View Report or Close. You can view the daily quality control test report on the screen or print it. Click Close when finished. Then clear the Test Completed dialog from the screen. 58 | Dome CXtra...
  • Page 63 If any conditions are the daily quality control test are not met, this dialog appears when you click Submit. Return to the quality control test dialog and follow procedures to remedy any deficiency. Or, click Ignore if you know for sure that the deficiency does not impede display quality or performance.

  • Page 64: Running The Monthly Quality Control Test

    Dome display. The calibration check was designed to be performed with the SMPTE pattern built into the Dome CXtra software. Using any other pattern, particularly a pattern that is displayed with another image viewer tool, could result in failing the test and causing the display to be out of compliance with test requirements.
  • Page 65 To complete the monthly control test record 1 Click Monthly Quality Control Test on the wizard. The SMPTE pattern appears on each display connected to the system. 2 Examine the display screen. Click the Check All button if all conditions are met. Click Next to inspect another display. MQSA Quality Control Tests | 61...
  • Page 66 3 Repeat the procedure for any other display(s). Then click Submit to finish. 4 From either the Normal Mode or the Expert Mode, enter tester’s name to complete process. Click Submit to finish. 62 | Dome CXtra...
  • Page 67 5 Click View Report or Close. You can view the monthly quality control test report on the screen or print it. Click Close when finished. Then clear the Test Completed dialog from the screen. MQSA Quality Control Tests | 63...
  • Page 68 All Pass button if no problems are found. Otherwise, click Edit Response to mark the area of screen that fail inspection. Clicking the Edit Response button directs you to the preceding Normal mode dialog. 64 | Dome CXtra...
  • Page 69 Running the Quality Control Tests for Medical Physicists The Quality Control tests listed in this section must be performed by the medical physicist to ensure that the Dome display provides a high level of mammographic image quality. These tests also establish the basis of the equipment evaluation...
  • Page 70 2 Fill in the facility ID, address, and display location information. 3 Use the pull-down arrows to enter the date of installation and the date of survey. 4 Enter the name of the medical physicist. 5 Click Submit to finish. 66 | Dome CXtra...
  • Page 71 Dome display. • Check that the ambient lighting is stable; that is, there are no flickering effects due to any of the lighting sources that are turned on.
  • Page 72 To record the viewing conditions 1 Click Viewing Condition Check and Setting button on the test wizard. 2 Enter the room description and room trait. 3 Load the drawing of the valid reading room configuration. 4 Click Submit to finish. 68 | Dome CXtra...
  • Page 73 Dome display. Conduct the display calibration at least annually. NOTE: You must power on the Dome display at least 30 minutes before doing any measurements. This is mandatory to ensure that the backlight heating has reached steady state.
  • Page 74 To check display calibration 1 Click the Display Calibration Check button on the test wizard. 2 Click Next to access the External Sensor Conformance Wizard. 3 Click Next to launch the wizard. Be sure the photometer is already installed. 70 | Dome CXtra...
  • Page 75 4 Place the photometer on an opaque surface, then click Initialize. When the initialization is completed, click Next when the button is enabled. 5 Place the photometer on the target, and click Measure. After the measurement have been taken, click Next when the button is enabled.
  • Page 76 6 Upon successful test completion, click Next. If the conformance test fails, click the selection box to correct the warning. The wizard repeats. 72 | Dome CXtra...
  • Page 77 The calibration check was designed to be performed with the SMPTE pattern built into the Dome CXtra software. Using any other pattern, particularly a pattern that is displayed with another image viewer tool, could result in failing the test and causing the display to be out of compliance with test requirements.
  • Page 78 • Verify that the high contrast line-pair images at the center and corners of the SMPTE pattern are distinguishable. NOTE: The SMPTE pattern shown via the Dome CXtra software has five sets of high-contrast and five sets of low-contrast line-pair patterns.
  • Page 79 To complete the control test record 1 Click Monthly Quality Control Test on the wizard. The SMPTE pattern appears on each display connected to the system. 2 Examine the display screen. Click the Check All button if all conditions are met. Click Next to inspect another display. MQSA Quality Control Tests | 75...
  • Page 80 3 Repeat the procedure for any other display(s). Then click Submit to finish. 4 From either the Normal Mode or the Expert Mode, enter tester’s name to complete process. Click Submit to finish. 76 | Dome CXtra...
  • Page 81 Analysis of Screen Defects The visual inspection of screen defects is to determine if artifacts observed during system inspection can be attributed to the Dome display. Conduct the visual inspection during system acceptance, at least annually, and when necessary to isolate artifacts.
  • Page 82 Then enter any general comments about the screen defects observed. 3 Click Next to record the analysis of another display on the system, or click Submit to finish. 78 | Dome CXtra...
  • Page 83 The quality control testing for medical physicists is completed for the current cycle. Click Finish. Click View Report or Close. MQSA Quality Control Tests | 79...
  • Page 84 You can view the quality control test report on the screen or print it. Click Close when finished, then clear any remaining dialog from the display screen. 80 | Dome CXtra...

  • Page 85: Dical Service

    In addition to the DICOM response function, you can choose to use the exponential, gamma, or original response function. When you add all functions to the CXtra Services menu, you can switch quickly from one response function to another. Moving from one response function to another causes an immediate change to the display calibration.

  • Page 86: Configuring The Dical Service

    1 Set the brightness and contrast of your display. (Refer to the display manual for how to set the values.) 2 Open the CXtra Services menu and select DICal Panel Configuration. 3 Verify that the model number of your display appears in the dialog.

  • Page 87: Using Dicom Response Function As Default Calibration

    Using DICOM Response Function as Default Calibration Open the DICal Panel Configuration dialog to the Configuration tab. To activate DICOM grayscale calibration at each system startup, click the check box for DICOM response function. The default DICOM calibration is applied to your display settings whenever you select Desktop DICOM Calibration from the services menu.

  • Page 88: Choosing Display Calibration

    Choosing Display Calibration Besides DICOM calibration, you can choose to use exponential, gamma, or original display calibration. Open the CXtra Services menu, then select DICal Panel Configuration and Calibration tab. Choose one of these response functions for auto-calibration: • DICOM Response Function – Calibrates to the DICOM Grayscale Standard Display Function.

  • Page 89: Performing A Custom Dicom Calibration

    Menu field to customize calibration entries on the services menu. To switch to another calibration Open the CXtra Services menu. Choose from the display calibrations you have added to the services menu. Otherwise, go to the Calibration tab of the DICal Panel Configuration dialog to make a choice.
  • Page 90 GX2MP Plus (NOV 2011 and later) 2 If the Privilege service has been installed, log on as a privileged user. (See page 138.) 3 Open the CXtra Services menu. Select DICal Calibration > Calibration Wizard. 4 Follow the instructions for using the photometer in each Calibration Wizard window and click Next.

  • Page 91: Reviewing Calibration Events

    Reviewing Calibration Events The Dome CXtra software records an event in the History event log each time you perform a calibration. To review a calibration event 1 Open the CXtra Services menu and select Reporting. 2 Click the History tab to see a list of events.

  • Page 92: Performing A Conformance Test

    1 If the Privilege service has been installed, log on as a privileged user. (See page 138.) 2 Open the CXtra Services menu and select DICal Conformance > Conformance Wizard. 3 Follow the instructions for using the photometer in each Conformance Wizard window and click Next.
  • Page 93 Using the Graphs Tab Use the controls on the Graphs tab to select a conformance test and change how the system shows the data for a selected test. When using multiple display panels, select a particular panel in the Display drop-down list.
  • Page 94 In general, the closer the JND values are to the mean line, the better the DICOM conformance. In addition, the closer the calculated LUM metric is to 0 (zero), the better the DICOM conformance. 90 | Dome CXtra...
  • Page 95 Using the Tables Tab The Tables tab shows response and conformance numerical data for a given conformance test. When using multiple display panels, select a particular panel in the Display drop-down list. Select a particular conformance test by selecting the data and time for the test in this drop-down list.

  • Page 96: Reviewing Conformance Test Events

    Reviewing Conformance Test Events The Dome CXtra system records an event in the History event log each time you complete a conformance test. To review a conformance test event 1 Open the CXtra Services menu and select Reporting. 2 Click the History tab to see a list of events.
  • Page 97 3 Click a conformance test status event, then click View Detail to see a summary of information about that test. NOTE: Only test events and calibration events have detailed information available. DICal Service | 93...

  • Page 98: Advanced Options

    Advanced Options When you connect a third-party monitor or unsupported display to your system, you see that the Dome CXtra software labels it “unknown” and “not” characterized in the DICal Panel Configuration dialog. The DICal service needs to characterize or recognize a display before it performs calibration.
  • Page 99 Select the data file to export, then store it in the Dome CXtra dat folder on the other system. Enabling DICOM Calibration on Third-Party Monitors After characterization, operate the third-party monitor with Desktop DICOM Calibration enabled. You can undo the Panel Type selection for third-party monitors using Edit Type.

  • Page 100: Test Patterns Service

    The following miscellaneous test patterns are installed with Test Patterns service. • Bull’s-eye • Horizontal Ramp • Geometrical Distortions Coarse • Single pixel • Geometrical Distortions Fine • SMPTE • Geometrical Distortions Hs • Vertical Ramp 96 | Dome CXtra...
  • Page 101 AAPM TG18 Test Patterns Series Type Images Description Multi Purpose TG18-QC Vis./Qnt Resolution, luminance, distortion, artifacts (1K and 2K) TG18-BR Visual Briggs pattern, low contrast detail vs. luminance Luminance TG18-CT Visual Luminance response (1K only) TG18-LN Quant. DICOM grayscale calibration series TG18-UN Visual Luminance and color uniformity and angular...
  • Page 102 Series Type Images Description Resolution, cont. TG18-LPH Visual Horizontal bars at 1 pixel width, 1/16 modulation, 3 luminance levels TG18-LPV Visual Vertical bars at 1 pixel width, 1/16 modulation, 3 luminance levels Noise (1K only) TG18-AFC Visual 4 AFC contrast-detail pattern, 4 CD values TG18-NS Quant.

  • Page 103: Displaying Test Patterns

    Displaying Test Patterns To select and display a test pattern 1 Open the CXtra Services menu and select Test Patterns > View Test Patterns. The Display Test Patterns dialog opens. 2 Click the plus sign (+) beside a test pattern set to see variations of the test pattern.

  • Page 104: Adding A Custom Test Pattern

    1 If the Privilege service has been installed, log on as a privileged user. (See page 138.) 2 Open the CXtra Services menu and select Test Patterns > Manage Custom Test Patterns. The Add, Modify, or Delete a Custom Test Pattern dialog opens.
  • Page 105 3 Click Add to open the Add Custom Test Pattern dialog. 4 Using the Look In drop-down list, navigate to the folder containing the pattern you want to add. 5 Select a .dcm, .dc3, .jpg, .tif, or .tiff pattern file. 6 If appropriate, select a view option: –...

  • Page 106: Modifying Or Deleting Custom Test Patterns

    1 If the Privilege service has been installed, log on as a privileged user. (See page 138.) 2 Open the CXtra Services menu and select Test Patterns > Manage Custom Test Patterns. The Add, Modify, or Delete a Custom Test Pattern dialog opens.
  • Page 107 When invoked, the Test Patterns Evaluation dialog allows you to run the Dome Visual Test or the Dome Interactive Test or both. Use Setup to configure test parameters. Test Patterns Service | 103...
  • Page 108 Scheduled. You can schedule a test either locally on the Dome CXtra- enabled workstation or remotely from the Dome Dashboard console. Either tests or both tests can be scheduled. If you are using the Dome Dashboard software, you can override the local Dome CXtra settings with the settings in the Dome Dashboard application.
  • Page 109 You can select the test to be scheduled and set the schedule by frequency and time. The scheduled tests pop up at the Dome CXtra- enabled workstation at the specified test time. Test time is scaled by 30-minute intervals.
  • Page 110 Patterns. Open this tab to configure the pattern type and location for the Dome Interactive Test and the pattern type for the Dome Visual Test. NOTE: Random is the default selection for all parameters of each test. Four types of patterns are supported by the Dome Interactive Test.
  • Page 111 When Random pattern location is used by default or choice, you see the pattern in a random location each time the test is invoked. These six patterns are supported by the Dome Visual Test: • SMPTE • TG18-GV • TG18-QC •...

  • Page 112: Backlight Saver Service

    During undefined periods, Windows power options and screen saver are used. Also see “Notes” on page 110. To create a saver period for selected days 1 Open the CXtra Services menu and select Backlight Saver. 108 | Dome CXtra...
  • Page 113 2 Select the day or days for which you want to create one or more saver periods. Click a single day name in the Selected Day column or hold down the Control key while clicking multiple days. For example, you might specify the same saver periods for weekdays (Monday through Friday) and different saver periods for weekends.
  • Page 114 To change Windows power options permanently, edit the settings at one of three times: during an undefined period, after the current Backlight Saver period is deleted, or after the CXtra app and services are ended via the CXtra Stop utility.

  • Page 115: Din Test Service

    DIN Test Service The DIN Test service tests your Dome displays for conformance with German standard DIN 6868-57. A successful acceptance test such as the one performed by DIN Test service is mandatory before DIN 6868-57 application category A and B devices can be accepted in a hospital or other diagnostic setting.

  • Page 116: Setting Up For Testing

    The DIN Test service presents a wizard that helps you determine whether the selected display device meets the DIN standard. Part of this process involves taking measurements with a photometer and comparing the measurements with the DIN standard. 112 | Dome CXtra...
  • Page 117 To set up the display for testing 1 Open the CXtra Services menu and select DIN Test. The DIN Test service dialog appears. 2 Click Setup. The DIN Test Setup dialog appears, open to the Location tab. DIN Test Service | 113...
  • Page 118 To set up entries on the Location tab Enter descriptive text and click Apply. 114 | Dome CXtra...
  • Page 119 To set up entries on the Display tab 1 Complete the Display and Performance Class fields. 2 Select Yes or No for the three installation questions, select the display matrix require, and click Apply. NOTE: The descriptive information in the middle of the display is read-only and cannot be changed.
  • Page 120 4 On the COM Port pull-down list, select the COM port used to connect the photometer to the computer. 5 Click Apply. If you selected Other in step 1, a message reminds you to manually enter measurement values while conducting the tests. Click OK to close the message. 116 | Dome CXtra...
  • Page 121 To set up entries on the Medical Image tab To use an image other than the default image (achest.dcm), click Browse and select an image. Click Apply. NOTE: A landscape image, chestah.dcm, is available in the installation folder’s dat folder. DIN Test Service | 117...
  • Page 122 To view information on the Reference Values tab Open the Reference Values tab to view information about the most recent successful DIN acceptance test. Click Apply. NOTE: This information is read-only. 118 | Dome CXtra...
  • Page 123 To set up entries on the Constancy tab 1 Open the Constancy tab to set DIN constancy test parameters. The tab shows the previously saved constancy settings for the display identified in the Display field. DIN Test Service | 119...
  • Page 124 Measurement Tests and Visual Tests sections of the tab. NOTE: Do not use thresholds greater than 50%. 4 To create a reminder entry in the history log and change the Dome CXtra icon on the taskbar to warning status when a test interval is exceeded, click the Remind Me box next to the test.
  • Page 125 To specify language on the Reporting tab 1 Open the Reporting tab and select your language, English or German. 2 Click Apply or OK. DIN Test Service | 121...

  • Page 126: Running A Din Acceptance Test

    If the Privilege service is installed, you must log on as a privileged user before you run a DIN acceptance test. (See page 138.) To run a DIN acceptance test 1 Open the CXtra Services menu and select DIN Test. The DIN Test service dialog appears. 2 Click Run Acceptance Test.

  • Page 127: Running A Din Constancy Test

    (See page 138.) To run a DIN constancy test 1 Open the CXtra Services menu and select DIN Test. 2 Click Run Constancy Test to open the test selection dialog. 3 Select the constancy tests you want to run, and then click OK.
  • Page 128 8 To view the results of the test immediately, click View Report. To view the results at another time, see “Viewing DIN Test Results” on page 125. 124 | Dome CXtra...

  • Page 129: Viewing Din Test Results

    Reporting service to view the results at any time with the following steps: 1 Open the CXtra Services menu and select Reporting. 2 Click the History tab. 3 Click the line corresponding to the test results you want to view, and then click View Detail.

  • Page 130: Aapm Tg18 Test Service

    AAPM TG18 Test Service The AAPM TG18 Test service supports the testing of Dome Cx, Dome Ex, Dome GX4MP, and Dome Sx displays in accordance with the recommendations of the American Association of Physicists in Medicine Task Group 18. The evaluations supported by this service are fully described in the AAPM TG18 document.
  • Page 131 You can define the test that you want to complete for acceptance, plus routine daily, monthly/quarterly, and annual tests. The Dome CXtra system can notify you when each test is scheduled to be run. Each test is predefined in accordance with TG18 recommendations.

  • Page 132: Aapm Tg18 Test Setup

    You need the photometer serial number and the number of the COM port used by the device. To access the Setup Information dialog 1 Select AAPM TG18 Test on the CXtra Services menu. The TG18 Test dialog appears. NOTE: The Monthly/Quarterly, Daily, and Annual Test options are disabled until you run an Acceptance Test.
  • Page 133 2 Click Setup. The Photometers tab of the TG18 Test Setup Information dialog appears. To set up entries on the Photometers tab 1 If you have a supported photometer installed, select the model name on the Photometer pull-down list. Otherwise, select Other. If you select a supported photometer, the system automatically lists the manufacturer’s name in the field provided.
  • Page 134 If the test was redefined during previous setup activity, the system shows the evaluations currently selected. • Add or delete an evaluation by toggling a check mark in or out of the selection box. 130 | Dome CXtra...
  • Page 135 • Click Select/Deselect All to toggle check marks for all evaluations. Click Restore Defaults to replace current selections with the AAPM Task Group recommended evaluations. Before replacing current selections, the system shows a warning message. You can proceed to replace current evaluation selections. CAUTION: Clicking Restore Defaults replaces custom evaluation selections for all four tests, not just the currently selected test.
  • Page 136 Designate a display as Primary (Class A) if it is used for medical interpretation. All other displays should be designated Secondary (Class B). The default designation is Primary. 4 Repeat steps 2 and 3 for each display. 5 Click Apply. 132 | Dome CXtra...
  • Page 137 Dome CXtra provides reminders for only those tests that are enabled. The routine tests (daily, monthly, annual) are not enabled until an acceptance test has been completed for a given display and the report saved for a given display.

  • Page 138: Completing Aapm Tg18 Tests

    History log for each display at the intervals specified. Selecting the Warning reminder causes a message box to appear on your screen. In addition, the reminder event changes the Dome CXtra icon in the system tray and adds an entry into the History log for each display.
  • Page 139 To run a test 1 Open the CXtra Services menu and select AAPM TG18 Test. 2 Select a display panel in the Select Display list. 3 Select a test in the Select Test list box. 4 Click Run Test to access the wizard, which prompts you to complete each evaluation in the test.

  • Page 140: Viewing Aapm Tg18 Test Results

    You must save the report for the test to be added to the History log. Reminders only work for a given test if the test report is saved. Unless you save the report, you have no indication that the test was run. 136 | Dome CXtra...
  • Page 141 When you click Save Report, Dome CXtra records the test event in the History log. You can then use the Reporting service to view events in the History log. Select the TG18 Test event in the log and click View Detail to review saved test results.

  • Page 142: Privilege Service

    139. To log onto Dome CXtra as a privileged user/administrator 1 Open the CXtra Services menu and select Privileged User. The Privileged Logon dialog opens. 2 Select either Administrator or Privileged in the Privilege field.
  • Page 143 4 To start Dome CXtra in the privileged user mode when the computer starts and without entering a password, click the “Start as privileged user” box. To start Dome CXtra in the non-privileged user mode when the computer starts, leave the box unchecked.

  • Page 144: Reporting Service

    Reporting Service The Reporting service records and displays properties and events related to CXtra services installed for your display system. Properties include information about which services and versions are installed. Events are status messages transmitted at regular intervals by each CXtra service.
  • Page 145 Properties Tab The Properties tab lists the CXtra services installed and information about the display system components and operating parameters. Click the plus sign (+) beside any heading to display subordinate items containing detailed information. Check the display properties under the RightLight service to see both the current and the maximum supported bits per pixel.
  • Page 146 The History tab displays events recorded in the History event log. The events appearing in the History log are dependent on each service and typically record changes that may be useful for capturing history or troubleshooting an error condition. 142 | Dome CXtra...
  • Page 147 Status. An icon indicating the event type: Information, Success, System Error, or Warning. Service. The CXtra service associated with the event. Date. Record of date and time of the event. Summary. A brief event description. Click a column heading to sort the event list based on the contents of that column.
  • Page 148 Click Retain to save events for the specified number of days. Events older than the specified number of days are deleted unless Dome CXtra is in a warning or error status. You can change the number of days by entering an integer from 7 to 1000 in the days field. The default setting is 365 days (one year).
  • Page 149 To suppress alerts Use the selections in the Disable All Popups field to deactivate all, some, or none of the popups for all of the Dome CXtra software. Check the box in the Disable RightLight Popups field to deactivate popups only in the RightLight service.

  • Page 150: Enterprise Management Service

    Enterprise Management Service The Enterprise Management service allows you to manage medical imaging displays from a central location using Dome Dashboard software or standard Simple Network Management Protocol (SNMP) console applications such as Castle Rock™ SNMPc. You must install the Enterprise Management service on each...
  • Page 151 SNMP Management Console You can use Dome Dashboard software or a console application on your computer to obtain the following types of information from each display running the Enterprise Management service in conjunction with the SNMP service: • Hardware identification •...
  • Page 152 3 Enter security information for identifying community names and hosts allowed to access the display agent (page 151). 4 Restart the SNMP server to activate the changes (page 152). NOTE: The following illustrations show Windows XP dialogs. 148 | Dome CXtra...
  • Page 153 To open the Service Properties dialog 1 Open Control Panel > Administrative Tools > Services to see a list of installed services. 2 Right-click the SNMP service name and select Properties on the popup menu to open the General tab of the SNMP Service Properties dialog.
  • Page 154 2 Create the community name used by the SNMP console application. Type that name in the Community name field then click Add to List. (Dome Dashboard users: Be sure the community name matches the SNMP trap community shown on the Dashboard Edit Workstation dialog >...
  • Page 155 In most cases you should enter the identifier for the host running your SNMP console application as one list item. You may also run other trap monitoring applications. Dome Dashboard users can define one or more consoles as trap destinations.
  • Page 156 3 Select READ CREATE in the Community rights drop-down list. This allows the Dome Dashboard or SNMP console application to read and set Dome CXtra parameters on this computer. 4 Type the community name used by your SNMP console application in the Community Name field and click Add.
  • Page 157 Systems running the Enterprise Management service for Dome CXtra generate only the following traps: • trapStatusObserverConnectionFailed • trapStatusChanged If the local Dome CXtra system status changes to Warning or Failure, the display agent sends a trap. For example, trapStatusChanged if an external application changes the calibration from DICOM...
  • Page 158 Flat-panel LUM test failed. trapFPLUMTest (obsolete in version 3.0) Flat-panel White Level test failed. trapFPWhiteLevelTest (obsolete in version 3.0) Flat-panel alert. trapFPAlertEx (obsolete in version 3.0) Connection to Backlight Saver trapBacklightSaverConnection- Failed service failed. (obsolete in version 3.0) 154 | Dome CXtra...

  • Page 159: Troubleshooting

    Display Assignment. If a different display is selected as the primary, CXtra must be restarted. (NOTE: Applies to all operating systems.) Fast User Switching. The switching function is not supported on display systems using NVIDIA drivers previous to version 197.03.

  • Page 160: Appendix

    Silent Install The servicesToInstall file specifies which services get installed during a CXtra installation. If this file is present in the same folder as the setup.exe of the CXtra package, any selections or deselections that the user makes with the select/deselect feature will be ignored.
  • Page 161 Service Format <servicename>[, <option>[, <option value>]][, <option>[, <option value>]] ... where <servicename> is one of the following: BacklightSaver RightLight DICal TG18 TestPatterns SNMP Privilege Note the following: WhiteLevelCalibration <will not be installed with Privilege unless explicitly listed> ManageTestPatterns <will not be installed with testpatterns unless explicitly listed>...
  • Page 162 Sets target white level in cd/m DisablePopUps Blocks all alert messages DisableRightLightPopUps N/A Blocks only RightLight alert messages Example #1: Install All Services BEGIN FILE... backlightsaver rightlight whitelevelcalibration dical tg18 testpatterns managetestpatterns snmp privilege ...END FILE 158 | Dome CXtra...
  • Page 163 Example #2: Install Selected Services Install TestPatterns, Privilege, SNMP, and RightLight services, setting the number of measurements during conformance, no popups, Dome Dashboard Server and Community, and the ambient brightness: BEGIN FILE... rightlight, ambient, low, measurements, 32, dynamicrange, equalize, tolerance, 10, targetwhitelevel, 500, disablepopups,...

  • Page 164: Index

    Configuration tab, TG18 Test automatically configuring checking conformance manually DICal service MQSA test reminder DICOM calibration MQSA warning light indicator custom RightLight service using default SNMP service DIN application categories Display agent traps display cleaning 160 | Dome CXtra...
  • Page 165 Dome Dashboard software TG18 Test dynamic range LUM (Luminance Uniformity Metric) LUM test threshold equalizing dynamic range evaluation, TG18 Test exiting from Dome CXtra manual alert parameters, setting expert mode Manual Alerts tab, RightLight exporting data materials/equipment maximizing dynamic range...
  • Page 166 Success Status, returning to suppressing alerts Return to Success Status button system error icon on taskbar reviewing test events system requirements, Dome CXtra RightCheck White Level test software RightLight popup warnings, disabling RightLight service table configuring...
  • Page 167 T, cont. test, cont. uninstalling CXtra services and MQSA daily software MQSA medical physicist utilities MQSA monthly RightCheck White Level viewing RightLight White Level reports TG18 TG18 Test results viewing results, TG18 Test test patterns AAPM TG18 warning adding custom...
  • Page 168 NDS Surgical Imaging, LLC 5750 Hellyer Avenue San Jose CA 95138-1000 USA www.ndssi.com...

Table of Contents
