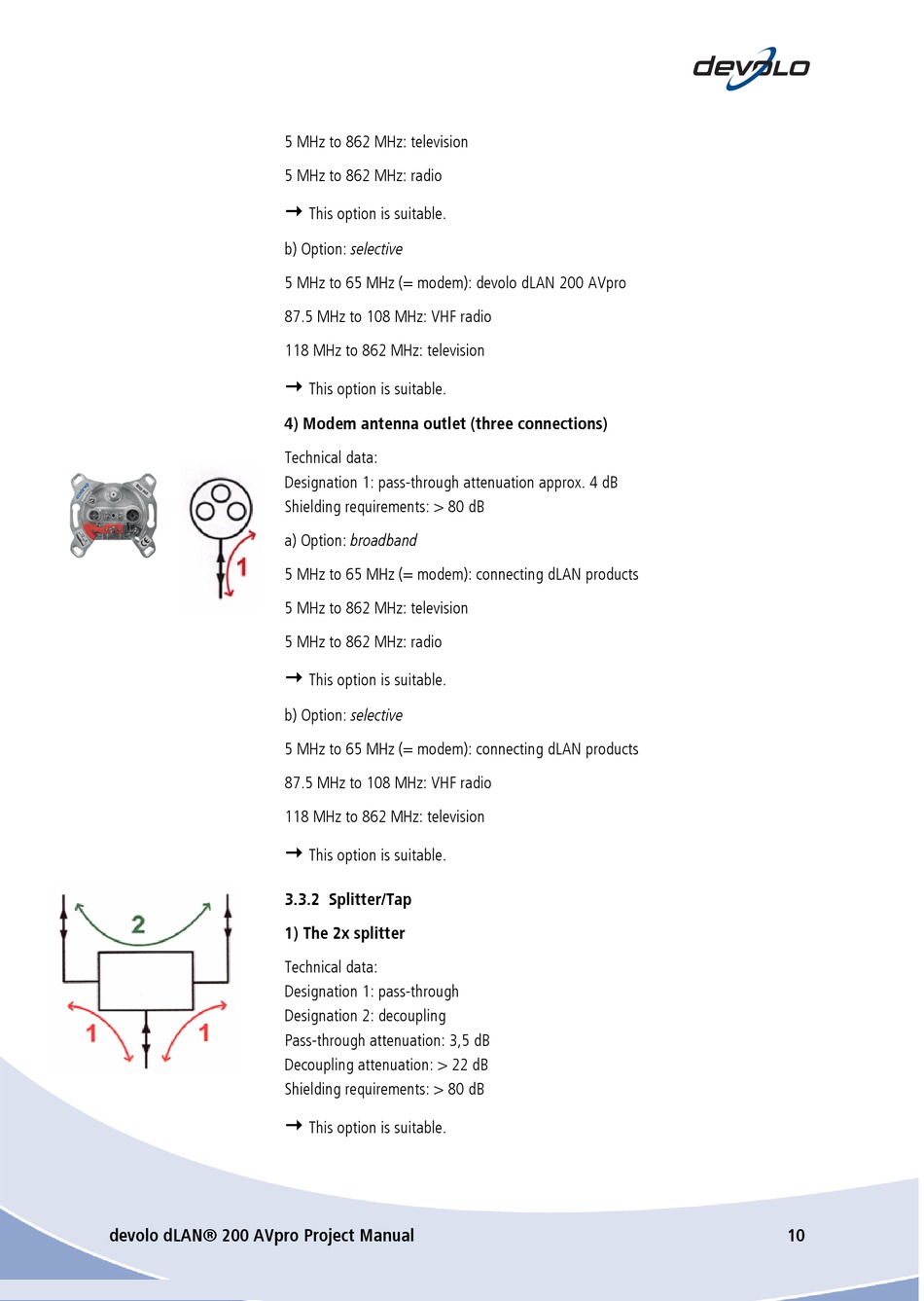

5 MHz to 862 MHz: television
5 MHz to 862 MHz: radio

This option is suitable.
b) Option: selective
5 MHz to 65 MHz (= modem): devolo dLAN 200 AVpro
87.5 MHz to 108 MHz: VHF radio
118 MHz to 862 MHz: television

This option is suitable.
4) Modem antenna outlet (three connections)
Technical data:
Designation 1: pass-through attenuation approx. 4 dB
Shielding requirements: > 80 dB
a) Option: broadband
5 MHz to 65 MHz (= modem): connecting dLAN products
5 MHz to 862 MHz: television
5 MHz to 862 MHz: radio

This option is suitable.
b) Option: selective
5 MHz to 65 MHz (= modem): connecting dLAN products
87.5 MHz to 108 MHz: VHF radio
118 MHz to 862 MHz: television

This option is suitable.

3.3.2 Splitter/Tap

1) The 2x splitter
Technical data:
Designation 1: pass-through
Designation 2: decoupling
Pass-through attenuation: 3,5 dB
Decoupling attenuation: > 22 dB
Shielding requirements: > 80 dB

This option is suitable.
