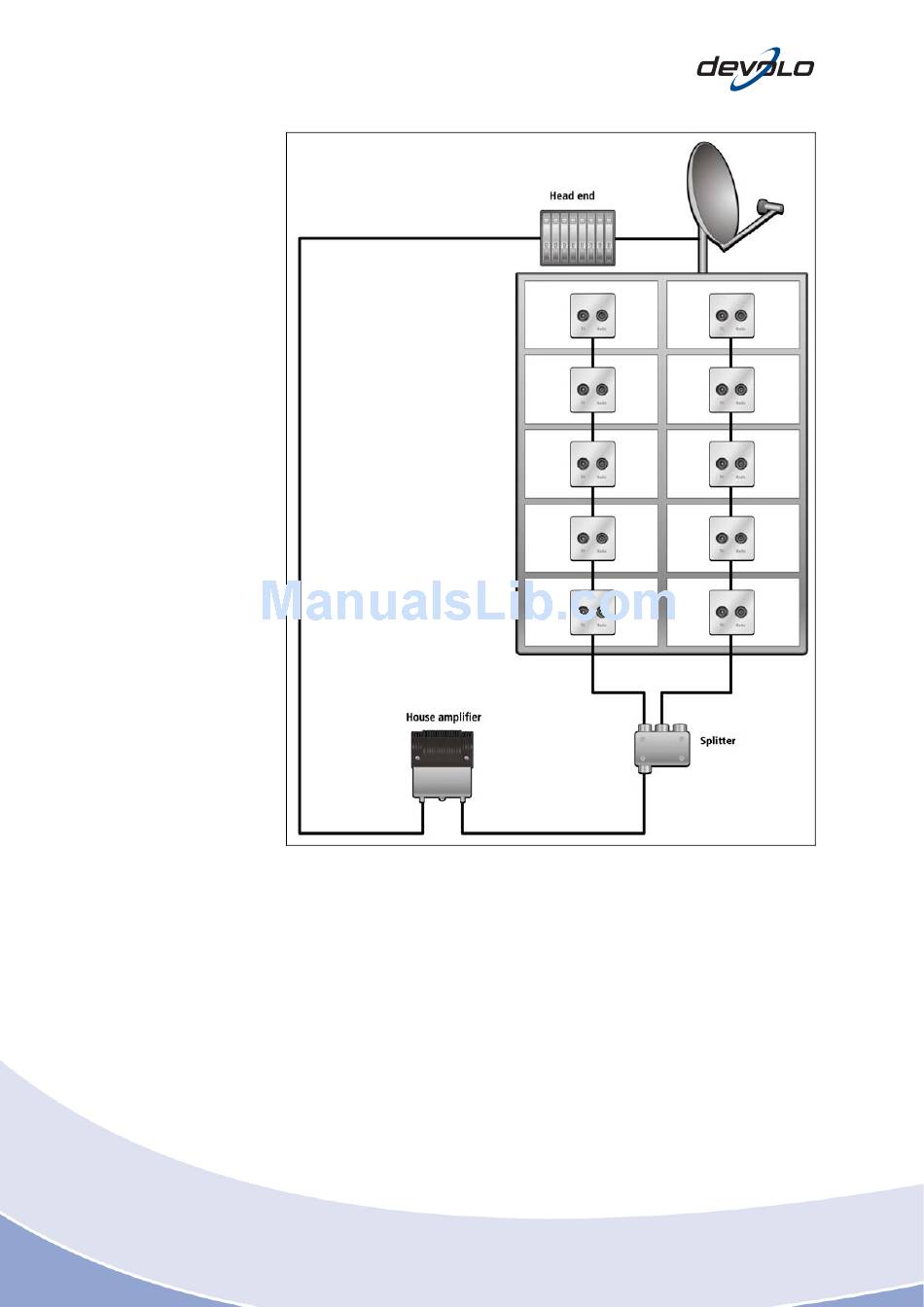

Fig. 3-6: A sat head-end tree network

3.3

Installed components

When planning a project, it is important to have exact information on the installed
components. As a rule, detailed product sheets or specifications (on attenuation) are
available on the components in coaxial networks. Use of this information to the best
effect!
dLAN technology is largely compatible with all existing components installed. As a
result, is it only necessary to replace individual passive components in an antenna
system at network level 4 in very rare cases. Even obsolete components and cheap
cables with poor shielding can usually be reused. The list below is designed to
provide you with an overview of the components you will typically encounter and
their suitability:
