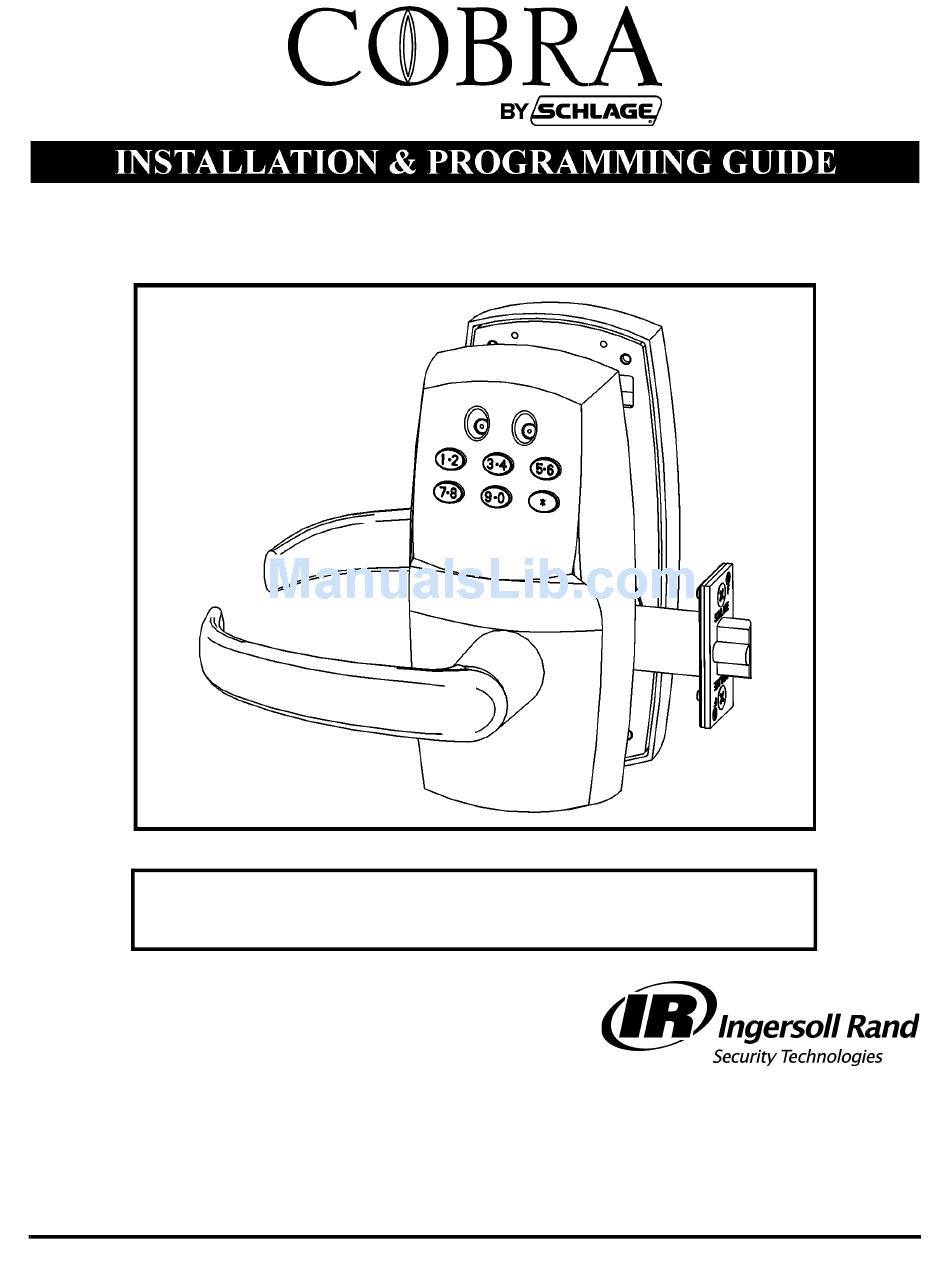

- Page 1 51120-D MPC COBRA SERIES Manually Programmable Cylindrical Lock 575 Birch Street Forestville, CT 06010 technical support: 866-322-1237 fax: 866-322-1233 http://www.irsupport.net 57010-H 12-19-2005...
-
Page 2: Tools And Materials Needed
COBRA INSTALLATION AND PROGRAMMING GUIDE Introduction / Tools and Materials Needed The MPC Cobra is a battery-powered manually programmed access control sys- tem. Up to 100 individual codes can be programmed right at the keypad. A red and green LED on the keypad provide visual indication for programming and access events. - Page 3 COBRA INSTALLATION AND PROGRAMMING GUIDE Frame and Door Preparation for Lock Frame and Door Preparation for Lock Frame and Door Preparation for Lock 57010-H Page 3 12-19-2005...
- Page 4 COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the Cobra Installing the Cobra Installing the Cobra 1) Install the Strike Components into the Door Frame: Insert strike box (a) into door frame. • Place strike (b) over strike box. • Secure in place with 2 screws.
- Page 5 COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the Cobra 4) Remove the Latch Guard From the Retractor: Remove and retain the screw that secures • the latch guard to the retractor. Remove and retain the latch guard. • 5) Install the Retractor: From the inside of the door, slide retractor (a) into 2-18”...
- Page 6 COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the Cobra 7) Install the Outside Escutcheon: If necessary, apply exterior gasket (EG • option) to surface (a). Insert the round end of the spindle • into the outside escutcheon’s hub assembly (c). Dot on cam (d) must be at the 6 o’clock •...
- Page 7 COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the Cobra 9) Secure the Baseplate: Apply Loctite 242 to the three provided baseplate screws. • Secure the baseplate with the three screws. • 10) Install the Inside Spindle: Install spring (a) into spindle (b) •...
- Page 8 COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the Cobra 12) Install the Inside Escutcheon Cover: Place the inside escutcheon (a) over the inside baseplate. • Using the spanner screw tool (pictured below), secure the • inside escutcheon cover with the 4 provided spanner screws.
-
Page 9: Operation
COBRA INSTALLATION AND PROGRAMMING GUIDE Installing the 6 or 7-Pin IC Core for Manual Key Override 1) Install the 7-Pin Small-Format IC Core for Manual Key Override: Installing the 6 or 7-Pin IC Core for Manual Key Override Hold lock in horizontal position. -
Page 10: Code Functions
CODE FUNCTIONS: The MPC Cobra is manually programmable to have up to 100 codes. The codes can have different functions as described below. Several types of functions have factory default values which are operational as soon as the lock is installed. It is highly recommended that the Pro- gramming Code be changed (this will delete all factory default codes) and new codes be added. -
Page 11: Programming Steps
COBRA INSTALLATION AND PROGRAMMING GUIDE Programming Steps Programming Steps Use the steps on this page to pro- gram codes into the lock. The “*” key is used like the <ENTER> key is on a computer. After pressing the “*” key, wait for the red and green LEDs to stop flashing before proceeding to the next step. -
Page 12: Confirming The Contents Of The Box
COBRA INSTALLATION AND PROGRAMMING GUIDE Confirming the Contents of the Box Confirming the Contents of the Box 57010-H Page 12 12-19-2005...
