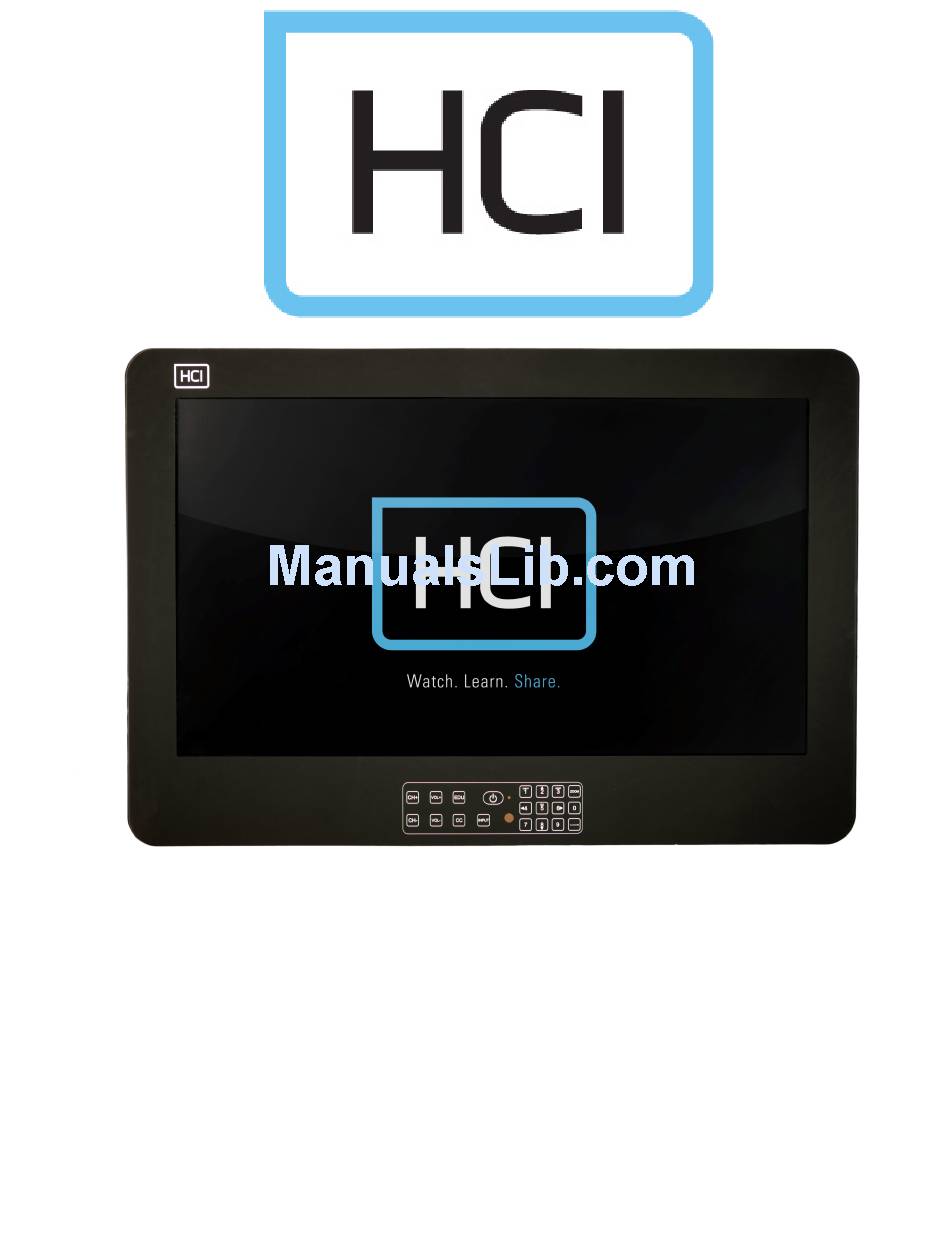

- Page 1 RoomMate Operations Manual MODEL# RM26ICS and RM32ICS REVISION 1.0...
-
Page 3: Table Of Contents
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL TABLE OF CONTENTS Power Roll Parental Control 16, 17 SAFETY INSTRUCTIONS Password VCHIP PACKAGE CONTENTS US V-VHIP Movie Rating PRODUCT INTRODUCTION TV Rating Canada V-CHIP IR Remote Control English I/O Panels French Keypad Block Unrated Shows INSTALLATION Change Password Setup 17-22... -
Page 4: Regulatory Information
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and this apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Do not use this LCD TV Monitor near water. -
Page 5: Safety Instructions
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat. -
Page 6: Package Contents
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PACKAGE CONTENTS After opening, carefully check the package contents: ICS Television Power Cord IR Remotes are shipped per order. Manuals are shipped per order* *The latest version of this manual can be downloaded from www.hci-tv.com HealthCare Information, LLC... -
Page 7: Product Introduction
USED ENTER FUNCTION CODES AND USER FUNCTIONS BACK PREVIOUS MUNU HOME NO FUNCTION MEDIA CONTROL CONTROLS MEDIA PLAYBACK MEDIA TITLE DISPLAYS INFORMATION ABOUT CURRENT SELECTION NOTE: All HCI BedMate and RoomMate sets use the same IR remote control. HealthCare Information, LLC... -
Page 8: I/O Panels
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PRODUCT INTRODUCTION FRONT PANEL LEFT SIDE PANEL REAR PANEL HealthCare Information, LLC... -
Page 9: Installation
INSTALLATION Before installing, carefully read the “Important Safeguards” section on pages 4 and 5. These mounting instructions cover all HCI RoomMate TVs Install this TV only on a mount that has been properly mounted according to the mount manufacturer’s instructions. -
Page 10: Setup And Operation
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL SETUP AND OPERATION Installing the IR Remote Control Batteries Turn the IR Remote over. Press down on the arrow and slide the battery cover off the bottom. Install the two included AAA batteries. The polarity is indicated on the bottom of the battery compartment. -
Page 11: Advanced Setup
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL ADVANCED SETUP Enter function code “9999” and press the “SETUP” button on the IR remote to enter the main setup menu. See pages 26 and 27 for a full menu tree. Use the navigation buttons to select and change menu items. Press the "BACK" button to go back one menu level, press "ENTER"... -
Page 12: Pc Settings
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Adjusts screen settings for using set as a computer monitor. Input must be set to VGA to adjust these Settings settings. Auto Adjust Automatically adjust screen size to match VGA input. Horizontal Adjusts the horizontal position of the picture. Position Vertical Adjusts the vertical position of the picture. -
Page 13: Base
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Bass Set bass level when Sound Mode is set to User. Treble Sets treble level when Sound Mode is set to User. Balance Sets left/right balance. Only effects head phones. Note: Bass, Treble and Balance can only be adjusted if Sound Mode is set to User. Surround Toggles surround sound on and off. -
Page 14: Channel
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL CHANNEL Channel Add channel labels and Bank (tier) setup. Setting Channel Current channel being edited. Channel is displayed behind menu. Use left/right arrow keys Number to change. Channel Sets channel label. Use left/right arrow buttons to select character to edit. Green underscore Label indicated character being edited. -
Page 15: Channel Settings
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Press the “ENTER” button. Enter the Virtual Channel number using the keypad then press enter. To clear a Virtual Channel number select the Virtual Channel in the NUM column and press the ENTER button twice. NOTE: Each time you enter a Virtual Channel number the TV does a check to make sure the Virtual Channel number has not already been used. -
Page 16: Parental Control
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PARENTAL Sets parental control parameters to restrict viewing. The first time you enter the parental control you will CONTROL have to enter a password to continue. To enter a password: 1. Select Change Password 2. Select New PIN 3. -
Page 17: Block Unrated Shows
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Block When selected blocks unrated TV shows and TV movies. Press the “ENTER” Unrated button to turn on/off. Shows Down Feature not available in USA at this time. Loadable Rating Clear Feature not available in USA at this time. Down Loadable Rating... -
Page 18: Analog Caption Type
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Analog Sets which Closed Caption or text message will be displayed for analog channels. Selections Caption are: Type CC1- CC2 – CC3 – CC4 – TEXT1 – TEXT2 – TEXT3 – TEXT 4 NOTE: Not all stations and programs will contain Closed Captions or Text. Most channels and shows that have closed captions will only have CC1 and maybe CC2. -
Page 19: Power On Setting
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PowerOn General TV settings and turn on settings. Setting Osd Time Set how long the OSD menu is displayed in seconds. Selections are: 10 s – 20 s – 30 s – 40 s – 50 s – 60 s – Always NOTE: When Always is selected OSD will not time out. -
Page 20: Power On Setup
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PowerOn Settings set will use when set is turned on. Setup Input Turn on source. Selections are: Source None – TV – AV – S-VIDEO – SD CARD – Component – HDMI – FM – VGA – USB Select None to have set turn on to the source it was on when turned off. -
Page 21: Pillow Speaker
HCI Visitor Station GEN4_R5 Curbell GEN 4 Pillow Speaker GEN4_INTER HCI interactive pillow speaker Philips Pillow speakers sending Philips digital code. TV Max Vol Sets maximum sound level TV can be set to when Spk Mode is set to TV only. -
Page 22: Media Settings
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Media Setting for viewing digital media. Settings Photo Settings for viewing photos and slideshows. Settings Slideshow Sets how long each photo is shown in a slide show in seconds. Selections are: Interval 1S – 5S – 10S Slideshow Selects effect to use when changing for one picture to the next. -
Page 23: All Reset
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL USB Clone Saves and loads set setup information to a USB flash drive. Used to copy TV setup from one TV to another. Read Read and load setup date from a USB flash drive. Write Write setup data to a USB flash drive. NOTE: Only the USB port located on the rear jack panel can be used for the clone function. -
Page 24: Pillow Speaker Operation
IR BANDS There are four IR bands available. Bands one and two are for HCI IR remote controls. To change the IR band of the HCI IR remote control press and hold the power button for 10 seconds. Bands 3 and 4 are for universal IR remotes. Band 3 is for Magnavox codes and band 4 is for Apex codes. -
Page 25: Functions
ALARMS There are seven alarms that can be programmed. Press the “ALARM” button on the HCI IR remote control to access the ALARM setup menu. Use the up/down arrow buttons to select the alarm number you wish to edit. Press the right arrow button to edit the selected alarm. -
Page 26: Menu Tree
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL MENU TREE HealthCare Information, LLC... - Page 27 -------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL HealthCare Information, LLC...
-
Page 28: Parental Control
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL PARENTAL CONTROL TV RATINGS United States TV-Y Content appropriate for all ages. TV-Y7 Content may not be suitable for children under 7 years of age. TV-Y7-FV Content may not be suitable for children under 7 years of age. Contains fantasy violence. - Page 29 -------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL Canadian Ratings Content suitable for children under 8 years of age. No profanity or sexual content. Minimal comedic violence. Content suitable for children over 8 years of age. No profanity. Occasional “socially offensive and discriminatory” language allowed if in the content of the story.
-
Page 30: Key Define
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL KEY DEFINE The functions of some front panel buttons can be redefined. To change the functions: Enter the setup menu. See page 10. Select “Keypad definition” in the “Others” menu and press the right arrow button. Use the up/down arrow buttons to select the button you wish to change. Not all buttons can be changed. There are 9 buttons that can be changed. -
Page 31: Virtual Channels
VIRTUAL CHANNELS Using the virtual channel mapping feature of your HCI television, will allow you to make a custom channel lineup. You can assign both analog and digital channels a virtual channel number, different from the one given from your cable company. -
Page 32: Banks
Bank 4 the channel lineup would be 8, 9.1, and 10. While in this screen the colored buttons on the HCI IR remote have the following functions. Current bank is determined by the location of the cursor. (high lighted box) Turns on (box checked) all of the channels in the current bank. -
Page 33: Specifications
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL SPECIFICATIONS DIMENSIONS 26 INCH HealthCare Information, LLC... - Page 34 -------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL SPECIFICATIONS DIMENSIONS 32 INCH HealthCare Information, LLC...
-
Page 35: Specifications
-------------------------------------------------------------------------------------------ICS OPERATIONS MANUAL GENERAL SPECIFICATIONS HealthCare Information, LLC... -
Page 36: Warranty
HCI warrants, to the original purchaser only that all new HCI televisions (excluding any equipment manufactured by others and included in HCI shipment) are free from defects in material for a period of two years from the date of shipment. - Page 38 HCI ALSO OFFERS 22”, 26”, 32, & 42” SIZES ©Copyright 2011, HealthCare Information, LLC...
