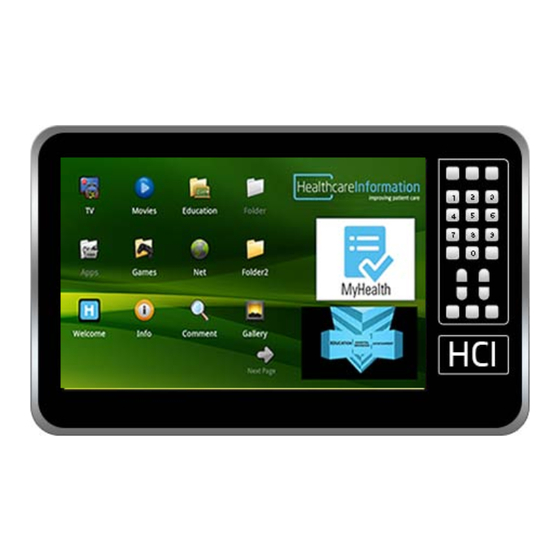

Bedmate 15” android powered low-voltage television
Hide thumbs
Also See for BM15AP:
- Operation and installation manual (40 pages) ,
- Operation and installation manual (40 pages)
Related Manuals for HCI BM15AP
Summary of Contents for HCI BM15AP

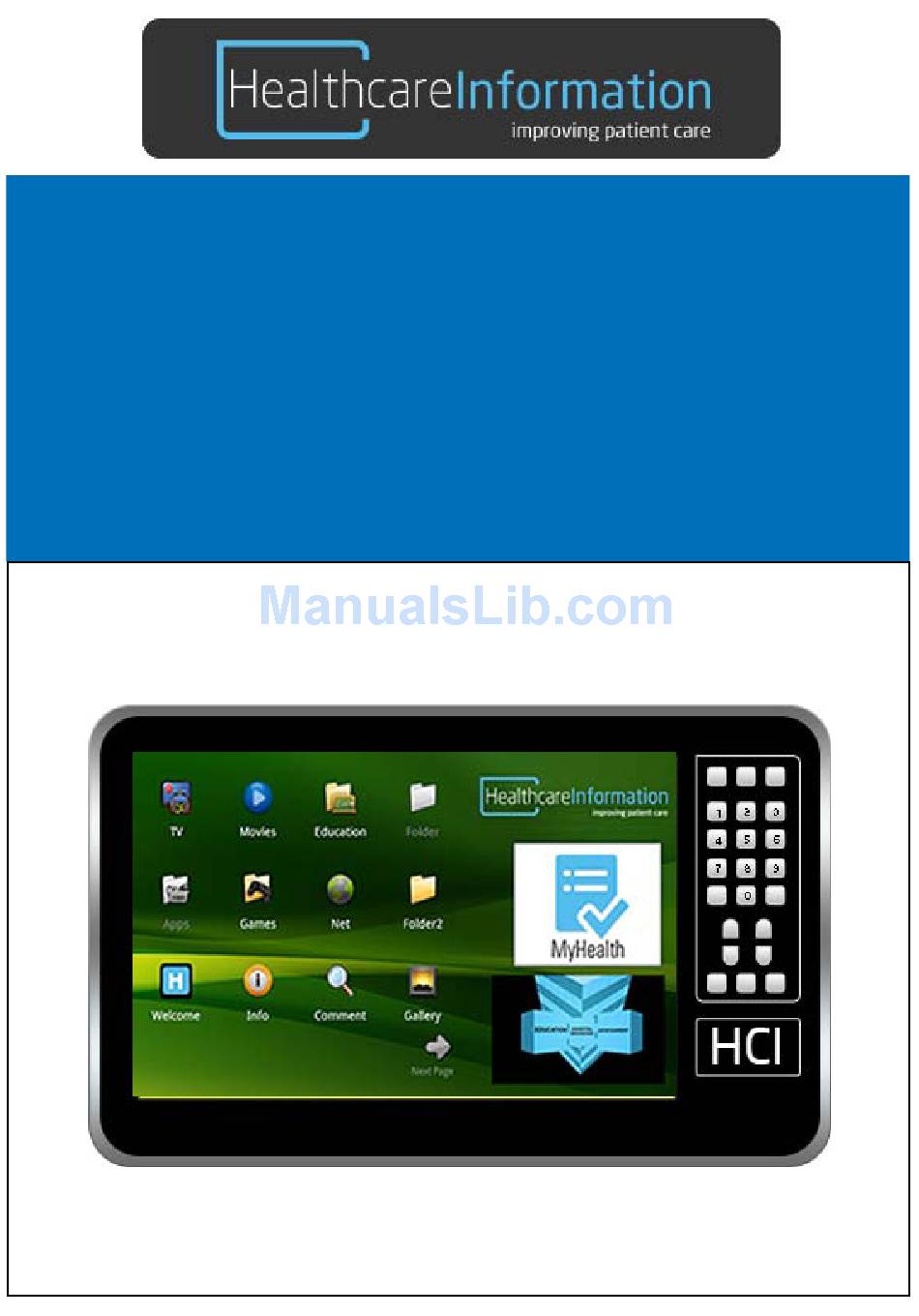

- Page 1 BM15AP BedMate 15” Android Powered Low-Voltage Television Operation and Installation Manual...
-
Page 2: Table Of Contents
Contents Android Settings Options Safety Instructions Change background image Package Contents Change logo Included with Model #BM15AP Change TV View Optional Accessories Channel Guide Product Introduction Channel Search IR Remote Control Edit Home screen Headphone Audio Out IR band Microphone Audio In... - Page 3 NOTE TO CABLE TV INSTALLER 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience This reminder is provided to call the cable TV installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). This code receptacles, and the point where they exit from the apparatus.
-
Page 4: Package Contents
Power Cord IR Remotes are shipped per order* Manuals are shipped per order* This manual covers the following models: BM15AP low-voltage television NOTE: Instructions in this manual apply to all of the above listed sets unless stated otherwise. *The latest version of the manual can be downloaded from www.hcic.com... -
Page 5: Included With Model #Bm15Ap
Included with Model #BM15AP Optional Accessories available from Healthcare Information • BedMate Android Powered 15” television #BM15AP • Media Mount • Remote • Quick start guide Outreach articulating arm Wall Mounted Power Supply Model # OUTREACH-V2 Model # WM-PS-LB120 BM15AP Low Voltage television... -
Page 6: Product Introduction
Product Introduction Please take time to look over the following pages to familiarize yourself with the product before installation and operation. -
Page 7: Ir Remote Control
Input/Output Panels IR Remote Control Power MUTE Headphone Audio SOURCE NUMBER BUTTONS Microphone Audio CLOSED CAPTION MODE A/V In GUIDE VOL+ HDMI In VOL- Hardware Reset LAST GREEN APP YELLOW APP RJ-45 RED APP BLUE APP ANDROID HOME SCREEN ANDROID MENU ANDROID BACK RF In NAVIGATION... -
Page 8: Tv Keypad Controls
If hanging the set on a wall, make sure the wall mount used is rated to carry the weight of the set. Power on/off All HCI TV’s utilize standard VESA mounting patterns. Follow the directions that came with your mount. The available VESA patterns can be found in the specifications section of this manual. - Page 10 Install this TV only on an arm that has been properly mounted according to the arm and mount manufacturer’s instructions. Make sure the arm is locked into its retracted position. If the arm Install the lock plate on the stem. Make sure the cannot be plate is tight over the lock screw, and tighten down locked into its retracted position, raise the outer arm to its highest position to install the TV.
-
Page 11: Setup And Operation
(I f the set has just been plugged in it may take up to 1 minute for the Android™ operating system to load). The BM15AP is a touch screen device, all navigation and setup can be done using the touch screen and vir tual keyboard. -
Page 12: Bm15Ap Home Screen Components
BM15AP Home Screen Components Folders Logo Image Rent Me App TV Icon Internet Browser Live TV display Application Icons Display next... - Page 13 A blue box is displayed next to the current channel. Once the BM15AP is powered on and has booted you will see the home screen. From here you can either select to watch TV or use the Android interface to: •...
-
Page 14: Android Settings Options
LED mode Android Settings Options The power LED can be changed All of the settings for the Android system and the TV settings are located under the Android settings. to any of the following modes: LED will illuminate when the TV is off only On when TV is off •... -
Page 15: Ir Band
Lock Power on/off time V Chip settings can be set to block rated content. Options are MPAA, US TV Ratings, Canadian English and Canadian French. The TV can be set to power on and/or power on at specific times. Select ‘Enable’ to turn the feature on MPAA Motion Picture Association of America Press the ‘Start time’... -
Page 16: Serial Control
Serial Control Sets the type of serial control via the RJ-12 jack on the rear jack panel. Selections are: OFF – DVD – LodgeNet– HCI No commands are accepted through the serial port. Used to control Healthcare Information HD2600 Videotel DVD player. - Page 17 Change logo To add a folder or App to the home screen. Select the ‘Add’ option, then select ‘app’ or ‘folder’ . To change the logo or image displayed on the home screen in the top right corner select ‘Change logo’...
-
Page 18: Set Rent Me Icon
Set Rent Me Icon Change background image The ‘Rent Me’ image displayed on the home screen can be changed to any image you choose. The im- The background image displayed on the home screen can be changed using an image file from a USB age you wish to use must be loaded on a USB drive inserted into the TV first. -
Page 19: Change Pin Code
Edit Channels, Apps, Inputs and Folders The BM15AP TV has four banks (also know as tiers) to store active channel lists, inputs, apps and fold- To edit individual resources in each bank simply press the box next to the item in teh bank you wish to ers. -
Page 20: Date And Time
Import/Export tv settings Keyboard After setting all channels, banks and applications in one TV you can easily clone those settings to The Keyboard settings apply to the onscreen keyboard that is included with the Android system. The other TVs to save installation time. You will need a USB Drive formatted to FAT32. Insert the USB into default keyboard is Latin. -
Page 21: Selecting A Wireless Network
Wireless LAN settings Scan the available networks or enter advanced wireless settings by selecting the ‘menu’ button: Network notification: Check to receive a notification in the System bar when an open Wi-Fi network becomes available. Wi-Fi networks: Displays a list of Wi-Fi networks you’ve previously configured and those detected when the TV last scanned for Wi-Fi networks. - Page 22 Advanced Ethernet Regulatory domain: Allows you to change the channel range the wireless adapter will use. Selections To select a Ethernet connection verify the Ethernet check box is marked, if not touch ‘Ethernet’ to acti- are 11, 13 or 14 channels. vate it.
-
Page 23: Applications
Application Info Applications After selecting an App from the ‘Applications’ you will see the ‘Application Info’ screen. From this screen The Applications screen has three tabs, with lists of applications and their components in each. At the you can choose available options such as: bottom of each tab is a graph of the memory used by the items in the list and amount of free memory. -
Page 24: Ethernet
Upgrade Information The upgrade setting is used to update your TV from an update repository maintained by the manufac- Information includes information about your TV. turer. If an update is available it will apply updates to the Android operating system. Software version: Lists details about the model numbers and versions of your phone’s hardware and operating system soft- ware. - Page 25 Factory reset Selecting the ‘Factory reset’ setting will allow you to clear the TV settings and all user loaded apps. The TV will be returned to the factory or default state. Only the original apps and services will remain after the reset process.
-
Page 26: Information
Power Coaxial cable requirements: All cables used in low-voltage television applications must be RG-6 coax with an 18AWG SOLID COPPER CENTER CONDUCTOR. Braid should be at least 60% with foil. Copper braid will allow for longer cable runs. Runs should be limited to 150ft. Ensure all coaxial fittings and connectors are installed correctly and not damaged, cracked or uncrimped.
