Quick-start guide
USB 3.1 to SATA (6Gbps) Adapter for 2.5in/3.5in SSD/HDD
USB312SAT3
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Packaging contents
• 1 x USB 3.1 Gen 2 to SATA adapter for 2.5 in. and 3.5 in. solid-state
drives (SSD) and hard disk drives (HDD)
• 1 x universal power adapter (NA/UK/EU/AU)
• 1 x quick-start guide
System requirements
• USB-enabled computer system with an available USB port
The USB312SAT3 is OS independent and doesn't require any
additional drivers or software.
Note: To obtain the maximum USB throughout, you must use a
system with a USB 3.1 Gen 2 (10Gbps) port.
System requirements are subject to change. For the latest
requirements, please visit www.startech.com/USB312SAT3.
Introduction
The USB312SAT3 provides an easy way to access, transfer, and
back up data from a 2.5 in. or 3.5 in. SATA drive to your desktop or
laptop computer. The adapter also includes an integrated cable that
leverages the faster speeds of USB 3.1 Gen 2 technology.

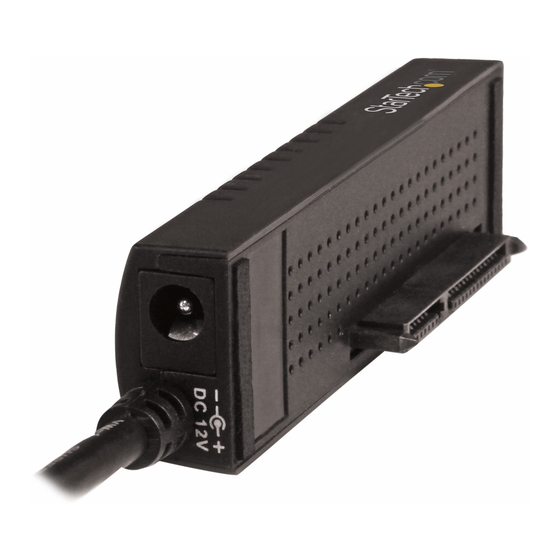

Product diagram
USB 3.1 connector
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/USB312SAT3.
Connect the adapter
Warning! Drives should be handled carefully, especially when they're
transported. If you're not careful with your drive, you may lose data
as a result. Make sure that you're properly grounded by wearing an
anti-static strap when you install any computer component. If an
anti-static strap isn't available, touch a large, grounded metal surface
for several seconds to discharge any built-up static electricity.
1. Connect a 2.5 in. or 3.5 in. SATA SSD or HDD to the SATA
connector on the adapter.
2. Connect the universal power adapter to the Power adapter port
on the adapter and an electrical outlet.
Note: You can use most 2.5 in. drives without connecting the
universal power adapter, as enough power is provided through the
USB connection.
3. Connect the integrated USB 3.1 connector to an available USB
port on your computer.
About driver installation
After you connect the adapter to your computer, the computer
detects the adapter and automatically installs the driver. You don't
need to take any further action to install the driver.
Prepare a drive for use
Windows OS
If you connect a drive that already has data on it, after you connect
the adapter, it appears under My Computer or Computer with a
drive letter assigned to it.
If you install a brand-new drive that doesn't contain any data, you
must prepare the drive for use.
Warning! When you complete the following steps, all of the data
on your drive will be deleted. If your drive has data on it that you
require, you should create a backup file or use a different drive.
*actual product may vary from photos
1. Depending on the version of OS that you're running, do one of
the following:
Power
adapter port
• On your desktop, right-click My Computer and click Manage.
• On your desktop, right-click Computer and click Manage.
• Click the Start button or Windows icon. Type compmgmt.msc
LED
indicator
SATA data and power
connector
Manual Revision: 02/26/2016
