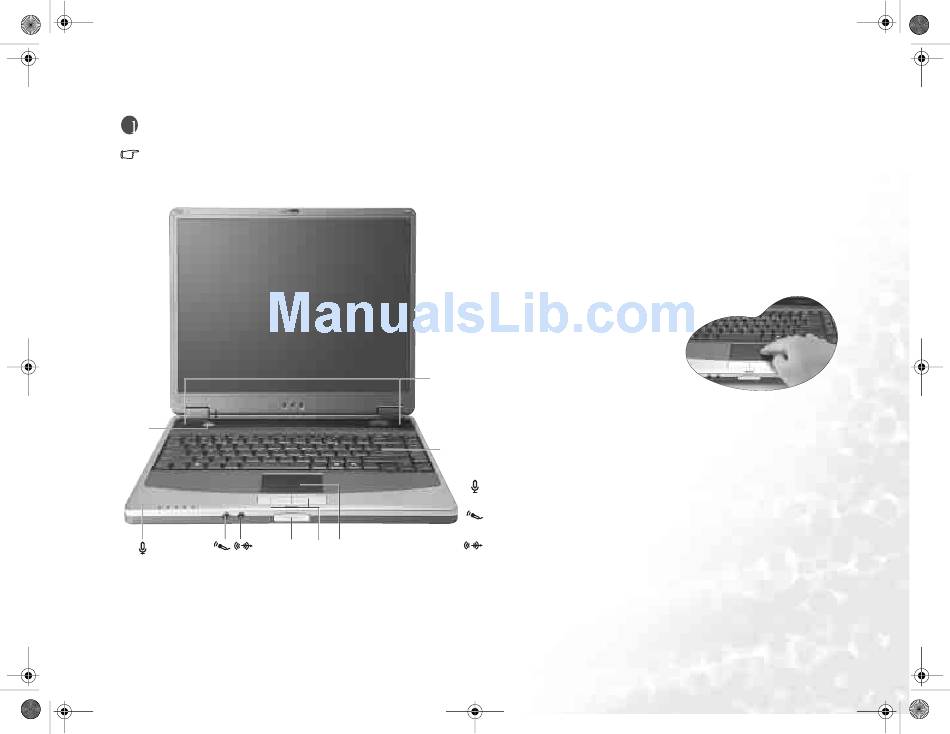

Touring Your Joybook

Depending on the model of your Joybook, the appearance may be different from those shown in this manual.
k
j
l
o
m
n
Speakers
j
Generates sounds from Joybook.
Power Button
k
Turns Joybook on or off.
Keyboard
l
Allows you to input data as well as access various special functions.
Touch Pad
m
You can use the touch pad to conveniently con-
trol the cursor on the screen.
• To move the cursor, gently move your finger
on the touch pad. The cursor will move
accordingly.
• Tap on the touch pad once to execute the
same action as clicking on the left button of a
mouse.
• Tap twice to execute the same action as dou-
ble-clicking.
Left and Right Selection Buttons
n
Equivalent to the left and right buttons on a mouse.
Top Cover Switch
o
Locks the top cover and keeps it closed.
Built-in Microphone
Receives sounds and voices for recording.
External Microphone Connector
Connects to a microphone for recording sounds and voices.
Audio Output Connector
Connects to various audio devices, such as earphones or external speakers for output-
ting sounds and voices from Joybook.
Touring Your Joybook
1
