XL-ICA-106M2
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-ICA-106M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XtendLan XL-ICA-106M2

Summary of Contents for XtendLan XL-ICA-106M2

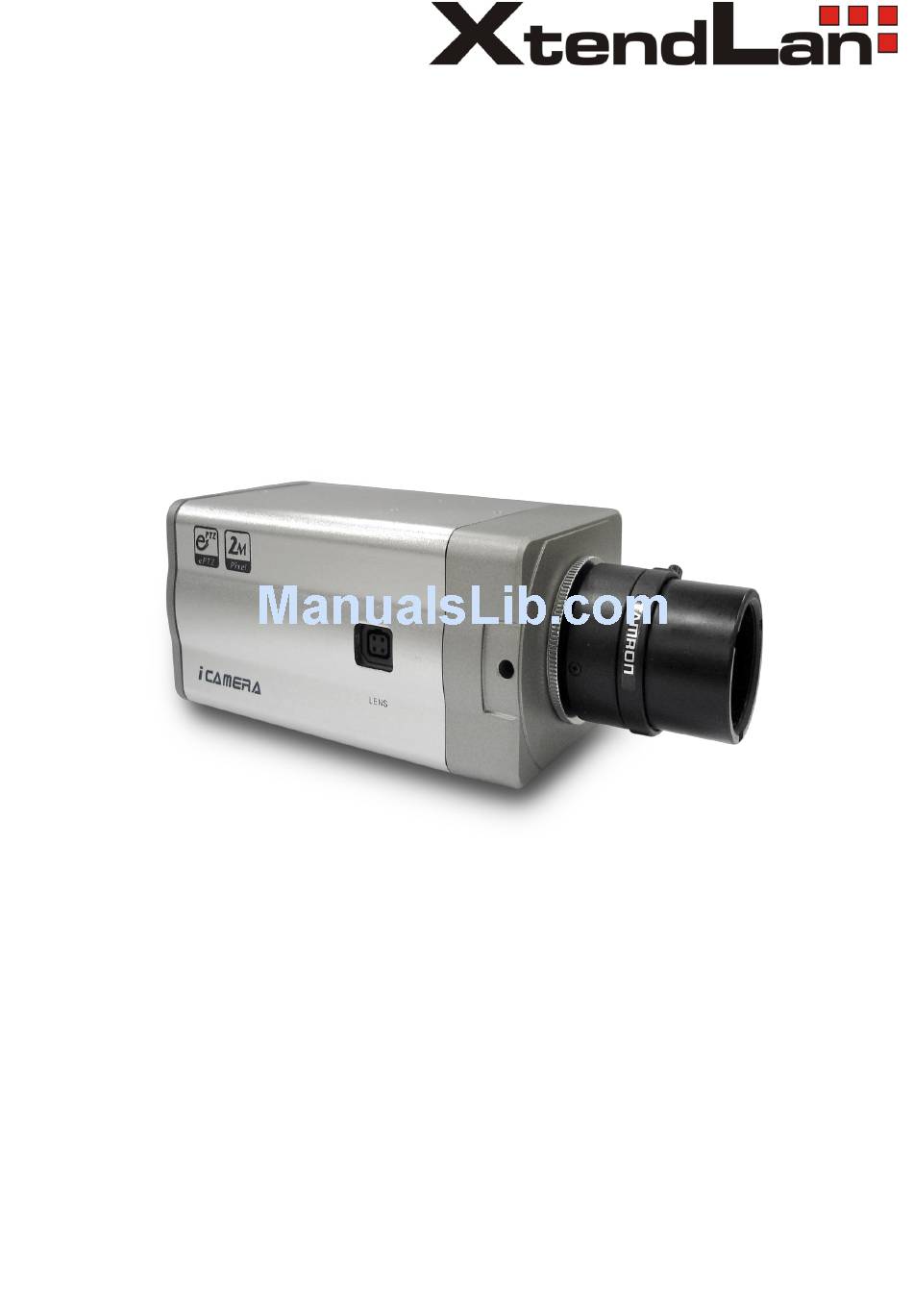

  • Page 1 XL-ICA-106M2 User’s Manual...

  • Page 2: Important Safeguards And Warnings

    Welcome Thank you for purchasing our IP camera! This user‟s manual is designed to be a reference tool for your system. Please read the following safeguards and warnings carefully before you use or install the IP camera. Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to local electrical safety codes.

  • Page 3: Table Of Contents

    Before installation, please open the package and check all the components are included: Contact your local retailer ASAP if something is missing in your package. Table of Contents Overview ............................5 General Introduction ....................5 Features ......................... 5 Interface ............................7 Lens ..........................
  • Page 4 Appendix 2 Function List ......................28 Appendix 3 Device Factory Default Setup ................31 Appendix 4 FAQ ........................ 34...

  • Page 5: Overview

    1 Overview 1.1 General Introduction This series IP camera combines the traditional camera and network video technology together. It integrates video capture, video process, network transmission and storage. You can just connect it to the network to use without other assistant device. It has one mega resolution and supports PoE, wireless application, audio talk.
  • Page 6  Support peripheral equipment management, each peripheral equipment Peripheral control protocol and interface can be set freely. Equipment  Support serial port(RS485) transparent data transmission  Support auto day/nigh mode switch.  Support system resource information and running status real-time display.

  • Page 7: Interface

    2 Interface 2.1 Lens Besides the lens included in package, you can use other CS installation lens. Note: This series IP camera supports CS port only. You need to use a 5mm C/CS lens conversion ring if you want to use a C type lens. 2.1.1 General Lens The lens shall be CS installation type and less than 0.5kg.

  • Page 8: Lens Installation

     Socket（not included in the package）  PIN ４：Driver－（ground）  PIN ２：Control＋  PIN１：Control－  PIN ３：Driver＋ 2.1.3 Lens Installation Please follow the steps listed below. See Figure 2-3.  Line up the lens to the installation position and turn it clockwise until it is fixed firmly. ...

  • Page 9: Rear Panel

    Auto aperture lens connector Figure 2-4 2.2 Rear Panel Please refer to the following sheet and Figure 2-5 for IP camera interface information. Interface Name Connector Function VIDEO OUT Video output port Output analog video signal. Can connect to TV monitor to view video.
  • Page 10 light flashes and then becomes on, which means application is running normally. Now you can log in via network.  The indication light becomes off when you reboot the system via software.  The green light flashes when system is recording.
  • Page 11 when you connect the IP camera to the wireless network. RS485 port I/O port RS485_A port, control external PTZ RS485_B port, control external PTZ 1-2ch alarm Alarm input port 1. To receive the signal from the external alarm device. Alarm input port 2. To receive the signal from the external alarm device.
  • Page 12 LEVEL Auto aperture Adjust aperture level. adjustment button AUDIO OUT Audio output 3.5mm Output audio signal to JACK port. the device such as sound box. AUDIO IN Audio input 3.5mm Input audio signal. JACK port. Receive signals from devices such as pick- Ethernet port Connect to standard Ethernet cable.

  • Page 13: I/O Socket Operation Introduction

    swap card, please stop recording first. Figure 2-5 2.2.1 I/O Socket Operation Introduction First use small slotted screwdriver press the button in the cable slot, and then insert the cable into the slot. Finally release the screwdriver. See Figure 2-6. Figure 2-6 2.2.2 Alarm Connection and Setup Introduction 2.2.2.1 Alarm Setup...
  • Page 14 Figure 2-7 Please refer to Figure 2-8 for alarm output layout. Figure 2-8...

  • Page 15: Installation

    3 Installation 3.1 System Requirement This series IP camera has the following system requirement.  Processor Pentium 4, 1.5 GHz or higher（Pentium 4, 2.4 GHz or higher recommended ）  RAM 256 MB or higher  OS Microsoft Windows 2000, Windows XP ...
  • Page 16 Figure 3-2 Note:  If you want to connect IP camera to the ADSL MODEM, you need to refer to the PPPoE setup section.  If there is more than one IP camera need to be connected, you need to set different IP addresses for each camera respectively.

  • Page 17: Auto Search Ip Function

    4 Auto Search IP Function Auto search IP tool allows you to search or modify IP camera current IP address. Open AutoSearchDevc.exe ( ), click device list item you can an interface is shown as in Figure 4-1. Here you can view device IP address, port, sub-net mask and gateway information.
  • Page 18 Figure 4-3 After you logged in, you can see an interface is shown as in Figure 4-4. Here you can modify device IP address, sub-net mask and gateway information. Figure 4-4...

  • Page 19: Network Safety Level Setup

    5 Network Safety Level Setup You need to modify your IE security setup if you can not install controls properly. Open your IE browser, Tools->Internet Options->Security, select Local Intranet. See Figure 5-1. Figure 5-1 Click custom level, the interface is shown as below. See Figure 5-2. Please set as below.
  • Page 20 Figure 5-2 Then system goes back to Figure 5-1, click “sites” button, system pops up the following dialogue box. See Figure 5-3. Figure 5-3 Click advanced button, system pops up the following dialogue box. See Figure 5-4. Click add button to add a website to the zone.
  • Page 21 Figure 5-4...

  • Page 22: Client Operation

    6 Client Operation IP camera factory default setup:  IP address: 192.168.1.108.  User name: admin  Password: admin 6.1 Network Connection Please follow the steps listed below for network connection.  Connect IP camera to PC via switcher. Now you have established a LAN. ...
  • Page 23 If you can‟t download the ActiveX file, please modify your settings as follows. See Figure 6-2. Figure 6-2 After installation, the interface is shown as below. See Figure 6-3. Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login.
  • Page 24 After you logged in, you can see the main window. See Figure 6-6. This main window can be divided into the following sections.  Section 1: there are five function buttons: configuration, search, alarm, about , log out .  Section 2: there is a channel number and three function buttons: refresh, start dialog and local play.
  • Page 25 Figure 6-6 Please refer to the web operation manual for detailed information. Note: Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. Please visit our website for more information.

  • Page 26: Appendix 1 Specification

    7 Appendix 1 Specification Specification Index Note Standard PAL : 25f/s NTSC: 30f/s Supported One D1 + one CIF or Encode capacity One 6-frame 6 UXGA＋one QCIF UXGA（1600×1200） WSXGA（1600×1024） SXGA（1280×1024） WXGA（1280×800） XVGA（1024×768） SVGA（800×600） Encode bit stream SVCD（480×480） Video QVGA（320×240） VGA（640×480） CIF（352×288）...
  • Page 27 Weight...
  • Page 28 8 Appendix 2 Function List Specification Note Zoom Adjustment Manual Focus Adjustment Manual Lens Control Auto /manual DC Aperture Adjustment adjustment White balance adjustment Auto Backlight compensation control Auto Contrast ness adjustment Auto/Manual Bright ness adjustment Auto/Manual Electronic shutter control Auto CCD Video Process...
  • Page 29 or not, system just begins recording. System automatically Alarm Record enables recording function when alarm occurred. When input video changes, Motion Detection Record system automatically enables record operation.  There are 256 layers. O is the bottom layer and 255 is the highest layer. ...
  • Page 30 setup, alarm setup, OSD information. Search log, status, user IPC provides interface to management, email setup, data check system running modification, program upgrade, information. reboot and etc. Record the following information： System operation, setup Important event log record operation, alarm event, record management, user management, clear log.
  • Page 31 9 Appendix 3 Device Factory Default Setup Function Configuration Item Name Default setup Type General Setup Date format Y-M-D „ _ ‟ Date separator Time format Language Simplified Chinese When HDD is full Overwrite Record duration Device No. Video type Encode Setup Channel Channel01...
  • Page 32 IP address 192.168.1.108 Subnet mask 255.255.0.0 Gateway 192.168.0.1 Device name Device factory default name TCP port 37777 HTTP port UDP port 37776 Network user connection amount Network transmission QoS Disable Remote host Multiple broadcast group Enable Disable IP address 255.255.255.0 Port 36666 Email setup...
  • Page 33 Snapshot Disable PTZ Setup Channel Ch01 Protocol EPTZ Address Baud rate 115200 Data bit Stop bit Parity None Default and Backup Disable General Disable Encode Disable Record Disable Disable Network Disable Alarm Disable Video detection Disable Display output Disable Channel No. Disable Advanced Record control...
  • Page 34 10 Appendix 4 FAQ Question Device can not boot normally Press RESET button for at least 20 seconds to restore factory default setup. SD card hot swap Please stop recording before you remove SD card. SD card write and erase amount SD card write and erase max amount is 100,000.
