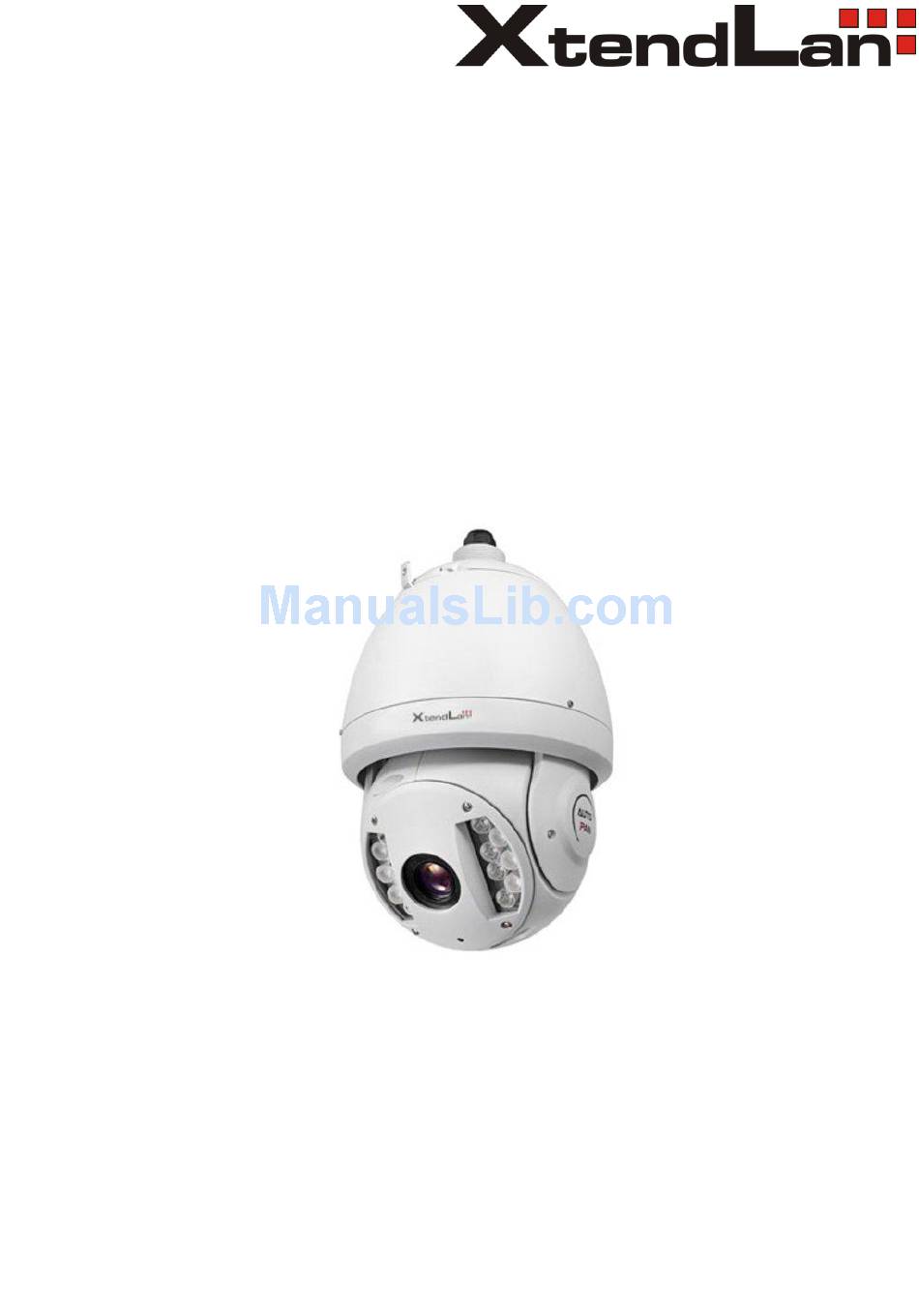

  • Page 1 XL-ICA-H662 IP camera with lens rotation and tilt control User’s Guide for Web management...

  • Page 2: Table Of Contents

    Table of Contents Network Connection ........................1 Preparation ........................1 Log in ..........................1 Live Interface ......................... 3 Encode Setup ........................ 3 Video Window Setup ....................4 System Menu ......................... 5 Video Window Function Option .................. 5 PTZ Control ........................6 PTZ Setup/Menu ......................
  • Page 3 2.2.10 Multicast ......................27 2.2.11 IEEE802 ......................27 2.2.12 Qos ........................28 Event ..........................29 2.3.1 Video detect ......................29 2.3.2 Alarm ........................33 2.3.3 Abnormity ......................36 Storage ......................... 38 2.4.1 Record schedule and snapshot schedule ............38 2.4.2 Destination ......................38 2.4.3 Record control ......................

  • Page 4: Network Connection

    1 Network Connection 1.1 Preparation This series speed dome product supports the Web access and management via PC. Web includes several modules: monitor channel preview, PTZ control, system configuration, alarm and etc. Please follow the steps listed below for network connection. ...
  • Page 5 Figure 1-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download.

  • Page 6: Live Interface

    1.3 Live Interface After you logged in, you can see the live monitor window. Now you can operate the speed dome via the WEB. See Figure 1-4. Figure 1-4 There are six sections:  Section 1: Encode setup bar  Section 2: Window adjust bar ...

  • Page 7: Video Window Setup

    If network width is not sufficient, you can use sub stream to Sub (Extra) realize network monitor. It is to reduce network bandwidth stream usage. You can select video monitor protocol from the dropdown list. Protocol There are three options: TCP/UDP/Multicast. 1.5 Video Window Setup The interface is shown as in Figure 1-6.

  • Page 8: System Menu

    Figure 1-7 Please refer to the following sheet for detailed information. Parameter Function Video Brightness setup icon. It is to adjust Note: setup monitor video brightness.  All the operations here apply to WEB end Contrast setup icon. It is to adjust only.

  • Page 9: Ptz Control

    Figure 1-9 Please refer to the following sheet for detailed information. Parameter Function Click it to generate an alarm output. Alarm There are two alarm output icons since this series product output supports two relay output. Please note the alarm output interface may vary due to different series products.

  • Page 10: Ptz Setup/Menu

     PTZ direction: PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right/ fast positioning.  Speed: The step 8 speed is faster than step 1. Figure 1-10 1.9 PTZ Setup/Menu The PTZ setup/Menu interface is shown as in Figure 1-11. Figure 1-11 Click PTZ set button, the interface is shown as in Figure 1-12.Here you can set scan, preset, tour pattern, assistant function and etc.
  • Page 11 Figure 1-12 Please refer to the following sheet for PTZ setup information. Parameter Function  Click Setup button, you can set scan left and right limit. Scan  Use direction buttons to move the camera to you desired location and then click left limit button. Then move the camera again and then click right limit button to set a right limit.
  • Page 12 Parameter Function You can turn on or turn off the light/wiper. Light and wiper It is the accurate positioning function. Please input corresponding Goto horizontal angle, tilt angle, and speed dome zoom speed and then click Go to button to go to a specified position. One unit of the horizontal angle or tile angle stands for 0.1 degree.

  • Page 13: Setup

    2 Setup 2.1 Camera 2.1.1 Video 2.1.1.1 Video bit stream The video bit stream interface is shown as below. See Figure 2-1. Figure 2-1 Please refer to the following sheet for detailed information. Parameter Function It includes general stream, motion stream and alarm Main Bit stream type stream.
  • Page 14 Parameter Function Resolution There are multiple resolutions. You can select from the dropdown list. For each resolution, the recommended bit stream value is different. Frame Rate PAL: 1～25f/s，NTSC: 1～30f/s.. (FPS) The frame rate may vary due to different resolutions. There are two options: VBR and CBR. Bit Rate Type Please note, you can set video quality in VBR mode.
  • Page 15 Parameter Function There are four options: H.264, H.264B, H.264H, and Encode mode MJPEG encode mode.  H.264 : Main Profile encode mode.  H.264B :Baseline Profile encode mode. H.264B is mainly for Blackberry cell phone to realize the monitor. You need to enable the sub stream function in your camera and set the resolution as CIF.
  • Page 16 The snapshot interface is shown as in Figure 2-2. Figure 2-2 Please refer to the following sheet for detailed information. Parameter Function There are two modes: general (schedule) and Event Snapshot type (activation). General (schedule) snapshot is to snap in the specified period. Event (Activation) snapshot Is to snap when the motion detect, camera masking, local alarm event occurrence.
  • Page 17 Figure 2-3 Please refer to the following sheet for detailed information. Parameter Function Privacy mask  Here you can privacy mask the specified video in the monitor video. System max supports 4 privacy mask zones.  Time Title  You can enable this function so that system overlays time information in video window.

  • Page 18: Audio

    Here you can set snap image saved path ( in the preview interface) and the record storage path in the preview interface).The snap picture default setup is C:\PictureDownload and record file default setup is C:\RecordDownload. Please click the Save button to save current setup. Figure 2-4 2.1.2 Audio The audio interface is shown as below.

  • Page 19: Network

    Parameter Function  Audio enable Main stream: Recorded file only contains video by default. You need to check the audio box here to enable audio function so that the main stream the network transmitted is audio/video composite stream.  Sub (Extra) stream: Recorded file only contains video by default.
  • Page 20 Mode There are two modes: static mode and the DHCP mode.  The IP/subnet mask/gateway are null when you select the DHCP mode to auto search the IP.  If you select the static mode, you need to set the IP/subnet mask/gateway manually.

  • Page 21: Connection

    Enable You can use ARP/Ping command to modify or set the device IP ARP/Ping set address if you know the device MAC address. device IP Before the operation, please make sure the speed dome and address service. the PC in the same LAN. This function is on by default. You can refer to the steps listed below.
  • Page 22 Please refer to the following sheet for detailed information. Parameter Function It is the max Web connection for the same device. The value ranges from 1 connection to 20. The default setup is 10. TCP port The value ranges from 1025 to 65535. The default value is 37777. You can input the actual port number if necessary.

  • Page 23: Pppoe

    Important The value 0 to 1024 (excluding the default value of HTTP/RTSP/HTTPs), 1900, 3800, 5000, 5050, 9999, 37776, 37780-37880, 39999 and etc are the special ports value and they are not open for user to set. 2.2.3 PPPoE The PPPoE interface is shown as in Figure 2-8. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function.

  • Page 24: Ip Filter

    Figure 2-9 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name.

  • Page 25: Smtp （E-Mail

    Figure 2-10 2.2.6 SMTP （e-mail） The SMTP interface is shown as in Figure 2-11. Figure 2-11 Please refer to the following sheet for detailed information.

  • Page 26: Upnp

    Parameter Function Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name, password and the sender information.

  • Page 27: Snmp

    In the Windows OS, From Start->Control Panel->Add or remove programs. Click the “Add/Remove Windows Components” and then select the “Network Services” from the Windows Components Wizard. Click the Details button and then check the “Internet Gateway Device Discovery and Control client” and “UPnP User Interface”.
  • Page 28 Figure 2-13 Please refer to the following sheet for detailed information. Parameter Function SNMP Port The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161 It is a string.

  • Page 29: Bonjour

    Parameter Function The destination port of the Trap information from the proxy Trap port program of the device. It is for the gateway device and the client-end PC in the LAN to exchange the information. It is a non-protocol connection port. It has no effect on the network applications.

  • Page 30: Multicast

    2.2.10 Multicast The multicast interface is shown as in Figure 2-15. Multicast is a transmission mode of data packet. When there is multiple-host to receive the same data packet, multiple-cast is the best option to reduce the broad width and the CPU load. The source host can just send out one data to transit.

  • Page 31: Qos

    Figure 2-16 Please refer to the following sheet for detailed information. Parameter Function Authentication PEAP (protected EAP protocol). Username It needs the username to login, which is authenticated by the server. Password Please input password here. 2.2.12 Qos The QoS interface is shown as below. See Figure 2-17. Qos (Quality of Service) is network security mechanism.

  • Page 32: Event

    Figure 2-17 Please refer to the following sheet for detailed information. Parameter Function Real-time The data packet of the network video monitor. monitor Command The non-monitor packet such as device setup and search. 2.3 Event 2.3.1 Video detect 2.3.1.1 Motion Detect The motion detect interface is shown as in Figure 2-18.
  • Page 33 Figure 2-18 Figure 2-19...
  • Page 34 Figure 2-20 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Region  There are six levels. The sixth level has the highest sensitivity. ...
  • Page 35 Parameter Function Relay out Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs. Please note the relay output number here is for reference only. The alarm output number may vary due to different series products.

  • Page 36: Alarm

    Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable video masking function. There are six levels. The sixth level has the highest sensitivity. Sensitivity Working  Video masking function becomes activated in the specified Period periods.
  • Page 37 The alarm activation interface is shown as in Figure 2-22. Figure 2-22 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Working  This function becomes activated in the specified periods. Period ...
  • Page 38 Parameter Function Record System auto activates motion detection channel to record once Channel alarm occurs (working with motion detection function). Please note you need to go to Storage-> Schedule to set current channel as general record. Record Delay System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.

  • Page 39: Abnormity

    2.3.3 Abnormity It includes five statuses: No SD card, capacity warning, SD card error, and disconnection and IP conflict. There are two interfaces for you reference. See Figure 2-24 through Figure 2-28. Figure 2-24 Figure 2-25 Figure 2-26...
  • Page 40 Figure 2-27 Figure 2-28 Please refer to the following sheet for detailed information. Parameter Function Event  The abnormal events include: no disk, no space, disk error, net error, Type offline, IP conflict.  You need to draw a circle to enable this function. Record System auto activates channel to record once an alarm occurs (For offline type only.

  • Page 41: Storage

    Parameter Function Send If you enable this function, system can send out email to alarm the email specified user. 2.4 Storage 2.4.1 Record schedule and snapshot schedule In these two interfaces, you can add or remove the schedule record/snapshot setup. See Figure 2-29. There are three record modes: general (auto), motion detect and alarm.
  • Page 42 Figure 2-30 Please refer to the following sheet for detailed information. Parameter Function Event It includes: general, motion detect and alarm. Type Local It is to save in the SD card. It is to save in the FTP server. The local interface is shown as in Figure 2-31. Here you can view local SD card information. You can also operate the read-only, write-only, hot swap and format operation.

  • Page 43: Record Control

    Figure 2-32 2.4.3 Record control The record control interface is shown as in Figure 2-33. Figure 2-33 Please refer to the following sheet for detailed information. Parameter Function Here you can select file size. Default setup is 60 minutes. Pack Duration Pre-record Please input pre-record value here.

  • Page 44: System

    There are two options: stop recording or overwrite the previous files Disk Full when HDD is full.  Stop: Current working HDD is overwriting or current HDD is full, it will stop record.  Overwrite: Current working HDD is full; it will overwrite the previous file.
  • Page 45 2.5.1.2 Date and time The date and time interface is shown as in Figure 2-35 Figure 2-35 Please refer to the following sheet for detailed information. Parameter Function Here you can select date format from the dropdown list. Date format There are two options: 24-H and 12-H.

  • Page 46: Account

    2.5.2 Account Note:  For the character in the following user name or the user group name, system max supports 6-digits. The space in the front or at the end of the string is null. The valid string includes: character, number, and underline.
  • Page 47 Figure 2-37 Modify user It is to modify the user property, belonging group, password and rights. See Figure 2-38. Modify password It is to modify the user password. You need to input the old password and then input the new password twice to confirm the new setup.
  • Page 48 Figure 2-39 Add group: It is to add group and set its corresponding rights. See Figure 2-40. Please input the group name and then check the box to select the corresponding rights. It includes: live playback, record control, backup, PTZ control, user management and etc. Figure 2-40 Modify group Click the modify group button, you can see an interface is shown as in Figure 2-41.

  • Page 49: Ptz

    Figure 2-41 2.5.3 PTZ The PTZ interface includes two interfaces. 2.5.3.1 Network PTZ The network PTZ interface is shown as in Figure 2-42. Figure 2-42 Please refer to the following sheet for detailed information. Parameter Function Select the corresponding dome protocol. Protocol 2.5.3.2 Analog PTZ Setting The analog PTZ setting interface is shown as in Figure 2-43.

  • Page 50: Default

    Figure 2-43 Please refer to the following sheet for detailed information. Parameter Function Set the software address you can control the device via the RS485 Address BUS. Default value is 1. Set the baud rate you can control the device via the RS485 BUS. Baud Default setup is 9600.

  • Page 51: Import/Export

    2.5.5 Import/Export The interface is shown as in Figure 2-45. Figure 2-45 Please refer to the following sheet for detailed information. Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding system setup to your local PC. Export 2.5.6 Auto maintenance The auto maintenance interface is shown as in Figure 2-46.

  • Page 52: Firmware Update

    2.5.7 Firmware update The firmware interface is shown as in Figure 2-47. Please select the upgrade file and then click the update button to begin firmware update. Important Do not turn off the device power, disconnect the device, reboot or shutdown the device during the update period.

  • Page 53: Online User

    Here you can view system log. See Figure 2-49. Figure 2-49 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, alarm event, record operation, and user management, log clear.
  • Page 54 Figure 2-50...

  • Page 55: Alarm

    3 Alarm Click alarm function, you can see an interface is shown as in Figure 3-1. Here you can set device alarm type and alarm sound setup. When the specified alarm occurred (you have subscribed), system can record the corresponding alarm information on the right pane of the alarm list.

  • Page 56: Log Out

    4 Log out Click log out button, system goes back to log in interface. See Figure 4-1. You need to input user name and password to login again. Figure 4-1 Note:  This manual is for reference only. Slight difference may be found in user interface. ...
