Summary of Contents for XtendLan XL-ICA-220

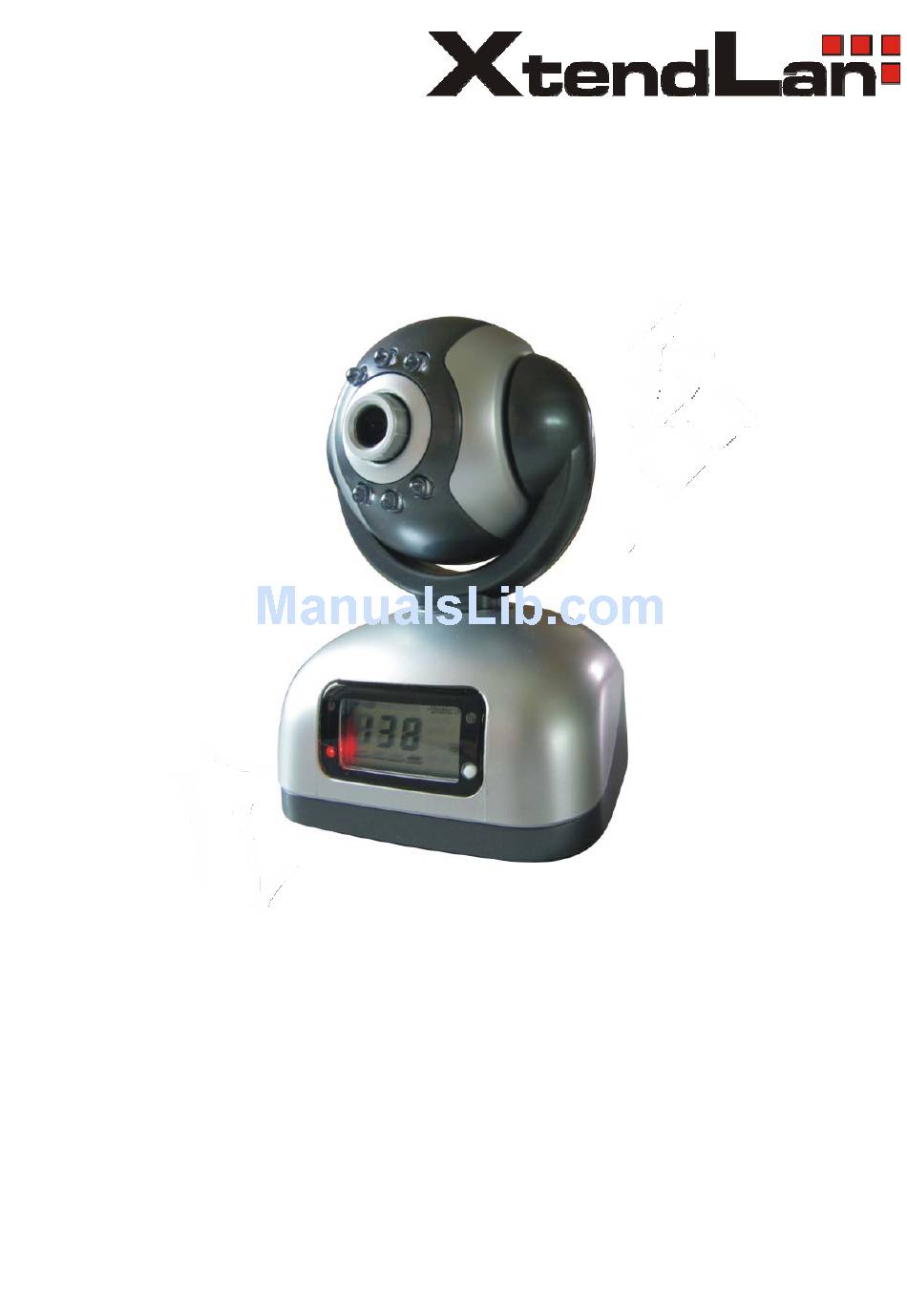

- Page 1 User’s manual...
-
Page 2: Table Of Contents
XtendLan XL-ICA-220 manual Index INTRODUCTION......................- 1 - XTENDLAN IP C ............... - 1 - ELCOME TO THE AMERA ....................- 1 - ACKAGE ONTENTS IP C ....................- 1 - DENTIFY AMERA FUNCTIONS AND FEATURES ..................- 9 - .................... - Page 3 XtendLan XL-ICA-220 manual Figures and Tables Index Figure 1 IP Camera 45-angle View ................- 2 - Figure 2 IP Camera Front View ..................- 2 - Figure 3 IP Camera Back View ..................- 3 - Figure 4 Front View Indication and Operation ............... - 3 - Figure 5 LCD Indications ....................
-
Page 4: Introduction
1 Introduction Welcome to the XtendLan IP Camera The XtendLan IP Camera combines a high quality digital video camera with network connectivity and a powerful web server to bring clear video to your desktop from anywhere on your local network or over the Internet. -
Page 5: Figure 1 Ip Camera 45-Angle View
XtendLan XL-ICA-220 manual Figure 1 IP Camera 45-angle View Lens Tilt Night Vision LEDs Working Status LED Privacy Indicate LED User Visiting LED Privacy Status Button IP Show LCD Figure 2 IP Camera Front View - 2 -... -
Page 6: Figure 3 Ip Camera Back View
XtendLan XL-ICA-220 manual RJ45 Ethernet Socket Input&Output Pins DC 5V Input Socket CF Card Socket RESET Button Figure 3 IP Camera Back View 1.3.2 Indication and Operation LED: Privacy LED: Working Button: Privacy LED: User Visiting Figure 4 Front View Indication and Operation The privacy button toggles Privacy mode and Normal mode, In Privacy mode, all the remote users will not be allowed to see the video. -
Page 7: Figure 5 Lcd Indications
XtendLan XL-ICA-220 manual Figure 5 LCD Indications LCD will loop show IP Address/Network Mask/Gateway, as shown in the Figure 6. IP Address=192.168.0.24 Subnet mask=255.255.255.0 Gateway IP=192.168.0.1 Figure 6 IP Address/Network Mask/Gateway loop show - 4 -... - Page 8 Status icon indications list: Icon Meaning DDNS Server Registered. Connected to the INTERNET successfully. XtendLan Backbone server connected successfully. There is/are user(s) visiting IP Camera video. Sensor triggered. (Digit input or Motion detection) CF card detected. System in configuration status. E.g. Upgrading firmware.
-
Page 9: Figure 7 Back View Indication
XtendLan XL-ICA-220 manual DC 5V Input Socket RJ45 Ethernet Socket Input & Output Pins CF Card Socket Reset button Figure 7 Back View Indication Output Pins Digit Input Pins Relay: Normally Open Output Input Common Input Figure 8 Input & Output defines... -
Page 10: Figure 9 Input & Output Pins Connection
XtendLan XL-ICA-220 manual Input Pins: The input pins can be used for 2-way external sensor input. For example, you may connect a Person Infrared Sensor (PIR) to it for motion detection. When external sensor triggered, IP Camera can be programmed to send an email with picture or control the internal relay output. -
Page 11: Figure 10 Insert A Cf Card
XtendLan XL-ICA-220 manual CF Card Socket: Insert a Compact Flash Card for scheduler or sensor trigger’s images storage. Support volume is 1MByte to 2GByte. CF Card should be format as FAT16/FAT32 before inserted. Figure 10 Insert a CF Card Caution: IP Camera DO NOT allow plug/unplug CF Card when power up. -
Page 12: Functions And Features
XtendLan XL-ICA-220 manual 2 Functions and Features 2.1 Basic Functions The IP Camera and your home or business network form a powerful audio/video remote monitoring solution. Just place the IP Camera anywhere on your network, power it up, and it’s ready to be accessed by any PC on the network running web browser. The IP camera utilizes MJPEG hardware compression, brings 30fps@VGA resolution live video to you. -
Page 13: System Requirement
XtendLan XL-ICA-220 manual 3 System Requirement ● LAN: 10Base-T Ethernet / 100BaseTX Fast Ethernet ● Web Browser can support ActiveX ,such as Internet Explorer 5.0 or higher, ● Web Browser can support Java Applet, such as Firefox 1.5 ● PC – Intel Pentium III or equivalent, 1.3 GHz or above ●... -
Page 14: Setup Procedure
XtendLan XL-ICA-220 manual 4 Setup Procedure Before use IP Camera, please setup according to the following procedures. 4.1 IP Camera Power & Network Connection Plug the included Ethernet cable into the RJ-45 connector at the back of the camera as shown. -
Page 15: Router/Switch/Hub/Xdsl Modem Connection
XtendLan XL-ICA-220 manual CAUTION: Make sure to only use the power adapter supplied with your IP Camera. Using a non-approved power adapter may damage the camera. In different country or region, the power supply might different (110V/220, 50Hz/60Hz), please make sure it correspond to the tag marked on the power adapter. -
Page 16: Use Ipcamsearch Tool To Setup Ip Cameras
XtendLan XL-ICA-220 manual Note: IP Camera by default use fixed (static) IP address setting. default address :192.168.0.234, Network Mask 255.255.255.0, Gateway is 192.168.0.1 4.3 Use IPCamSearch Tool to setup IP Cameras Put the supplied CD into your CDROM, Click and run IPCamSearch Tool. -
Page 17: Figure 15 Modify Ip Camera's Ip Address
XtendLan XL-ICA-220 manual Figure 15 Modify IP Camera’s IP Address Click [OK], and then input administrator’s username and password to continue. Figure 16 Input Administrator’s Username and Password Note: By default, administrator’s username is: admin, password is: 123456 Input the correct username and password, and click [OK], then you can see a message box indicating IP Camera’s IP Address has changed(IP Camera is in static IP mode... -
Page 18: View Video On Web Browser
XtendLan XL-ICA-220 manual Note: If you don’t have IPCamSearch tools at hand, you may change your PC’s IP Address to the same segment, according to the IP shown on IP Camera’s front LCD. Then you can input IP Camera’s IP Address into IE’s address bar to access. -
Page 19: Figure 18 Login Message Box
XtendLan XL-ICA-220 manual Figure 18 Login Message box Note: By default, administrator’s username is: admin, password is: 123456 Input correct Username and password, then you can view the video. If you are using IE ActiveX mode, for the first time, you will be alert to install ActiveX control. -
Page 20: Figure 20 Security Setting For Activex Controls
XtendLan XL-ICA-220 manual You can follow this procedure to setup IE security configuration: 1. Select [Internet Options] in [Tools] menu of IE; 2. Switch to [Security] option card; 3. Select [Custom Level]; 4. Setup as the following: a) Init and Run unmarked as safety ActiveX controls: Select [Alert];... -
Page 21: Figure 21 Set Ip Camera As A Trusted Site
XtendLan XL-ICA-220 manual Type the IP of your IP Cameras Figure 21 Set IP Camera as a trusted site You maybe have to close IE and run again to make the changes take Note: effect. After ActiveX Control Installed, you will see the following. -
Page 22: Figure 23 History Images View
XtendLan XL-ICA-220 manual On the top-left of the web page is a pan/tilt control, you can click to move the camera Up/Down/Left/Right, and left-right cruise or top-down cruise, or, return to home position. On the left, you can also select the Resolution, Quality, Brightness, Contrast and Zoom. -
Page 23: Setup Ip Camera On Web
XtendLan XL-ICA-220 manual 4.5 Setup IP Camera on Web You can click [System Setup] to modify all parameters. See the Chapter 5 for details 4.6 Mounting the IP Camera The IP Camera can sit on a flat surface, such a shelf or bookcase, be mounted to a wall using the included bracket, or mounted atop a tripod stand using the standard tripod mount located on the underside of the base. -
Page 24: System Configuration
XtendLan XL-ICA-220 manual 5 System Configuration 5.1 System status This page shows status of the system for diagnose. Figure 24 System Status View - 21 -... -
Page 25: User Management
XtendLan XL-ICA-220 manual 5.2 User Management Figure 25 User Management View “User name”: Determine the username of visitor who can log in. The administrator can set up to 16 case sensitive character names. “Password”: Set up a password for the visitor account. The password must be between... -
Page 26: Network
XtendLan XL-ICA-220 manual username/password. If you unchecked this (default), the visitors have to enter at least a “Guest” permission username/password to visit the “Guest Zone”. At any time, the “User Zone” only allows “User” & “Administrator” permission to visit. ”Vilar Backbone Service Setup”: You may visit www.vipcam.cn... -
Page 27: Date And Time
XtendLan XL-ICA-220 manual 5.4 Date and Time Figure 27 Date and Time Setup View - 24 -... -
Page 28: Video
XtendLan XL-ICA-220 manual 5.5 Video Figure 28 Video Setup View 5.6 JPEG Encryption Figure 29 JPEG Encryption Setup View - 25 -... -
Page 29: Figure 30 Require Password Input In Client Web Browser
XtendLan XL-ICA-220 manual Figure 30 Require Password Input in Client Web Browser Figure 31 Input Password in Web Browser (ActiveX) Figure 32 Input Password in Web Browser (Java) Note: IF JPEG Encryption enabled, video is Only accessible by Windows XP or above... -
Page 30: E-Mail
XtendLan XL-ICA-220 manual 5.7 E-mail Figure 33 E-mail Setup View This section sets up the necessary Email server information. The administrator will have to enter a valid Account Name and Password to the Email server. This information is necessary to allow email notification features. -
Page 31: Sensors And Motion Detection
XtendLan XL-ICA-220 manual 5.9 Sensors and Motion Detection Figure 35 Sensors and Motion Detection Setup View - 28 -... -
Page 32: Scheduler Trigger
XtendLan XL-ICA-220 manual 5.10 Scheduler Trigger Figure 36 Scheduler Trigger Setup View 5.11 System Maintenance Figure 37 System Maintenance View - 29 -... -
Page 33: System Log
XtendLan XL-ICA-220 manual 5.12 System Log Figure 38 System Log View 5.13 Guest Visit Figure 39 “Guest Zone” View 6 Visit IP Camera over INTERNET IP Camera is often used in this environment: 1. In Local Area Network (LAN) only. -
Page 34: Wan Ip Address
XtendLan XL-ICA-220 manual 3. Share one INTERNET connection with other computer, and connect to INTERNET via a gateway or router. Figure 40 IP Camera’s Application Environment If your LAN is connected to the Internet through a high speed (broadband) Internet connection, you can access your cameras by web browser from anywhere on the Internet. -
Page 35: Network Address Translation (Nat)
XtendLan XL-ICA-220 manual Your WAN IP address is stored by your gateway router which uses it to connect to the Internet. All the devices on your network connect to the Internet via your gateway router. You can find your current WAN IP address by checking your router’s status page. There are also various websites such as www.whatismyip.com which will tell you the IP... -
Page 36: Port Forwarding
XtendLan XL-ICA-220 manual internal address inside your gateway router. What this means is, you can think of your router as being divided into two halves, the LAN side (inside) and the WAN side (outside or Internet side). When a connection request arrives at your router from the Internet, it will not get any farther than the WAN side unless you have specifically instructed your router to pass this type of request to a specific device on your LAN. -
Page 37: Accessing Multiple Cameras Over The Internet
XtendLan XL-ICA-220 manual Note: It may not be possible to test WAN (Internet) access to your cameras from a PC connected to the LAN. To be sure that your cameras are accessible by the Internet, you should contact someone you know with Internet access (preferable broadband) and have them enter your WAN IP address into their browser. -
Page 38: Dynamic Domain Name Service (Ddns)
XtendLan XL-ICA-220 manual Note: Some routers use port 80 for remote configuration and it’s possible to experience a conflict when using port 80 for camera access. Therefore, you should use port 81 for your first camera, port 82 for the second, etc... This setup also makes it easier to remember which camera is using a particular port number. -
Page 39: Figure 41 Typical Network Environment
XtendLan XL-ICA-220 manual INTERNET Remote PC xDSL Modem IP Sharing Device Public: 210.82.13.21 Privacy:192.168.0.1 IPCamera 192.168.0.10 192.168.0.11 192.168.0.151 Figure 41 Typical Network Environment Now, every LAN devices connect to INTERNET via NAT function provided by IP Sharing Device. However, from the point of remote PC’s view, remote PC see only an IP Sharing Device, it doesn’t know how many PCs existed inside privacy LAN. -
Page 40: Technical Parameters
XtendLan XL-ICA-220 manual 4) Click Virtual Server (Note: If you use Virtual Server mode, you must turn DMZ host function off first. DMZ Host function will disable all Virtual Server function) 5) Input the following information on page: Enabled/Disabled: Enabled... - Page 41 XtendLan XL-ICA-220 manual Consumption 5W Maximum Physical Cell ABS plastic Size D: 105 x W: 90 x H: 135 mm Temperature 0°C ~45°C Humidity 50~95% Management System Setup Web Page Upgrade Firmware upgrade by Web Other 32bit ARM@66MHz frequency. SDRAM...
