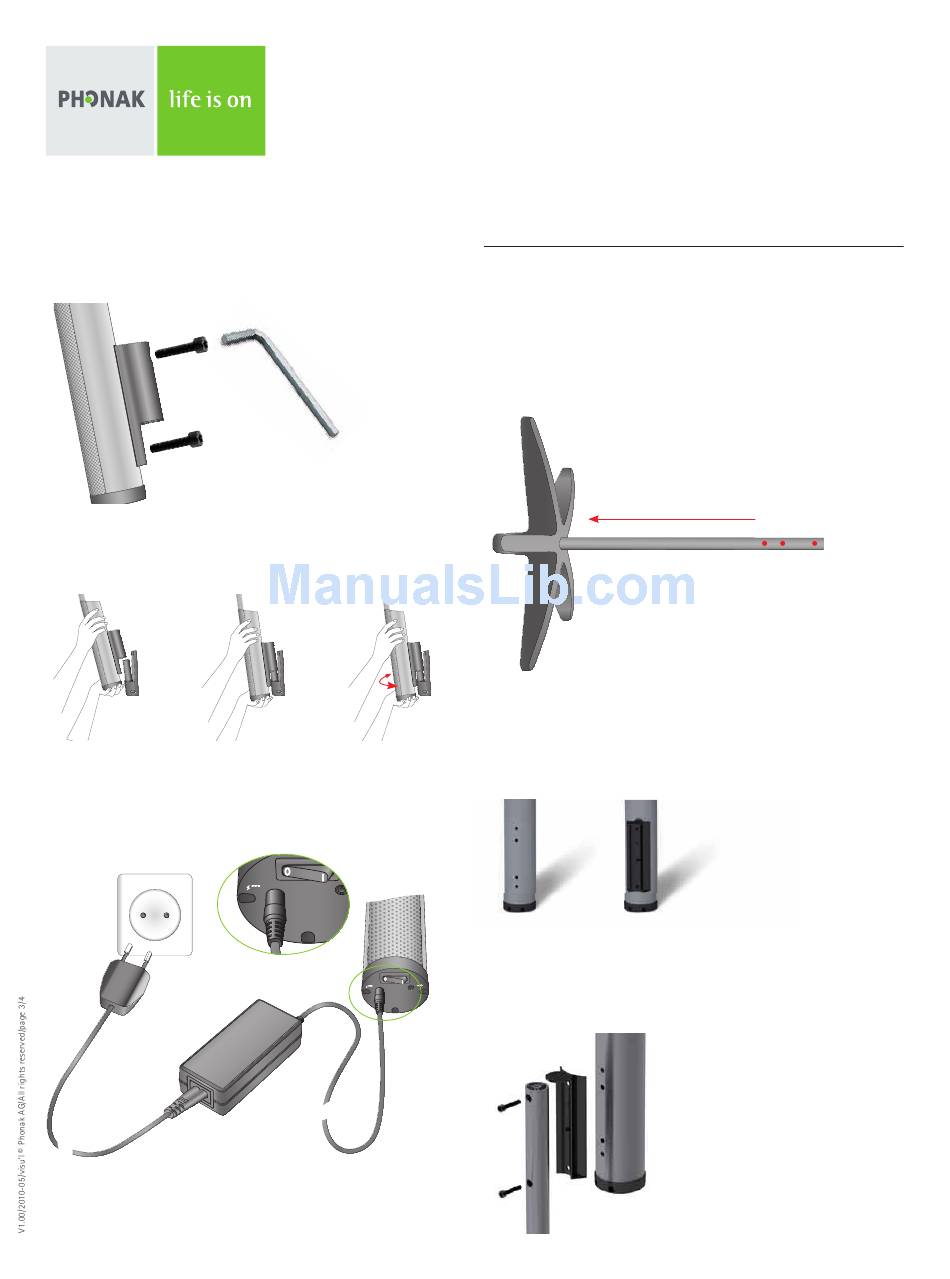

4) Mount the array fixation [C] on the DigiMaster 5000 by using the
two black hex screws [D] and hex wrench 5.
5) Carefully attach the DigiMaster 5000 [A] to the wall support and
turn it to face the center of the class.
6) Attach the power cable to the power adapter [E]. Plug the power cable
into the mains and the 19Volt jack into the socket on the bottom of
the DigiMaster 5000. Your DigiMaster 5000 is now ready to be paired
with the inspiro.
Make sure the power cable is safely positioned!
Now go directly to chapter 3: Pairing the DigiMaster 5000 with the inspiro.
3
Installation instructions
Dynamic SoundField
19V
3.2A AUDIO
19V
3.2A AUDIO
2.2 Mounting the DigiMaster 5000 on its stand
1) Take the plate [F], stand tube [I], black M8 screw and M8 washer [H].
2) Gently place the 'screw thread' end of the tube stand in the center of
the plate (see picture below). The three holes are on the upper side of
the stand. Fix the tube from the underside of the plate, using the screw
M8, washer and hex wrench 6. Place the stand on the floor.
3) Take the DigiMaster 5000 and the tube connection [G]. Hold the
tube connection behind the DigiMaster 5000, where the 4 holes are
situated. The two fingers of the tube connection should fit into the
two inner holes.
4) Take the two black hex screws [D] from the wall mount kit and push
these through the two holes in the upper part of the stand tube. Screw
the DigiMaster 5000 featuring the tube connection to the tube using
hex wrench 5.
