  • Page 2 -------------------------------------------------------------------- PACP-6100 Operator’s Manual Operator’s Manual Chart Projector...

  • Page 3: Important Notice

    POTEC reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.

  • Page 4: Table Of Contents

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual CONTENTS I ntroduction ........................ 5 O utline of product ......................5 C lassifications ........................ 5 2 .Safety Information ......................6 2 .1 I ntroduction ......................6 2 .2 S afety Symbols ....................7 2 .3 E nvironmental factors ..................
  • Page 5 PACP-6100 Operator’s Manual ----------------------------------------------------------------- 9 .Maintenance and Repair ....................21 9 .1 L amp Replacement ....................21 9 .2 F use Replacement .....................22 9 .3 R eplacement the Battery of Remote Controller ..........23 9 .4 C leaning ......................24 9 .5 D isposal ......................24...

  • Page 6: Introduction

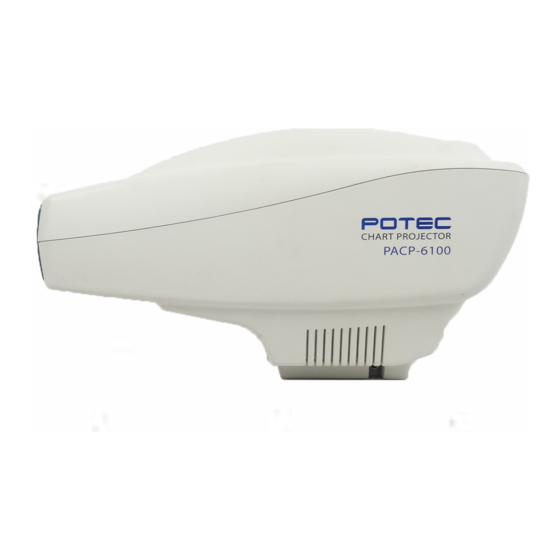

    1. Introduction Outline of product POTEC PACP-6100 is an automatic chart projector which provides 41 different charts including red/green and polarized filters for the eye optometry. Users can select the desired charts instantaneously by cordless remote controller. Charts move quickly and quietly.

  • Page 7: Safety Information

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 2.Safety Information 2.1 Introduction Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install, use, clean, service or adjust this equipment and any associated accessories.

  • Page 8: Safety Symbols

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 2.2 Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols for medical electronic equipment, which classify a connection or warn of any potential hazards. The classifications and symbols are shown below. Save these instructions I and O on the power switch represent ON and OFF respectively.

  • Page 9: Environmental Factors

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 2.3 Environmental factors Avoid the following environments for operation or storage: Where the equipment is exposed to water vapor. Don’t operate an equipment with a wet hand. Where the equipment is exposed to direct sunlight. Where the temperature changes extremely.

  • Page 10: Safety Precautions

    The equipment must be operated only by, or under direct supervision of a properly trained and qualified person. Customer maintenance of this equipment may only be performed as stated in the User’s Manual. Any additional maintenance may only be performed by POTEC service technicians or other authorized persons.
  • Page 11 PACP-6100 Operator’s Manual ----------------------------------------------------------------- The manufacturer is only responsible for effects on safety, reliability, and performance of this equipment when the following requirements are fulfilled: (1) The electrical installation in the respective room corresponds to the specifications stated in this manual and (2) This equipment is used, operated, and maintained according to this manual.

  • Page 12: Features

    34 Masks (vertical line, horizontal line, and single character) 2.5 ~ 8 m (8 ~ 26 feet) projection range Cordless Remote Control User Programmable (2 programs up to 30 charts each) Easily networked with POTEC’s Digital Refractor...

  • Page 13: Notes For Using The Instrument

    Don’t use organic solution such as alcohol, thinner, benzene, etc. to clean the surface of this instrument. It may damage the instrument. When moving the PACP-6100, always make sure the power supply is off, and then lift the bottom of the unit with both hands.

  • Page 14: Configurations

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 5.Configurations 5.1 Main Body The PACP-6100 Chart Projector is mainly composed of the body, stand, screen and remote control. [Fig. 1 Front View with Remote Control] 1. Projection lens 2. IR receiving window 3. Stand (table mount)

  • Page 15: Main Body Cont

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 5.2 Main Body cont. [Fig. 2 Bottom View] [Fig. 3 Rear View] 1. Focusing Wheel 2. Power ON/OFF LED 3. Power On/Off Switch 4. Tilting Adjustment 5. RS-232 Comm.Port 6. CAN (Controller Area Network) 7. AC Power Inlet 8.

  • Page 16: Accessories

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 5.3 Accessories [Fig.4 Accessories] 1. Screen 2. Allen wrench (5mm) 3. Power cable 4. Dust Cover 5. Batteries (2 size AA(LR6) 1.5V) 6. Polaroid glasses (Optional) 7. Red/Green glasses (Optional) 8. Fuse 9. Lamp (6V20W) 9.1 Primary Fuse (2 size 5X20mm 250V T0.63AL) (6V30W)--Optional 9.2 Secondary Fuse (F1 : 1 size 5X20mm 250V T1AL)

  • Page 17: Installation

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 6.Installation 6.1 Position of Chart Projector The single tube projector must be installed at the same distance from the screen as the patient. [Fig. 6 Installation without mirrors] Install chart projector at desired position within 2.5~8m (8~26 feet).

  • Page 18: How To Obtain Correct Letter Size And Focus (Zooming Type Only)

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 6.2 How to obtain correct Letter Size and focus (Zooming Type only) Install chart projector at desired position of 2.5~8m (8~26 feet) Measure the distance from patient to screen Refer to the test scale shown in the Appendix A Have someone hold the test scale at the screen Project the 20/400(6/120, 0.05) alphabet “C”...

  • Page 19: Input And Use Of Program

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 7.Input and Use of Program 7.1 How to input user's program Step 1. Press the “LIGHT” button once. Results: The light goes out. Step 2. Press the “PGM 1” button three times. Results: The light will come on and the chart projector will display the first chart of the default program.

  • Page 20: How To Use Your Stored Programs

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 7.2 How to use your stored programs. Step 1. Press “ PGM 1 ” or “PGM 2” to select the program of your choice. Step 2. Use the “Program ►” or “Program ◄” to scroll through your stored...

  • Page 21: Types Of Chart (Type C Is Standard)

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 8.Types of Chart (Type C is Standard) [Fig. 7 Types of Chart]...

  • Page 22: Pacp-6100 Operator's Manual

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 9.Maintenance and Repair Maintenance : There is no periodic or routine user maintenance required. 9.1 Lamp Replacement Turn off power and disconnect the power cord. Allow the projector to cool down for about 5 minutes before replacing the lamp.

  • Page 23: Fuse Replacement

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- [Fig. 8 Lamp assembly] Install the lamp securely as showen in the Fig.8 Make sure that you install it in the correct direction WARNING Turn off power and disconnect the power code. Allow the projector to cool down for about 5 minutes before replacing the lamp because the heated lamp may burn your fingers.

  • Page 24: Replacement The Battery Of Remote Controller

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual [Fig. 9 Fuse assembly] 9.3 Replacement the Battery of Remote Controller Remove the battery cover of the remote controller. Replace the batteries and the battery cover to the remote controller. NOTE Be sure to observe the polarity marks (plus + & minus - ) inside the battery compartment.

  • Page 25: Cleaning

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 9.4 Cleaning There are no cleaning requirements other than regular office housekeeping, such as dusting. 1. Wipe the cover and the screen with a dry soft cloth when they get dirty. 2. If for some reason the projector should become soiled, wipe it clean with the damp lint-free cloth and mild detergent.

  • Page 26: 0.Specifications

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 10.Specifications 41charts -34 mask, Red/green& Polarization Charts Filters Distance of projection 2.5~8m(Optional: 8m screen) Chart Rotation Speed Average 0.15 sec Chart magnification 30X (When 5m distance) Power saving Automatic Lamp Off (10 min) Program 2 programs with a maximum of 30 charts each...

  • Page 27: 1.Components List

    PACP-6100 Operator’s Manual ----------------------------------------------------------------- 11.Components List 11.1 Standard accessories 1. Remote control -1 2. Screen (400X500mm) -1 3. Table stand -1 4. Dust cover -1 5. Power cable –1 For use of equipment in rated voltage less than 125Vac,minimum 6A,Type SJT or SVT , 18/3AWG,10A, max 3.0m long : One end with Hospital Grade...

  • Page 28: 2.Service Information

    -------------------------------------------------------------------- PACP-6100 Operator’s Manual 12.Service Information How to contact service: If there are any problems with the equipment, please follow the steps below: First of all, refer to the 9. Maintenance and Repair sections according to the problem that you are encountered. And then follow the suggested sequences.
  • Page 29 PACP-6100 Operator’s Manual ----------------------------------------------------------------- If you can’t contact with your local distributor, you can directly get in touch with the service department of the POTEC using the phone number and the address written in the below table. How to Contact POTEC Co., Ltd Write us at: POTEC Co., Ltd.
  • Page 30 -------------------------------------------------------------------- PACP-6100 Operator’s Manual Appendix A Test Scale Hold this test scale at the Screen, and according to the refracting distance from the patient’s eye to the screen such as 3m, 4m, 5m or 6m position the projector backward and forward to fit the projector Alphabet 400 chart “C” with this Scale...
  • Page 31 PACP-6100 Operator’s Manual -----------------------------------------------------------------...
  • Page 32 -------------------------------------------------------------------- PACP-6100 Operator’s Manual...
  • Page 33 PACP-6100 Operator’s Manual -----------------------------------------------------------------...
