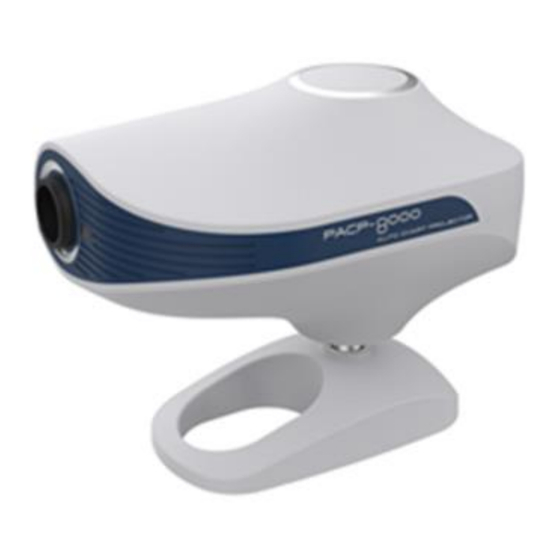

- Page 1 Operation Manual ㅋ Auto Chart Projector PACP-8000 www.potec.biz Before use, read this manual carefully.
-
Page 3: Important Notice
POTEC as repairable by service personnel. POTEC reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes ©... -
Page 4: Safety Information
SAFETY INFORMATION Accessory equipment connected to the analog and digital interfaces must be certificated according to the respective IEC standards (e.g. IEC 60950-1 for data processing equipment and IEC 60601-1 for medical equipment). Furthermore all configurations shall comply with the system standard EN 60601-1:2006, Clause 16. - Page 5 Symbols marked on the Instrument Symbol Description Alternating current Protective earth (ground) Caution I and O on the power switch represent ON and OFF respectively Manufacturer Authorized representative in the European Community Serial Number Medical Device Year of manufacture Refer to instruction manual/ booklet (ISO 7010-M002) Disposal of your old appliance ⚫...
- Page 6 Fragile, handle with care Do not build up more than 4 boxes Do not use hand-hooks 70℃ Temperature between - 40℃~ 70℃ -40℃ Humidity between 10%RH ~ 95%RH Air pressure between 50kPa ~ 106kPa General Safety Information “WARNING” or “CAUTION” on the label warning of the following is spectacular, in this booklet, please follow the safety instructions.
- Page 7 CAUTION used as isolation places. Do not place the multiple socket-outlet for PACP-8000 system on the CAUTION floor in order to prevent liquid penetration and damage to the product. PACP-8000 system shall not be connected with additional multiple...
- Page 8 SAFETY INFORMATION - Accessory equipment connected to the analog and digital interfaces must be certificated according to the respective IEC standards (e.g. IEC 60950-1 for data processing equipment and IEC 60601-1 for medical equipment). Furthermore all configurations shall comply with the system standard EN 60601-1:2006, Clause 16. Everybody NOTE who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore responsible that the...
-
Page 9: Table Of Contents
Table of Contents IMPORTANT NOTICE ......................１ S A FE T Y I NFO R MATI O N ....................２ Table of Contents ........................７ Introduction ........................９ 1.1. Intended Use ........................９ 1.2. Classifications ........................９ 1.3. Label ............................ ９ Features ........................ - Page 10 9.4. R Type ..........................２７ Maintenance ........................ ２８ Fuse Replacement ......................２８ 10.1. Replacement the Battery of Remote Controller .............. ２８ 10.2. Cleaning ........................２８ 10.3. Service Information ......................２９ 10.4. Specifications ....................... ３０ Components ........................ ３１ EMC (ELECTROMAGNETIC COMPATIBILITY) ............３２ ８...
-
Page 11: Introduction
1. Introduction 1.1. Intended Use This device (PACP-8000) measures the refractive power of the human eye, i.e. measuring visual acuity. This device operated by qualified personnel with sufficient training or under NOTE such personnel’s supervision. 1.2. Classifications ⚫ Classification of equipment: Class I / Rule 13 (MDR, Annex VIII) ⚫... -
Page 12: Features
⚫ Don’t use organic solution such as alcohol, thinner, benzene, etc. to clean the surface of this instrument. It may damage the instrument. ⚫ If you leave the PACP-8000 without using it for long periods, disconnect the power supply and protect the unit with dust cover. -
Page 13: Configurations
4. Configurations 4.1. Body Name Function 1. Projection Lens Chart is the image projection lens Display chart to receive the infrared windows from remote 2. IR Receive window controller 3. Lamp The lamp and turned off the motor rotation 4. Stand Holds the console support 5. -
Page 14: Remote Control
4.2. Remote control Button name 1. Remote control transmitter 2. Landolt “C” chart 3. Letters chart 4. Number chart 5. Tumbling “E” Chart 6. Children chart 7. Function chart 8. Red / Green filter 9. Program 10. Lamp On/Off 11. Visual acuity selection 12. -
Page 15: Installation
5.1.2. How to mount on the TABLE STAND. (1) Place the TABLE STAND on a flat surface. (2) Turn the Adjust-Mbolt fully counterclockwise at the bottom of PACP-8000. Use a 5mm hex wrench. (3) Assemble the lower part of the main unit to the HOLDER of the TABLE STAND. - Page 16 (1) Install the HOLDER on the projector pole. (2) Turn the Adjust-Mbolt fully counterclockwise at the bottom of PACP-8000. Use a 5mm hex wrench (3) place the PACP-8000 on the holder of projector pole (4) Turn ADJUST-MBOLT clockwise to fix PACP- 8000 on projector pole.
- Page 17 Pressure : 800 ~ 1060 hPa 5.1.5. Storage after use (1) When the PACP-8000 is not used for a long time, please turn off the power and disconnect the power cord from the power outlet. (2) Clean with soft cloth.
-
Page 18: Position Of Chart Projector
5.2. Position of Chart Projector ⚫ Set up chart project after due consideration indoor space, because it can be adjust reflection distance in 2.5m~8m range ⚫ Can set up like as follows, and it needs high quality mirror １６... -
Page 19: Screen Position
5.3. Screen Position ⚫ Set the screen after due consideration patient and indoor space. ⚫ This screen is specially coated for image that chart projector reflect. 5.4. How to correct projection ⚫ Install chart projector at desired position of 2.5~8m (8~26 feet) ⚫... -
Page 20: Chart And Mask Function
6. Chart and Mask Function 6.1. Chart selection ⚫ Press the VA chart button on the remote controller (Landolt, Letters, Number, Tumbling “E”, Children) [Mask button on the remote controller] 6.2. Vertical Mask ⚫ When the VA chart is presented, press the Mask Left or Mast Right button. ⚫... -
Page 21: Horizontal Mask
6.3. Horizontal Mask ⚫ When the VA chart is presented, press the Mask Up or Mast Down button. When the VA chart is presented, press the Horizontal Mask button. ⚫ While the Horizontal Mask is presented Mask_Up button: To move to the up row Mask_Down button: To move to the down row Horizontal Mask button: Return to the original chart... -
Page 22: Single Mask
6.4. Single Mask ⚫ When the VA chart is presented, press the Single Mask button. ⚫ While the Single Mask is presented Mask_Right button: To move to the right column Mask_Left button: To move to the left column Mask_Up button: To move to the up column Mask_Down button: To move to the down column... -
Page 23: Input And Use Of Program
7. Input and Use of Program 7.1. How to input user's program How to input user's program 1 ⚫ When you press “LIGHT” button one time, the lamp will be turn off with "Beep, Beep" sound. ⚫ When you press “PGM1” button one time, the lamp is on with "Beep, Beep" sound and “C”... -
Page 24: Change The Channel Of Remote Controller
8. Change the channel of remote controller ③ ⑥ ① ② ⑤ ④ 8.1. Basic Setup ⚫ There is “A~E” channels on the remote control and on the time of delivery, the entire channel is set on channel “A” 8.2. The method to check a channel between the remote control and a machine ⚫... - Page 25 8.2.1. The method to change a channel of remote control and channel of a machine at the same time ⚫ For your reference, in case a channel of a remote control and a machine is connected, you can follow this step. ⚫...
-
Page 26: Types Of Chart
9. Types of Chart 9.1. A Type ２４... -
Page 27: C Type
9.2. C Type ２５... -
Page 28: D Type
9.3. D Type ２６... -
Page 29: R Type
9.4. R Type ２７... -
Page 30: Maintenance
10. Maintenance 10.1. Fuse Replacement ⚫ Turn off power, and disconnect the power cord. ⚫ Pull out the plastic cover at the lower part of power socket, to replace the fuse. ⚫ Pull out the fuse from the fuse holder ⚫... -
Page 31: Service Information
Note : SN(C8JE15AA) is just an example. If you can’t contact with your local distributor, you can directly get in touch with the ⚫ service department of the POTEC using the phone number and the address written in the below table. Manufacturer: POTEC Co., Ltd. -
Page 32: Specifications
11. Specifications Charts 42Charts Distance of projection 2.5~8m (optional, 8m screen Buy Specifications) Chart magnification 30x (When projected at 5m distance) Lamp LED Lamp Chart Rotation Speed Average 0.2sec Power Save 11 minutes (after last signal) 20 degrees Tilt angle Resolution 50 lines / mm Program... -
Page 33: Components
12. Components Product Body (PACP-8000) ---------------------------------------------------------------------------------- Screen ------------------------------------------------------------------------------------------------------------- Remote Controller ---------------------------------------------------------------------------------------------- Table Stand ------------------------------------------------------------------------------------------------------- 1 Dust Cover -------------------------------------------------------------------------------------------------------- 1 Power Cable ------------------------------------------------------------------------------------------------------ 1 Wrench ------------------------------------------------------------------------------------------------------------ Battery ------------------------------------------------------------------------------------------------------------- Optional accessories Red/Green glasses --------------------------------------------------------------------------------------------- 1 Polarization glasses -------------------------------------------------------------------------------------------- 1 ３１... -
Page 34: Emc (Electromagnetic Compatibility)
13. EMC (ELECTROMAGNETIC COMPATIBILITY) The PACP-8000 complies whit these standards as tabled below. Follow the guidance on the tables for use of the device in the electromagnetic environment. PACP-8000 is suitable for the home healthcare environment. Requirement Test Reference Application point...
