Botech BC 9700 User Manual

Bc-9700 series digital satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Botech BC-9700 SERIES
Digital Satellite Receiver
BC 9700
BC 9700 X
BC 9700 USB
BC 9700 XUSB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC 9700 and is the answer not in the manual?

Questions and answers

Related Manuals for Botech BC 9700

Summary of Contents for Botech BC 9700

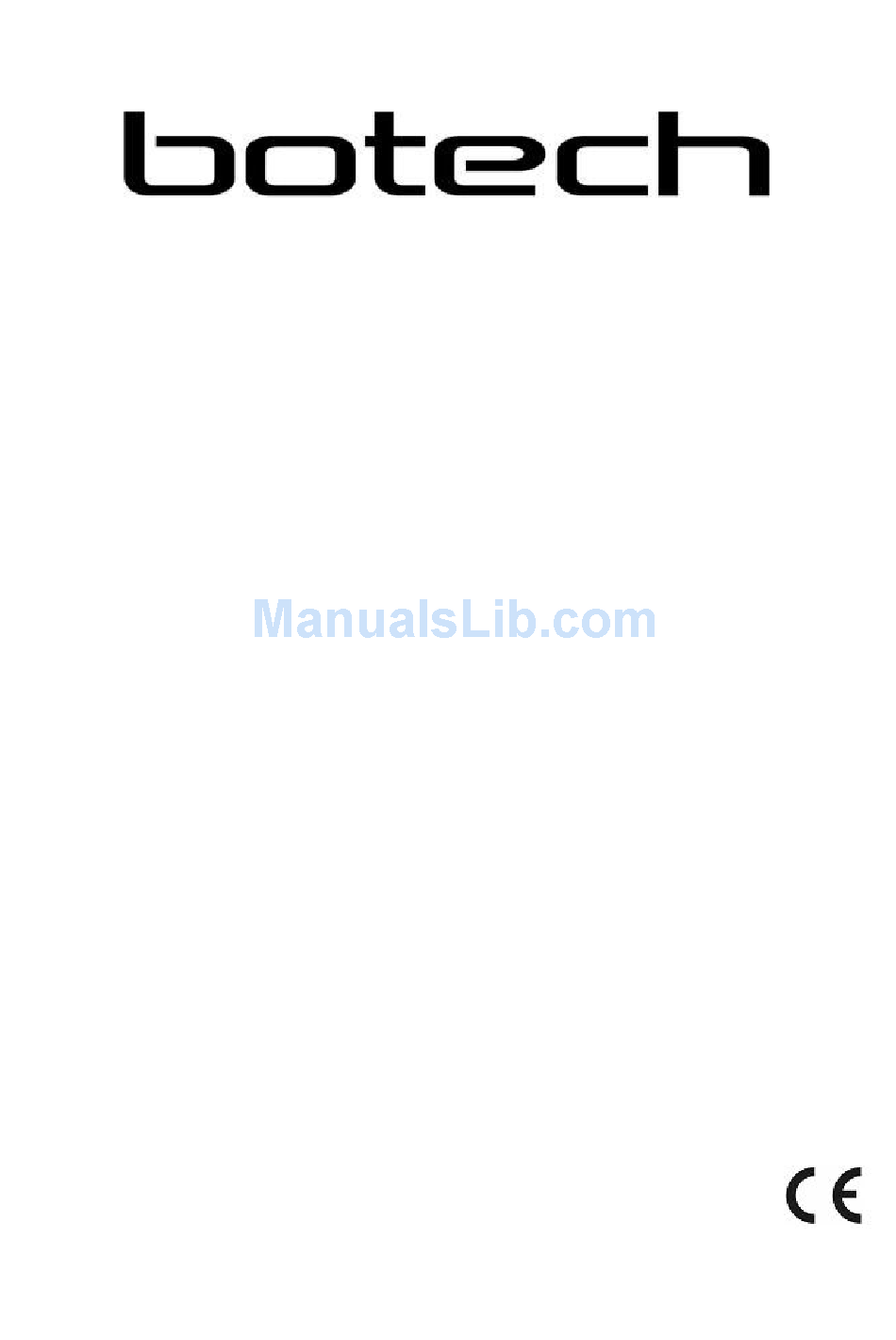

  • Page 1 User Manual Botech BC-9700 SERIES Digital Satellite Receiver BC 9700 BC 9700 X BC 9700 USB BC 9700 XUSB...

  • Page 2: Table Of Contents

    Table of Contents ■ SAFETY PRECAUTION ■ GLOSSARY ■ CONTENTS ■ MAIN FEATURES ■ FRONT / REAR PANELS - Front panel figure - Rear panel figure ■ REMOTE CONTROL UNIT ■ SET TOP BOX CONNECTION ■ GUIDE of FUNCTIONS ■ OPERATION of MAIN MENU I.

  • Page 3: Safety Precaution

    SAFETY PRECAUTION PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS CAREFULLY.: MAIN POWER SUPPLY: ~AC 95-250V, 50/60Hz, Max 30W, SMPS OVER-LOADING: Do not overload wall outlets, extension cords or adapters as these can result in fire or electric shock. LIQUIDS: Keep liquids away from the STB due to risk of electric shock and malfunctioning of the STB. SMALL OBJECTS: Coins or other small objects must be kept away from the STB as they can fall through the ventilation slots of the STB and cause serious damage.

  • Page 4: Glossary

    GLOSSARY ■ GLOSSARY STB- Set Top Box TP – Transponder RCU – Remote Control Unit Ethernet (10/100base-T) Network connection used in the STB to access the Internet:...

  • Page 5: Contents

    Please check and ensure that the following items are included within this product. CONTENTS SET TOP BOX REMOTE CONTROL UNIT POWER CABLE BATTERIES for RCU (size AAA) USER'S MANUAL MAIN FEATURES · Ethernet Communication Port ( For 9700 X and 9700 XUSB models ) ·...

  • Page 6: Front / Rear Panels

    FRONT / REAR PANELS ■ Front Panel 1. Power ON / Standby mode 2. Menu 3. Exit button 4. . Volume▼/▲ button 5. OK button 6. Channel ▼/▲ button 7. Front numeric display (LED) 8. Remote IR sensor ■ Rear Panel 1.

  • Page 7: Remote Control Unit

    REMOTE CONTROL UNIT 1. POWER : Standby / On 2. MUTE : Audio mute On/Off 3. SIGNAL : To view signal strength bar 4. COLOR : PAL/ NTSC/ AUTO Selection 5. NUMERIC Keys (1~0) : Numeric input 6. FAV : To see Favorite channel list 7.

  • Page 8: Set Top Box Connection

    SET TOP BOX CONNECTION ■ CONNECTIONS A. Turn off the main power supply of the STB before connecting or disconnecting the LNB. Connect the TV's RF antenna connector to the ANT IN socket of the STB. B. RF Connection: a. Connect the RF cable from the TV OUT socket of the STB to the RF IN socket on the VCR.
  • Page 9 NOTICE : If you are not a very skilled user, it is important that you carefully read this operating manual to get used to some of the essential technical settings required. First, press the POWER button to turn on the STB from the Standby mode. Then, the Information Box will appear for a short time and disappear.

  • Page 10: Guide Of Functions

    GUIDE OF FUNCTIONS ■ USEFUL TIPS Information Box Zoom Function(1) Zoom Function(2) Teletext CH List Powerful EPG Game Audio Radio Mode Information Box: While viewing the channel, press ⓘ button of the RCU once, then the information of the current channel (channel number, name, associated satellite, time and etc.) will appear.
  • Page 11 the program information and its running time. When you press this button for the third time, you will see the Encryption type of current channel. Zoom function : Press the Green color key to open the menu. You are able to zoom in the normal size of screen up to x2.
  • Page 12 · Audio selection menu (by AUDIO key) : You can choose the audio language of the channel, by pressing AUDIO key of the RCU when a current program supports the various soundtrack. First, you can choose the STEREO, LEFT and RIGHT by using ◀/▶ keys. And use ▼/▲...

  • Page 13: Operation Of Main Menu

    OPERATION OF MAIN MENU I. CHANNEL ORGANIZE A. TV / Radio channel edit In this menu you can edit the TV/Radio channels in various ways. To edit the Radio channels, press TV/Radio button to change to Radio CH edit mode. Use ◀/▶ keys to select the desired edit mode and press OK button.

  • Page 14: Installation

    DELETE : Select the channels which you want to be deleted and press OK key. And you will see the delete marking' indicated next to the channel names. The selected channels will be deleted when you exit the channel edit menu. Deleting is different from skipping function as it removes the channel completely and permanently from the memory of the STB.
  • Page 15 LNB Frequency : Press OK button to see the frequency list given and select the proper frequency according to the current LNB being used for the selected satellite. You can also enter the frequency by using the numeric keys of RCU. DiSEqC 1.0 selection : Press OK key to display the list and choose the proper selection for your DiSEqC switch.
  • Page 16 B. LNB Setting In this menu, you are asked to set the proper conditions for LNB and other switches such as DiSEqC, 0/12V, and 22KHz tone. Especially if you want to perform a multi- satellite search, it is required that you complete the settings for corresponding satellites in this menu.
  • Page 17 Use the RED / GREEN / YELLOW / BLUE keys of the RCU to directly access the followings from this menu ; RED key : Channel search menu GREEN key : SAT/TP Edit menu YELLOW key : DiSEqC Positioner menu BLUE key : Save or Add Satellite C.
  • Page 18 Satellite Name : Select a satellite which includes the transponders you wish to edit (Add/Delete). Transponder : Select a transponder which you want to edit, and you will be able to edit its Frequency, Symbol Rate and a Polarization. If you want to ADD a new TP for the selected satellite, choose the 'NEW TP' from the end of the given transponder list.
  • Page 19 D. DiSEqC Positioner ■ DiSEqC Motor If you have a DiSEqC 1.2 motorized system, you can use this DiSEqC 1.2 positioner functions. l Satellite Name : A selection of this satellite names will be used to identify a motor antenna position. Mode : Choose 'DiSEqC Motor' to use this motorized system.

  • Page 20: System Setting

    ■ USALS In order to use this USALS function, you need to have the Rotor installed to your Dish mount Select the desired satellite which you wish to preform the search, then the Sat Longitude will be automatically changed. Now, just put in the numeric data for your Longitude and Latitude of your Dish location. And wait for a short time, until the Dish automatically finds the desired satellite.
  • Page 21 B. A/V Output Setting Choose the TV type between PAL/NTSC/AUTO and if you have the TV supporting RGB, select RGB mode to get the best picture quality. Also, if you have a TV which supports the 16:9 format, choose the Letter Box. AUX mode is provided for a case when you connect the other IRD to a VCR scart of this STB, choose the IRD to view the video of the other IRD connected.

  • Page 22: Usb Pvr

    E. Parental control In this menu you can set the Locking status of several menus which will prohibit the accessing of those menus from the unwanted person (ex. Your children). And you can also set the desired age rating for channel accessing here. If you wish to change the password, input the current PIN then new PIN, and verify to complete.
  • Page 23 Playback a. PLAY / LIST : Press [PLAY / LIST] button to display the PVR LIST. Select the recorded channel at the list to b. Forward / Backward: Press [ forward / backward] button for moving playback position. With pressing again and again, you can go forward or backward as you like. c.
  • Page 24 want to listen and press [ ] button to play the selected files. If you press [MP3] button again, a small screen which only shows the title of a song will appear. If you want to listen to other music, repeat the above process.

  • Page 25: Network

    V. NETWORK (FOR 9700 X & 9700 XUSB) · Network Address Setting For network applications, the STB should be set network addresses. Please follow the steps for setting network address; Step 1. Connect Ethernet(i.e., LAN cable) to the STB Step 2. Enter the Network Address Setting menu of Main MENU Step 3.
  • Page 26 DHCP Method – Recommended (Use for generic network applications) In this method, a user obtains the IP address of STB from DHCP server (i.e., ADSL router or HUB which has a IP sharing function). Thus, select the DHCP and some of terms required network address would be not highlighted as below.

  • Page 27: Connection Diagram(Dish)

    CONNECTION DIAGRAM(DISH) 1) One Dish 2) 2 dishes 5) 8 dishes and DiSEqC switches...
  • Page 28 SPECIFICATION STB Specifications Specification Description Power ~AC 95 - 250V SMPS Input Frequency 950~2150 MHz Data Transfer RS-232C, Male type, 115Kbps SCART 2 SCART for TV / VCR A/V Out Video, Audio (left / right) LNB Power 13 / 18 volt (500mA Max) Modulation &...

  • Page 29: Specification

    Inner FEC FEC Rates : 1/2, 2/3, 3/4, 5/6, 7/8 (DVB specification) Outer FEC Input Symbol Rate Input Symbol Rate 2 ~ 45M symbols/sec IF Bandwidth 27MHz Connector Type F type (IEC 169-24 female) IV. MEPG Audio Specification Description Operation mode Stereo and Left/Right (Mono) Sampling Rates 32, 44.1 and 48KHz...
  • Page 30 VIII.Power Supply Specification Description Input Voltage ~AC 95 - 250V, 50/60Hz Type SMPS Power Consumption Max. 30 Watt Standby Power 10 Watt Power protection Internal fuse IX. Others Specification Description Physical figure (W x H x D) 340 x 60 x 252mm Weight (net) Approx.
