TABLE OF CONTENTS Notice Safety Information 1 Before You Begin 1.1 Features 1.2 Accessories 2 Controls and Functions 2.1 Front Panel 2.2 Rear Panel 2.3 Remote Control Unit 3. Connections 3.1 Connecting to TV 3.2 Connecting to Dish 4. Menu Overview 4.1 Menu Instruction 4.2 Menu Help 4.3 Menu Structure...
Page 4
6. Viewing General Information 6.1 Banner Information 6.2 TV & Radio changing 6.3 TV or Radio Channel Lists 6.4 Option 6.5 A/V+ 6.6 Fav 6.7 A-Z 6.8 EPG Additional Information 1.1 Programming the Remote Control to Operate Other Devices 1.2 Key Table 1.3 Brand List A.1 Troubleshooting A.2 Technical Specifications...
Notice Read this manual carefully and make sure you understand the provided instructions. For your safety, check what the result each action will be. Warnings, Cautions and Notes Throughout he whole manual, pay special attention to the following marks that indicate hazardous situations.
Safety Information This digital satellite receiver has been manufactured to comply with international safety standards. Please read the following safety precautions carefully. Safety Instructions and Precautions Avoid placing heavy things and blocking ventilation passage. (Passage blocking can cause fire) Avoid scrubbing the surface with Benzene or Volatile gasoline. Color can be damaged.
Page 7
Keep away from the water. Clear off the dust. Dust or Metallic particles inside the set can cause fire and electric shock. Avoid dissembling and assembling. Do not open the set. Do not snatch the cable to plug out. Do not move the set while power cord is plugged in. Keep the distance from Magnetic items and Audio Speaker.
1 Before You Begin 1.1 Features · Brilliant On Screen Graphic · MPEG-2 & MPEG-4 Fully DVB Compliant · MPEG-2 Video (MP@ML), MPEG-1 Audio Layer1,Layer2 · LNB Controlling Logic · SCPC/MCPC Receivable from C / Ku-Band Satellites · Digital Tuner with Loop-through ·...

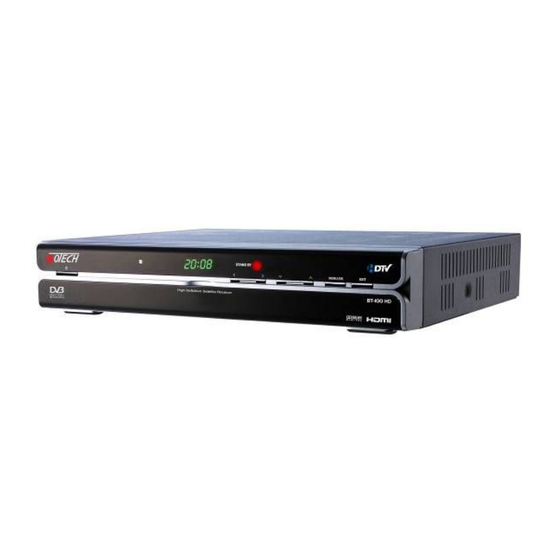

2 Controls and Functions 2.1 Front Panel Item Description 1. Power Button Turns the receiver On/Off. 2 Menu/OK Button Shows the Main menu in viewing mode. Activates the highlighted menu item in menu mode. 3. EXIT Button Exit from the current menu or cancels the current progressing operation if applicable.
Item Description 1. HDMI Connect HDMI input of TV or PC monitor. 2. S/PDIF Output for connection to a digital amplifier. 3. CVBS OUT Using standard video cables, these jacks connect CVBS(Yellow). Stereo Audio OUT Using standard stereo audio cables, these jacks connect L/R(White, Red).
Page 12
EXIT Removes all on-screen displays and returns to TV viewing from any menu. Moves left/right or change settings in menu mode. ( / ) Changes channels in viewing mode. Moves up/down in menu mode. ▲/▼ ( Confirms the choices and/or selections the highlighted menu item. While watching TV or listening to Radio, press the button and the channel list will appear.
3. Connections 3.1 Connecting to TV <Connecting digital which support resolution (1080i,720p480p&480i) using YPbPr port> Connect STB’s YPbPr OUT and audio L/R OUT to YPbPr IN and audio L/R IN of TV. Set STB’s video output mode to 1080i or 720p or 480p using ‘FUNC’ key of remote controller. Please check TV’s user manual for detail connecting method of the YPbPr input port.
Page 14
<Receiver to TV and VCR with SCART Cables > Connect the Video and Audio of TV to the Video and Audio. Connect Red and White connector to Audio R and Audio L, and Yellow to Video port respectively. Connect the TV SCART of TV to lower SCART connector with fully featured SCART cable. Connect the VCR SCART of VCR to upper SCART connector with fully featured SCART cable.
Page 15
<Connecting to PC monitor or digital TV which has HDMI input port> Connect STB’s HDMI OUT to HDMI IN of monitor or TV. Set STB’s video output mode to 1080i or 720p or 480p using ‘FUNC’ key of remote controller. For the best access to HD programming at the highest available resolution, use this connection method.
Page 16
<Connecting to A/V receiver (Dolby digital amplifier)> Connect STB’s optical digital audio out to A/V receiver. Go to TV Output menu and set “Dolby Digital(DD)” to enable.
3.2 Connecting to Dish <Dish> Connect the Satellite antenna cable to DISH IN. <Fixed Dishes Using a DiSEqC switch> Connect the output of DiSEqC 1.0 to DISH IN of the receiver.
Page 18
<Motorized Dish Using DiSEqC 1.2> Connect the output of DiSEqC 1.2 to DISH IN of the receiver.
4. Menu Overview 4.1 Menu Instruction Press the MENU button to display the main menu. You can select the sub menu using the ▲/ ▼ / / button. The selected sub menu becomes highlighted. When you have selected the sub menu you want, press the button.
4.3 Menu Structure In the menu, short information is displayed at the bottom of the screen. Installation Dish : Select the dish and LNB settings for channel search. Auto Scan : Search the whole channel automatically without inputting the special parameters. Manual Scan : Search the channel manually with user's inputting parameters.
5. Menu Operation 5.1 First Installation You can install the receiver using First Installation for your convenience. ‘First Installation' allow you to set your receiver using simple procedure. Select the desired language using the ▲/ ▼ button. Press the button to confirm and go to the next step.
Page 22
If you use a DiSEqC 1.0 switch, select DiSEqC option using the ▲/ ▼ button. Press the button to confirm and go to the next step. After all settings are done. press the button to start scanning. If you want to know more detail description about each procedure, please refer to the following installation part in 5.2.
5.2 Installation 5.2.1 Dish Press the Menu button to display the main menu. Press the button on the sub menu. The password pop-up window appears. All sub menus such as Dish, Auto Scan, Manual Scan, and Transponder Edit on the Installation are locked by password.
Page 24
If you select one of the alternative satellite names, the transponder list is changed automatically according to the selected satellite name. Select one of the LNB Power types using the / button. You can select LNB Power value as 13/18V normally or if the distance between antenna and receiver is further than 60m, you can select LNB Power value as 14/19V.
Select Switch Type. If you use a DiSEqC 1.2 motor, select the Motor on the Switch Type. Change position of your Motor through the Option. DiSEqC 1.2 Options · Move West-East : Press the / button to move the motor. ·...
Press the / button, select scan option using ▲/ ▼ button, and press the button. If you want to scan the satellite move to "Start Scan" and press button. Select Free+CAS or CAS using the ▲/ ▼ / / button. Press the Opt button, CAS Pop-up window will appear.
Dish : The target satellite for the manual scan. Frequency : The frequency of the transponder you want to find manually. Polarity : The polarity of the transponder you want to find. Symbol Rate : The symbol rate of the transponder you want to find. Modulation : The selection of modulation(DVB-S QPSK, DVB-S2 QPSK and DVB-S2 8PSK) Pilot : The DVB-S2 parameter (DVB-S2 modulation mode only) Code Rate : The code rate of the transponder you want to find.
Downloaded) If you press the button, the current changing state will be saved and exit. 5.3 System Setting 5.3.1 A/V Output Setting Select the TV output options using the ▲/ ▼ / / button. If you press the button, the changed state will be saved and exit.
If you press the button, current changing state will be saved and exit. · Time Mode (TDT, USER). TDT : Receive the time from broadcaster. USER : Set the time directly by user. · Offset : Set the time difference between GMT and the local time. ·...
5.3.5 OSD Setting Select the options using the ▲/ ▼ / / button. If you press the button, current changing state will be saved and exit. · Banner display time : Banner will disappear after setting time passed.(1~9). · Screen Saver : Screen Saver is a function to protect your TV in case Radio status or in Menu. (Disable, 5, 10, 20, 30, 60, 120 Minutes) ·...
Page 31
Press the Opt button to edit the reserved channel. And then use the ▲/ ▼ / / button to the detail setting for your reservation. To add more, press the A/V+ button. Press the Fav button to delete the reservation. After all settings are done, press the button to save and exit.
· : Radio channel(FTA, CI) · : Radio channel(PVR only) · : TV channel(FTA, CI) · : TV channel(PVR only) 5.4.3 Delete You can delete channels. You can select not only Mode such as Channel and Favorite, but also Option such as TV, Radio and etc. Select the Mode and Option you want to delete channels using the ▲/ ▼...
5.5.2 Channel Upload Connect the receiver with other receiver or PC through RS-232 cable. For the target receiver, turn the AC Power off, then turn on again. You can watch the transfer status of software. 5.5.3 S/W Upload Connect the receiver with other receiver or PC through RS-232 cable.
Audio Language Lock Scramble Dolby Channel Number Parentel Control and Name Density (HD/SD) TV Type Stream Resolution (TV and Radio) Current Event Name Event Progress Bar Satellite or Group Signal Strength Bar Name Signal Quality Bar Subtitle Teletex Whenever you press the INFO button, the banner information window appears for a few seconds.
6.3 TV or Radio Channel Lists TV Type Group or ( TV or Radio) Satellite Name Group Status Channel Parameters Provider Name View Delete Move Rename Lock Group Sorting 6.3.1 Watching Mode While watching TV or listening to Radio, you can watch the channel list. Press the button to display the channel list.
Page 36
Press the button or A-Z button. If you want to view the sorted channel list, press the A-Z button. Press the ▲/ ▼ button to move the cursor. Press the button to watch the desired channel. If you want to hide the channel list, press the button.
will appear. You can select the Alphabet using the numeric key(1-9)/ ▲/ ▼ / / button. Press the button. If the selected channel by user input-letter not exists, there will be any change. 6.3.2 Delete Mode Select the Delete Icon using the Opt button. Select channel you want to delete using the ▲/ ▼...
Page 38
name using the ▲/ ▼ / / button and the button. After renaming is done, select Done tab and then press the button. Press the EXIT button to exit. You can change the Favorite group name. Select the desired group. Change the name of group according to above procedures.
favorite channel list. Press the button, and then a small favorite Window will appear on the right side of the screen. Choose the group number using the ▲/ ▼ button and press the button. To cancel it, just press the button again.
6.4.2 Sub-Title Select the 'SubTitle' using the / button. Press the ▲/ ▼ button to select enable. Press the button. You can watch the Subtitle contents in the language if it is available. 6.4.3 Teleteks Select the 'SubTitle' using the / button. Press the ▲/ ▼...
your TV. Press the button to save and exit. 6.6 Fav While watching TV or listening to Radio, press the Fav button. You can watch small pop-up window. You can select a Favorite group. 6.6.1 Satellite Select the 'Satellite' using the / button. Press the ▲/ ▼...
6.8 EPG Press the EPG button and the electronic channel guide appears if applicable. Time intervals are arranged in a row and Channel lists are shown in a column. 6.8.1 EPG Information Press the / button to change time interval. Press the ▲/ ▼...
Audio muting Press the MUTE button TV Power Turn TV on. No picture. The receiver can’t receive the Check the antenna cable, replace the signal. cable, or connect the cable to the receiver tightly. Incorrect values of some tuner Set the values of tuner parameters parameters.
3. Connector Port Specifications LNB IF input F type, IEC 169-24 Female LNB IF Loop-through Output F type, IEC 169-24 Female S-VHS Y, C Stereo,CVBS Component Y,Pb,Pr SPDIF Fiber-Optic connection(Digital Audio Output) Serial Port RS232C D-sub male type 4. Power Supply Parameter Specifications Input Voltage...
Glossary of Terms DiSEqC Digital Satellite Equipment Control. Electronic Program Guide. Software that enables viewers to navigate easily among the large selection of channels provided by the digital technology and choose the service they desire. Forward Error Correction. Correction of faulty bits in the received signal. LNB(Low-Noise Block converter) The LNB is an electronic unit mounted on the satellite dish.
Page 47
Scrambled satellite TV programme Some satellite TV programmes are transmitted in scrambled form. A smartcard, and possibly a CA module is needed to view such programmes. Symbol rate Size of the digital package transmissi...
