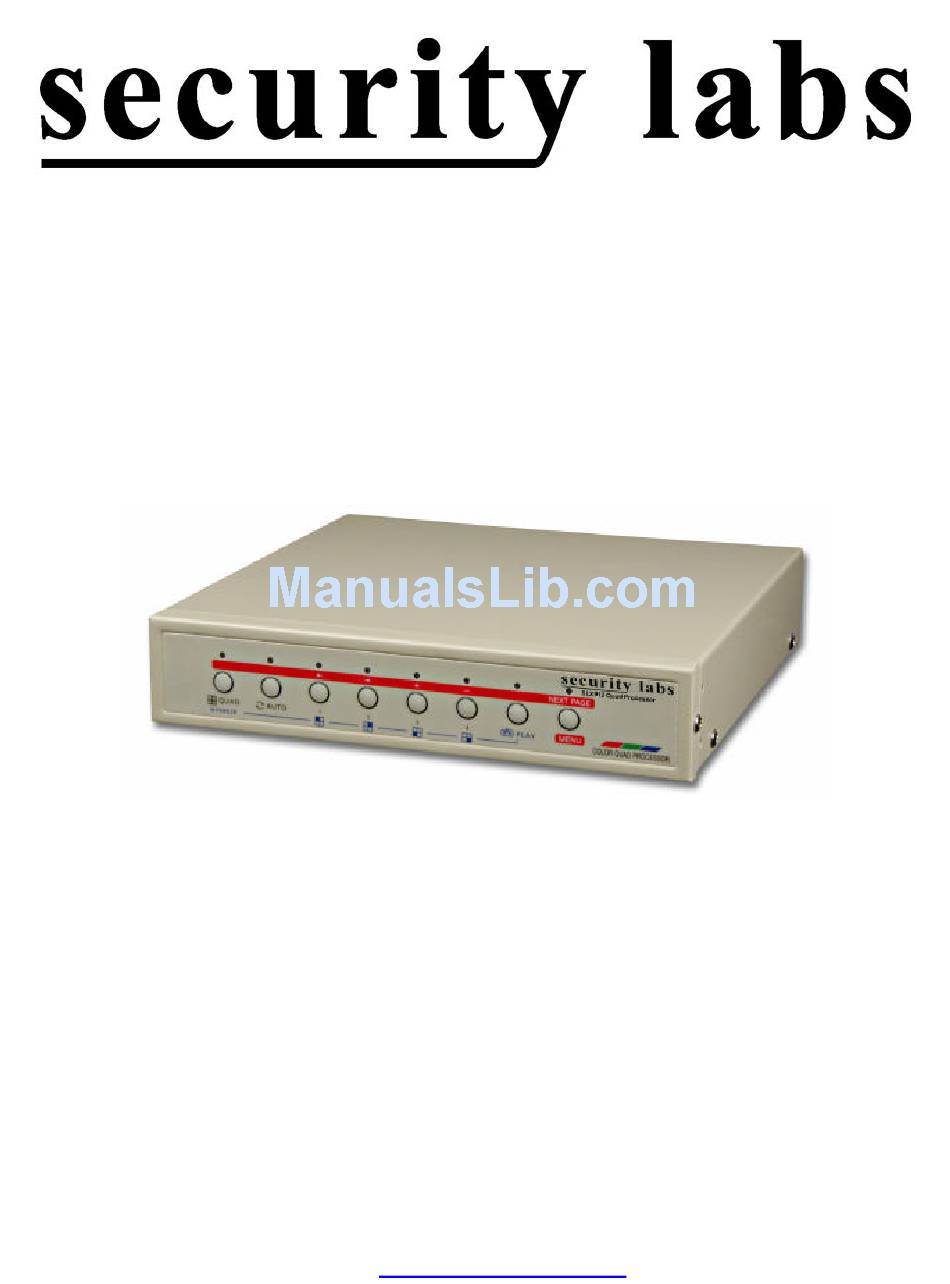

- Page 1 Real-Time Color Quad Processor Model SLX912 Owner’s Manual 15540 Herriman Blvd. Noblesville, IN 46060 - Customer Support 1-800-774-0284 www.security-labs.com...
-
Page 2: Table Of Contents
Version: 1.0 DMS/MBR CONTENTS 1. INTRODUCTION AND FEATURES ..........................3 1.1 Product Introduction................................ 3 1.2 Product Features ................................3 2. INSTALLATION................................... 4 2.1 System Installation Diagram............................4 2.2 Installation Procedures ..............................4 2.3 Illustration of installation procedures ..........................5 3. OPERATING INSTRUCTIONS ............................8 3.1 Introduction to the MASTER CONTROL panel....................... -
Page 3: Introduction And Features
1. INTRODUCTION AND FEATURES 1.1 Product Introduction This surveillance unit can be installed in many different places such as: (homes, shops, offices, etc.). It is designed with four objectives; to be Economical, Functional, Easily Installed, and User Friendly? 1.2 Product Features ?? An economic solution for home, shop or building surveillance system. -
Page 4: System Installation Diagram
2.1 System Installation Diagram 2.2 Installation Procedure VIDEO IN POWER IN RELAY OUT VIDEO OUT COM/NO/NC MONITOR QUAD DC 12V Back Panel §Terminal Function Description. Terminal Function Description DC 12V DC Power Input DC POWER INPUT terminal: 12Vdc±10%. Jack COM/NO/NC Alarm Triggered Alarm output N.O. -
Page 5: Illustration Of Installation Procedures
QUAD Video signal This is the video signal output for connecting to an external output BNC type VCR. Terminal External video signal input BNC This is the video signal input for connecting to an external type Terminal VCR. from the VCR CH1 video signal This is the video signal input for connecting from an input BNC type... - Page 6 Item Diagram Setup Expatiation Specifications of the Connector Wires: SOLID WIRE ?? Insulator stripped off length: 8.5 +0.5 / 2.3.3- -1.5? ? ?? Maximum gauge: ? =2.3? ( 14~ 24AWG) ? STRANDED Connect the external VCR system line (External VCR Start Record) into the RELAY OUT terminal.
- Page 7 Shown below is an illustration of CCTV/ VCR setup - "RELAY OUT". L A Y “External Start Record” connector on the VCR ? Attention! The maximum voltage and current for the relay out is DC24V/2Amp. Step 3: Plug one end of the power adaptor into the "DC IN" socket and the other end into the AC power socket as shown below.
-
Page 8: Operating Instructions
3. OPERATING INSTRUCTIONS 3.1 Introduction to the MASTER CONTROL panel ¡ ö ¡ ÷ ¡ Ï ¡ Ð NEXT PAGE AUTO QUAD PLAY MENU FREEZE Front Panel? Operation Key Function Descriptions. Mode PLAYBACK PLAYBACK AUTO Seq. ?FREEZE Normal Mode MENU Mode Mode Mode FREEZE Mode... -
Page 9: Operating Instructions
Light Mode FREEZE Mode Mode QUAD LED AUTO LED MENU LED PLAY LED light flash light light 4 LED light or 4 LED light 4 LED light 4 LED light 4 LED light ¡ Ð dark (AUTO LED Freeze / dark) Enter to 2?2 Freeze / Release... -
Page 10: Sequence Mode
? FREEZE the Channel: Press key [1~4], the 1~4 LED will turn on and freeze the image. To unfreeze, press? QUAD? key again or wait until the FREEZE HOLD TIME period you have set elapses. ? PIP / POP DISPLAY: Displays Channels 1~4 PIP or POP on the monitor by pressing the function keys [1~4] to display images. -
Page 11: System Setup
? Press key [1 ~ 4 ] again in 2 ?2 zoom image display, the processor will then freeze1 ~ 4 quadrant 2 ? 2 zoom image and the message “FREEZE” will be shown on the monitor. To unfreeze, press? QUAD? function key, or press key [1 ~ 4 ] again. -
Page 12: Display Setup
Figure 2. DATE / TIME display location ? When the MONITOR OUT DATE / TIME is set to “ON”, the DATE / TIME will be shown on the MONITOR OUT display. ? When the VCR OUT DATE / TIME is set to “ON”, the DATE / TIME will be shown on the QUAD OUT display. -
Page 13: Title Setup
Figure 3. ? BRIGHT: Adjusts image brightness per channel [1~4]. The brightness range: 0~99. ? CONTRAST: Adjusts image contrast per channel [1~4]. The contrasts range: 0~99. ? HUE: Adjusts image hue (color saturation) per channel [1~4]. The HUE range: 0~99. 3.2.4.4 TITLE SETUP. -
Page 14: Motion Setup
3.2.4.5 MOTION SETUP. MOTION SETUP POWER ON MOTION AUTO SENS MD.NUM RE DET CH1: 70 64 OFF AREA CH2: 70 64 OFF AREA CH3: 70 64 OFF AREA CH4: 70 64 OFF AREA BUZZER ALARM TIME: 3 SEC RELAY OUT TIMER: 8 SEC Figure 5. -
Page 15: Pip\Pop Setup
??Press the« + » or« - » buttons to change the cursor up and down. Pressing them more than 1 second allows the cursor to change quickly up and down. ??Button« AUTO» is used for enabling (green window) or disabling (clear window) a detection window. -
Page 16: Load Default & Watch Alarm List
? PIP – Places a small video image from a single channel within the Full Screen Display of the listed channel. Allows user to view 2 channels at once. ? POP – Places a small video image from the remaining 3 channels within the Full Screen Display of the listed channel. - Page 17 P: 01 P: 01 NO AT CH YY.MM.DD HH\MM\SS NO AT CH YY.MM.DD HH\MM\SS ..........01 VL 2 2003.08.25 12:35:07 NO ALARM RECORD... 02 MD 3 2003.08.25 15:05:32 03 MD 1 2003.08.26 09:52:46 LAST ALARM LIST ERASER 04 VL 4 2003.08.27 18:22:21 AT:2003.08.27 12:37:10 Figure 8: Alarm event list Figure 9: Alarm message after Load...
-
Page 18: Precautions
4. PRECAUTIONS 1. Keep away from moisture, fire, and vibration. Do not remove the cover to avoid the risk of electric shock. 2. Keep the temperature between -10? ~50? , relative humidity lower than 85%. 3. Keep the unit well ventilated. Do not stack anything on the top of this processor. 4. - Page 19 Prior to shipment, a RETURN AUTHORIZATION must be obtained from SECURITY LABS; this will assist us in more efficient service on your unit, and possibly avoid shipment if the adjustment can be made over the phone. If shipment is made, the cost for postage, insurance and shipping of the product is the responsibility of the owner.
