Hill Audio Andante SMA-1020 User Manual

Andante series precision 2-way active speaker system
Hide thumbs Also See for Andante SMA-1020:

Advertisement

Table of Contents

RevA 06-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Andante SMA-1020 and is the answer not in the manual?

Questions and answers

Related Manuals for Hill Audio Andante SMA-1020

Summary of Contents for Hill Audio Andante SMA-1020

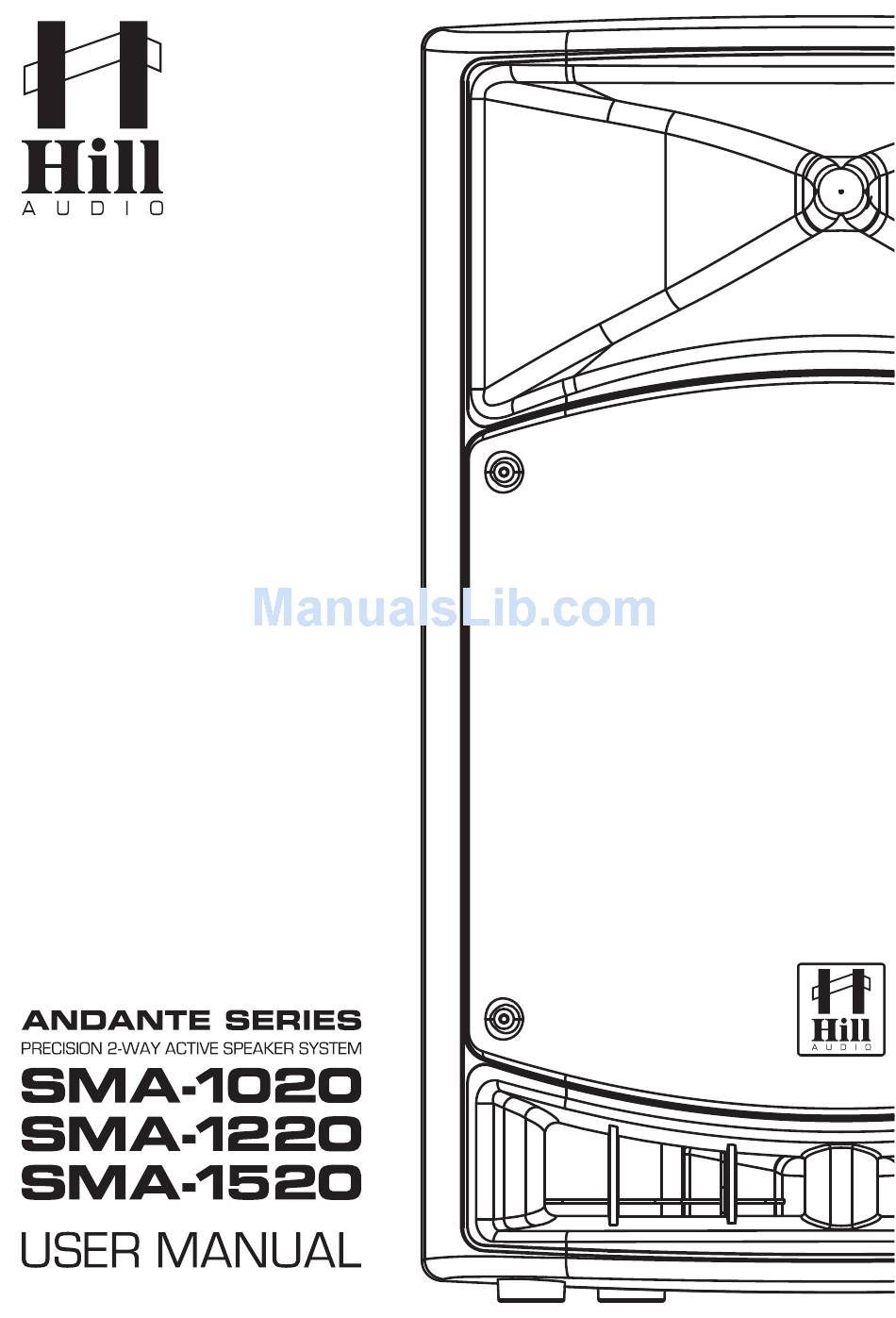

  • Page 1 RevA 06-2013...

  • Page 2: Important Safety Instructions

    USER MANUAL - ANDANTE ACTIVE SPEAKERS Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English.
  • Page 3 USER MANUAL - ANDANTE ACTIVE SPEAKERS Description The Andante series is a series of lightweight, highly portable bi-amplified active PA speakers with an extremely versatile feature set for a broad range of purposes including bands, mobile DJs, confer- ences and events. Using impact-resistant Polypropylene (PP) as the cabinet material and a high- headroom hybrid class AB + class D amplifier, these speakers are both robust in their handling and powerful in their performance.
  • Page 4 USER MANUAL - ANDANTE ACTIVE SPEAKERS B3. Suspended from ceiling or truss (“Flown” installation). DANGER - risk of injury: Flown installation requires extensive experience, like calculating working load limits, knowledge of installation materials, and periodic safety inspection of all installation material and the flown product. If you lack such qualifications, do not attempt the installation yourself.

  • Page 5: Operation

    USER MANUAL - ANDANTE ACTIVE SPEAKERS Operation User Interface PAGE 4...
  • Page 6 USER MANUAL - ANDANTE ACTIVE SPEAKERS Functional Description Andante speakers offer a user interface which resembles a basic 3-channel mixer. While the main input (CH1) is supposed to be a mono signal, the auxiliary inputs (CH2 and CH3) can be stereo signals, of which it can be decided whether they are summed to mono and played by the internal speaker or whether the left channel is played by the internal speaker and the right channel is sent to a 2nd speaker.
  • Page 7 USER MANUAL - ANDANTE ACTIVE SPEAKERS CH2 RCA Audio Input. This is a pair of RCA sockets to connect regular stereo audio equip- ment. Note that this input is disabled when a connector is inserted into the CH2 TRS audio input (11).

  • Page 8: Application Examples

    USER MANUAL - ANDANTE ACTIVE SPEAKERS Output High Pass filter. This removes all frequencies below 120Hz with an 18dB roll-off from the internal speaker. Main purpose is to remove low-frequency content when operating with an additional subwoofer. This high-pass filter complements the low-pass filter (15) for the Link output (16), so that the internal speaker does not carry content below 120Hz, while a subwoofer connected to the Link output (16) carries all frequencies below 120Hz.
  • Page 9 USER MANUAL - ANDANTE ACTIVE SPEAKERS B. Applications using an external mixer Microphones Audio Player (stereo) Musical Instrument Audio Mixer SPEAKER A SPEAKER B Fullrange application for conferences, fashion shows, background music Satellite/Subwoofer application for mobile DJs and bands First Subwoofer Second Subwoofer (optional) Andante Speaker can be complemented with subwoofers.
  • Page 10 USER MANUAL - ANDANTE ACTIVE SPEAKERS Connections The Andante series speakers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.

  • Page 11: Technical Specifications

    USER MANUAL - ANDANTE ACTIVE SPEAKERS Technical Specifications Model SMA1020 SMA1220 SMA1520 LF driver 10'' with 2'' VC 12'' with 2.5'' VC 15'' with 2.5'' VC HF driver 1.35'' 1.35'' LF amplifier 150W class D 250W class D 250W class D HF amplifier 40W class AB 50W class AB...

  • Page 12: Ec Declaration Of Conformity

    ROHS Directive 2002/95/EC and is marked as follows: Shoeburyness, 28. June 2013 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Vanguard Way, Shoeburyness, Essex SS3 9QY, UK www.adelto.com | sales@adelto.com...

This manual is also suitable for:

Andante sma-1220Andante sma-1520
