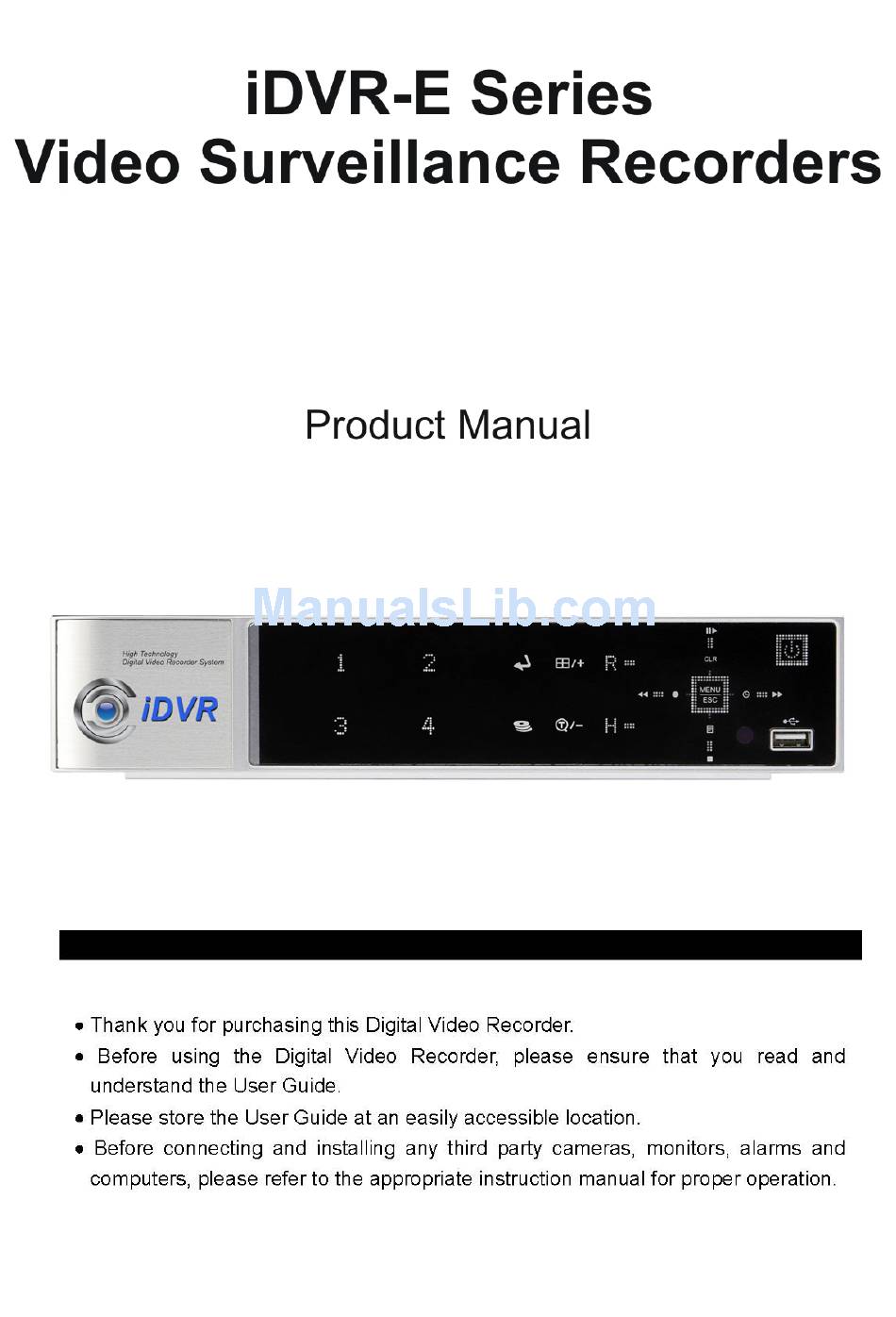

cctv camera pros E Series Product Manual

Video surveillance recorders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Related Manuals for cctv camera pros E Series

Summary of Contents for cctv camera pros E Series

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un insulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Contents Disclaimer ....................5 Warning ....................5 Caution ....................7 Preventing Malfunction ................7 Package Contents .................. 8 I.CONTROLS ................... 9 1. Front Panel ...................... 9 2. Rear Panel Connectors ................12 3. Remote Controller ..................13 4. Virtual Keypad for Mouse Control.............. 14 II.
  • Page 4 6.1. Record Setup ........................36 6.2. Alarm Setup ........................37 6.3. Recording Priority ......................38 7. Schedule Recording ..................40 8. Network Setup ....................43 8.1. IP setup ..........................43 8.2. E-Mail ..........................45 8.3 DDNS ..........................46 8.4. MISC..........................47 9.
  • Page 5 2.2. Functions ......................... 71 3. DVR Control ....................82 3.1. Set List Manager ......................82 3.2. Condition of DVR ......................84 3.3. Indication of Camera ...................... 85 3.4. Live Viewing ........................86 3.5. Context Menu ........................88 3.6. Playback ........................... 90 3.7.

  • Page 6: Disclaimer

    Disclaimer The information in this manual is believed to be accurate and reliable as of the date of publication. The information contained herein is subject to change without notice. Revisions or New editions to this publication may be issued to incorporate such change We makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Digital Video Recorder, the software, the hard drives, personal computers, peripheral devices, or unapproved/unsupported devices.
  • Page 7 Do not use substances containing alcohol, benzene, thinners or other flammable substances to clean or maintain the equipment. The use of these substances may lead to fire. Use a dry cloth on a regular periodic basis and wipe away the dust and dirt that collects on the device.

  • Page 8: Caution

    Caution Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Do not use the appliance in an extreme environment where there is high temperature or high humidity. Use the device at temperatures within +0°C - +40°C (32°F - 104°F) and humidity below 90 %.

  • Page 9: Package Contents

    Package Contents Please check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit, contact the supplier immediately. If the unit must be returned, it must be shipped in the original packing box. CONTENTS QUANTITY REMARK...

  • Page 10: I.controls

    I.CONTROLS 1. Front Panel < 4Channel > < 8Channel> < 16Channel> 1. Mode indicator : 3 LEDs display the status of the Digital Video Recorder. Power (Blue), Recording (Red) and HDD (Green) DIGITAL VIDEO RECORDER...
  • Page 11 Playback / Record control: These functions are used in Live Mode or Playback mode. 1) Direction buttons: In Menu setup mode, used to move the cursor. [LOG / Playback Stop] ① Log : Press this button to access to log list. ②...
  • Page 12 5. . QUAD : Press this button to display the cameras in multi-screen view. 6. . Channel / Numeric Buttons : Press the buttons to enter data or make selections. Press “–” or “+” to enter appropriate numbers when prompted for a password, or appropriate dates in schedule option mode.

  • Page 13: Rear Panel Connectors

    2. Rear Panel Connectors 1) CAM1~4 or 1~8: BNC input (Camera 1~4 or 1~8) connectors 2) MONITOR (Composite Output) : BNC standard composite video output connector. 3) SPOT : Spot out connector 4) AUDIO Input / SPEAKER (Output) connectors : RCA 5) VGA out connector 6) LAN (RJ-45 Ethernet Port) : For connecting to remote PC via Ethernet network.

  • Page 14: Remote Controller

    3. Remote Controller DIGITAL VIDEO RECORDER...

  • Page 15: Virtual Keypad For Mouse Control

    4. Virtual Keypad for Mouse Control. This DVR can be controlled by Mouse. Connect a mouse via USB port before use. If you click right button of your mouse in Live mode and Playback mode, you will see following virtual Remote controllers respectively and Virtual Keypad will be shown to enter PASSWORD and Camera Name etc Repositioning TIME SEARCH...

  • Page 16: Installation & Connections

    II. INSTALLATION & CONNECTIONS 1. Camera, Monitor, Microphone, Alarm sensor and Power cord 1-1. System Configuration Diagram The following illustration is showing the fully installed system. Main Monitor ALARM PTZ CAMERA Spot Monitor INTERNET COMPUTER DIGITAL VIDEO RECORDER...
  • Page 17 1-2. CAMERA This product can be installed up to 4~8 cameras. Connect cameras to the VIDEO IN (BNC) on the back panel of the system. To connect a PTZ camera, connect the PTZ camera’s control line to the RS-422 TX+, RS-422 TX- terminal and connect the video output to one out of VIDEO IN on the back panel of the product.
  • Page 18 1.3 AUDIO The system has one channel audio input and output. If you wish to record and playback audio signal, connect the proper audio device (microphone) to the AUDIO IN (1 Vp-p @600 ohms) and speaker to the AUDIO OUTPUT (See illustration below). 1.4 MONITOR There are three video outputs (2-BNC, 1-VGA) on the rear panel of the system.

  • Page 19: Pc System Requirement For Network Connection

    2. PC system requirement for Network connection. (a) Pentium-4 2.0GHz or higher (b) 256MB System Memory (c) 1,024 x 768 Display Resolution, 32 Bit color (d) Windows XP, VISTA (e) Spare 10/100-BaseT Ethernet Port (f) Microsoft DirectX 9.0c It is recommended to have DirectX 9.0c version in Client PC. DirectX 9.0c is available for download from Microsoft homepage (www.microsoft.com/windows/directx) <Disclaimer>...

  • Page 20: Iii.quick Setup

    QUICK SETUP III. To turn on the DVR, press [POWER] button on the front panel or on the remote controller. When the Digital Video Recorder is powered on, the Live Viewing screen will appear in about 30sec. 1) Stop recording first to set QUICK SETUP menu. While DVR is recording, TIME and RECORD menu is not activated.

  • Page 21: Time

    1. TIME When the Digital Video Recorder is powered on for the very first time, it is important to set the exact date and time., 1) Select “Time” on TAP menu by using Directional buttons. 2) Enter the Date and Time by pressing numeric buttons on the remote controller or “–/+”...

  • Page 22: Record

    2. RECORD This is an easy setup for recording. 2-1. RECORD MODE 1) Select “RECORD MODE” on TAP menu by using Directional buttons. 2) Select MODE by pressing “–/+” buttons on the remote controller or on the unit. 3) Press [ENTER] button to exit a menu with saving changes. Press [ESC] to exit a menu without making changes.

  • Page 23: Advanced

    2.4 RECORD SETUP INFO This displays the picture quality and recording speed. START RECORDING NOTE : When setup is finished, press [REC] button on the front panel or on the remote controller to start recording, 2. For individual recording setup of each channel and more specified setup, enter into RECORD in main menu.

  • Page 24: Iv.live Viewing

    IV.LIVE VIEWING 1. Display Overview Recording Mode Event Indicator Camera No and Title Status (1) Indicate Alarm In terminal is triggered by an alarm sensor. To disappear, press [CANCEL/ESC] button on remote controller or [CLR] button on the front panel. (2) Indicate Motion detected.

  • Page 25: Multi Screen Display And Sequencing

    2. Multi screen Display and Sequencing 2.1 Full Screen Display Select any camera for Full screen display by pressing the Number button of the desired camera. 2.2 Multi screen Display and Sequencing Display. Press [DISPLAY] buttons to activate the multi-screen display. It is changed the order as shown below among your choice of SPLIT MODE.

  • Page 26: Repositioning

    2.3 Repositioning To reposition a camera view on screen, 2.3.1. Virtual Remote controller ① Press button on virtual remote controller by using mouse, then Mark will be displayed on screen. Move icon to the desired position by pressing directional buttons on remote controller or virtual control pad. ②...

  • Page 27: Zooming

    3. Zooming During live view mode or playback, it is possible to zoom into a section of the screen to get a close-up view of the screen. 1. To activate the digital zoom, select the full screen display of the camera you wish to zoom.

  • Page 28: Operation

    V. OPERATION 1. Main Menu Overview When the DVR is powered on, Live Viewing screen will appear after initialization about 30sec. Press [MENU] button to access the main menu. An Admin Password Box will appear. Enter the password using Numeric buttons on IR remote controller or CH increase button on Front Panel.

  • Page 29: Display Option

    2. Display Option 2.1. Display Setup 1. Use Direction buttons [ ] to select “DISPLAY” menu. Then, press [ENTER] button to display “DISPLAY SETUP”. 2. Use Left/Right buttons [ ] to select on TAP menu ( Selected items will be highlighted. 3.

  • Page 30: Sequential Setup (Auto Sequence)

    2.2. Sequential Setup (Auto Sequence) ITEM DEFAULT ADJUSTMENT 2 Sec Specify the dwell time of each camera or Multi-screen mode is DWELL TIME [-, +] button : displayed. Use [1 second ~ 30 second] SEQ. MODE None Select desired sequence mode to switching. Select the cameras to be included or excluded from the FULL SCREEN automatic sequencing.

  • Page 31: Camera Setup

    3. Camera Setup Use Direction buttons [ ] to select “CAMERA” menu. Then, press [ENTER] button to display “CAMERA”. 2. Use Left/Right buttons [ ] or Number button to select the Camera you wish to configure. 3. Use Down [ ] button to move specified menu and use Left/Right buttons [ ] to select other item.
  • Page 32 Press Press Press Press Press Press Press Press SPACE <Insert characters from IR Remote Controller > DIGITAL VIDEO RECORDER...

  • Page 33: Motion Recording

    4. Motion Recording 1. Use Direction buttons [ ] to select “MOTION” menu. Then, press [ENTER] button to display “MOTION”. 2. Use Left/Right buttons [ ] or Number button to select the Camera you wish to configure. 3. Use Down [ ] button to move specified menu and use Left/Right buttons [ ] to select other item.
  • Page 34 Motion Detected zones USE Numeric button to select Motion Grid. GRAY Will be cleared. Or Use <+> button to select Motion Grid at Front Panel. Running Man Icon will be activated. <+> button is used for selecting and cancel. Use <-> button to escape from Grid Menu.

  • Page 35: Continues Recording (Normal Recording)

    5. Continues Recording (Normal Recording) The DVR comes with a certain preset settings from the factory. Therefore once the DVR is installed, immediate recording is possible after pressing the record buttons. By default, audio alarm, motion recording are off. １. Use Direction buttons [ ] to select “RECORD”...
  • Page 36 5. Save changes and exit the menu, press [ENTER] button. 6. Press [REC] button. Then, the red REC LED lights on the front panel and recording starts. 7. To Record stop, press the “ STOP” button on IR remote or [REC] button again on Front Panel.

  • Page 37: Alarm Recording

    6. Alarm Recording Please verify the alarm record settings prior to starting alarm recording. Please note that alarm recording is independent of any recording modes. Alarm record starts after Alarm Record Enable. 6.1. Record Setup Use Direction buttons [ ] to select “ALARM” menu. Then, press [ENTER] button to display “Alarm Record Setup”.

  • Page 38: Alarm Setup

    6.2. Alarm Setup ITEM ADJUSTMENT Determines the duration of recording after the alarm signal has been RECORD TIME activated. [10SEC ~ 300SEC] ALL: Start to record All Alarm “ON” channel if there is any Alarm signal is RECORD CAMERA triggered. 1:1: Start to record the channel, which Alarm is triggered.

  • Page 39: Recording Priority

    6.3. Recording Priority <Example 1> ALARM RECORDING STATUS RECORDING STATUS MOTION Resulting Actions: Press the REC button to commence alarm recording based on the configuration shown above. (Recording Quality (Super), Frame Rate (6F/S) and Audio). The system will revert back to stand by mode once alarm recording is finished. The DVR system starts recording only when an alarm is activated.
  • Page 40 <Example 3> ALARM RECORDING STATUS RECORDING STATUS MOTION Resulting Actions: Press the REC button to commence motion recording based on the configuration shown above. (High picture quality at 3 F/S without audio). If an alarm is triggered on this channel, the configuration will be changed to Super picture quality at 6F/S with Audio.

  • Page 41: Schedule Recording

    7. Schedule Recording The schedule chart shows a graphical representation of the defined record mode: Mode1~4. However, the schedules are only displayed if a corresponding schedule has been configured in the schedule menu. １. Use Direction buttons [ ] to select “SCHEDULE” menu. Then, press [ENTER] button to display “Schedule Chart”.
  • Page 42 (1) BEGIN: The time of recording start. (2) END: The time of recording end. The ending time must not be before the starting time or the same as the starting time. It must be any time over the starting time. (3) MODE: Up to 4 different recording modes can be pre-determined for schedule recording.
  • Page 43 Summary of combination RECORD ALARM SCHEDULE RECORD MODE MENU CAMERA MOTION Normal MODE 1~4 Continuous RECORD Motion RECORD Alarm ALARM Schedule SCHEDULE Schedule Motion SCHEDULE Normal and Alarm RECORD &ALARM Motion and Alarm RECORD &ALARM Schedule and ALARM &SCHEDULE DIGITAL VIDEO RECORDER...

  • Page 44: Network Setup

    8. Network Setup The static service consists of an IP address that remains constant for the duration of the contract of the internet service, whereas the dynamic service consists of an IP address that frequently changes every time a new connection is made through the provided modem, or recurrently in a given period of time.
  • Page 45 Select “0000 ~ 9999” The DVR’s connection port can be adjusted in case the default port 7000 PORT is blocked. The DVR’s service port may be modified to allow the connection from CMS. How to connect the DVR via Network to use DDNS <Note>...

  • Page 46: E-Mail

    8.2. E-Mail The DVR is capable of sending e-mails when an event occurs to up to 5 different e-mail addresses: Alarm , Video Loss, Power Loss (when power recovered), HDD Failure. There are two types of sending e-mail method; Using “Unique” or “Public/ your own mail server”.

  • Page 47: Ddns

    8.3 DDNS ITEM ADJUSTMENT OFF : NO use of DDNS DEFAULT : use default “dvrhost.com” server for DDNS. If your DVR’s host name(SYSTEM >INFO) is X52AD25, Your DVR’s DDNS address is http://X52AD25.dvrhost.com:portNO DYNDNS : to use “Dyndns.com” domain. Domain Name Enter your domain name if you use “Dyndns”...

  • Page 48: Misc

    8.4. MISC. ITEM ADJUSTMENT BANDWIDTH “Unlimited” is set by default. Select “64 KBPS ~ 8 MBPS” DIGITAL VIDEO RECORDER...

  • Page 49: System Setup

    9. System Setup 9.1. General １. Use Direction buttons [ ] to select “SYSTEM” menu. Then, press [ENTER] button. ２. Use Left/Right buttons [ ] to select on TAP menu ３. Use Down button [ ] to specify the detail. Use [-, +] button to change the value.

  • Page 50: Time

    RUN ON BOOT This is the purpose to start REC without pressing REC button when you turn on. PASSWORD if you choose “OFF”, The password window will not be shown except POWER/ SERVICE MENU/ RECORDING STOP/ SCHEDULE RECORDING STOP. FACTORY •...

  • Page 51: Account

    9.3. Account Admin can define each user’s Authority. Select User 1~5 , then select Activate option on or off. When enabled, it will be possible to check individually under user settings: Monitoring, Playback, Back up, Network, Configuration (Main Menu Setup), Shutdown (Power off). Enter the 6 numbers for the new password, and then re-enter the same password under COMFIRM section.

  • Page 52: Disk

    9.4. DISK ITEM ADJUSTMENT 1. Stop the DVR completely before the disk format. 2. Use [-, +] button to change select device. * Internal HDD, USB(Rear) * USB - Memory Stick * USB - CD/DVD-RW * USB- HDD <Note> FORMAT When you format USB-HDD, it is formatted to FAT32 format type.

  • Page 53: Update

    9.5. UPDATE 1) Download the latest firmware file and copy to USB Flash memory stick in the Root Folder. 2) Turn on your DVR (If you are using, please stop the recording) 3) Plug USB memory stick into the front USB port and check if USB icon shows up on the Status bar.

  • Page 54: Info

    9.6. INFO Press info button on IR remote to display the information. The other menu is blocked to move. This menu provides information such as listed below. Indicator CONDITION MODEL Display Channel Number and compression. HOSTNAME. Display hostname and Mac Address. LANGUAGE Display the language of this unit.

  • Page 55: Vi.pan/Tilt Zoom Control

    VI.PAN/TILT ZOOM CONTROL 1. P.T.Z .Menu To activate the Pan/Tilt Control, select the full screen display of the camera you wish to control. Then press the [ ] button. Shortcut Menu box pops up, as shown below. P/T/Z/FOCUS <Note > Please Refer to Help Menu for specific control. INDICATOR RESULTING ACTIONS Press this button to display “HELP”...

  • Page 56: Preset & Tour

    The layout of the PTZ interface conforms to the layout of the front of the DVR or the remote controller. Menu button is the guide anchor position for all other buttons. When in PTZ interface mode, all buttons used for the PTZ related operation. ** Please Check below items before using PTZ Camera.
  • Page 57 4. PTZ Camera Model - PAN/TILT/ZOOM Camera List Esc/ Model Name Speed Preset Go to Tour A. Pan A.Tilt Enter NUVICO, NV 9600 BPS MERIT LILIN, PIH- 7000/7600 VCL, Orbiter Microsphere SAMSUNG, SCC-641 NEC, NC-21D SUNKWANG, SK2107 RESERVED D-MAX, PTZ PROTOCOL LG, LPT-A100L P/T/Z HONEYWELL, GCC- 655N...
  • Page 58 ELMO, PTC-200C/400C NICECAM, MP-1xxx C&B TECH, CNB- PTZ102 <Note> Speed has 0~8 steps 1 (Slow) – 8 (Fast) * 0 – Keep Pressing the button to increase speed DIGITAL VIDEO RECORDER...

  • Page 59: Vii.search/ Playback

    VII.SEARCH/ PLAYBACK 1. Time Search 1. To start playback, press [Time Search] button, Time search Calendar Menu pops up, as shown below. 2. Use Left /Right button to change select Month on <Note> It will not be changed if there are no stored data on previous/next month. <Note>...

  • Page 60: Log List Search/Alarm, Motion Search

    2. Log List Search/Alarm, Motion Search The logs can be used to search and review directly to a point in time of the recorded data. Alarm, motion, video loss and system related logs can be searched and played back directly from the time of the incident.

  • Page 61: Viii.backup

    VIII.BACKUP 1. USB Memory Stick Backup 1. Insert a USB Memory Stick into the USB connection port on the front panel. Make sure your USB device has enough space before commencing backups. <Note> 2. Press [BACKUP] button on the front panel to display the backup menu. 3.

  • Page 62: External Usb Hdd Backup

    2. External USB HDD Backup * External USB-HDD, CD/DVD-RW is recognized within 10 seconds after plug in UBS connection cable to UBS port in DVR. -Before progress to Backup, refer to below Note first. <Note 1.> Stop recording to back up when you want to back up by using external HDD or CD/DVD – <Record mode>...
  • Page 63 -Start to backup To Read USB backup HDD in Window, please use FAT32 formats. To use bigger size HDD, you need to format in our own methods. Format is discussed in “SYSTEM>DISK” Section. 1. Plug in USB connector into the USB connection port on the front panel. 2.
  • Page 64 <CF. FAT 32 Formats> There are two way to format HDD to FAT 32 type. 1-1. Format external USB HDD to FAT 32 type by DVR in disk of system menu. USB HDD will be formatted to FAT 32 type regardless of HDD capacity. <Note>...

  • Page 65: External Cd/Dvd -Rw Backup

    3. External CD/DVD –RW Backup <Note> Stop recording to back up first when you want to back up by using external HDD or external CD/DVD –RW. １. Plug in USB connector into the USB connection port on the front panel. ２.

  • Page 66: How To Play Backup Data In Usb Memory Stick Backup

    4.How to Play Backup data in USB Memory Stick Backup 1. With “MCD Player” - Plug a USB memory stick into your PC. No software installation is required. 2. Double Click on “MCD Player” in the window and will play as follows. Channel Select FF/FR Watermark...

  • Page 67: Back Up Range Setup

    5. Back up Range Setup It is possible to set up backup range automatically on Time Search Menu[by Month, Date, Hour, Minute] Press [-] button to set backup Start time , press [+] button to set End. Selected time will be changed [Light Grey] Color.

  • Page 68: Ⅸ.client Program

    Ⅸ.CLIENT PROGRAM - Central Management Software DIGITAL VIDEO RECORDER...

  • Page 69: Dvr Player Program Introduction

    1. DVR Player Program Introduction The DVR player Software allows you to view live video, search through archived video, control PTZ camera and have full setup control. DVR player Software is a kind of Central Management Software for DVR users to fully control up to 10 DVRs (based on 4 channels) simultaneously at a central station. The DVR system can have up to 3 simultaneous Remote Connections.

  • Page 70: How To Install

    1.2. How to Install (1) Insert “Client Install CD” to CD-ROM of your PC and Find “DvrPlayerinstaller.exe” and double click (2) Click 「NEXT」 button below: (3) Click 「Install」. Otherwise, designate a directory for Install then Click “Install”. (4) Click 「Close」Button after below images appears. (5) The ICON of CMS will be displayed on your desktop.
  • Page 71 (6) Double click the ICON to start, enter the password to access. * Enter “0” as the default password. Refer to CMS Setup to change the password. To get rid of this screen, Press “ESC” DIGITAL VIDEO RECORDER...

  • Page 72: Features

    2. Features 2.1. CMS Overview Multiscreen selection Current CMS Mode Time and Date Live /PB mode Switch Quick Button Playback Button Pan/Tilt Control Power ON/OFF Health Report DVR Window Virtual DVR Window Add/Delete DVRs Live Viewing Camera CH No. Audio Volume 2.2.
  • Page 73 It shows you current time on LIVE Mode and Playback time on PB mode. Month Date Day of Week Hour Minutes Seconds (3) Live /Playback mode Switch LIVE Viewing. Remote Playback or Playback for Downloaded file. (4) Quick Button Save the current live images. When the remote recording is in progress, the record button will change its color to cyan.
  • Page 74 * CMS Setup ① General 1 a) OSD SETUP Select On-Screen-Display information such as the Time, DVR name, Camera Number, Camera Name, Frame Rates for each camera. b) OVERLAY (Default) It is recommended to use OVERLAY for transmission speed up. Please cancel the Overlay function if there is broken screen caused by Invalid Video Driver installed.
  • Page 75 GENERAL 2 ② a) POS Setting to limit the POS item search. <Not supported this model> b). Log Setting to limit the Display of Logs. c). Check Watermark Setting to check for watermark. d) Auto Full Screen for Alarm Event Setting to perform a full screen pop-up for alarm event.
  • Page 76 ④SOUND Audio alert setting for the CMS. You can toggle to enable the sound or to disable the sound from the software. • Connect: CMS will emit a sound when a DVR connects. • Disconect: CMS will emit a sound when a DVR disconnects. •...
  • Page 77 PAN/TILT Control button. Switch to Full Interface Switch to Compact Interface Zoom IN Zoom Out If one or more Pan/Tilt/Zoom Cameras are installed on the DVR, they can be individually selected and controlled using the PTZ control box. To control a channel-specific PTZ camera, simply click on the channel where the PTZ camera is connected.
  • Page 78 c. Iris Indicator Resulting Actions Iris Open Iris Close Iris Auto d. Tour Indicator Resulting Actions Set Tour by clicking. Total address is depends on connected Pan/Tilt Camera. Go To, Calls up preset Start Automatic Tour e. Special Function Key It has various function depends on PTZ camera f.
  • Page 79 HEALTH Displays the name of the last five DVRs with an problem or event. The color will change appropriately based on the event or problems reported from the DVR. The color changes to red when critical functions of the DVR is interrupted or has failed: Connection Fail, Connection time out, Disconnect Power Fail, Fan Lock, System Fail, HDD Fail, Power Fail Recover, Fan Lock Recover, System Fail Recover, HDD Fail Recover...
  • Page 80 * Health Report Health Report menu is provided so that users may quickly overview all the condition of connected DVR. You can check maximum 300 DVR statuses such as Failure, Event, Recording Mode and etc Health Report can be accessed at any time by double-clicking “HEALTH”. The detail log lists can be showed by double clicking Name on Health Report or ICON on DVR Window.
  • Page 81 ** DVR Property The Property of DVR can be viewed by Double Click “DVR NO or DVR NAME”. This menu provides information such as listed below. a. DVR MODEL b. SYSTEM TIME: Display the time and date of DVR c. RECORD : Configure current Normal recording channel.
  • Page 82 ** CMS LOG LIST This menu provides CMS log while CMS is operating. For more specific information for each DVR, please refer to DVR Log list. ** DVR LOG LIST - It shows the same log list with DVR Set. It has a list of all the events since the initial power on procedure of DVR.

  • Page 83: Dvr Control

    3. DVR Control 3.1. Set List Manager - Set List Manger is mainly used to add or delete DVR on CMS. Click button to start the Set List Manager. (1) Auto Scan It automatically tracks down DVRs connected local network but skips over already on the list.
  • Page 84 (3) DEL FROM LIST: Delete selected DVR from CMS List. (4) SETUP: It shows the menu setting of selected DVR. (5) PROPERTY: This menu provides information such as DVR Name, IP number & port, Software version, and what kind of DVR is. DIGITAL VIDEO RECORDER...

  • Page 85: Condition Of Dvr

    3.2. Condition of DVR The condition of DVR menu is provided so that users may quickly check the condition of each connected DVR. Each Icon means listed below. (1) Normal Blue colored DVR means the DVR is working without any problem. When you click this icon, it displays current live view.

  • Page 86: Indication Of Camera

    3.3. Indication of Camera In addition to the Health Status Report and supplementary information from the DVR icons in DVR window, the Camera Status Bar displays the status of individual cameras. The cameras are displayed according to the channel. (1) Click the desired DVR (2) then it shows the information of camera.

  • Page 87: Live Viewing

    3.4. Live Viewing Individual DVR monitoring Double click “ “ to display live. (2) On-Screen Indicators There are four types of on screen indicators. OSD Display can be chosen in the CMS Set UP. ② Time ① Camera Title ③ DVR status ④Frame Rate 1) Camera Title: Displays the following orders: Camera Number- DVR Name or Host Name -Camera title...
  • Page 88 (3) Multi-screen Display Click the individual Multi-screen buttons to display corresponding multi-screen. (4) Change the camera position. Click on each camera to directly switch the desired camera. (5) Full Screen Display There are 2 way of Full Screen display. 1) Select any camera for Full Screen display by double clicking the window of desired camera.

  • Page 89: Context Menu

    3.5. Context Menu The context menu allows access to the submenus for the channel, DVR and the Virtual DVR. The submenus allow access to various features for each individual submenu type. (1) There are three types of Context Menu during Live Viewing. Right Clicking to display Context Menu.
  • Page 90 (2) There are seven types of Context Menu on each DVR. 1) LIVE: Live display for selected DVR. 2) PROPERTY: DVR information 3) CMS LOG LIST 4) DVR LOG LIST 5) SETUP: See “DVR Menu Setup” 6) REMOVE: Delete the selected DVR from DVR Window. DIGITAL VIDEO RECORDER...

  • Page 91: Playback

    3.6. Playback DVRs that have been added onto the DVR window using the DVR Set List Manager can be accessed in Playback Mode for remote playback or to download the files onto the remote PC. Unlike the live mode, only one DVR can be accessed at a time (1) To start playback, press PB button (2) It will be switched to Playback Mode, as shown below.
  • Page 92 1) Remote Playback Remote Playback is provided so that users directly playback the stored video on the internal HDD through CMS. ① Select button and desired DVR. ② Remote Search shows a graphical representation of the recorded video stored on the DVR. The Data are color-coded by category: Alarm(Red) > Motion(Green) >...
  • Page 93 Remote Download Remote Download is provided so that users save on remotely connected computer through CMS. ① Select button and desired DVR. ② Remote Search shows a graphical representation of the recorded video stored on the DVR. ③ Select desired date and time and click button to start save.

  • Page 94: Select Button

    Download Complete: Current time will be changed to message “ Download Complete” after the download has been completed, as shown below. Click LOCAL Local Menu is mainly used to review the data downloaded from a DVR through CMS. ① Select button.

  • Page 95: Dvr Menu Setup

    3.7. DVR Menu Setup -DVR Menu Setup allows modification of various system settings to the DVR through CMS as it would be done accessing the DVR menu screen. - DVR set up can be accessed through the context menu from any DVRs Select any DVR for Menu setup.

  • Page 96: Virtual Dvr

    4. Virtual DVR 4.1. What is Virtual DVR. Virtual DVR is not an actual DVR, but a combination , or group of several DVRs already listed under the DVR window. Under one Virtual DVR set, up to 64 DVRs can be added, pulling one camera from each DVR to be displayed.
  • Page 97 (1) ADD to CMS List Please follow steps to Make Virtual DVR. 1) NAME: Enter Virtual DVR title to display on CMS window. * Auto Arrange : - Check this option to have the CMS arrange cameras with any of the events occurring from a virtual DVR with registered cameras.

  • Page 98: Editing Virtual Dvr

    4.3. Editing Virtual DVR Double click the desired Virtual DVR . The selected Virtual DVR will be activated and it is indicated with “ ▷ “ Select any of Multi screen to Display. There are two way to add cameras: one is Whole DVR and the other is selected camera on each DVR. 1) Whole cameras of desired DVR .

  • Page 99: Live Viewing On Virtual Dvr

    2) Any selected camera on DVR. ① Click any DVR on DVR Window while Virtual DVR is activating. ② After camera Icons diplyed, any camera on DVR to directly drag the desired channel. In the following exampels, Camera No 1 on 3 DVR is draged to Channel No 14.

  • Page 100: Appendix 1: View Only

    Appendix 1: VIEW ONLY Enter the IP address of the unit in the address page of the Internet Explorer. For example, type in http://192.168.0.250:7000 Above illustrates example of a unit when it is utilizing port 7000. You can either sign in with: admin or user. Next enter the password for the unit.
  • Page 101 DIGITAL VIDEO RECORDER...
  • Page 102 Revised at July 2009 Specifications 4CH / 8CH / 16Ch Video Input 4 , 8, 16 Video Output Composite, VGA, SPOT-OUT Compression H.264 Live Display Resolution NTSC 720*480, PAL 720*576 Alarm In/Out(Relay) 4/1 , 8/1 16/1 Operating System EMBEDDED LINUX System Control Key buttons, IR Remote Controller, Remote software(DVR Player) Live Display Speed...
  • Page 103 WEEE Symbol Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates, that it should not be disposed with other household wastes at the end of its working life.
  • Page 104 <Memo> DIGITAL VIDEO RECORDER...
